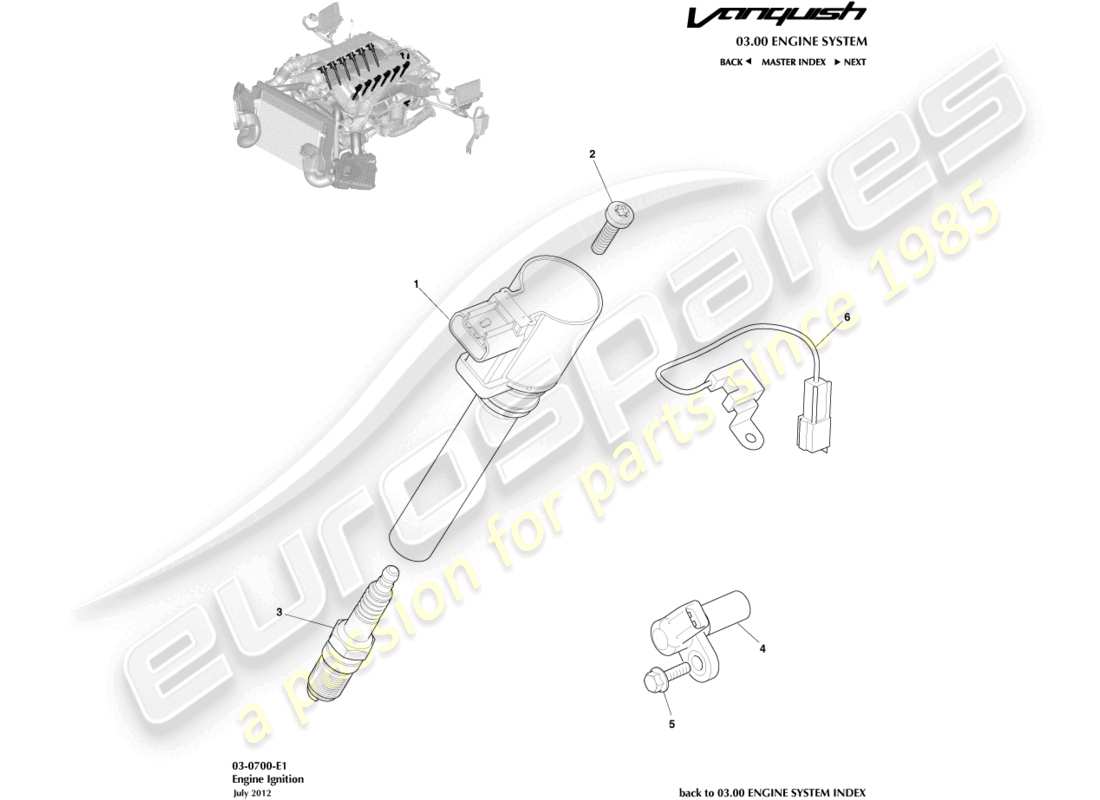

aston martin vanquish (2016) ignition parts diagram

03-0700-E1 - ignition

Aston Martin Vanquish (2016) Ignition Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 1
        MPN: 8G43-12A366-AA
        COIL ASSY, IGNITION
        Up To 15MY, AM11. Spanish Oak/Visteon EMS
        from £100.74
        from £100.74
        This part replaces part number 4G43-12A366-AA
        COIL ASSEMBLY, IGNITION 3 PIN Genuine Aston Martin - New In stock
        # 1
        MPN: ED23-12A366-AC
        COIL ASSY, IGNITION
        From 15MY, AM29. Bosch EMS
        COIL ASSEMBLY, IGNITION Genuine Aston Martin - New (to order)
        # 2
        MPN: CM5G-96309-AA
        SCREW, M5X25, TORX PAN HEAD
        AM11
        from £3.20
        from £3.20
        SCREW-M5 X 25 Genuine Aston Martin - New (to order)
        # 2
        MPN: 706273
        SCREW, M6X35, HEX HEAD
        AM29
        from £0.47
        from £0.47
        SCREW, M6X35, HEX HEAD Genuine Aston Martin - New (to order)
        # 3
        MPN: CD33-12405-AA-PK
        SPARK PLUG, PACK OF 4
        from £114.13
        from £114.13
        SPARK PLUG, PACK OF 4 Genuine Aston Martin - New In stock
        # 4
        MPN: 4G43-39-10014
        SENSOR ASSY, CAMSHAFT TIMING
        AM11, RH Inlet, LH Exhaust
        from £354.32
        from £354.32
        This part replaces part number 07-85754
        SENSOR-CRANK TIMING Genuine Aston Martin - New (to order)
        # 4
        MPN: 07-85755
        SENSOR ASSY, CAMSHAFT TIMING
        AM11, LH Inlet, RH Exhaust
        from £160.02
        from £160.02
        SENSOR CID LH Genuine Aston Martin - New (to order)
        # 4
        MPN: ED23-12K073-BA
        SENSOR ASSY, CAMSHAFT TIMING
        AM29
        from £71.87
        from £71.87
        SENSOR ASSEMBLY, CAMSHAFT TIMING Genuine Aston Martin - New (to order)
        # 5
        MPN: 702542
        BOLT, M6X20
        from £0.74
        from £0.74
        BOLT M6 X 20 Genuine Aston Martin - New (to order)
        # 6
        MPN: 07-85128
        CAPACITOR, RADIO SUPPRESSION
        CAPACITOR, RADIO Genuine Aston Martin - New (to order)
