aston martin vanquish (2016) steering rack, lhd parts diagram

11-0101-03 - Steering Rack, LHD

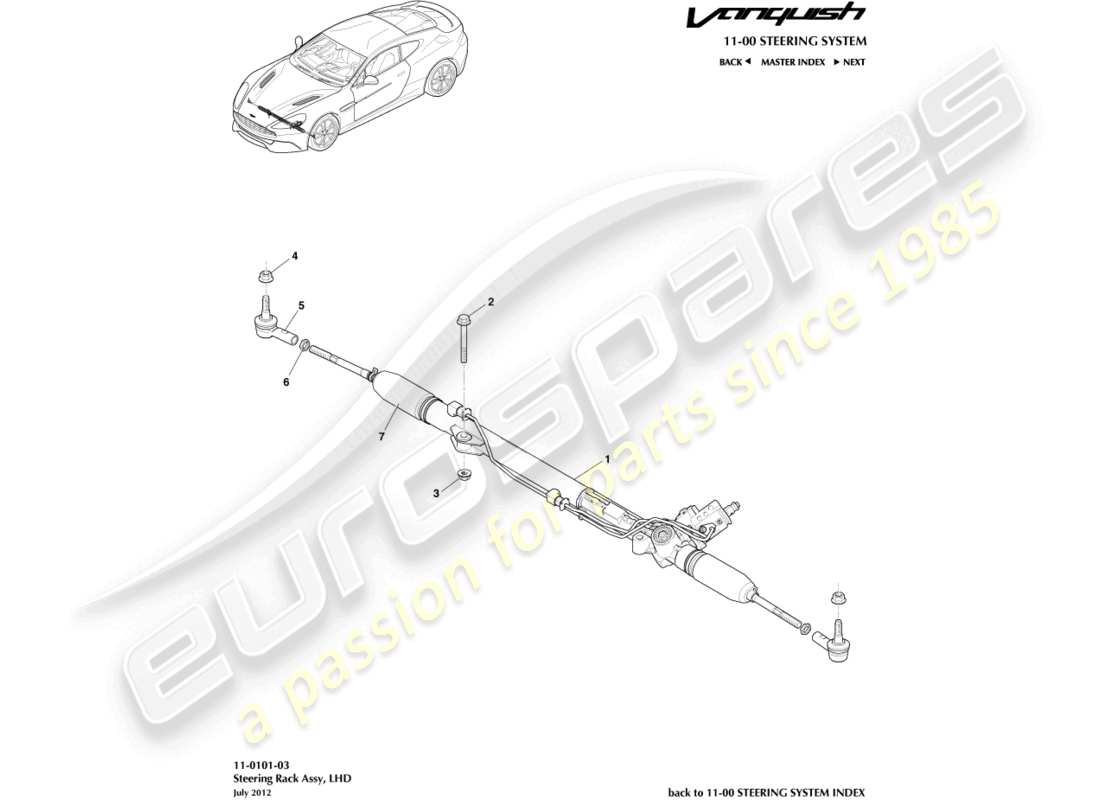

Aston Martin Vanquish (2016) Steering Rack, LHD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: CD33-3200-AA
          STEERING GEAR ASSY, LHD
          Coupe up to VIN J01106
          STEERING GEAR ASSEMBLY, LHD Genuine Aston Martin - New (to order)
          # 1
          MPN: CD33-3200-AB
          STEERING GEAR ASSY, LHD
          Coupe from VIN J01107
          from £6,366.94
          from £6,366.94
          STEERING GEAR ASSEMBLY, LHD Genuine Aston Martin - New (to order)
          # 1
          MPN: CD33-3200-AB
          STEERING GEAR ASSY, LHD
          Volante
          from £6,366.94
          from £6,366.94
          STEERING GEAR ASSEMBLY, LHD Genuine Aston Martin - New (to order)
          # 2
          MPN: 703180
          BOLT, M12 X 90, HEX FLANGE HD
          BOLT, M12 X 90 Genuine Aston Martin - New (to order)
          # 3
          MPN: 703565
          NUT, M12, HEX FLANGE HD
          from £0.74
          from £0.74
          This part replaces part number 699876
          NUT-M12 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
          # 4
          MPN: 703136-PK
          NUT, M14 X 1.5, NYLON
          Pack of 2
          from £4.44
          from £4.44
          NUT-M14X1.5 PTP (2) Genuine Aston Martin - New (to order)
          # 5
          MPN: 4G43-3289-AA
          BALL JOINT, M14 X 1.5, STEERING OUTER
          from £51.50
          from £51.50
          END ASSEMBLY STNG SPDL AR Genuine Aston Martin - New (to order)
          END ASSEMBLY STNG SPDL AR Eurospares Approved Part - New In stock
          # 6
          MPN: 4G43-3N807-AA
          LOCK-NUT, OUTER BALL JOINT
          NUT, LOCKING Genuine Aston Martin - New (to order)
          # 7
          MPN: 4G43-3C560-AA
          BELLOWS KIT
          Includes Clips
          from £72.00
          from £72.00
          BELLOWS KIT, INCLUDES CLIPS Genuine Aston Martin - New (to order)
          # -
          -
          TRANSDUCER, PRESSURE
          # -
          -
          FLUID, HYDRAULIC, ASM-CAM, 1 LITRE
          PENTOSIN
