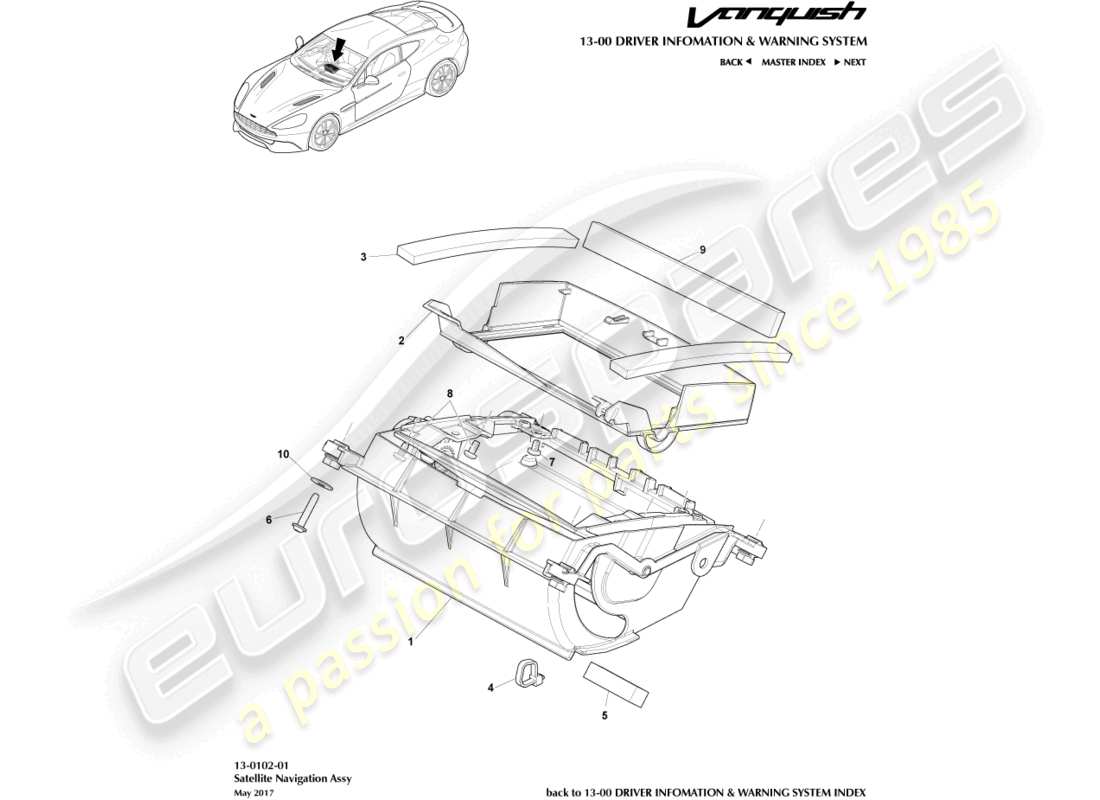

13-0102-01 - Sat Nav Assembly

Aston Martin Vanquish (2016) Sat Nav Assembly Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: CG43-10E990-AD
                      SUPPORT ASSEMBLY, NAV SCREEN
                      from £385.46
                      from £385.46
                      SUPPORT ASSEMBLY, NAV SCREEN Genuine Aston Martin - New (to order)
                      # 2
                      MPN: CG43-18C918-AB
                      BEZEL, NAV SCREEN
                      from £237.19
                      from £237.19
                      BRACKET NAV BZL Genuine Aston Martin - New (to order)
                      # 3
                      MPN: CG43-3G4610-AA
                      FOAM STRIP
                      from £0.84
                      from £0.84
                      FOAM STRIP NAV ASSEMBLY Genuine Aston Martin - New (to order)
                      # 4
                      MPN: 37-90075
                      CABLE TIE, 290MM
                      from £0.47
                      from £0.47
                      TIE STRAP-290MM Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 8D33-19H474-AA
                      ANTI RATTLE HOLDER
                      from £0.47
                      from £0.47
                      ANTI/RTL HLDR TRANS Genuine Aston Martin - New (to order)
                      # 6
                      MPN: CG43-56382-AB
                      SCREW, M4X22, PAN HD
                      from £2.01
                      from £2.01
                      SCREW-M4 X 22 PAN Genuine Aston Martin - New (to order)
                      # 7
                      MPN: W504681-S437M
                      SCREW, M4X6, PAN HD
                      SCREW M4 X 6 Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 703178
                      SCREW, M4X8, TORX HEAD
                      from £0.47
                      from £0.47
                      M4 X 8MM SCREW THRD Genuine Aston Martin - New (to order)
                      # 9
                      MPN: DD33-80B225-AA
                      SEAL, FOAM
                      from £2.00
                      from £2.00
                      SEAL, FOAM Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 9D33-46662-AA
                      WASHER, 14MM
                      from £0.47
                      from £0.47
                      14 MM WASHER Genuine Aston Martin - New (to order)
