aston martin vanquish (2017) body dash & cowl, volante parts diagram

01-0102-30 - Body Dash & Cowl, Volante

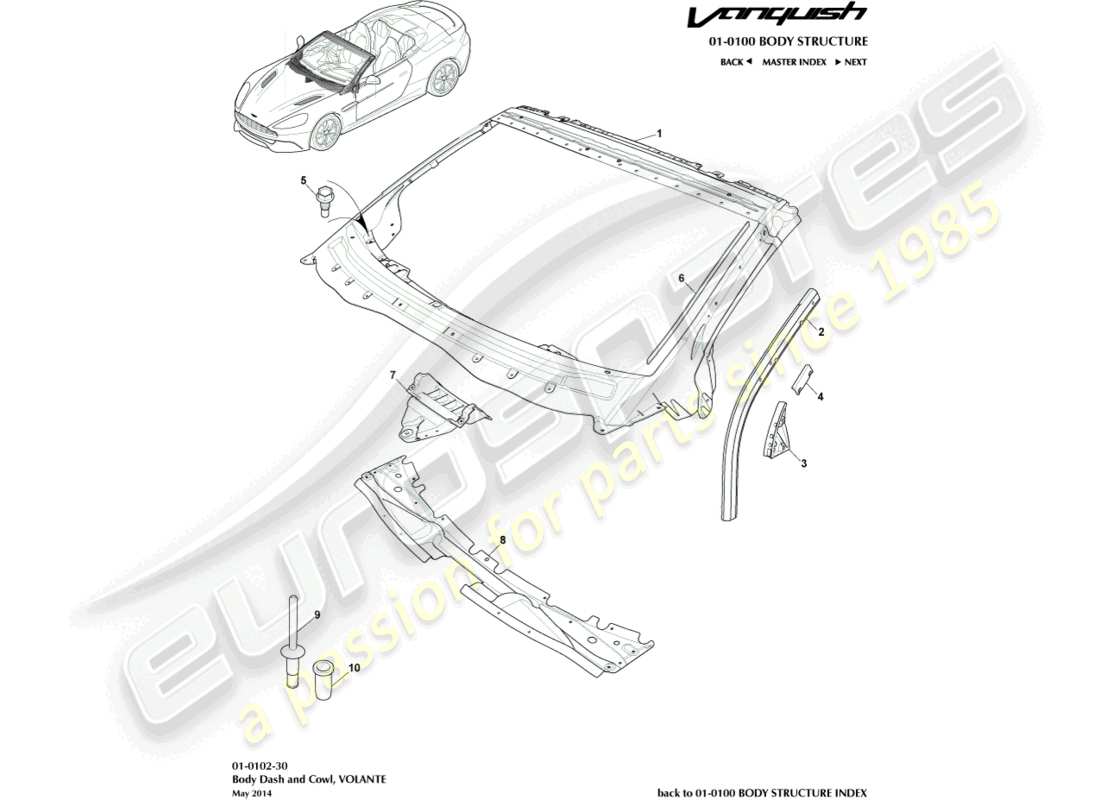

Aston Martin Vanquish (2017) Body Dash & Cowl, Volante Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: ED33-L03014-BC
FRAME ASSEMBLY, WINDSHIELD
Structural. Cat A Only
from £3,229.11
from £3,229.11
FRAME ASSEMBLY, WINDSHIELD Genuine Aston Martin - New (to order)
# 2
MPN: GOFD33-F02526-BA
REINFORCEMENT, FRONT BODY PILLAR
Structural. Cat A Only
REINFORCEMENT, FRONT BODY PILLAR Genuine Aston Martin - New (to order)
# 3
MPN: GOFD33-025D07-AC
REINFORCEMENT, CAST, LH
Structural. Cat A Only
from £98.31
from £98.31
A PLR REINFORCEMENT CAST LOWER Genuine Aston Martin - New (to order)
# 3
MPN: GOFD33-025D06-AC
REINFORCEMENT, CAST, RH
Structural. Cat A Only
from £98.31
from £98.31
A PLR REINFORCEMENT CAST LOWER Genuine Aston Martin - New (to order)
# 4
MPN: GOFD33-02526-AA
REINFORCEMENT, A PILLAR
Structural. Cat A Only
from £57.51
from £57.51
REINFORCEMENT, A PILLAR Genuine Aston Martin - New (to order)
# 5
MPN: 6G33-375732-AB
SCREW, HEX FLANGED HEAD, 5.5X19, SELF DRILL
Structural. Cat A Only
from £0.47
from £0.47
SCREW SS HEX FLANGE HD Genuine Aston Martin - New (to order)
# 6
MPN: 7G43-C2437-AAW
TAPE, VELOUR ANTI-SQUEAK
Structural. Cat A Only
from £82.66
from £82.66
VELOUR ANTI-SQUK TPE Genuine Aston Martin - New (to order)
# 7
MPN: GODD43-71023-AE
REINFORCEMENT, COWL, CAST
Structural. Cat A Only
COWL REINFORCEMENT CASTING Genuine Aston Martin - New (to order)
# 8
MPN: GODG43-F292650-AC
PLENUM LOWER
Structural. Cat A Only
from £176.27
from £176.27
PLENUM LOWER Genuine Aston Martin - New (to order)
# 9
MPN: 6G33-68676-AC
BLIND RIVET, STRUCTURAL, 6.5X14
Structural. Cat A Only
from £0.70
from £0.70
STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
# 10
MPN: 6G33-51081-AA
RIVNUT, M6, 17.5MM LONG
Structural. Cat A Only
from £0.60
from £0.60
RIVNUT M6 Genuine Aston Martin - New (to order)
