aston martin vanquish (2017) front bumper structure, federal parts diagram

01-0111-02 - Front Bumper Structure, Federal

Aston Martin Vanquish (2017) Front Bumper Structure, Federal Parts Diagram

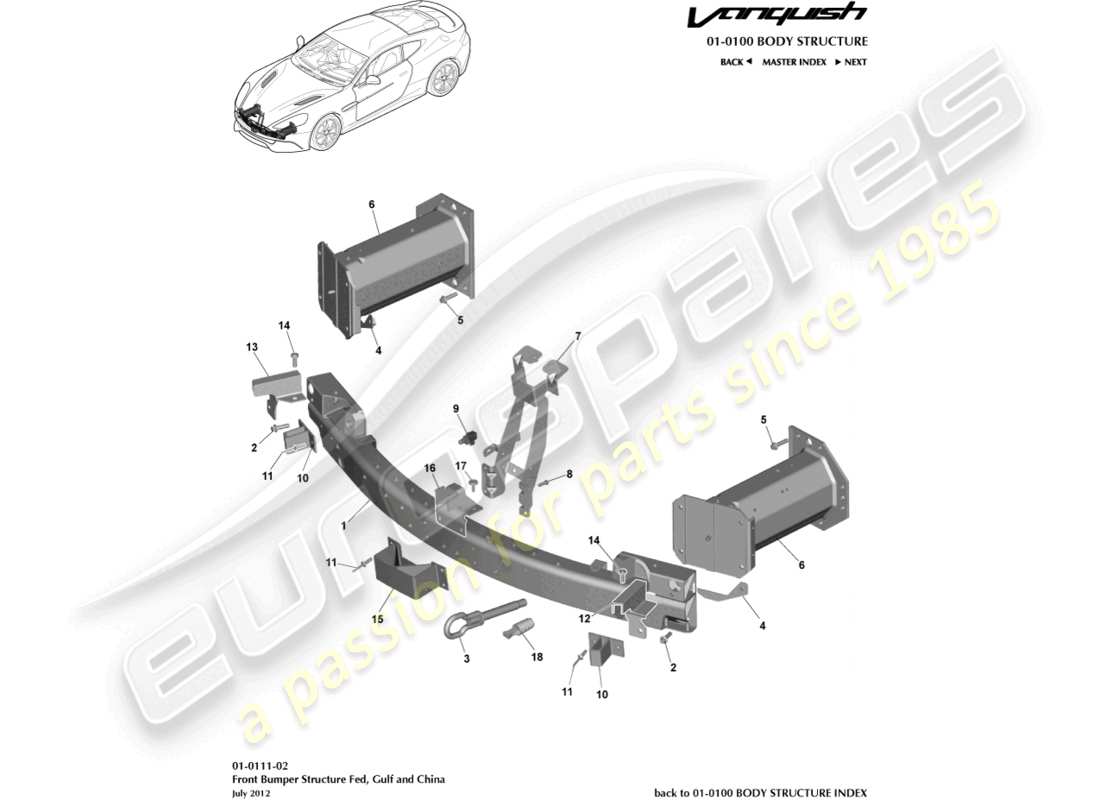

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                            #
                            Part number
                            Description
                            Key
                            Price
                            # 1
                            MPN: DG43-17757-CA
                            BUMPER BEAM ASSEMBLY, FRONT
                            SEE SA-01-0247V2
                            from £2,363.43
                            from £2,363.43
                            BUMPER BEAM ASSEMBLY, FRONT Genuine Aston Martin - New (to order)
                            # 2
                            MPN: 703155
                            SCREW / WASHER, M8 X 25
                            from £1.56
                            from £1.56
                            SCREW/WASHER M8X25 Genuine Aston Martin - New (to order)
                            # 3
                            MPN: CD33-17B804-AC
                            TOWING EYE
                            See SA-01-0247V2, LH Thread
                            from £57.51
                            from £57.51
                            TOWING EYE Genuine Aston Martin - New (to order)
                            # 3
                            MPN: CD33-17B804-BA
                            TOWING EYE
                            See SA-01-0247V2, RH Thread
                            from £57.51
                            from £57.51
                            TOWING EYE Genuine Aston Martin - New (to order)
                            # 4
                            MPN: 4G43-6367912-AC
                            NUT PLATE ASSEMBLY, CRASH CAN LOWER
                            from £4.20
                            from £4.20
                            Genuine Aston Martin (no longer available to order)
                            NUT PLATE, FRONT CRASH CAN Genuine Aston Martin - Used In stock
                            # 5
                            MPN: 704495
                            SCREW, M8 X 35, HEX FLANGE HEAD
                            from £6.99
                            from £6.99
                            SCREW-M8X35 HEX FLANGE Genuine Aston Martin - New (to order)
                            # 6
                            MPN: DD43-V17N800-BA
                            CRASH CAN, BUMPER FRONT
                            Structural. Cat A Only
                            from £1,237.85
                            from £1,237.85
                            CRASH CAN, FRONT BUMPER Genuine Aston Martin - New (to order)
                            # 7
                            MPN: CD33-3804-AC
                            BRACKET, BONNET LATCH MOUNTING
                            from £184.53
                            from £184.53
                            BRACKET, BONNET LATCH MOUNTING Genuine Aston Martin - New (to order)
                            # 8
                            MPN: 703265
                            SCREW, M6 X 16, HEX FLANGE HEAD
                            from £0.47
                            from £0.47
                            SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                            # 9
                            MPN: 7G33-19E642-AA
                            SENSOR, AMBIENT AIR
                            Supersession
                            Supersession
                            Genuine Aston Martin (no longer available to order)
                            # 10
                            MPN: DG43-17E898-BA
                            ISOLATOR, FRONT BUMPER OUTER, LOWER
                            from £18.57
                            from £18.57
                            FRONT BUMPER ISO OB LOWER Genuine Aston Martin - New (to order)
                            # 11
                            MPN: 6G33-68676-AC
                            RIVET, 6.5 X 14, BLIND
                            from £0.70
                            from £0.70
                            STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
                            # 12
                            MPN: DG43-17E937-BB
                            INSERT, FRONT BUMPER ISOLATOR, LH
                            from £92.76
                            from £92.76
                            INSERT, FRONT BUMPER ISOLATOR, LH Genuine Aston Martin - New (to order)
                            # 13
                            MPN: DG43-17E936-BB
                            INSERT, FRONT BUMPER ISOLATOR, RH
                            from £139.14
                            from £139.14
                            INSERT, FRONT BUMPER ISOLATOR, RH Genuine Aston Martin - New (to order)
                            # 14
                            MPN: 703172-PK
                            SCREW, M8 X 25, PAN HEAD
                            Pack of 10
                            from £3.13
                            from £3.13
                            SCREW-M8X25 PAN (10) Genuine Aston Martin - New (to order)
                            VENT PANEL BOLTS Genuine Ferrari Part - New (to order)
                            # 15
                            MPN: DG43-17E952-BA
                            OVER RIDER, CENTRAL, FRONT BUMPER
                            from £24.64
                            from £24.64
                            OVER RIDER, FRONT BUMPER CENTRAL Genuine Aston Martin - New (to order)
                            # 16
                            MPN: DG43-17752-AB
                            BRACKET, BUMPER BEAM FRONT
                            from £30.30
                            from £30.30
                            BRACKET, FRONT BUMPER BEAM Genuine Aston Martin - New (to order)
                            # 17
                            MPN: 6G33-FA0115-AB-PK
                            SCREW, M6 X 20, SOCKET HEAD
                            Pack of 20
                            from £12.00
                            from £12.00
                            This part replaces part number 6G33-FA0115-AB
                            SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                            # 18
                            MPN: DG43-17K906-AA
                            PLUG & GRIP, 15MM
                            from £4.84
                            from £4.84
                            PLUG AND GRIP, 15MM Genuine Aston Martin - New (to order)
