01-0502-06 - NVH Pads, Coupe

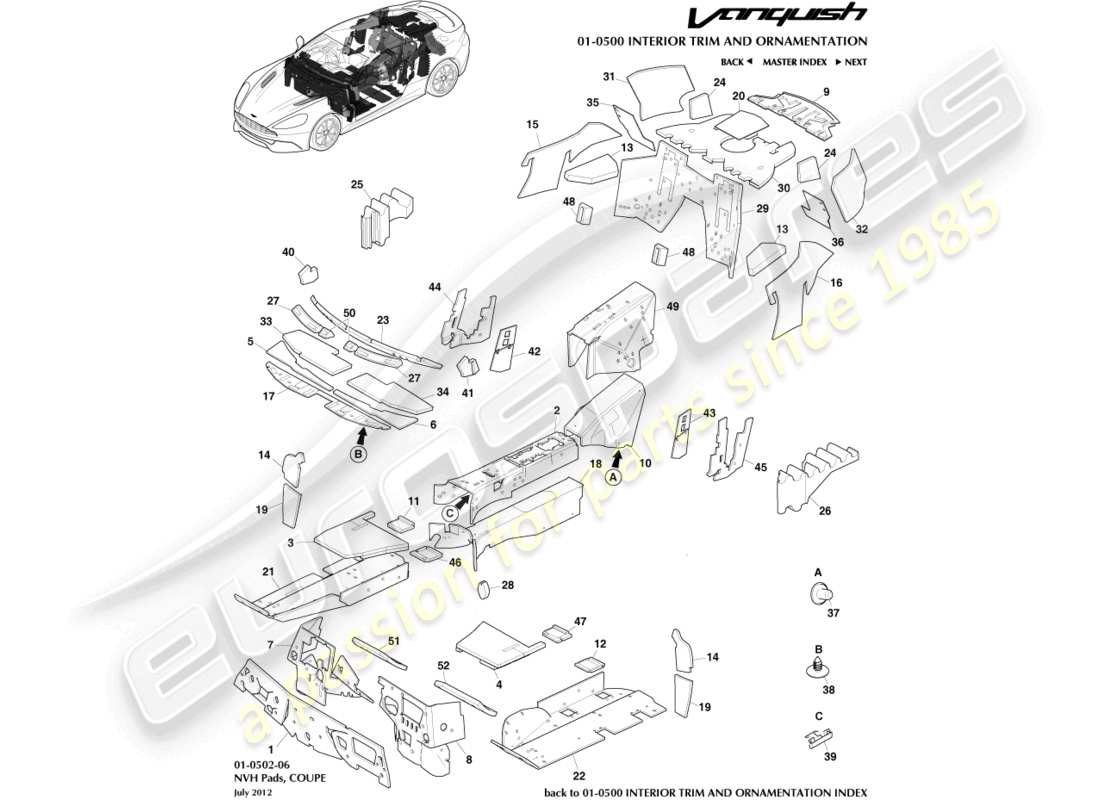

Aston Martin Vanquish (2017) NVH Pads, Coupe Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 6G33-102B00-BD
SOUND INSULATION, ENGINE HOUSING
RHD
# 1
MPN: 6G33-102B00-AD
SOUND INSULATION, ENGINE HOUSING
LHD
# 2
MPN: DD33-11446-AD
NVH, INTERIOR FRONT TUNNEL
from £24.68
from £24.68
# 3
MPN: 4G43-11454-BH
NVH, FRONT FLOOR, RH
RHD
from £21.08
from £21.08
# 3
MPN: 4G43-11455-BH
NVH, FRONT FLOOR, RH
LHD
from £38.93
from £38.93
# 4
MPN: 4G43-11454-AH
NVH, FRONT FLOOR, LH
RHD
from £21.08
from £21.08
# 4
MPN: 4G43-11455-AH
NVH, FRONT FLOOR, LH
LHD
from £39.11
from £39.11
# 5
MPN: 4G43-02292-AB
NVH, UNDER COWL, RH
from £8.21
from £8.21
# 6
MPN: 4G43-02293-AB
NVH, UNDER COWL, LH
from £8.21
from £8.21
# 7
MPN: DD33-002K06-AB
NVH, DASH INNER, RH
RHD
# 7
MPN: DD33-002K05-AC
NVH, DASH INNER, RH
LHD
from £37.16
from £37.16
# 8
MPN: DD33-015A22-AD
NVH, DASH INNER, LH
RHD
# 8
MPN: DD33-015A23-AC
NVH, DASH INNER, LH
LHD
# 9
MPN: DD33-42775-AA
HUSH PANEL
# 10
MPN: 4G43-7Z309-AC
NVH, GEARBOX SURROUND
from £46.69
from £46.69
# 11
MPN: 6G33-114B32-AB
FOAM INSERT, OUTER, RH
from £3.36
from £3.36
# 12
MPN: 6G33-114B33-AB
FOAM INSERT, OUTER, LH
from £3.36
from £3.36
# 13
MPN: 4G43-F310A26-AA
SOUND INSULATION, QTR PANEL
from £10.20
from £10.20
# 14
MPN: DD33-28112-AA
NVH FOAM PAD, FENDER UPPER
from £32.48
from £32.48
# 15
MPN: DD33-27746-AB
SOUND INSULATION, REAR QUARTER, RH
from £26.45
from £26.45
# 16
MPN: DD33-27747-AB
SOUND INSULATION, REAR QUARTER, LH
from £26.45
from £26.45
# 17
MPN: DD33-00152-AB
INSULATION, PLENUM, ENGINE BAY SIDE
# 18
MPN: 4G43-114B26-AH
INSULATION, TUNNEL
from £61.98
from £61.98
# 19
MPN: DD33-28110-AB
NVH FOAM PAD ASSEMBLY, FENDER LOWER
from £26.85
from £26.85
# 20
MPN: DD33-403D42-AA
NVH CENTRE, PARCEL SHELF
from £8.47
from £8.47
# 21
MPN: DD33-54751-AD
BAFFLE, FLOOR, RH
from £27.66
from £27.66
# 22
MPN: DD33-54752-AB
BAFFLE, FLOOR, LH
from £28.32
from £28.32
# 23
MPN: CG43-02139-AA
INSULATION, COWL, TOP
from £9.22
from £9.22
# 24
MPN: DD33-111A30-AA
NVH, ALUMINIUM PANEL
# 25
MPN: DD33-C27746-AA
SOUND INSULATION PANEL, REAR QUARTER, RH
from £20.41
from £20.41
# 26
MPN: DD33-C27747-AA
SOUND INSULATION PANEL, REAR QUARTER, LH
from £18.57
from £18.57
# 27
MPN: AD43-68066-AC
NVH, DASH FOAM, UNDER SIDE CAVITY
2x Only When Pedestrian Impact System Fitted
# 28
MPN: 8G43-04564-AA
NVH, AUTOBOX CLUTCH PEDAL
from £0.54
from £0.54
# 29
MPN: DD33-C311K66-AE
NVH, REAR BULKHEAD, CENTRE
from £27.83
from £27.83
# 30
MPN: DD33-C56158-AA
INSULATION, PACKAGE TRIM
2+2 Seating
# 31
MPN: DD33-45636-AA
NVH, SIDEWALL, RH
from £9.46
from £9.46
# 32
MPN: DD33-45637-AA
NVH, SIDEWALL, LH
from £15.25
from £15.25
# 33
MPN: 8G43-48182-AB
FOAM PAD, UNDER IP, RH
from £12.68
from £12.68
# 34
MPN: 8G43-48181-AB
FOAM PAD, UNDER IP, LH
from £12.68
from £12.68
# 35
MPN: DD33-454A12-AA
NVH, WHEEL ARCH, RH
# 36
MPN: DD33-454A13-AA
NVH, WHEEL ARCH, LH
# 37
MPN: 702212
SNAPSAC, 6.8MM, PUSH-ON, PLASTIC
from £0.47
from £0.47
# 38
MPN: 697648
FASTENER, FIRTREE
from £0.50
from £0.50
# 39
MPN: 6G33-34983-AB
CLIP, EDGE, NVH RETAINER
from £0.54
from £0.54
# 40
MPN: CG43-310A60-AA
INSULATION, BODY SIDE FRONT UPPER, RH
from £8.87
from £8.87
# 41
MPN: CG43-310A59-AA
INSULATION, BODY SIDE FRONT UPPER, LH
from £8.87
from £8.87
# 42
MPN: CG43-D1160-AC
INSULATION, REAR QUARTER TRIM, RH
from £6.01
from £6.01
# 43
MPN: CG43-D1161-AC
INSULATION, REAR QUARTER TRIM, LH
from £7.50
from £7.50
# 44
MPN: DD33-L27746-AB
NVH, REAR QUARTER PANEL, CABIN, RH
# 45
MPN: DD33-L27747-AB
NVH, REAR QUARTER PANEL, CABIN, LH
# 46
MPN: 6G33-114A42-AB
FOAM INSERT, INNER, RH
from £3.36
from £3.36
# 47
MPN: 6G33-114A43-AB
FOAM INSERT, INNER, LH
from £3.36
from £3.36
# 48
MPN: CG43-C311K70-AA
NVH, REAR SEAT LOWER
2+2 Seating
from £1.83
from £1.83
# 49
MPN: DD33-5416-AB
COVER, REAR TUNNEL
# 49
MPN: ED33-5416-AC
COVER, REAR TUNNEL
14.5MY
from £20.45
from £20.45
# 50
MPN: DG43-68066-AA
NVH, DASH FOAM, SMALL, UNDER SIDE CAVITY
When Pedestrian Impact System Fitted
# 51
MPN: AD43-02282-AB
LOWER SOUND INSULATION RH
15MY
from £5.65
from £5.65
# 52
MPN: AD43-02283-AB
LOWER SOUND INSULATION LH
15MY
