aston martin vanquish (2017) static sealing parts diagram

01-0702-06 - Static Sealing

Aston Martin Vanquish (2017) Static Sealing Parts Diagram

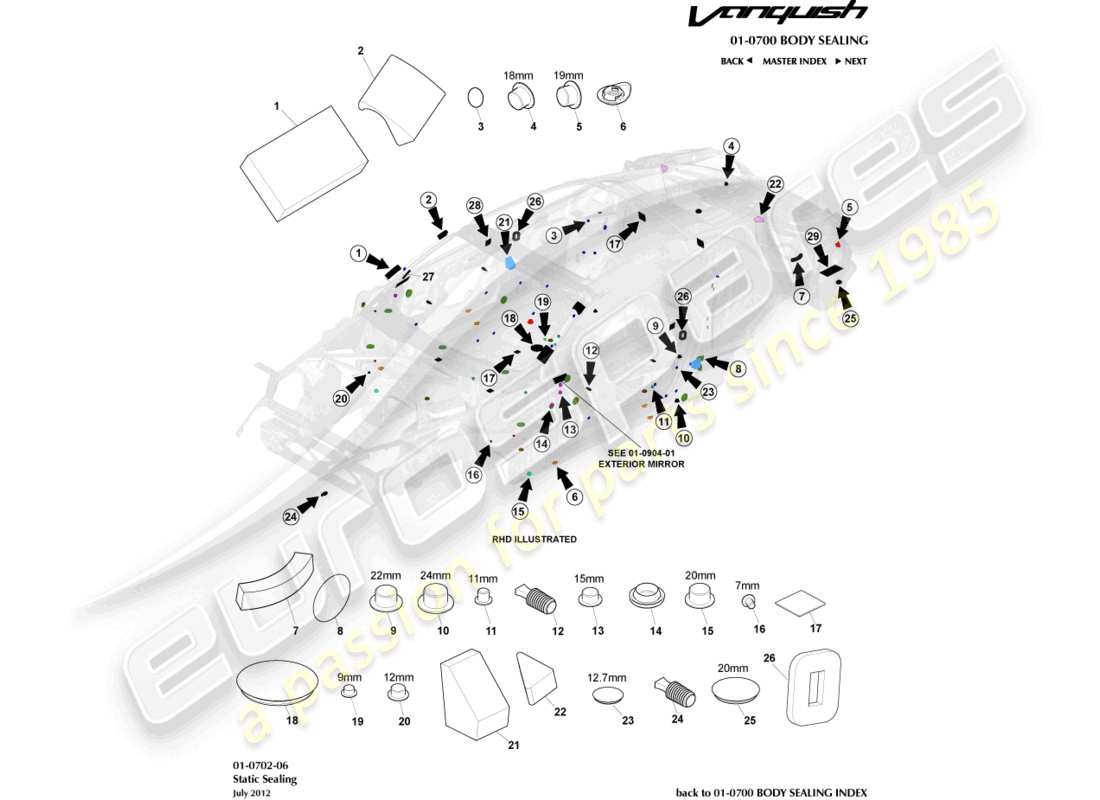

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 1
                                                        MPN: 4G43-F280C09-AA
                                                        SEALING BLOCK, A PILLAR
                                                        from £13.05
                                                        from £13.05
                                                        A PILLAR SEALING BLK Genuine Aston Martin - New (to order)
                                                        # 2
                                                        MPN: 4G43-026A30-AB
                                                        BAFFLE, FRONT BODY PILLAR
                                                        from £5.08
                                                        from £5.08
                                                        BAF FRONT BODY PLR Genuine Aston Martin - New (to order)
                                                        # 3
                                                        MPN: 4G43-L20222-AA
                                                        SEAL PATCH, SMALL
                                                        from £0.47
                                                        from £0.47
                                                        SEAL PATCH SMALL Genuine Aston Martin - New (to order)
                                                        # 4
                                                        MPN: 4G43-N804138-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 18MM
                                                        from £0.47
                                                        from £0.47
                                                        18MM BUNG Genuine Aston Martin - New (to order)
                                                        # 5
                                                        MPN: 4G43-N808070-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 19MM
                                                        from £1.07
                                                        from £1.07
                                                        PLUG-RUBBER-19MM BLK Genuine Aston Martin - New (to order)
                                                        # 6
                                                        MPN: 702804
                                                        DRAIN PLUG, RUBBER, 20MM X 0.6 - 2.2, PUSH IN
                                                        from £1.55
                                                        from £1.55
                                                        DRAIN PLUG RUBR-20MM Genuine Aston Martin - New (to order)
                                                        # 7
                                                        MPN: 4G43-M4D4515-BA
                                                        FOAM STRIP
                                                        Supersession
                                                        Supersession
                                                        Genuine Aston Martin (no longer available to order)
                                                        # 8
                                                        MPN: 4G43-L20220-AA
                                                        SEAL PATCH, LARGE
                                                        from £0.47
                                                        from £0.47
                                                        SL PCH LG DOOR INNER Genuine Aston Martin - New (to order)
                                                        # 9
                                                        MPN: 6G33-N804263-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 22MM
                                                        from £1.16
                                                        from £1.16
                                                        22MM BUNG Genuine Aston Martin - New (to order)
                                                        # 10
                                                        MPN: 6G33-N804814-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 24MM
                                                        from £1.54
                                                        from £1.54
                                                        24MM BUNG Genuine Aston Martin - New (to order)
                                                        # 11
                                                        MPN: 4G43-N800631-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 11MM
                                                        from £0.54
                                                        from £0.54
                                                        BUNG-11 MM Genuine Aston Martin - New (to order)
                                                        # 12
                                                        MPN: 4G43-N805935-AA
                                                        FLANGELESS PLUG, BLACK PVC, 17MM
                                                        from £0.54
                                                        from £0.54
                                                        17MM PLUG & GRIP Genuine Aston Martin - New (to order)
                                                        # 13
                                                        MPN: CD33-536343-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 15MM
                                                        from £0.47
                                                        from £0.47
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 15MM Genuine Aston Martin - New (to order)
                                                        # 14
                                                        MPN: 4G43-2273-AA
                                                        BODY PLUG, 25MM
                                                        from £1.23
                                                        from £1.23
                                                        25MM BODY PLUG Genuine Aston Martin - New (to order)
                                                        # 15
                                                        MPN: 6G33-N806457-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 20MM
                                                        from £1.22
                                                        from £1.22
                                                        20MM BUNG Genuine Aston Martin - New (to order)
                                                        # 16
                                                        MPN: 4G43-N811191-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 7MM
                                                        from £0.47
                                                        from £0.47
                                                        PLUG-BLACK-7MM Genuine Aston Martin - New (to order)
                                                        # 17
                                                        MPN: 6G43-F78410-AA
                                                        SEALING PAD, AL BUTYL 35 X 35
                                                        from £0.94
                                                        from £0.94
                                                        SLNG PAD-AL BUTYL Genuine Aston Martin - New (to order)
                                                        # 18
                                                        MPN: CD33-7N280-AA
                                                        BLANKING PLUG, 52MM
                                                        from £2.22
                                                        from £2.22
                                                        BLANKING PLUG, 52MM Genuine Aston Martin - New (to order)
                                                        # 19
                                                        MPN: CD33-536337-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 9MM
                                                        from £0.47
                                                        from £0.47
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 9MM Genuine Aston Martin - New (to order)
                                                        # 20
                                                        MPN: 6G33-25919-AA
                                                        RUBBER PLUG, BLACK THERMOPLASTIC, 12MM
                                                        from £0.60
                                                        from £0.60
                                                        12MM BUNG Genuine Aston Martin - New (to order)
                                                        # 21
                                                        MPN: DD33-504668-AA
                                                        SEALING BLOCK, REAR SIDE MEMBER
                                                        from £5.77
                                                        from £5.77
                                                        SEALING BLOCK, REAR SIDE MEMBER Genuine Aston Martin - New (to order)
                                                        # 22
                                                        MPN: DD33-24562-AB
                                                        PAD, CENTRE BODY INNER TO OUTER
                                                        Coupe
                                                        from £2.93
                                                        from £2.93
                                                        PAD, CENTRE BODY INNER TO OUTER Genuine Aston Martin - New (to order)
                                                        # 22
                                                        MPN: DD33-24562-AB
                                                        PAD, CENTRE BODY INNER TO OUTER
                                                        Volante
                                                        from £2.93
                                                        from £2.93
                                                        PAD, CENTRE BODY INNER TO OUTER Genuine Aston Martin - New (to order)
                                                        # 23
                                                        MPN: CD33-37521-AA
                                                        BLANKING PLUG, 12.7MM
                                                        from £0.47
                                                        from £0.47
                                                        BLANKING PLUG, 12.7MM Genuine Aston Martin - New (to order)
                                                        # 24
                                                        MPN: DG43-17K906-AA
                                                        PLUG & GRIP, 15MM
                                                        from £4.84
                                                        from £4.84
                                                        PLUG AND GRIP, 15MM Genuine Aston Martin - New (to order)
                                                        # 25
                                                        MPN: 4G43-301347-AA
                                                        BODY PLUG, 20MM
                                                        from £0.79
                                                        from £0.79
                                                        20MM BODY PLUG Genuine Aston Martin - New (to order)
                                                        # 26
                                                        MPN: CD33-9184-AB
                                                        GASKET, FOAM, DOOR CATCHER
                                                        from £1.23
                                                        from £1.23
                                                        GASKET, FOAM, DOOR CATCHER Genuine Aston Martin - New (to order)
                                                        # 27
                                                        MPN: 7G43-C2437-AAW
                                                        VELOUR ANTI SQUEAK TAPE
                                                        from £82.66
                                                        from £82.66
                                                        VELOUR ANTI-SQUK TPE Genuine Aston Martin - New (to order)
                                                        # 28
                                                        MPN: 7W83-9348-AA
                                                        PAD SEALING
                                                        from £1.15
                                                        from £1.15
                                                        PAD, DAMPING, SEALING PATCH, NO TEL OPTION Genuine Aston Martin - New (to order)
                                                        # 29
                                                        MPN: 7G33-114C00-AA
                                                        ALUMINIUM BUTYL PAD
                                                        17MY on
                                                        DAMPER PAD Genuine Aston Martin - New (to order)
