01-0803-01A - Upper Exterior Finishers, Volante

Aston Martin Vanquish (2017) Upper Exterior Finishers, Volante Parts Diagram

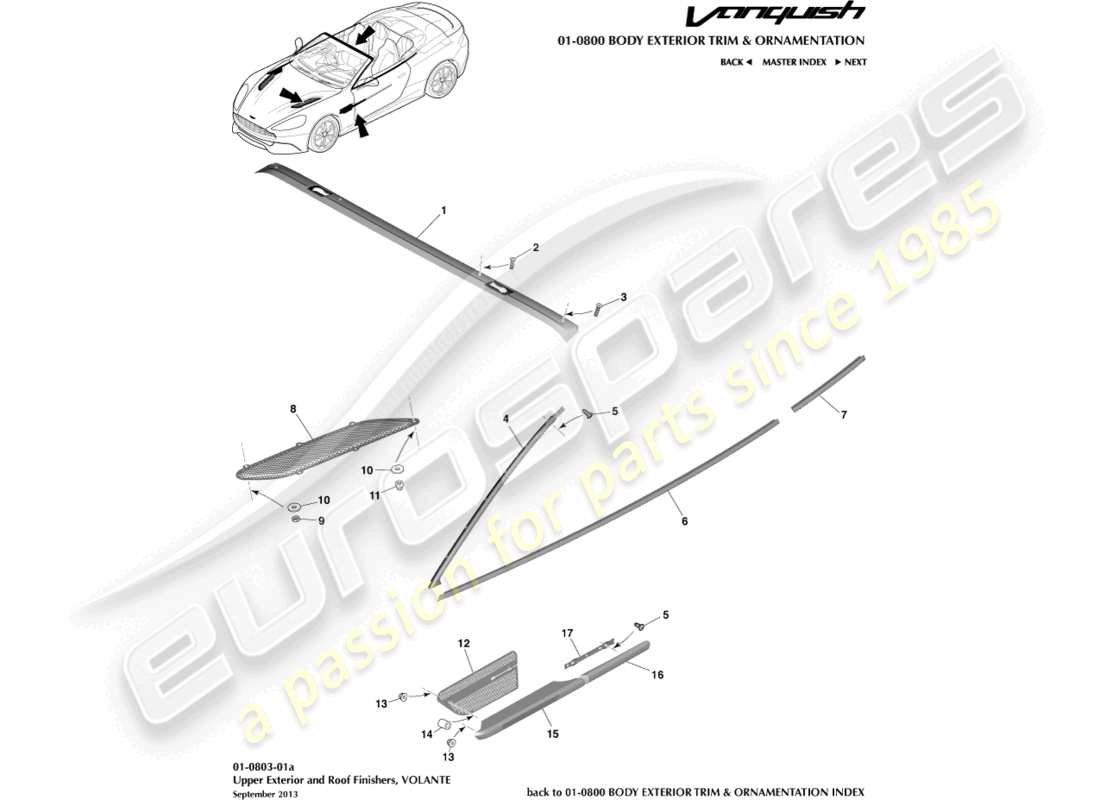

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Price
                # 1
                MPN: ED33-L03065-AB
                FINISHER, FRONT HEADER WINDSHIELD
                from £179.16
                from £179.16
                # 2
                MPN: 4G43-103081-BA
                SCREW, M4X16, COUNTERSUNK, STAINLESS BLACK
                from £0.47
                from £0.47
                # 3
                MPN: AG43-608073-AA
                SCREW, NO 8X25, COUNTERSUNK, STAINLESS BLACK
                from £11.68
                from £11.68
                # 4
                MPN: ED33-519A37-AB
                FINISHER, A PILLAR, LH
                bright
                from £176.27
                from £176.27
                # 4
                MPN: FD33-519A37-BA
                FINISHER, A PILLAR, LH
                Black
                from £354.35
                from £354.35
                # 4
                MPN: ED33-519A36-AB
                FINISHER, A PILLAR, RH
                bright
                from £181.68
                from £181.68
                # 4
                MPN: FD33-519A36-BA
                FINISHER, A PILLAR, RH
                Black
                from £354.35
                from £354.35
                # 5
                MPN: 6G33-51756-AA-PK
                SCREW, M5X13, PAN HEAD
                Pack of 10
                from £2.62
                from £2.62
                # 6
                MPN: CD33-F20563-AC
                WAIST SEAL, DOOR OUTER, LH
                bright
                from £148.35
                from £148.35
                # 6
                MPN: FD33-F20563-BA
                WAIST SEAL, DOOR OUTER, LH
                Black
                from £287.42
                from £287.42
                # 6
                MPN: CD33-F20562-AC
                WAIST SEAL, DOOR OUTER, RH
                bright
                from £148.35
                from £148.35
                # 6
                MPN: FD33-F20562-BA
                WAIST SEAL, DOOR OUTER, RH
                Black
                from £287.42
                from £287.42
                # 7
                MPN: ED33-1228495-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, LH
                bright
                from £321.99
                from £321.99
                # 7
                MPN: FD33-1228495-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, LH
                Black
                from £263.90
                from £263.90
                # 7
                MPN: ED33-1228494-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, RH
                bright
                from £321.99
                from £321.99
                # 7
                MPN: FD33-1228494-AC
                WAIST SEAL, OUTER REAR QUARTER GLASS, RH
                Black
                from £263.90
                from £263.90
                # 8
                MPN: ED33-16C693-AA
                MESH, HOOD, LH
                Black
                from £107.62
                from £107.62
                # 8
                MPN: CD33-16C693-BC
                MESH, HOOD, LH
                Magnum Silver
                from £270.72
                from £270.72
                # 8
                MPN: ED33-16C693-CA
                MESH, HOOD, LH
                TITANIUM
                # 8
                MPN: ED33-16C692-AA
                MESH, HOOD, RH
                Black
                from £107.62
                from £107.62
                # 8
                MPN: CD33-16C692-BC
                MESH, HOOD, RH
                Magnum Silver
                from £270.72
                from £270.72
                # 8
                MPN: ED33-16C692-CA
                MESH, HOOD, RH
                TITANIUM
                # 8a
                MPN: HD33-16C693-AA
                MESH, HOOD, LH, BLACK CARBON
                S & Ultimate'
                from £2,751.71
                from £2,751.71
                # 8a
                MPN: HD33-16C692-AA
                MESH, HOOD, RH, BLACK CARBON
                S & Ultimate'
                from £2,751.71
                from £2,751.71
                # 9
                MPN: 702994
                NUT, M6, HEX THIN
                from £0.47
                from £0.47
                # 10
                MPN: 4G43-16C694-AB-PK
                WASHER, NYLON
                Pack of 10
                from £6.17
                from £6.17
                # 11
                MPN: 4G43-16C695-AB-PK
                NUT, M6, DOMED BLACK NYLON
                Pack of 10
                from £13.96
                from £13.96
                # 12
                MPN: ED33-280B84-AA
                MESH, SIDE STRAKE, LH
                Black
                from £111.29
                from £111.29
                # 12
                MPN: CD33-280B84-BB
                MESH, SIDE STRAKE, LH
                Magnum Silver
                from £111.29
                from £111.29
                # 12
                MPN: ED33-280B84-CA
                MESH, SIDE STRAKE, LH
                TITANIUM
                from £111.29
                from £111.29
                # 12
                MPN: ED33-280B83-AA
                MESH, SIDE STRAKE, RH
                Black
                from £111.29
                from £111.29
                # 12
                MPN: CD33-280B83-BB
                MESH, SIDE STRAKE, RH
                Magnum Silver
                from £111.29
                from £111.29
                # 12
                MPN: ED33-280B83-CA
                MESH, SIDE STRAKE, RH
                TITANIUM
                from £111.29
                from £111.29
                # 13
                MPN: 703165
                NUT, M5, HEX FLANGE HEAD
                from £0.47
                from £0.47
                # 14
                MPN: CD33-280B85-AA
                SPACER, FENDER STRAKE
                from £0.47
                from £0.47
                # 15
                MPN: CD33-280B63-AD
                SIDE STRAKE, FENDER, LH
                bright
                from £262.71
                from £262.71
                # 15
                MPN: CD33-280B62-AD
                SIDE STRAKE, FENDER, RH
                bright
                from £228.18
                from £228.18
                # 15
                MPN: CD33-280B63-CC
                SIDE STRAKE, FENDER, LH
                CARBON
                # 15
                MPN: CD33-280B62-CC
                SIDE STRAKE, FENDER, RH
                CARBON
                # 15
                MPN: JD33-280B63-DA
                SIDE STRAKE, FENDER, LH (WITH DECAL)
                Ultimate' Carbon, 18.5MY on
                from £3,041.56
                from £3,041.56
                # 15
                MPN: JD33-280B62-DA
                SIDE STRAKE, FENDER, RH (WITH DECAL)
                Ultimate' Carbon, 18.5MY on
                from £3,041.56
                from £3,041.56
                # 16
                MPN: CD33-018K29-AC
                SIDE STRAKE, DOOR, LH
                bright
                from £139.09
                from £139.09
                # 16
                MPN: CD33-018K28-AC
                SIDE STRAKE, DOOR, RH
                bright
                from £191.55
                from £191.55
                # 16
                MPN: CD33-018K29-CD
                SIDE STRAKE, DOOR, LH
                CARBON
                # 16
                MPN: CD33-018K28-CD
                SIDE STRAKE, DOOR, RH
                CARBON
                # 17
                MPN: CD33-0937-AB
                RETAINER, DOOR STRAKE
                from £1.72
                from £1.72
