01-1103-01 - Front Door Glass

Aston Martin Vanquish (2017) Front Door Glass Parts Diagram

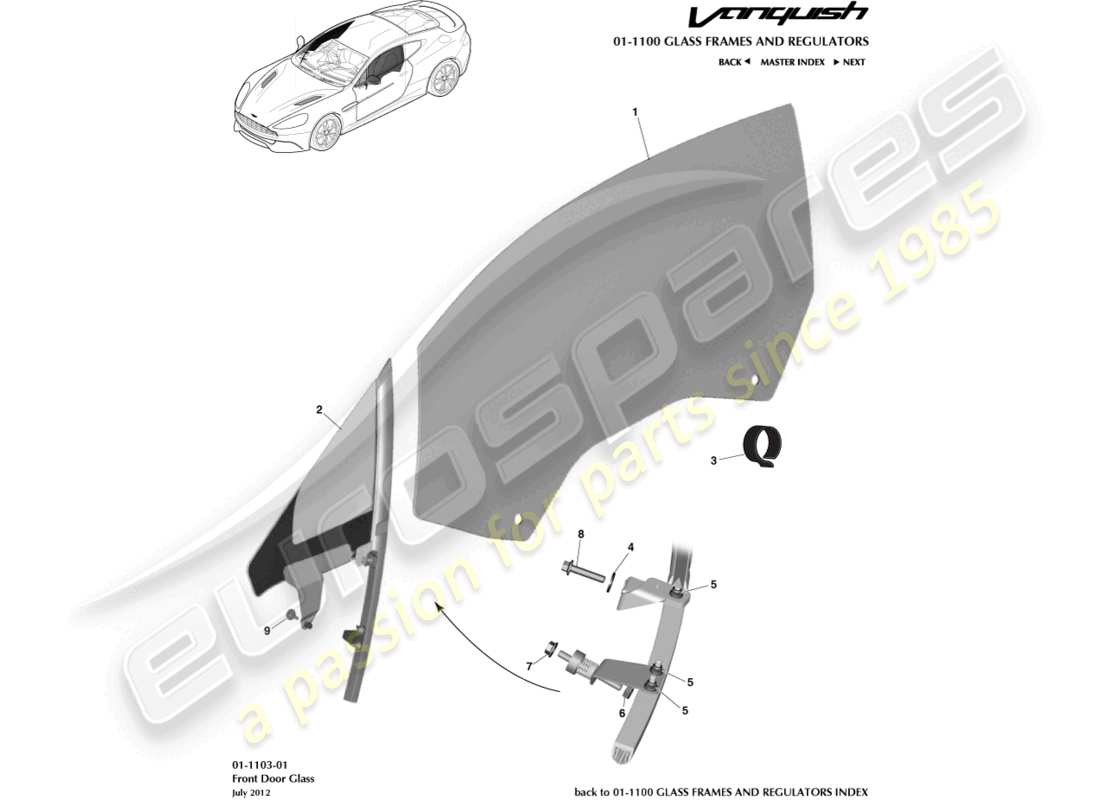

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: CD33-F21411-AB
          GLASS, FRONT DOOR WINDOW TINTED, LH
          Up to VIN J00829 / K03694
          from £342.45
          from £342.45
          GLASS , FRONT DOOR WINDOW TINTED, LH Genuine Aston Martin - New (to order)
          # 1
          MPN: CD33-F21410-AB
          GLASS, FRONT DOOR WINDOW TINTED, RH
          Up to VIN J00829 / K03694
          from £409.79
          from £409.79
          GLASS , FRONT DOOR WINDOW TINTED, RH Genuine Aston Martin - New (to order)
          # 1
          MPN: CD33-F21411-BA
          GLASS, FRONT DOOR WINDOW TINTED, LH
          From VIN J00830 / K03695
          from £510.20
          from £510.20
          GLASS , FRONT DOOR WINDOW TINTED, LH Genuine Aston Martin - New (to order)
          # 1
          MPN: CD33-F21410-BA
          GLASS, FRONT DOOR WINDOW TINTED, RH
          From VIN J00830 / K03695
          from £512.03
          from £512.03
          GLASS , FRONT DOOR WINDOW TINTED, RH Genuine Aston Martin - New (to order)
          # 2
          MPN: CD33-C262A37-BB
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS, LH
          2 Fixings. See SB-01-1001v2
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS , LH Genuine Aston Martin - New (to order)
          # 2
          MPN: CD33-C262A37-BD
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS, LH
          From VIN J02110, 3 Fixings
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS , LH Genuine Aston Martin - New (to order)
          # 2
          MPN: CD33-C262A36-BB
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS, RH
          2 Fixings. See SB-01-1001v2
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS , RH Genuine Aston Martin - New (to order)
          # 2
          MPN: CD33-C262A36-BD
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS, RH
          From VIN J02110, 3 Fixings
          ASSEMBLY, DIVIDER BAR AND QUARTER GLASS , RH Genuine Aston Martin - New (to order)
          # 3
          MPN: 610260106
          VELCRO LOOP, 20MM
          VELCRO LOOP, 20MM Genuine Aston Martin - New (to order)
          # 4
          MPN: 697517-PK
          WASHER, M6
          Pack of 20
          from £13.07
          from £13.07
          WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
          # 5
          MPN: 702522
          NUT, M5
          from £0.47
          from £0.47
          M5 HEX FLANGE NUT Genuine Aston Martin - New (to order)
          # 7
          MPN: 702944
          NUT, M6, HEX FLANGE HEAD
          from £0.58
          from £0.58
          NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
          LOWER MESH NUTS Genuine Ferrari Part - New (to order)
          # 8
          MPN: 703199
          BOLT, M6X30, HEX FLANGE HD
          from £0.47
          from £0.47
          BOLT M6X30 HEX FLANGE Genuine Aston Martin - New (to order)
          # 9
          MPN: 6G33-FA0115-AB-PK
          SCREW, M6X20 SOCKET HD
          For use with 3rd Mounting Point. Pack of 20
          from £12.00
          from £12.00
          This part replaces part number 6G33-FA0115-AB
          SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
