aston martin vanquish (2017) bonnet latch & actuation parts diagram

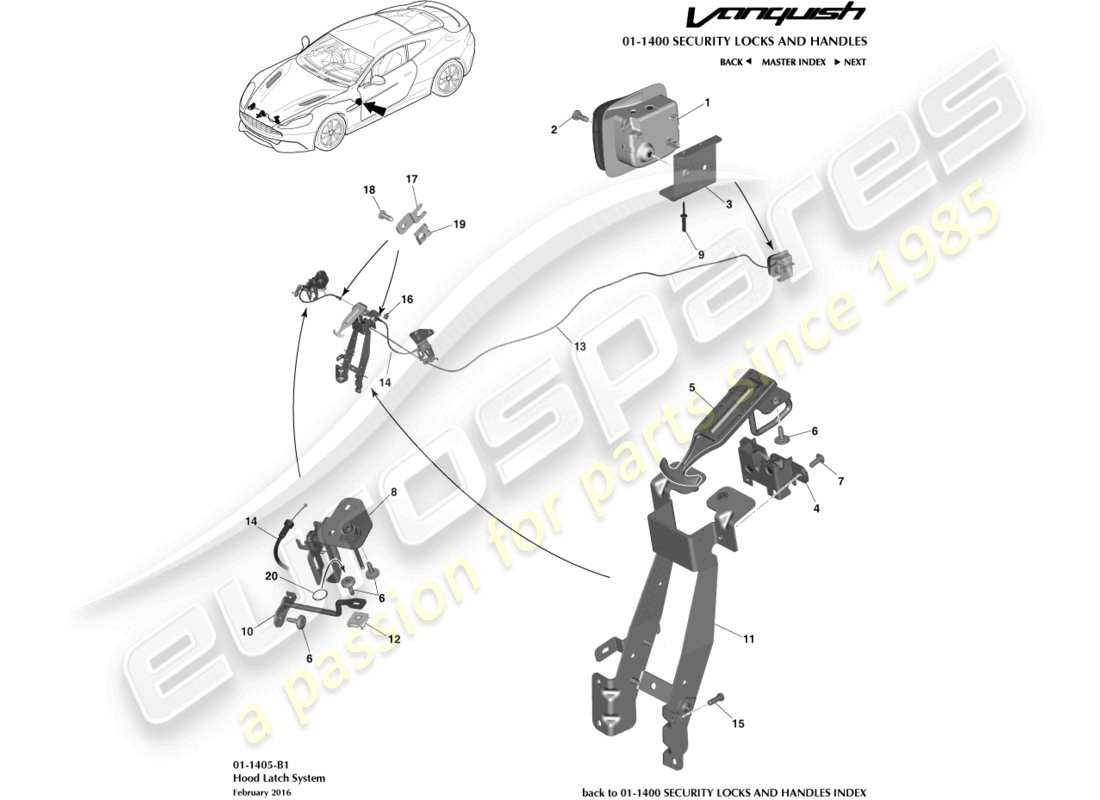

01-1405-B1 - Bonnet Latch & Actuation

Aston Martin Vanquish (2017) Bonnet Latch & Actuation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 9G43-64-11062
                                  LEVER, BONNET RELEASE
                                  from £4.94
                                  from £4.94
                                  LEVER-BONNET RELEASE Genuine Aston Martin - New (to order)
                                  LEVER-BONNET RELEASE Genuine Aston Martin - Used In stock
                                  # 2
                                  MPN: 701553
                                  SCREW, M6 X 16 PAN HEAD
                                  from £0.47
                                  from £0.47
                                  SCREW M6X16 PAN HD Genuine Aston Martin - New (to order)
                                  # 3
                                  MPN: CD33-16C730-AA
                                  BRACKET, HOOD RELEASE HANDLE MOUNTING
                                  from £14.44
                                  from £14.44
                                  BRACKET, HOOD RELEASE HANDLE MOUNTING Genuine Aston Martin - New (to order)
                                  # 4
                                  MPN: 4G43-64-10063
                                  BONNET LATCH
                                  from £10.20
                                  from £10.20
                                  BONNET LATCH Genuine Aston Martin - New (to order)
                                  BONNET LATCH Genuine Aston Martin - Used In stock
                                  # 5
                                  MPN: DD43-5284-AD
                                  PRIMARY STRIKER AND SECONDARY RELEASE
                                  from £55.66
                                  from £55.66
                                  STRIKER/RELEASE HNDL Genuine Aston Martin - New (to order)
                                  # 6
                                  MPN: 6G33-FA0115-AB-PK
                                  SCREW, M6 X 20, SOCKET HD
                                  Pack of 20
                                  from £12.00
                                  from £12.00
                                  This part replaces part number 6G33-FA0115-AB
                                  SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
                                  # 7
                                  MPN: 703149
                                  SCREW M6 X 16, PAN TORX HD
                                  from £0.47
                                  from £0.47
                                  SCREW M6X16 PAN Genuine Aston Martin - New (to order)
                                  # 8
                                  MPN: DD43-16B769-AC
                                  LATCH ASSEMBLY, HOOD SECONDARY, RH
                                  Supersession
                                  Supersession
                                  Genuine Aston Martin (no longer available to order)
                                  # 8
                                  MPN: DD43-16B768-AC
                                  LATCH ASSEMBLY, HOOD SECONDARY, LH
                                  Supersession
                                  Supersession
                                  Genuine Aston Martin (no longer available to order)
                                  # 9
                                  MPN: 701580-PK
                                  RIVET, DOME HD
                                  Pack of 20
                                  from £6.28
                                  from £6.28
                                  RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: DD43-16A945-AA
                                  STRIKER BAR, SECONDARY LATCH, RH
                                  from £81.54
                                  from £81.54
                                  STRIKER BAR, SECONDARY LATCH, RH Genuine Aston Martin - New (to order)
                                  # 10
                                  MPN: DD43-16A944-AA
                                  STRIKER BAR, SECONDARY LATCH, LH
                                  from £81.54
                                  from £81.54
                                  STRIKER BAR, SECONDARY LATCH, LH Genuine Aston Martin - New (to order)
                                  # 11
                                  MPN: CD33-3804-AC
                                  BRACKET, BONNET LATCH MOUNTING
                                  from £184.53
                                  from £184.53
                                  BRACKET, BONNET LATCH MOUNTING Genuine Aston Martin - New (to order)
                                  # 12
                                  MPN: 77G43-10609E-AA-PK
                                  CLIP, M6 U TYPE
                                  Pack of 10
                                  from £6.40
                                  from £6.40
                                  CLIP, M6 U TYPE Genuine Aston Martin - New (to order)
                                  # 13
                                  MPN: AD43-16C656-AC
                                  CABLE ASSEMBLY, HOOD LATCH RELEASE
                                  from £35.92
                                  from £35.92
                                  CABLE ASSEMBLY, HOOD LATCH RELEASE Genuine Aston Martin - New (to order)
                                  # 14
                                  MPN: DD43-405C45-AD
                                  CABLE, SECONDARY LATCH RELEASE
                                  from £50.08
                                  from £50.08
                                  CABLE, SECONDAY LATCH RELEASE Genuine Aston Martin - New (to order)
                                  # 15
                                  MPN: 703265
                                  SCREW M6 X 16, HEX HD
                                  from £0.47
                                  from £0.47
                                  SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                  # 16
                                  MPN: 704443
                                  CLIP PLASTIC
                                  from £0.49
                                  from £0.49
                                  CLIP-PLASTIC 5X6.5X2 Genuine Aston Martin - New (to order)
                                  # 17
                                  MPN: CD33-16K662-AB
                                  CABLE ABUTMENT, HOOD SECONDARY RELEASE
                                  from £4.93
                                  from £4.93
                                  CABLE ABUTMENT, HOOD SECONDARY RELEASE Genuine Aston Martin - New (to order)
                                  # 18
                                  MPN: 705464
                                  SCREW, 4.2 X 16, LARGE WASHER HD
                                  from £0.47
                                  from £0.47
                                  SCREW 4.2 X 16 ST Genuine Aston Martin - New (to order)
                                  # 19
                                  MPN: 701448
                                  NUT, U-TYPE
                                  from £0.47
                                  from £0.47
                                  NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                                  SPLITTER NUTS Genuine Ferrari Part - New (to order)
                                  # 20
                                  MPN: CD33-A15K610-AA
                                  TORX CAP TX30, OD 16.2MM
                                  FROM 15MY
                                  from £0.47
                                  from £0.47
                                  TORX CAP, TX30, OD 16.2MM Genuine Aston Martin - New (to order)
