aston martin vanquish (2018) underbody, coupe parts diagram

01-0101-04 - Underbody, Coupe

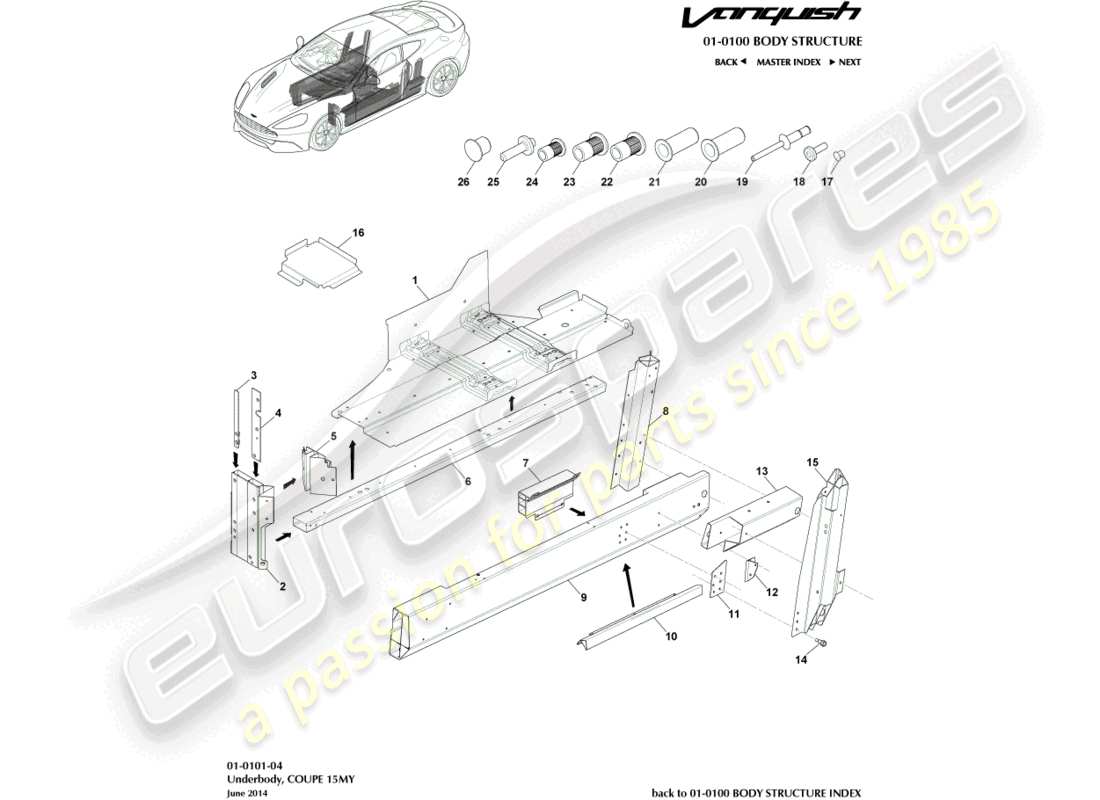

Aston Martin Vanquish (2018) Underbody, Coupe Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: 4G43-16-10880
                          FLOOR SUB ASSY, LH
                          Structural. Cat A Only
                          from £760.29
                          from £760.29
                          PANEL ASSEMBLY, FLOOR, LH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: 4G43-16-10879S
                          FLOOR SUB ASSY, RH
                          Vin Stamp Required. Structural. Cat A Only
                          from £309.60
                          from £309.60
                          PANEL ASSEMBLY, FLOOR, RH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-20-10877
                          UPRIGHT ASSY, FRONT SUBFRAME, LH
                          Structural. Cat A Only
                          from £287.98
                          from £287.98
                          FT S/FRM UPRT LH-DB9 Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 4G43-20-10876
                          UPRIGHT ASSY, FRONT SUBFRAME, RH
                          Structural. Cat A Only
                          from £287.98
                          from £287.98
                          FT S/FRM UPRT RH-DB9 Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 8G43-390725-AA
                          NUTPLATE, FRONT END MOUNTING INNER
                          Structural. Cat A Only
                          from £20.01
                          from £20.01
                          NUT PLATE FRONT END MNT Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8G43-434K11-AA
                          NUTPLATE, FRONT END MOUNTING OUTER, LH
                          Structural. Cat A Only
                          from £13.22
                          from £13.22
                          NUTPLATE FRONT END MNT Genuine Aston Martin - New (to order)
                          # 4
                          MPN: 8G43-434K10-AA
                          NUTPLATE, FRONT END MOUNTING OUTER, RH
                          Structural. Cat A Only
                          from £54.52
                          from £54.52
                          NUTPLATE FRONT END MNT Genuine Aston Martin - New (to order)
                          # 5
                          MPN: GOAG33-F001K28-AA
                          BRACE, TUNNEL UPPER INNER
                          Structural. Cat A Only
                          from £51.75
                          from £51.75
                          BRACE TNL UPPER INNER Genuine Aston Martin - New (to order)
                          # 6
                          MPN: DG43-10120-AA
                          MEMBER, FLOOR, SIDE FRONT
                          Structural. Cat A Only
                          from £336.26
                          from £336.26
                          MEMBER, FLOOR, SIDE FRONT Genuine Aston Martin - New (to order)
                          # 7
                          MPN: GOFD33-270A50-AC
                          PUSHER BLOCK, SIDE IMPACT
                          from £138.15
                          from £138.15
                          PUSHER BLOCK, SIDE IMPACT Genuine Aston Martin - New (to order)
                          # 8
                          MPN: GODG43-24315-AA
                          PILLAR, CENTRE BODY, OUTER REAR, LH
                          Structural. Cat A Only
                          PILLAR, CENTRE BODY, OUTER REAR, LH Genuine Aston Martin - New (to order)
                          # 8
                          MPN: GODG43-24314-AA
                          PILLAR, CENTRE BODY, OUTER REAR, RH
                          Structural. Cat A Only
                          PILLAR, CENTRE BODY, OUTER REAR, RH Genuine Aston Martin - New (to order)
                          # 9
                          MPN: DG43-C10117-AD
                          MEMBER, FLOOR SIDE, LH
                          Structural. Cat A Only. Up To 15MY
                          MEMBER, FLOOR SIDE, LH Genuine Aston Martin - New (to order)
                          # 9
                          MPN: FD33-C10117-AC
                          MEMBER, FLOOR SIDE, LH
                          Structural. Cat A Only. From 15MY
                          MEMBER, FLOOR SIDE, LH Genuine Aston Martin - New (to order)
                          # 9
                          MPN: DG43-C10116-AD
                          MEMBER, FLOOR SIDE, RH
                          Structural. Cat A Only. Up To 15MY
                          MEMBER, FLOOR SIDE, RH Genuine Aston Martin - New (to order)
                          # 9
                          MPN: FD33-C10116-AC
                          MEMBER, FLOOR SIDE, RH
                          Structural. Cat A Only. From 15MY
                          MEMBER, FLOOR SIDE, RH Genuine Aston Martin - New (to order)
                          # 10
                          MPN: FD33-106A78-AA
                          SILL CATCHER, EXTERNAL
                          Structural. Cat A Only
                          SILL CATCHER, EXTERNAL Genuine Aston Martin - New (to order)
                          # 11
                          MPN: FD33-026B04-AB
                          PLATE, B PILLAR, REINFORCEMENT
                          Structural. Cat A Only
                          PLATE, B PILLAR, REINFORCEMENT Genuine Aston Martin - New (to order)
                          # 12
                          MPN: FD33-24437-AB
                          REINFORCEMENT, B PILLAR, LOWER, LH
                          Structural. Cat A Only
                          REINFORCEMENT, B PILLAR, LOWER, LH Genuine Aston Martin - New (to order)
                          # 12
                          MPN: FD33-24436-AB
                          REINFORCEMENT, B PILLAR, LOWER, RH
                          Structural. Cat A Only
                          REINFORCEMENT, B PILLAR, LOWER, RH Genuine Aston Martin - New (to order)
                          # 13
                          MPN: GODG43-101D07-AA
                          EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, LH
                          Structural. Cat A Only
                          from £90.91
                          from £90.91
                          EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, LH Genuine Aston Martin - New (to order)
                          # 13
                          MPN: GODG43-101D06-AA
                          EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, RH
                          Structural. Cat A Only
                          from £90.91
                          from £90.91
                          EXTRUSION MEMBER, REAR FLOOR SIDE LOWER, RH Genuine Aston Martin - New (to order)
                          # 14
                          MPN: 6G33-375732-AA
                          SCREW, SS HEX FL HD, 5.5X19 SELF DRILL
                          from £0.47
                          from £0.47
                          SCREW SS HEX FLANGE HD Genuine Aston Martin - New (to order)
                          # 15
                          MPN: DG43-C24313-AD
                          PILLAR, CENTRE BODY, LH
                          Structural. Cat A Only. Up To 15MY
                          PILLAR, CENTRE BODY, LH Genuine Aston Martin - New (to order)
                          # 15
                          MPN: FD33-C24313-AD
                          PILLAR, CENTRE BODY, LH
                          Structural. Cat A Only. From 15MY
                          from £274.56
                          from £274.56
                          PILLAR, CENTRE BODY, LH Genuine Aston Martin - New (to order)
                          # 15
                          MPN: DG43-C24312-AD
                          PILLAR, CENTRE BODY, RH
                          Structural. Cat A Only. Up To 15MY
                          PILLAR, CENTRE BODY, RH Genuine Aston Martin - New (to order)
                          # 15
                          MPN: FD33-C24312-AD
                          PILLAR, CENTRE BODY, RH
                          Structural. Cat A Only. From 15MY
                          PILLAR, CENTRE BODY, RH Genuine Aston Martin - New (to order)
                          # 16
                          MPN: 8G43-67342-AA
                          FINISHER, REAR SEAT HEEL BOARD LOWER, RH
                          Structural. Cat A Only
                          from £34.75
                          from £34.75
                          FINISHER, REAR SEAT HEEL BOARD LOWER, RH Genuine Aston Martin - New (to order)
                          # 17
                          MPN: 6G33-68885-AB
                          RIVET, SELF PIERCING, 5 X 6MM
                          from £0.47
                          from £0.47
                          SPR 5.0X6.0MM Genuine Aston Martin - New (to order)
                          # 18
                          MPN: W525157
                          RIVET, 4.8X13.8, BLND AL, DM, HD
                          RIVET, 4.8X13.8, BLND AL, DM, HD Genuine Aston Martin - New (to order)
                          # 19
                          MPN: 6G33-68676-AC
                          RIVET STRUCTURAL 6.5 X 14, BLIND
                          from £0.70
                          from £0.70
                          STRUCT RIVET 6.5X14 Genuine Aston Martin - New (to order)
                          # 20
                          MPN: 6G33-51025-AA
                          RIVNUT, M5 FLAT HEAD, 0.5-3MM GRIP ZN/N1
                          from £0.47
                          from £0.47
                          RIVNUT M5 Genuine Aston Martin - New (to order)
                          # 21
                          MPN: 6G33-51081-AA
                          RIVNUT, M6 FLAT HEAD, 3-5.5 MM GRIP
                          from £0.60
                          from £0.60
                          RIVNUT M6 Genuine Aston Martin - New (to order)
                          # 22
                          MPN: 6G33-56694-AA
                          RIVNUT, M8 FLAT HEAD CLOSED KNUR
                          from £2.22
                          from £2.22
                          RIVNUT M8 Genuine Aston Martin - New (to order)
                          # 23
                          MPN: 6G33-56316-AA
                          RIVNUT, M8 FLAT HEAD CLOSED KNUR, 2.3MM
                          from £0.47
                          from £0.47
                          RIVNUT M8 Genuine Aston Martin - New (to order)
                          # 24
                          MPN: 6G33-54428-AA
                          RIVNUT, M6 FLAT HEAD, KNURLED HEAD
                          from £0.47
                          from £0.47
                          RIVNUT M6 Genuine Aston Martin - New (to order)
                          # 25
                          MPN: 6G33-68855-AB
                          STUD, SELF PIERCING STUD, M6X19
                          from £0.47
                          from £0.47
                          SPS Genuine Aston Martin - New (to order)
                          # 26
                          MPN: 4G43-N800631-AA
                          RUBBER PLUG, 11MM, BLACK THERMOPLASTIC
                          from £0.54
                          from £0.54
                          BUNG-11 MM Genuine Aston Martin - New (to order)
