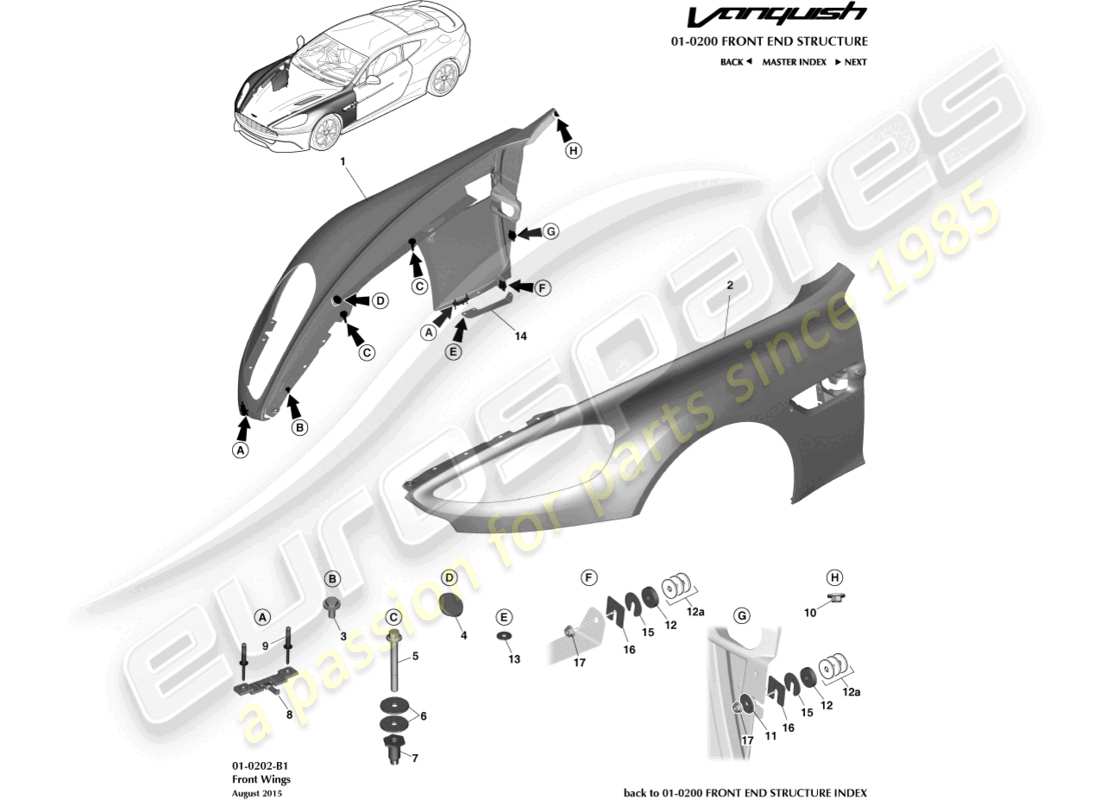

01-0202-B1 - Front Wings

Aston Martin Vanquish (2018) Front Wings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: CD33-16006-AC
                      PANEL ASSEMBLY, FRONT FENDER, RH
                      PANEL ASSEMBLY, FRONT FENDER, RH Genuine Aston Martin - New (to order)
                      # 2
                      MPN: CD33-16007-AC
                      PANEL ASSEMBLY, FRONT FENDER, LH
                      Supersession
                      Supersession
                      Genuine Aston Martin (no longer available to order)
                      # 3
                      MPN: 703151
                      SCREW AND WASHER, M6 X 16, HEX HD
                      from £0.47
                      from £0.47
                      SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                      LOWER MESH BOLTS Genuine Ferrari Part - New (to order)
                      # 4
                      MPN: 4G43-301347-AA
                      BODY PLUG, 20MM
                      from £0.79
                      from £0.79
                      20MM BODY PLUG Genuine Aston Martin - New (to order)
                      # 5
                      MPN: 703198
                      BOLT, M6 X 40, CHROME FREE
                      from £0.47
                      from £0.47
                      BOLT M6 X 40 Genuine Aston Martin - New (to order)
                      # 5
                      MPN: W500302-S443
                      BLACK BOLT M6X40
                      For Body Repair
                      BLACK BOLT M6X40 Genuine Aston Martin - New (to order)
                      # 6
                      MPN: CG43-106258-AA
                      WASHER, 6.0 I/D X 24 O/D
                      from £3.04
                      from £3.04
                      WASHER SS 6.0MM Genuine Aston Martin - New (to order)
                      # 6
                      MPN: 6G33-43422-AA
                      BLACK WASHER 8.6X30X3.3MM
                      For Body Repair
                      from £0.92
                      from £0.92
                      WASHER DECKLID STRIK Genuine Aston Martin - New (to order)
                      # 7
                      MPN: 4G43-E826280-BA-PK
                      NUT, M6, FLEXAX TOLERANCE
                      Pack of 5
                      from £11.44
                      from £11.44
                      M6 NUT-FLEXAX (5) Genuine Aston Martin - New (to order)
                      # 8
                      MPN: 4G43-023A50-BA
                      CLIP, EXTERIOR FENDER
                      FENDER CLIP, EXTERIOR Genuine Aston Martin - New (to order)
                      # 9
                      MPN: 701580-PK
                      RIVET, DOME HEAD
                      Pack of 20
                      from £6.28
                      from £6.28
                      RIVET DOME HEAD (20) Genuine Aston Martin - New (to order)
                      # 10
                      MPN: 702944
                      NUT, M6 HEX FLG
                      from £0.58
                      from £0.58
                      NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                      LOWER MESH NUTS Genuine Ferrari Part - New (to order)
                      # 11
                      MPN: 697810-PK
                      WASHER, M6 X 25 X 1.6
                      Pack of 10
                      WASHER M6X25MM, STAINLESS Genuine Aston Martin - New (to order)
                      # 12
                      MPN: CD33-5435-AA
                      SPACER, FENDER, 6MM
                      Up to 16MY
                      SPACER, FENDER, 6MM Genuine Aston Martin - New (to order)
                      # 12a
                      MPN: 4G43-16C694-AB-PK3
                      WASHER, NYLON (PACK OF 3)
                      FROM 16MY
                      from £1.83
                      from £1.83
                      WASHER, NYLON (PACK OF 3) Genuine Aston Martin - New (to order)
                      # 13
                      MPN: 697517-PK
                      WASHER, M6, LARGE OD, BLK
                      Pack of 20
                      from £13.07
                      from £13.07
                      WSHR-M6 L/OD BLK(20) Genuine Aston Martin - New (to order)
                      # 14
                      MPN: CD33-A9N648-AB
                      STIFFENER, FENDER PROFILE, RH
                      from £9.27
                      from £9.27
                      STIFFENER, FENDER PROFILE, RH Genuine Aston Martin - New (to order)
                      # 14
                      MPN: CD33-A9N649-AB
                      STIFFENER, FENDER PROFILE, LH
                      from £9.27
                      from £9.27
                      STIFFENER, FENDER PROFILE, LH Genuine Aston Martin - New (to order)
                      # 15
                      MPN: CD33-3N186-AA
                      SPACER, FENDER, 1MM
                      from £3.72
                      from £3.72
                      SPACER, FENDER, 1MM Genuine Aston Martin - New (to order)
                      # 16
                      MPN: CD33-3N187-AA
                      SPACER, FENDER, 1.5MM
                      from £4.05
                      from £4.05
                      SPACER, FENDER, 1.5MM Genuine Aston Martin - New (to order)
                      # 17
                      MPN: 702944
                      NUT, M6, HEX FLANGE HD
                      from £0.58
                      from £0.58
                      NUT M6 HEX FLNG MTL8 Genuine Aston Martin - New (to order)
                      LOWER MESH NUTS Genuine Ferrari Part - New (to order)
