aston martin vanquish (2018) rear console, volante parts diagram

01-1241-03 - Rear Console, Volante

Aston Martin Vanquish (2018) Rear Console, Volante Parts Diagram

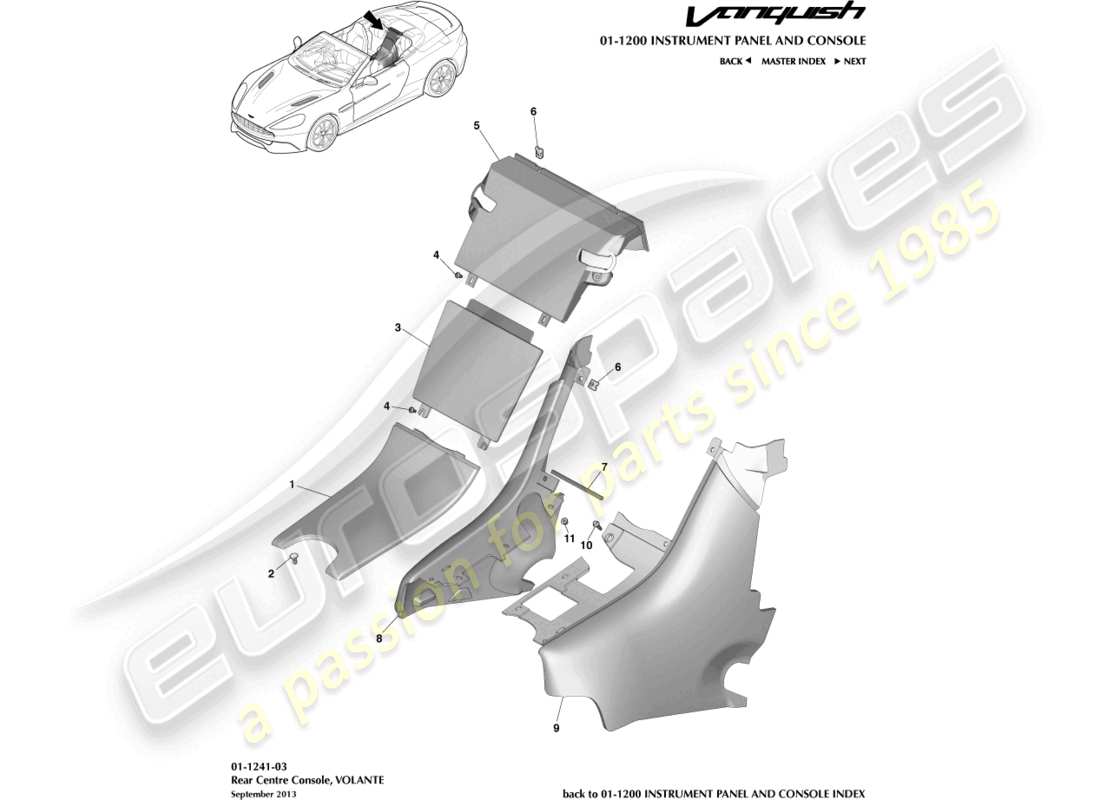

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: ED33-045E24-ACW
                  PANEL ASSEMBLY, REAR CONSOLE
                  Includes Item 2
                  from £675.07
                  from £675.07
                  PANEL ASSEMBLY, REAR CONSOLE Genuine Aston Martin - New (to order)
                  # 2
                  MPN: 701432
                  FIR TREE, 5.7 X 15.7, PUSH IN
                  from £0.47
                  from £0.47
                  PIN 5.7X15.7 PUSH IN Genuine Aston Martin - New (to order)
                  # 3
                  MPN: ED33-047A44-AAW
                  INFILL, REAR CONSOLE
                  from £75.65
                  from £75.65
                  INFILL, REAR CONSOLE Genuine Aston Martin - New (to order)
                  # 4
                  MPN: 701441-PK
                  SCREW, 4.2 X 13
                  Pack of 10
                  from £1.31
                  from £1.31
                  SCREW-M4.2X13 BLK(10 Genuine Aston Martin - New (to order)
                  # 5
                  MPN: AD33-L047A44-ACW
                  PANEL ASSEMBLY, REAR CONSOLE, TOP
                  Includes Item 6
                  from £714.53
                  from £714.53
                  PANEL ASSEMBLY, REAR CONSOLE, TOP Genuine Aston Martin - New (to order)
                  # 6
                  MPN: 701448
                  NUT, M4, U TYPE
                  from £0.47
                  from £0.47
                  NUT 4.2 2.1-3.1 U TY Genuine Aston Martin - New (to order)
                  SPLITTER NUTS Genuine Ferrari Part - New (to order)
                  # 7
                  MPN: SPB10796
                  FOAM STRIP, SELF ADHESIVE
                  FOAM STRIP, SELF ADHESIVE Genuine Aston Martin - New (to order)
                  # 8
                  MPN: ED33-L045C62-AAW
                  TRIMMED PANEL, REAR CONSOLE, RH
                  TRIMMED PANEL, REAR CONSOLE, RH Genuine Aston Martin - New (to order)
                  # 9
                  MPN: ED33-L045C63-AAW
                  TRIMMED PANEL, REAR CONSOLE, LH
                  TRIMMED PANEL, REAR CONSOLE, LH Genuine Aston Martin - New (to order)
                  # 10
                  MPN: 703026
                  SCREW, M5 X 16, HEX FLANGE HEAD
                  from £0.47
                  from £0.47
                  SCREW M5X16 HEX FLANGE Genuine Aston Martin - New (to order)
                  # 11
                  MPN: 703165
                  NUT, M5, HEX, PLASTIC
                  from £0.47
                  from £0.47
                  NUT M5 HEX FLANGE PLAS Genuine Aston Martin - New (to order)
