aston martin vanquish (2018) outer handles & actuation parts diagram

01-1404 - Outer Handles & Actuation

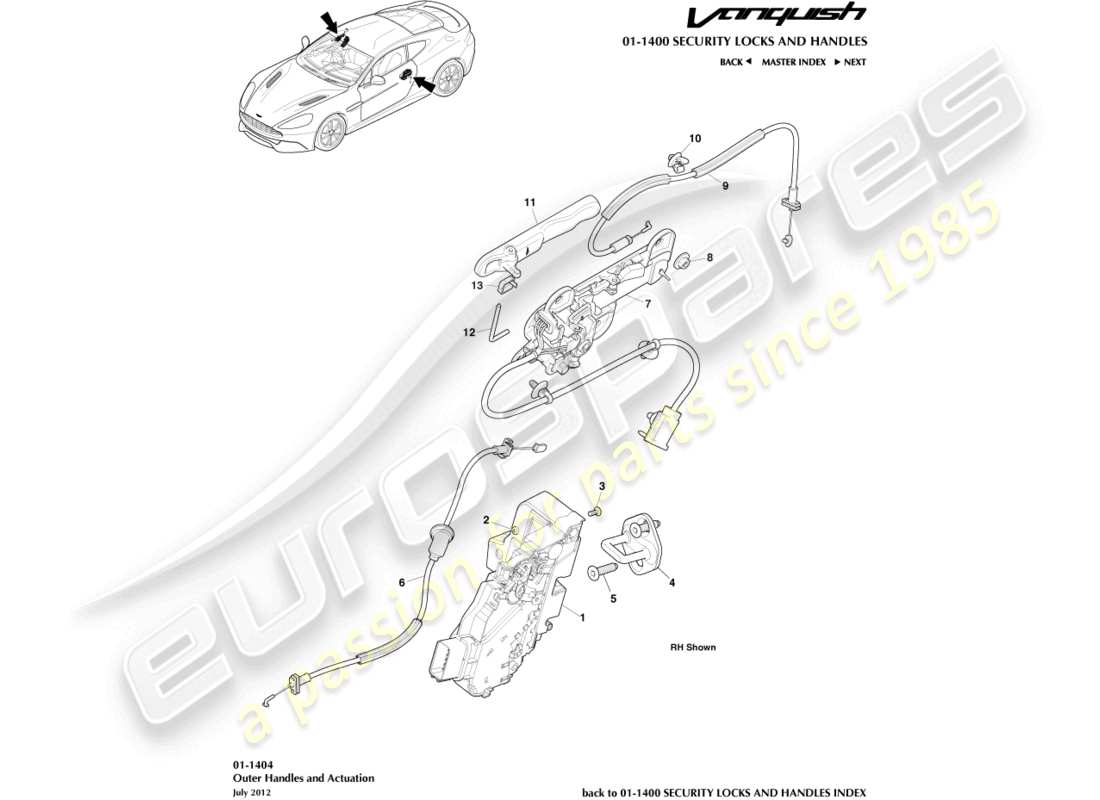

Aston Martin Vanquish (2018) Outer Handles & Actuation Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 1
                          MPN: ED33-21814-AB
                          LATCH ASSY, FRONT DOOR, RH
                          from £207.68
                          from £207.68
                          LATCH ASSEMBLY, FRONT DOOR, RH Genuine Aston Martin - New (to order)
                          # 1
                          MPN: ED33-21813-AB
                          LATCH ASSY, FRONT DOOR, LH
                          from £207.68
                          from £207.68
                          This part replaces part number 4G43-21813-AC which we have in stock
                          LATCH ASSEMBLY, FRONT DOOR, LH Genuine Aston Martin - New (to order)
                          # 2
                          MPN: 703027
                          SCREW, M4 X 10, TORX PAN HEAD
                          from £0.47
                          from £0.47
                          SCREW M4X10 PAN HD Genuine Aston Martin - New (to order)
                          # 3
                          MPN: 703746
                          SCREW, M6 X 16, TORX PAN HEAD
                          from £0.47
                          from £0.47
                          SCREW-M6X16 PAN TORX Genuine Aston Martin - New (to order)
                          # 4
                          MPN: AD43-65-10001
                          DOOR STRIKER
                          from £29.98
                          from £29.98
                          DOOR STRIKER Genuine Aston Martin - New (to order)
                          # 5
                          MPN: AD43-AA0231-AA
                          SCREW, M8 X 34, CSK FLAT TORX HEAD
                          from £2.87
                          from £2.87
                          SCW M8X34 COUNTERSUNK FLAT Genuine Aston Martin - New (to order)
                          # 6
                          MPN: CD33-F218A01-AA
                          CABLE ASSY, FRONT DOOR INSIDE HANDLE
                          from £37.06
                          from £37.06
                          CABLE ASSEMBLY, FRONT INSIDE DOOR HANDLE Genuine Aston Martin - New (to order)
                          # 7
                          MPN: CD33-226A28-AB
                          DOOR HANDLE, EXTERIOR FRONT
                          Supersession
                          Supersession
                          Genuine Aston Martin (no longer available to order)
                          # 8
                          MPN: 703612
                          NUT & WASHER, M6
                          from £0.47
                          from £0.47
                          NUT & WASHER-M6 HEX Genuine Aston Martin - New (to order)
                          # 9
                          MPN: CD33-221A00-AA
                          CABLE ASSY, FRONT DOOR OUTSIDE HANDLE
                          from £37.06
                          from £37.06
                          CABLE ASSEMBLY, FRONT DOOR OUTSIDE HANDLE Genuine Aston Martin - New (to order)
                          # 10
                          MPN: 4G43-65-10059
                          CLIP, FIR TREE 5 X 6.5 X 2
                          from £0.47
                          from £0.47
                          CLIP, FIRTREE Genuine Aston Martin - New (to order)
                          # 11
                          MPN: 4G43-22404-AE
                          HANDLE BLADE ASSY
                          STANDARD
                          from £23.56
                          from £23.56
                          HANDLE BLADE Genuine Aston Martin - New (to order)
                          HANDLE BLADE Genuine Aston Martin - Used In stock
                          # 11
                          MPN: CD33-22404-AC
                          HANDLE BLADE ASSY, RH
                          CARBON
                          from £1,124.64
                          from £1,124.64
                          HANDLE BLADE, RH Genuine Aston Martin - New (to order)
                          # 11
                          MPN: CD33-22405-AC
                          HANDLE BLADE ASSY, LH
                          CARBON
                          from £1,124.64
                          from £1,124.64
                          HANDLE BLADE, LH Genuine Aston Martin - New (to order)
                          # 12
                          MPN: 4G43-224A68-AA
                          PIVOT PIN, OUTSIDE HANDLE
                          from £2.72
                          from £2.72
                          PIVOT PIN OUTSIDE HN Genuine Aston Martin - New (to order)
                          # 13
                          MPN: 4G43-224A72-AH
                          DUMMY LIGHT LENS
                          from £2.42
                          from £2.42
                          DUMMY LIGHT LENS Genuine Aston Martin - New (to order)
