aston martin vanquish (2018) front bumper parts diagram

01-1901-01 - FRONT BUMPER

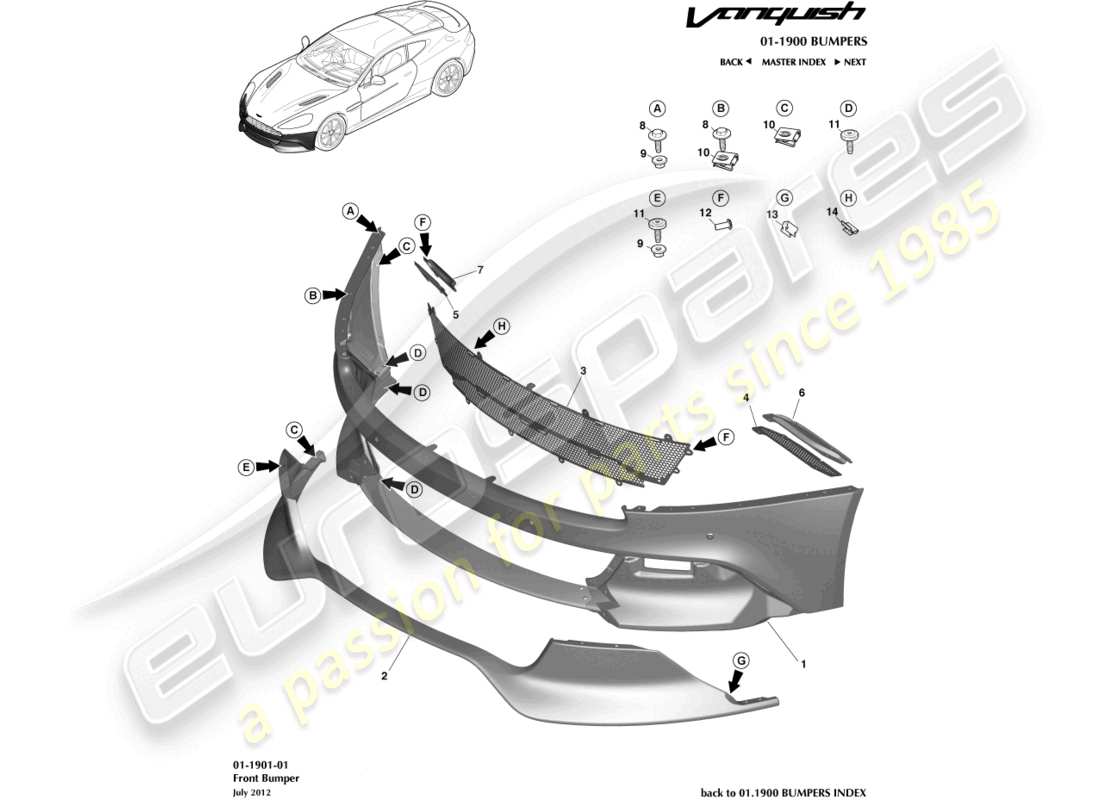

Aston Martin Vanquish (2018) Front Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: CD33-17D957-CB
              COVER ASSY, FRONT BUMPER
              All markets
              from £1,698.35
              from £1,698.35
              COVER ASSEMBLY, FRONT BUMPER Genuine Aston Martin - New (to order)
              # 2
              MPN: CD33-17B968-AC
              FRONT SPLITTER, CARBON
              Supersession
              Supersession
              Genuine Aston Martin (no longer available to order)
              # 3
              MPN: CD33-8156-AC
              MESH, LOWER FRONT GRILLE
              Black
              from £412.85
              from £412.85
              MESH, LOWER FRONT GRILLE Genuine Aston Martin - New (to order)
              # 4
              MPN: CD33-17E811-AB
              MESH, FRONT BUMPER, LH
              Black
              from £38.95
              from £38.95
              MESH, FRONT BUMPER, LH Genuine Aston Martin - New (to order)
              # 5
              MPN: CD33-17E810-AB
              MESH, FRONT BUMPER, RH
              Black
              from £38.95
              from £38.95
              MESH, FRONT BUMPER, RH Genuine Aston Martin - New (to order)
              # 6
              MPN: CD33-17E813-AA
              BLANKING PLATE, MESH FRONT, LH
              from £13.94
              from £13.94
              BLANKING PLATE, MESH FRONT, LH Genuine Aston Martin - New (to order)
              # 7
              MPN: CD33-17E812-AA
              BLANKING PLATE, MESH FRONT, RH
              from £13.94
              from £13.94
              BLANKING PLATE, MESH FRONT, RH Genuine Aston Martin - New (to order)
              # 8
              MPN: 702839-PK
              SCREW AND WASHER, M6 X 20, HEX HD
              Pack of 10
              from £3.14
              from £3.14
              SCREW&WSHR M6X20(10) Genuine Aston Martin - New (to order)
              # 9
              MPN: 703749
              NUT, M6, HEX FLG
              from £0.47
              from £0.47
              This part replaces part number 699877
              NUT-M6 HEX FLANGE GRD 8 Genuine Aston Martin - New (to order)
              # 10
              MPN: 7G43-10609E-AA-PK
              NUT, M6, U TYPE
              Pack of 10
              from £5.08
              from £5.08
              CLIP SPG M6 PK OF 10 Genuine Aston Martin - New In stock
              FRONT UNDERTRAY CLIP Genuine Ferrari Part - New (to order)
              # 11
              MPN: 6G33-FA0115-AB-PK
              SCREW, M6 X 20
              Pack of 20
              from £12.00
              from £12.00
              This part replaces part number 6G33-FA0115-AB
              SCREW-M6X20 PACK 20 Genuine Aston Martin - New (to order)
              # 12
              MPN: 4G43-2705-AA
              RIVET
              from £0.47
              from £0.47
              RIVET, PLASTIC Genuine Aston Martin - New (to order)
              # 13
              MPN: 704383
              EDGE CLIP
              from £0.87
              from £0.87
              EDGE CLIP Genuine Aston Martin - New In stock
              # 14
              MPN: 4G43-17F773-AB-PK
              RETAINER, BUMPER GRILLE
              Pack of 10
              from £2.24
              from £2.24
              This part replaces part number 4G43-17F773-AB
              RETAINER FOR FRONT BUMPER GRILLE Genuine Aston Martin - New (to order)
