aston martin vanquish (2018) number plate plinths parts diagram

01-1903 - Number Plate Plinths

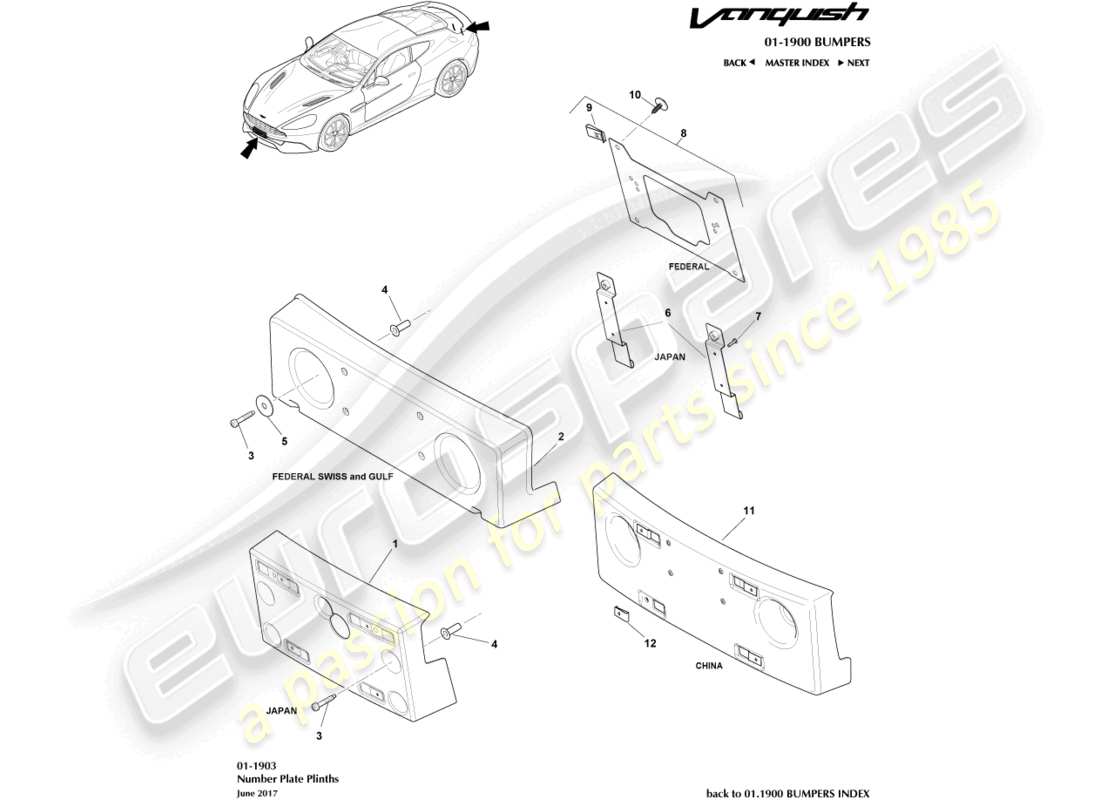

Aston Martin Vanquish (2018) Number Plate Plinths Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 1
MPN: CD33-17A835-AA
PLINTH ASSEMBLY, NUMBER PLATE
Japan
from £55.66
from £55.66
PLINTH ASSEMBLY, NUMBER PLATE Genuine Aston Martin - New (to order)
# 2
MPN: CD33-17A835-DA
PLINTH ASSEMBLY, NUMBER PLATE
Federal, Swiss and Gulf
from £90.05
from £90.05
PLINTH ASSEMBLY, NUMBER PLATE Genuine Aston Martin - New (to order)
# 3
MPN: 703171
SCREW, M5X20, TORX PAN HD
Japan Qty 4, Federal, Swiss and Gulf Qty 2
from £0.47
from £0.47
SCREW, M5X20, TORX PAN HD Genuine Aston Martin - New (to order)
# 4
MPN: 4G43-N806103-AA
NUT, M5X0.8, ROUND CLINCH
Japan Qty 4, Federal, Swiss and Gulf Qty 2
from £1.88
from £1.88
NUT, M5X0.8, ROUND CLINCH Genuine Aston Martin - New (to order)
# 5
MPN: 8G43-8979-AA
WASHER, M5X20X1.5
Federal, Swiss and Gulf
from £0.47
from £0.47
WASHER M5X20X1.5 THK Genuine Aston Martin - New (to order)
# -
-
KIT, FRONT NUMBER PLATE FIXING
Federal, Swiss and Gulf, Includes Items 3, 4 and 5
# -
-
KIT, FRONT NUMBER PLATE FIXING
ROW, Includes Items 4 and 6
# 6
MPN: AD43-13418-BA
BRACKET, NUMBER PLATE, REAR
Japan
from £54.17
from £54.17
BRACKET NO PLT JAPAN Genuine Aston Martin - New (to order)
# 7
MPN: 702943
RIVET, 3.2X6.5, BLIND ALUMINIUM
Japan
from £0.47
from £0.47
RIVET-3.2X6.5 BLACK Genuine Aston Martin - New (to order)
# 8
MPN: 6G33-17B389-AD
LICENCE PLATE BRACKET, REAR
Federal
from £14.04
from £14.04
LICENCE PLT BRKT-FED Genuine Aston Martin - New (to order)
# 8
MPN: CD33-17B389-DB
LICENCE PLATE BRACKET, REAR
CHINA
Supersession
Supersession
Genuine Aston Martin (no longer available to order)
# 9
MPN: 702511-PK
SPRING NUT
Federal, Pack of 10
from £3.92
from £3.92
NUT-SPG 4.8X0.70(10) Genuine Aston Martin - New (to order)
# 10
MPN: 702510-PK
SCREW & WASHER, 4.8X19
Federal, Pack of 10
from £2.92
from £2.92
SCREW & WASHER (5) Genuine Aston Martin - New In stock
# 11
MPN: CD33-17A835-BA
PLINTH ASSEMBLY, NUMBER PLATE
China, Up to 08/2017
from £113.69
from £113.69
PLINTH ASSEMBLY, NUMBER PLATE Genuine Aston Martin - New (to order)
# 11
MPN: CD33-17A835-BB
PLINTH ASSEMBLY, NUMBER PLATE
China, From 09/2017
from £176.95
from £176.95
PLINTH ASSEMBLY, NUMBER PLATE Genuine Aston Martin - New (to order)
# 12
MPN: 702511-PK
J NUT
China, Pack of 10
from £3.92
from £3.92
NUT-SPG 4.8X0.70(10) Genuine Aston Martin - New (to order)
