11-0201-10 - PAS Hoses, RHD to 15MY

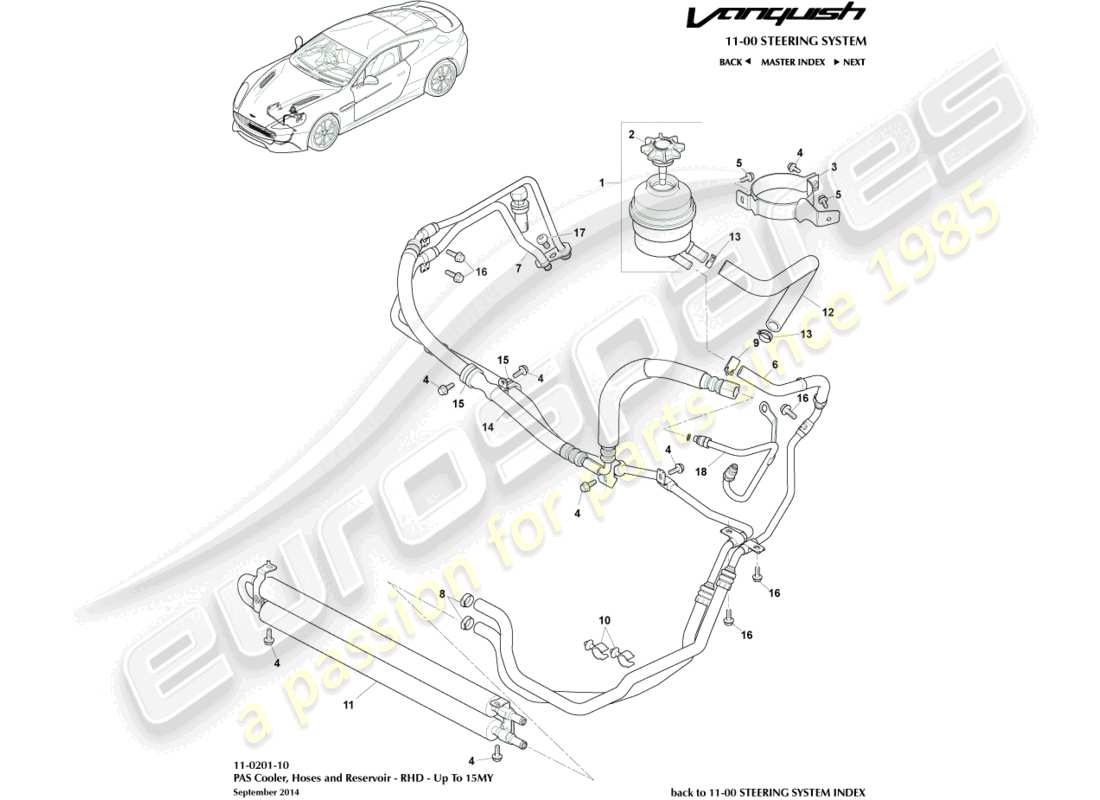

Aston Martin Vanquish (2018) PAS Hoses, RHD to 15MY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 4G43-3R700-AB
                                    RESERVOIR AND CAP ASSY
                                    from £57.51
                                    from £57.51
                                    RESERVOIR AND CAP ASSEMBLY, POWER STEERING Genuine Aston Martin - New (to order)
                                    RESERVOIR AND CAP ASSEMBLY, POWER STEERING Genuine Aston Martin - Used In stock
                                    # 2
                                    MPN: 4G43-34006-AA
                                    CAP, POWER STEERING RESERVOIR
                                    CAP ASSEMBLY POWER STEERING RESERVOIR Genuine Aston Martin - New (to order)
                                    # 3
                                    MPN: 4G43-3489-AD
                                    BRACKET ASSY, PAS RESERVOIR
                                    from £14.29
                                    from £14.29
                                    BRACKET ASSEMBLY - PAS RES Genuine Aston Martin - New (to order)
                                    BRACKET ASSEMBLY - PAS RES Genuine Aston Martin - Used In stock
                                    # 4
                                    MPN: 703203
                                    SCREW, M6 X 20, HEX FLANGE HD
                                    from £0.47
                                    from £0.47
                                    SCREW M6X20 HEX FLNG Genuine Aston Martin - New (to order)
                                    LOWER RADIATOR SUPPORT BOLT Genuine Ferrari Part - New (to order)
                                    # 5
                                    MPN: 703265
                                    SCREW, M6 X 16, HEX HD
                                    from £0.47
                                    from £0.47
                                    SCREW M6X16 HEX HD Genuine Aston Martin - New (to order)
                                    # 6
                                    MPN: CD33-3A713-AB
                                    HOSE, RETURN, COOLER TO RESERVOIR
                                    from £153.40
                                    from £153.40
                                    TUBE AY-PWR STNG RTN Genuine Aston Martin - New (to order)
                                    # 7
                                    MPN: CD33-3F558-BA
                                    HOSE, RETURN, GEAR TO COOLER, RHD
                                    from £113.17
                                    from £113.17
                                    TUBE ASY-P/STRG RTN Genuine Aston Martin - New (to order)
                                    # 8
                                    MPN: 8D33-60155-AA
                                    CLAMP, PAS HOSE
                                    from £3.39
                                    from £3.39
                                    CLAMP - PAS HOSE Genuine Aston Martin - New (to order)
                                    # 9
                                    MPN: 701349
                                    CLAMP, HOSE 20 DIA
                                    from £0.59
                                    from £0.59
                                    CLAMP HOSE 20 DIAMETER Genuine Aston Martin - New (to order)
                                    # 10
                                    MPN: 4G43-6C727-AA
                                    CLIP, HOSE
                                    from £0.59
                                    from £0.59
                                    CLIP PIP OIL COOL Genuine Aston Martin - New (to order)
                                    # 11
                                    MPN: CD33-3D746-AA
                                    COOLER ASSY, POWER STEERING
                                    from £312.17
                                    from £312.17
                                    COOLER ASY-PWR STNG Genuine Aston Martin - New (to order)
                                    # 12
                                    MPN: DG43-3E525-AA
                                    HOSE, RESERVOIR TO PUMP, SUCTION
                                    from £24.08
                                    from £24.08
                                    HOSE, RESERVOIR TO PUMP, SUCTION Genuine Aston Martin - New (to order)
                                    # 13
                                    MPN: 699545
                                    CLAMP, HOSE
                                    from £1.83
                                    from £1.83
                                    HOSE CLAMP Genuine Aston Martin - New (to order)
                                    # 14
                                    MPN: 4G43-3A719-BE
                                    HOSE ASSY, PAS PRESSURE LINE, PUMP TO GEAR, RHD
                                    from £307.49
                                    from £307.49
                                    HOS-PWR STNG PRESS Genuine Aston Martin - New (to order)
                                    HOS-PWR STNG PRESS Genuine Aston Martin - Used In stock
                                    # 15
                                    MPN: 699711
                                    P CLIP, 23 X 15 X M6
                                    from £1.15
                                    from £1.15
                                    P CLIP DIAMETER 23X15XM6 Genuine Aston Martin - New (to order)
                                    # 16
                                    MPN: 703121
                                    SCREW M8 X 20, HEX FLG
                                    from £0.47
                                    from £0.47
                                    SCREW M8X20 HEX FLANGE Genuine Aston Martin - New (to order)
                                    # 17
                                    MPN: 703141
                                    SCREW, M8 X 16
                                    from £1.25
                                    from £1.25
                                    SCREW M8X16 Genuine Aston Martin - New (to order)
                                    FRONT UNDERTRAY BOLTS Genuine Ferrari Part - New (to order)
                                    # 18
                                    MPN: DG43-3494-AA
                                    TUBE ASSY, PWR STEERING PUMP OUTLET
                                    Includes O Rings
                                    from £58.30
                                    from £58.30
                                    TUB ASY-PWR STNG PMP Genuine Aston Martin - New (to order)
