012 - Blow - By

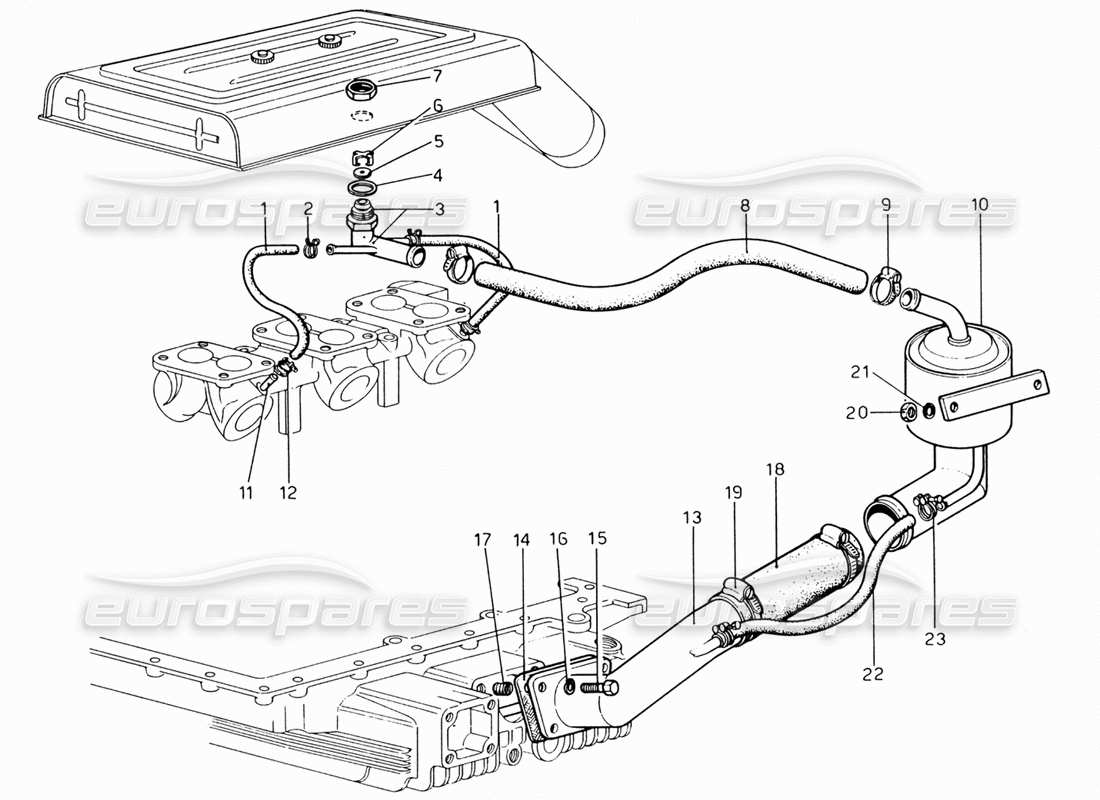

Ferrari 206 GT Dino (1969) Blow - By Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: F 5x9xaoo
CONNECTING HOSE
PIRELLI
# 001
MPN: Reslvite
MANIFOLDS AT THE BLOW-BY AIR INTAKE FITTING
Benzo
# 002
MPN: Upo A F 10
FASCETTA STRINGITUBO ..
ANGST-PH
# 003
MPN: 21110
ASSIEME TUBO E VALVOLA BLOW-BY
from £236.20
from £236.20
# 004
MPN: 95248
GASKET
from £1.89
from £1.89
# 005
MPN: 21080
DISK
# 006
MPN: 106755
MOTTETTA
from £4.56
from £4.56
This part replaces part number 21062
# 007
MPN: 21064
LOCKNUT
from £4.55
from £4.55
# 008
MPN: 95389
SLEEVE
from £95.00
from £95.00
# 009
MPN: tipo C. 29/30
JUBILEE CLIP
ANGST-PH
# 010
MPN: 21105
ASSIEME SFIATO E BLOW-BY
236 B
# 011
MPN: 4159621
UNION
FIAT
from £3.30
from £3.30
# 012
MPN: 10170990
JUBILEE CLIP
FIAT
# 013
MPN: 21106
OIL DRAIN HOSE ASSEMBLY
236 B
from £109.15
from £109.15
# 014
MPN: 21091
GASKET
from £16.95
from £16.95
# 015
MPN: 8x18-UNI 5739
BOLT
LOBO 8 G
# 016
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 017
MPN: 8x1,25x12
REPORTED THREAD ....
Hell Coil
# 018
MPN: 95342
VENT SLEEVE ..
from £20.49
from £20.49
# 019
MPN: tipoC.63/65
JUBILEE CLIP
ANGST-PH
# 020
MPN: MB1.25 UNl - 5588
NUT
Loeo s G
# 021
-
WASHER
# 022
MPN: F 3/8 x mm . 250
TUBO GOMMA
2256/6
# 023
MPN: Tipo C. 15/16
JUBILEE CLIP
ANGST-PH
