014 - Engine Lubrication

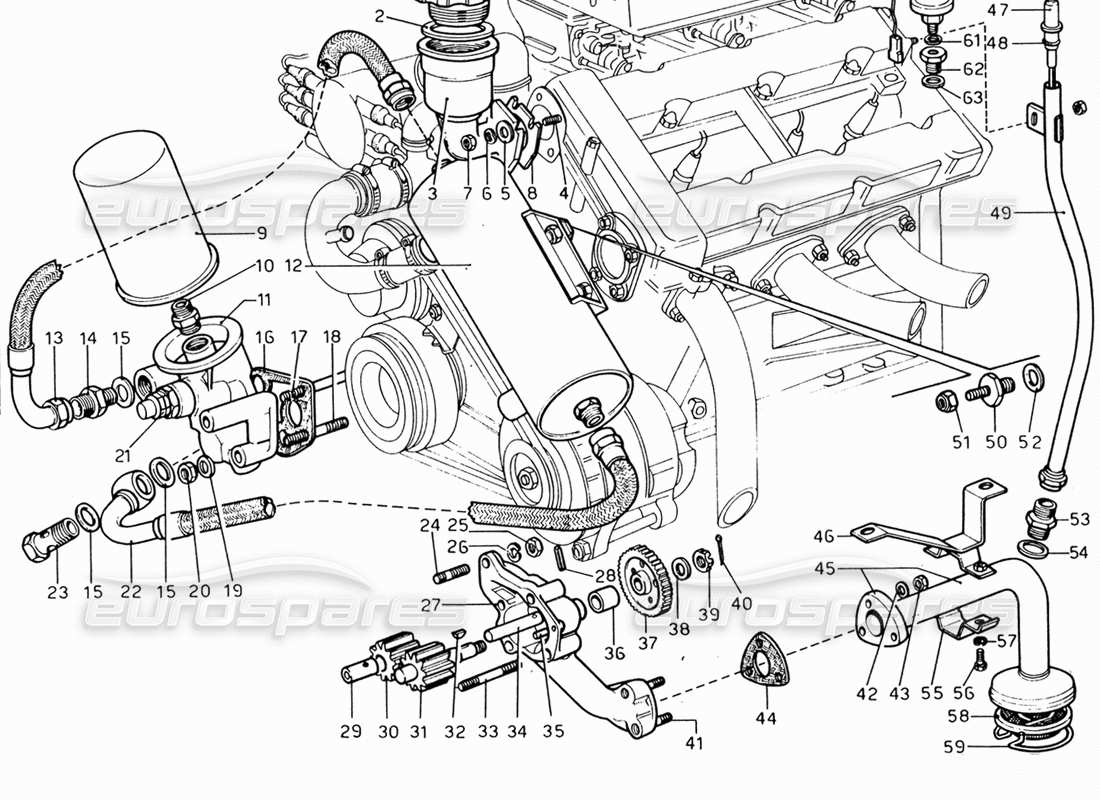

Ferrari 206 GT Dino (1969) Engine Lubrication Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 4168812
TAPPO INTRODUZIONE OLIO
FIAT
Supersession
Supersession
# 002
MPN: 4168814
GASKET
FIAT
Supersession
Supersession
# 003
MPN: 161386
BODY LOADING ENGINE OIL
from £147.00
from £147.00
# 004
MPN: 11500421
STUD
Supersession
Supersession
# 005
MPN: 12643701
WASHER
FIAT
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 006
MPN: 11197777
WASHER
FIAT
from £0.47
from £0.47
# 007
MPN: 15896211
NUT
FIAT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 008
MPN: 147633
GASKET
from £2.97
from £2.97
This part replaces part number 102796
# 009
MPN: 4170601
OIL FILTER .
FIAT
Supersession
Supersession
# 010
MPN: 4121075
UNION
FIAT
from £4.78
from £4.78
# 011
MPN: 240273
BASE FILTRO
# 012
MPN: 240283
SCAMBIATORE DI CALORE
236 B
from £384.16
from £384.16
# 013
MPN: 240478
PIPE FROM THE EXCHANGER TO THE FILTER
236 B
from £82.81
from £82.81
# 014
MPN: DIN 16-7627
NIPPLO
ANGST-PH
# 015
MPN: 95119
GASKET OR SEAL
Supersession
Supersession
# 016
MPN: 4147013
GASKET
FIAT
from £7.33
from £7.33
# 017
MPN: 4147015
THREADED STUD
FIAT
# 018
MPN: 4147010
THREADED STUD
FIAT
from £3.47
from £3.47
# 019
MPN: 11198077
WASHER
# 020
MPN: 16100911
NUT
FIAT
# 021
MPN: 4147295
VALVE ASSEMBLY .
FIAT
from £146.57
from £146.57
# 022

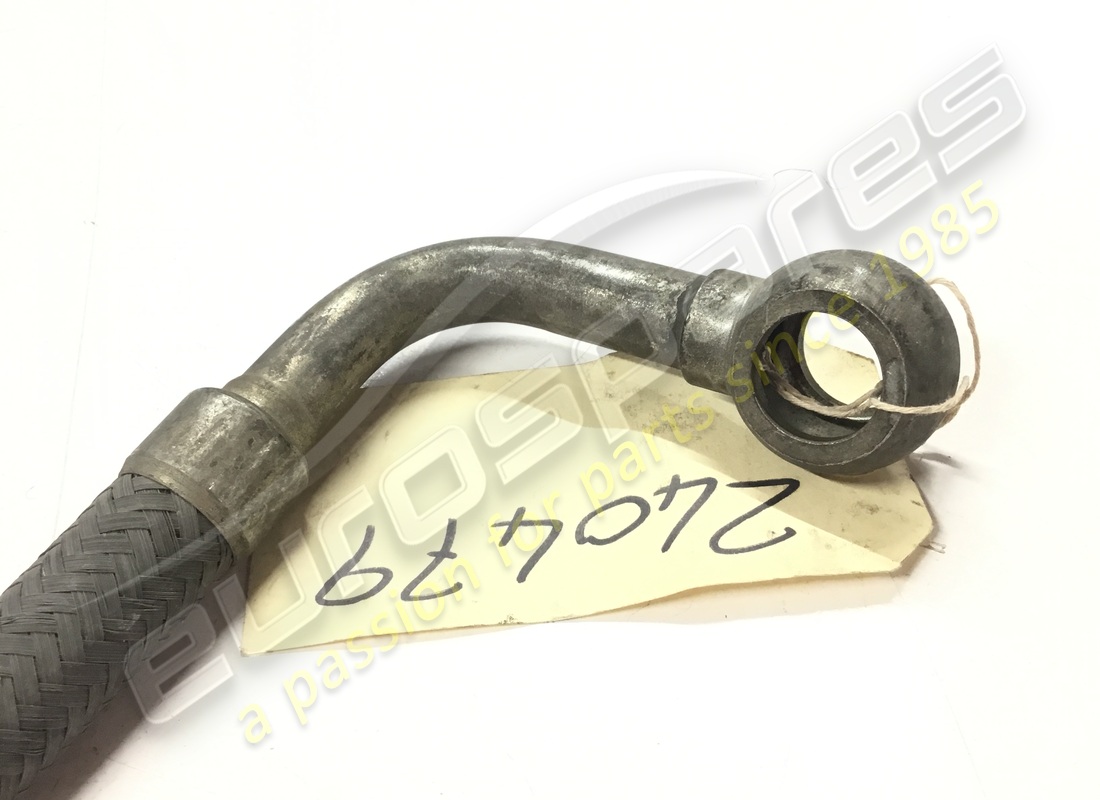

MPN: 240479
PIPE FROM PUMP TO EXCHANGER.
236 B
from £306.60
from £306.60
# 023
MPN: 4165658
UNION
FIAT
# 024
MPN: 4146934
PRIGIO NIERO
FIAT
# 025
MPN: 16102411
NUT
FIAT
# 026
MPN: 11198077
WASHER
# 027
MPN: 240259
Corpo pompa olio
from £104.12
from £104.12
# 028
MPN: 14161970
PIN
FIAT
from £0.60
from £0.60
# 029
MPN: 240421
BUSH
236 B
# 030
MPN: 4146927
DRIVEN GEAR
FIAT
# 031
MPN: 4146924
DRIVING GEAR
FIAT
# 032
MPN: 10205720
Key
FIAT
from £1.04
from £1.04
# 033
MPN: 4146933
THREADED STUD
FIAT
# 034
MPN: 4146926
ALBERINO
FIAT
# 035
MPN: 10837310
DOWEL
FIAT
from £0.47
from £0.47
# 036
MPN: 240342
BUSH
236 B
from £17.81
from £17.81
# 037
MPN: 4146923
INGRANAGGIO DI COMANDO
FIAT
# 038
MPN: 4146930
WASHER
FIAT
Supersession
Supersession
This part replaces part number 10R1 - and 1 more. Click to view details
# 039
MPN: 4146931
NUT
FIAT
Supersession
Supersession
# 040
MPN: 10734301
SPLIT PIN
FIAT
from £0.47
from £0.47
# 041
MPN: 95920110
THREADED STUD
6x18
from £1.91
from £1.91
# 042
MPN: REO6
STUD
DEB
Supersession
Supersession
# 043
MPN: 6x1 UN15588
NUT
LOBO 8 G
# 044
MPN: 240263
GASKET
from £2.25
from £2.25
# 045
MPN: 240336
COMPLESSIVO TUBO E FILTRO
236 B
# 046
MPN: 240339
BRACKET / SUPPORT
236 B
# 047
MPN: 111337
TOTAL AUCTION
236 B
from £29.05
from £29.05
This part replaces part number 100457
# 048
MPN: OR 109
SEALING RING
ANGST-PH
# 049
MPN: 111333
TUBE ASSEMBLY FOR ROD
236 B
# 050
MPN: 240366
COLONNETTA
236 B
from £33.90
from £33.90
# 051
MPN: 210MB
NUT
US/B70
# 052
MPN: 10282460
WASHER
FIAT
from £0.47
from £0.47
# 053
MPN: 95116
UNION
# 054
MPN: 95119
GASKET
Supersession
Supersession
# 055
MPN: 240340
CAVALLOTTO PER STAFFA
236 B
from £8.43
from £8.43
# 056
MPN: 5z10-UNI 5739
BOLT
LOBO 8 G
# 057
MPN: REG 5
WASHER
OEB
# 058
MPN: 100332
SUMP FILTER
from £9.31
from £9.31
This part replaces part number 240387 - and 9 more. Click to view details
# 059
MPN: 24124
RING
Supersession
Supersession
# 060
MPN: 4151996
OIL PRESSURE TRANSMITTER
FIAT
# 061
MPN: 1278660
GASKET
FIAT
# 062
MPN: 4165657
UNION
FIAT
from £18.04
from £18.04
# 063
MPN: 10264560
GASKET
FIAT
from £0.47
from £0.47
