ferrari 206 gt dino (1969) water pump and pipes parts diagram

016 - Water Pump and Pipes

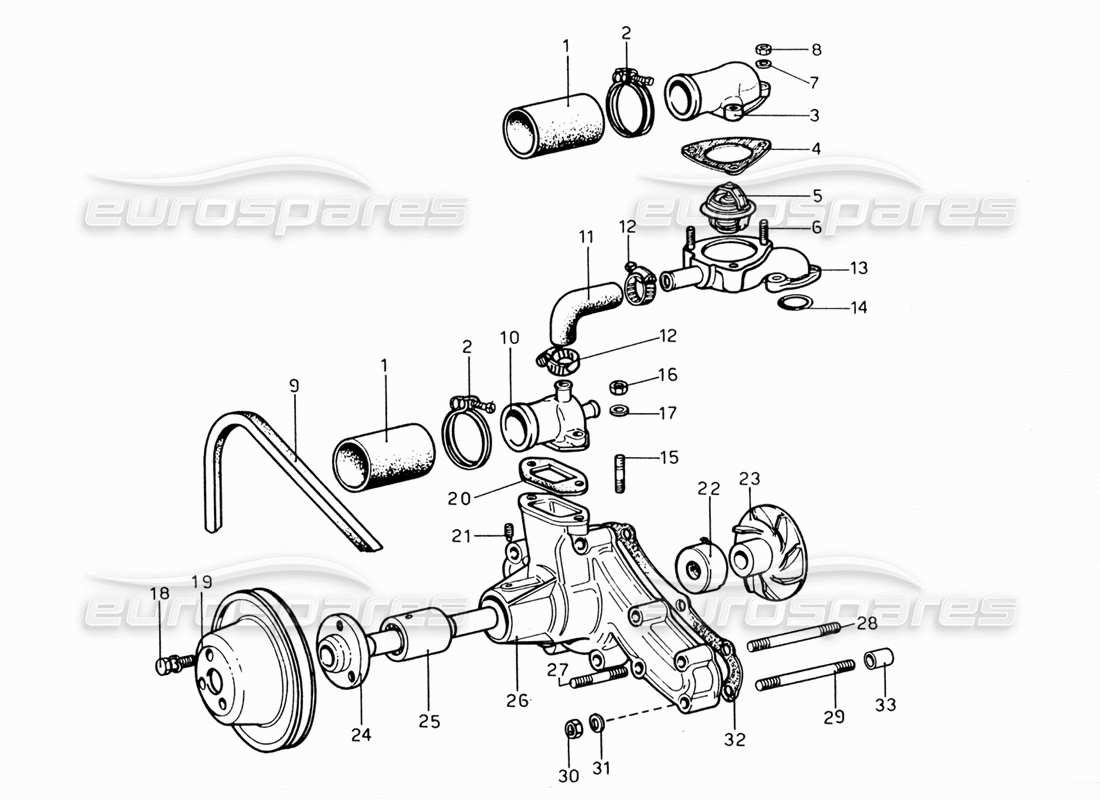

Ferrari 206 GT Dino (1969) Water Pump and Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 001
                MPN: 94937
                SLEEVE
                from £10.86
                from £10.86
                HOSE Genuine Ferrari Part - New (to order)
                # 002
                MPN: lipo C Fi 41
                JUBILEE CLIP
                ANGST-PH
                JUBILEE CLIP Genuine Ferrari Part - New (to order)
                # 003
                MPN: 4147120
                COVER
                FIAT
                COVER Genuine Ferrari Part - New (to order)
                # 004
                MPN: 4147181
                GASKET
                FIAT
                from £2.16
                from £2.16
                GASKET 206 DINO OE Genuine Ferrari Part - New (to order)
                # 005
                MPN: 4086415
                TERMOSTATO
                FIAT
                THERMOSTAT 206 DINO Genuine Ferrari Part - New (to order)
                # 006
                MPN: 13541324
                THREADED STUD
                FIAT
                from £0.99
                from £0.99
                This part replaces part number 13541321
                STUD BOLT Genuine Ferrari Part - New (to order)
                # 007
                MPN: 11197777
                WASHER
                FIAT
                from £0.52
                from £0.52
                WASHER Genuine Ferrari Part - New In stock
                TAPERED RUBBER WASHER 6.4-1 Genuine Maserati Part - New (to order)
                # 008
                MPN: 15896211
                NUT
                FIAT
                Supersession
                Supersession
                This part replaces part number 15896210 which we have in stock
                Genuine Ferrari Part (no longer available to order)
                Genuine Maserati Part (no longer available to order)
                # 009
                MPN: 4150202
                CINGHIA
                FIAT
                from £10.26
                from £10.26
                206 FAN BELT Genuine Ferrari Part - New (to order)
                # 010
                MPN: 4157424
                UNION
                FIAT
                CASING Genuine Ferrari Part - New (to order)
                # 011
                MPN: 4147180
                SLEEVE
                FIAT
                HOSE Genuine Ferrari Part - New (to order)
                # 012
                MPN: 12173790
                FASCETTA (TIPO CHENEY)
                FIAT
                CLIP Genuine Ferrari Part - New (to order)
                # 013
                MPN: 4147177
                COLLETTORE USCITA ACQUA
                FIAT
                from £166.69
                from £166.69
                MANIFOLD Genuine Ferrari Part - New (to order)
                # 014
                MPN: 4147182
                OIL SEAL
                FIAT
                Supersession
                Supersession
                Genuine Ferrari Part (no longer available to order)
                # 015
                MPN: 13517021
                THREADED STUD
                FIAT
                from £2.80
                from £2.80
                THREADED STUD 8X12 STEM 25MM Genuine Ferrari Part - New (to order)
                # 016
                MPN: 16100814
                NUT
                from £0.71
                from £0.71
                This part replaces part number 16100811 - and 1 more. Click to view details
                Genuine Ferrari Part (no longer available to order)
                NUT FOR REAR DIFFERENTIAL Genuine Maserati Part - New In stock
                # 017
                MPN: 11197777
                WASHER
                FIAT
                from £0.52
                from £0.52
                WASHER Genuine Ferrari Part - New In stock
                TAPERED RUBBER WASHER 6.4-1 Genuine Maserati Part - New (to order)
                # 018
                MPN: 13825824
                SCREW
                Supersession
                Supersession
                This part replaces part number 13825821
                Genuine Ferrari Part (no longer available to order)
                # 019
                MPN: 4157425
                PUTEGGIA CONDOTTA
                FIAT
                from £98.29
                from £98.29
                PULLEY Genuine Ferrari Part - New (to order)
                # 020
                MPN: 4157423
                GUGIRNIZIONE (COPERCHIO)
                FIAT
                from £3.89
                from £3.89
                GASKET Genuine Ferrari Part - New (to order)
                # 021
                MPN: 13746310
                SCREW
                FIAT
                from £0.53
                from £0.53
                SCREW Genuine Ferrari Part - New In stock
                # 022
                MPN: 4138766
                GASKET OR SEAL
                FIAT
                from £39.16
                from £39.16
                WATER PUMP SEAL OE Genuine Ferrari Part - New (to order)
                # 023
                MPN: 4157421
                GIRANTE
                FIAT
                from £191.52
                from £191.52
                246GT/S WATER PUMP IMPELLER OE Genuine Ferrari Part - New (to order)
                # 024
                MPN: 4156848
                MOZZO
                FIAT
                from £114.62
                from £114.62
                246GT/S W/PUMP DRIVE FLANGE OE Genuine Ferrari Part - New (to order)
                # 025
                MPN: 4025548
                BEARING
                FIAT
                from £22.07
                from £22.07
                246GT/S WATER PUMP BUSH+SHAFTOE Genuine Ferrari Part - New (to order)
                # 026
                MPN: 26846/C
                Water Pump Complete
                from £519.75
                from £519.75
                COMPLETE WATER PUMP ASSEMBLY 246 Genuine Ferrari Part - New In stock
                # 027
                MPN: 13517420
                THREADED STUD
                FIAT
                Supersession
                Supersession
                Genuine Ferrari Part (no longer available to order)
                # 028
                MPN: 13544324
                STUD
                from £8.14
                from £8.14
                This part replaces part number 13544321
                STUD Genuine Ferrari Part - New In stock
                # 029
                MPN: 13544421
                THREADED STUD
                FIAT
                Supersession
                Supersession
                Genuine Ferrari Part (no longer available to order)
                # 030
                MPN: 16100814
                NUT
                from £0.71
                from £0.71
                This part replaces part number 16100811 - and 1 more. Click to view details
                Genuine Ferrari Part (no longer available to order)
                NUT FOR REAR DIFFERENTIAL Genuine Maserati Part - New In stock
                # 031
                MPN: 11198077
                WASHER
                WASHER Genuine Ferrari Part - New (to order)
                # 032
                MPN: 4157422
                GASKET
                FIAT
                from £6.93
                from £6.93
                GASKET Genuine Ferrari Part - New (to order)
                # 033
                MPN: 102704
                DOWEL
                FIAT
                from £1.78
                from £1.78
                This part replaces part number 500805
                DOWEL BOLT Genuine Ferrari Part - New In stock
                CENTERING DOWEL Genuine Maserati Part - New (to order)
