ferrari 206 gt dino (1969) hand brake and brakes front and rear caliper parts diagram

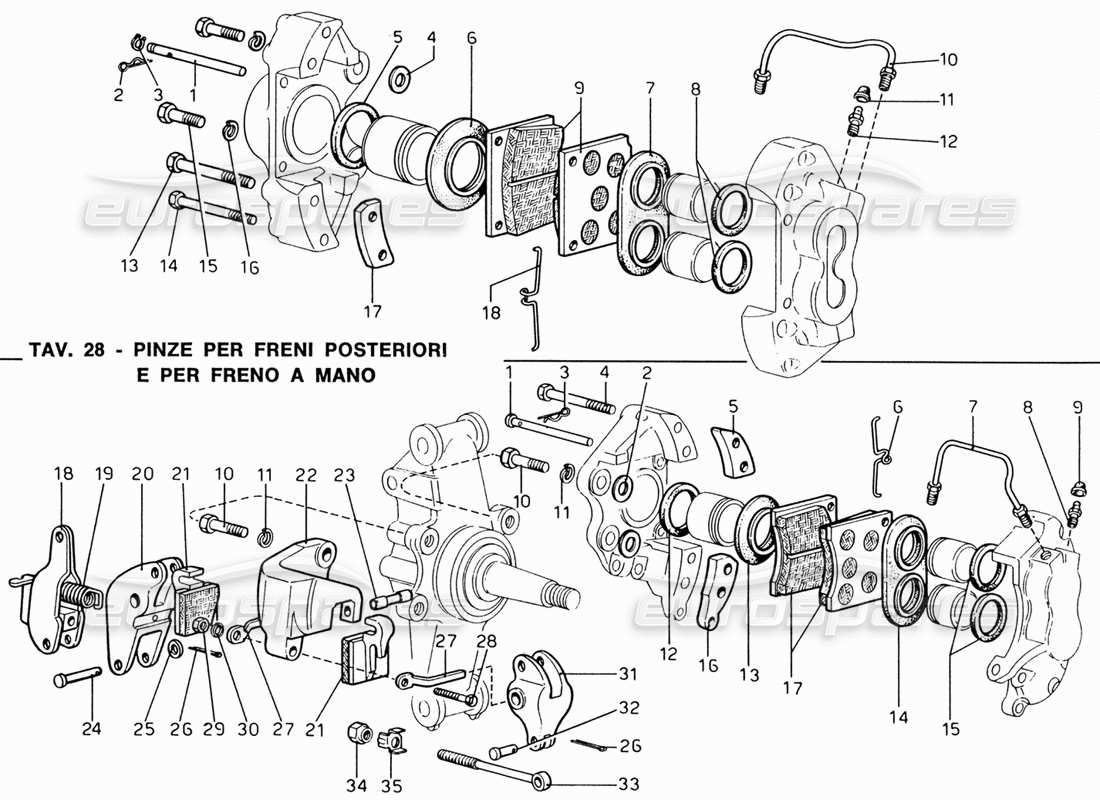

028 - Hand Brake and Brakes Front and Rear Caliper

Ferrari 206 GT Dino (1969) Hand Brake and Brakes Front and Rear Caliper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 001
        -
        REAR BRAKE AND HANDBRAKE CALIPERS - PLUG
        # 001
        MPN: 4117789
        REAR BRAKE AND HANDBRAKE CALIPERS - COMPLETE CALIPER D (REAR)
        FIAT
        This part replaces part number 4168255
        RH REAR CALIPER Genuine Ferrari Part - New (to order)
        # 001
        MPN: 4162650
        FRONT BRAKE CALIPERS - FRONT BRAKE CALIPER R.
        FIAT
        RH FRONT CALIPER Genuine Ferrari Part - New (to order)
        # 001
        MPN: 4162651
        FRONT BRAKE CALIPERS - L. FRONT BRAKE CALIPER
        FIAT
        LH FRONT CALIPER Genuine Ferrari Part - New (to order)
        # 001
        MPN: 4162663
        REAR BRAKE AND HANDBRAKE CALIPERS - COMPLETE CALIPER S (REAR)
        FIAT
        This part replaces part number 4168256
        LH REAR CALIPER Genuine Ferrari Part - New (to order)
        # 001
        MPN: 680653
        FRONT BRAKE CALIPERS - PLUG
        from £4.29
        from £4.29
        206/246 SER1 FRONT BRAKE PAD PIN Genuine Ferrari Part - New (to order)
        # 002
        MPN: 4083543
        FRONT BRAKE CALIPERS - PIN
        FIAT
        from £1.29
        from £1.29
        CLIP FOR BRAKE PAD RETAINER PIN Genuine Ferrari Part - New (to order)
        # 002
        MPN: 94697
        REAR BRAKE AND HANDBRAKE CALIPERS - SLIM WASHER
        WASHER Genuine Ferrari Part - New (to order)
        # 003
        MPN: 4083563
        REAR BRAKE AND HANDBRAKE CALIPERS - PIN
        FIAT
        CLIP Genuine Ferrari Part - New (to order)
        # 003
        MPN: AA6e
        SEEGER RING
        OEB
        SEEGER RING Genuine Ferrari Part - New (to order)
        # 004
        MPN: 4162654
        REAR BRAKE AND HANDBRAKE CALIPERS - SCREW
        FIAT
        from £6.28
        from £6.28
        BOLT Genuine Ferrari Part - New (to order)
        # 004
        MPN: 902333

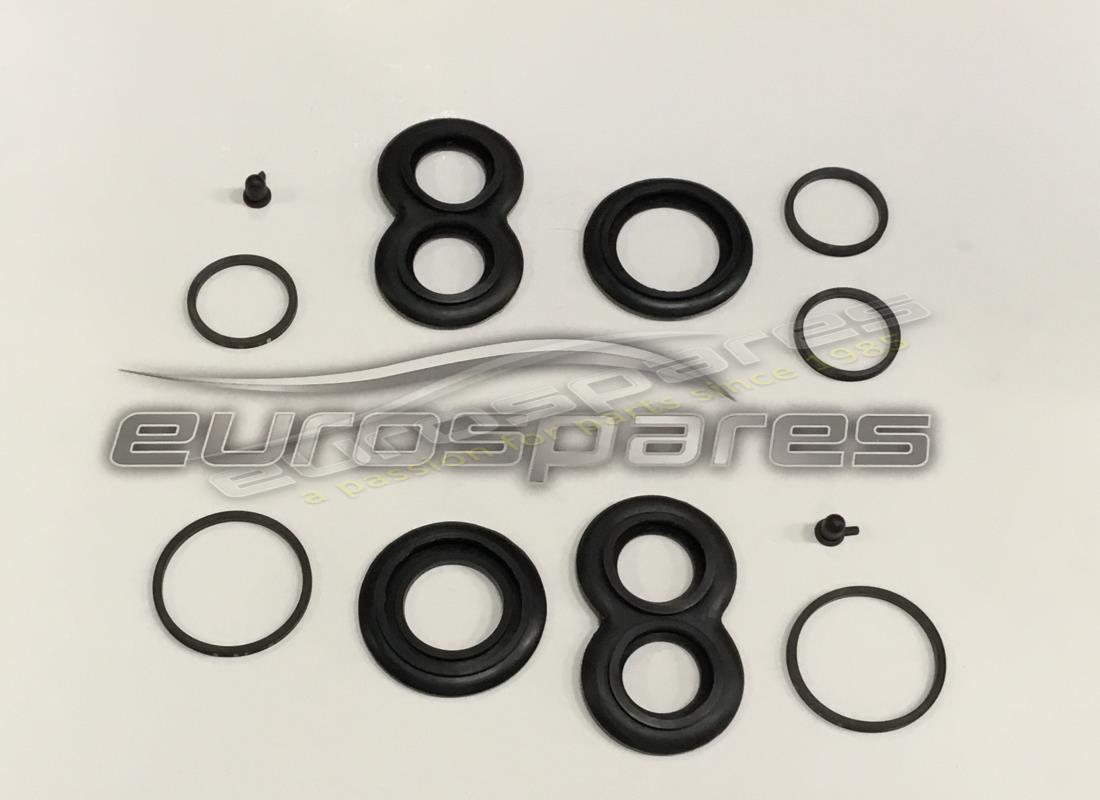

        FRONT BRAKE CALIPERS - KIT INCLUDING THE FIGURES 6,7,8
        FIAT
        from £77.29
        from £77.29
        206GT BRAKE SEAL KIT Genuine Ferrari Part - New (to order)
        # 004
        MPN: 94697
        PINZE PER FRENI ANTERIORI - RONDELLA DI RASAMENTO
        WASHER Genuine Ferrari Part - New (to order)
        # 005
        MPN: 4162699
        REAR BRAKE AND HANDBRAKE CALIPERS - PLATE
        FIAT
        PLATE Genuine Ferrari Part - New (to order)
        # 006
        MPN: 4143970

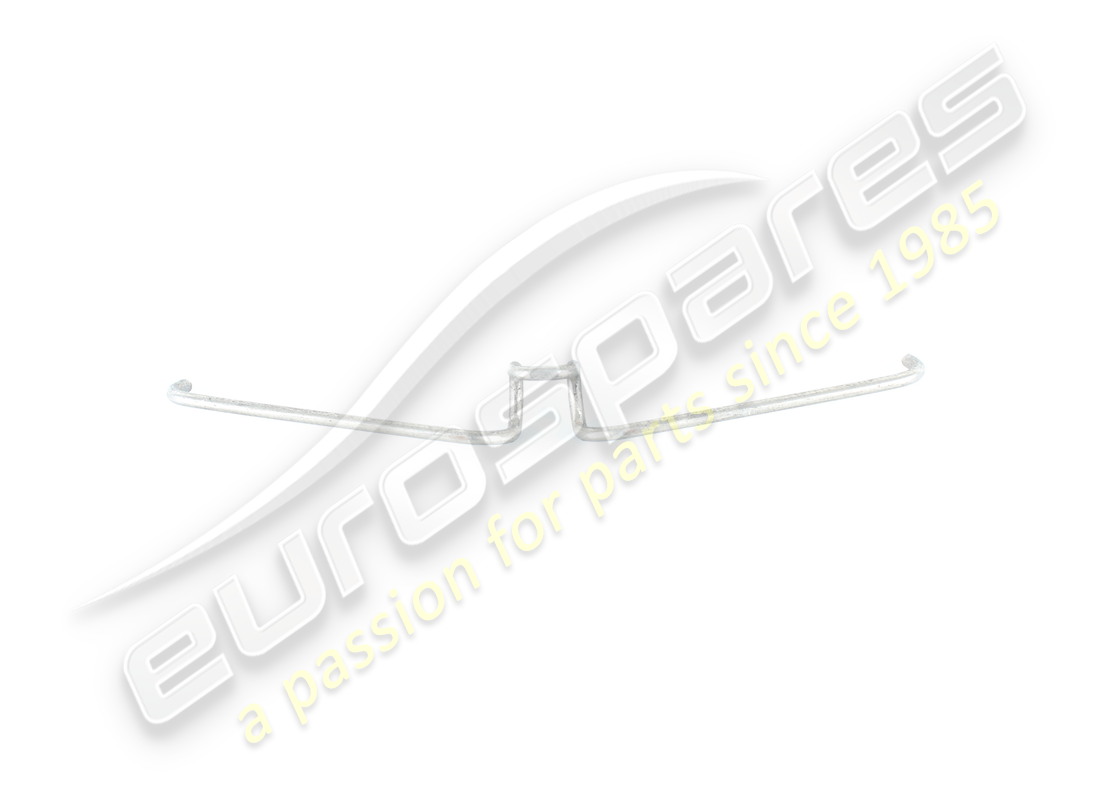

        REAR BRAKE AND HANDBRAKE CALIPERS - SPRING
        FIAT
        SPRING CLIP Genuine Ferrari Part - New (to order)
        # 007
        MPN: 4162665

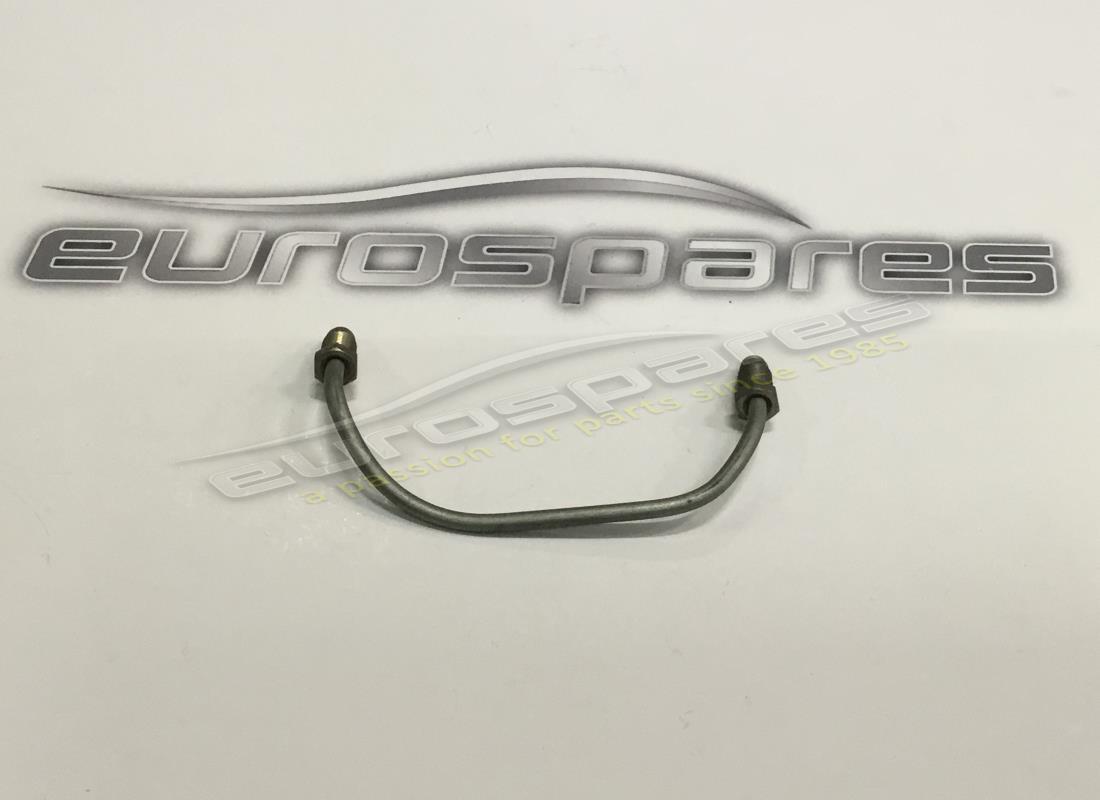

        REAR BRAKE AND HANDBRAKE CALIPERS - RIGHT HOSE
        FIAT
        from £29.81
        from £29.81
        brake line Genuine Ferrari Part - New In stock
        # 007
        MPN: 4162666
        REAR BRAKE AND HANDBRAKE CALIPERS - LEFT HOSE
        FIAT
        from £21.92
        from £21.92
        TUBE Genuine Ferrari Part - New (to order)
        # 008
        MPN: 4071542
        REAR BRAKE AND HANDBRAKE CALIPERS - BLEED SCREW
        FIAT
        BLEED NIPPLE Genuine Ferrari Part - New (to order)
        # 009
        MPN: 4087604

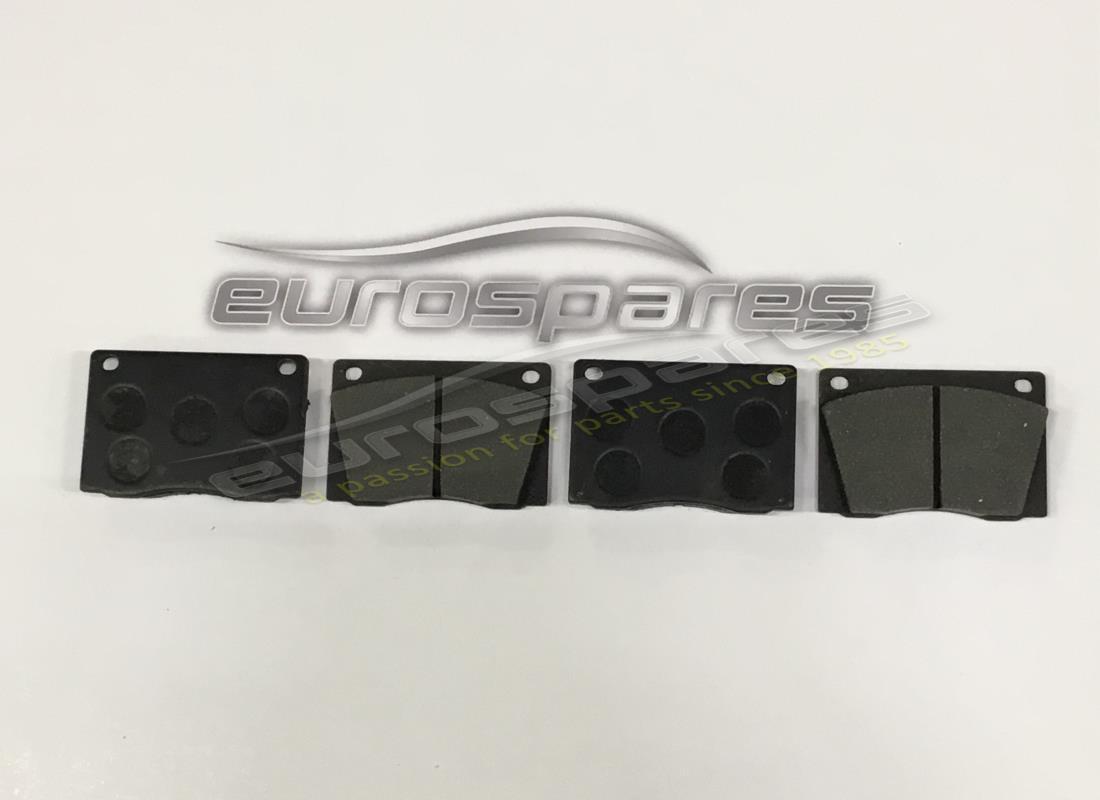

        FRONT BRAKE PADS SET
        from £52.28
        from £52.28
        This part replaces part number 95690753
        FRONT BRAKE PAD SET (4087604) Eurospares Approved Part - New In stock
        FRONT BRAKE PADS Genuine Ferrari Part - New (to order)
        # 010
        MPN: 4162655

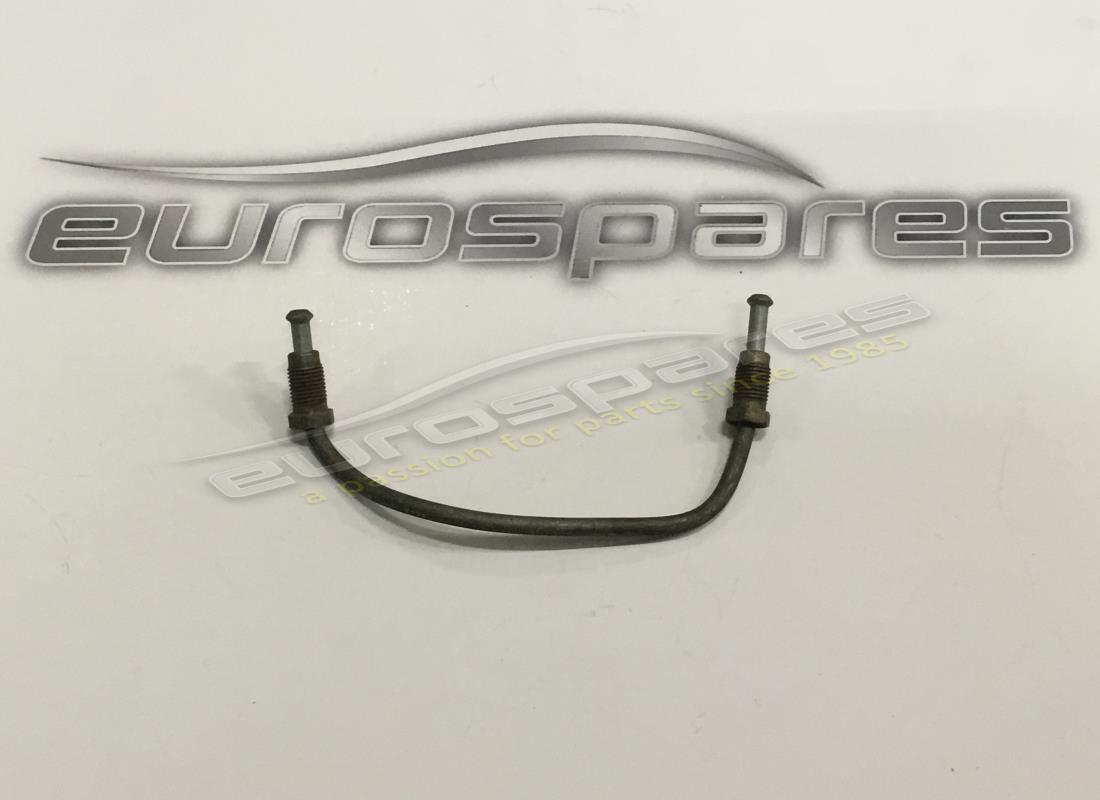

        FRONT BRAKE CALIPERS - RIGHT PIPE
        FIAT
        from £36.75
        from £36.75
        RH BRAKE LINE Genuine Ferrari Part - New In stock
        # 010
        MPN: 4162656

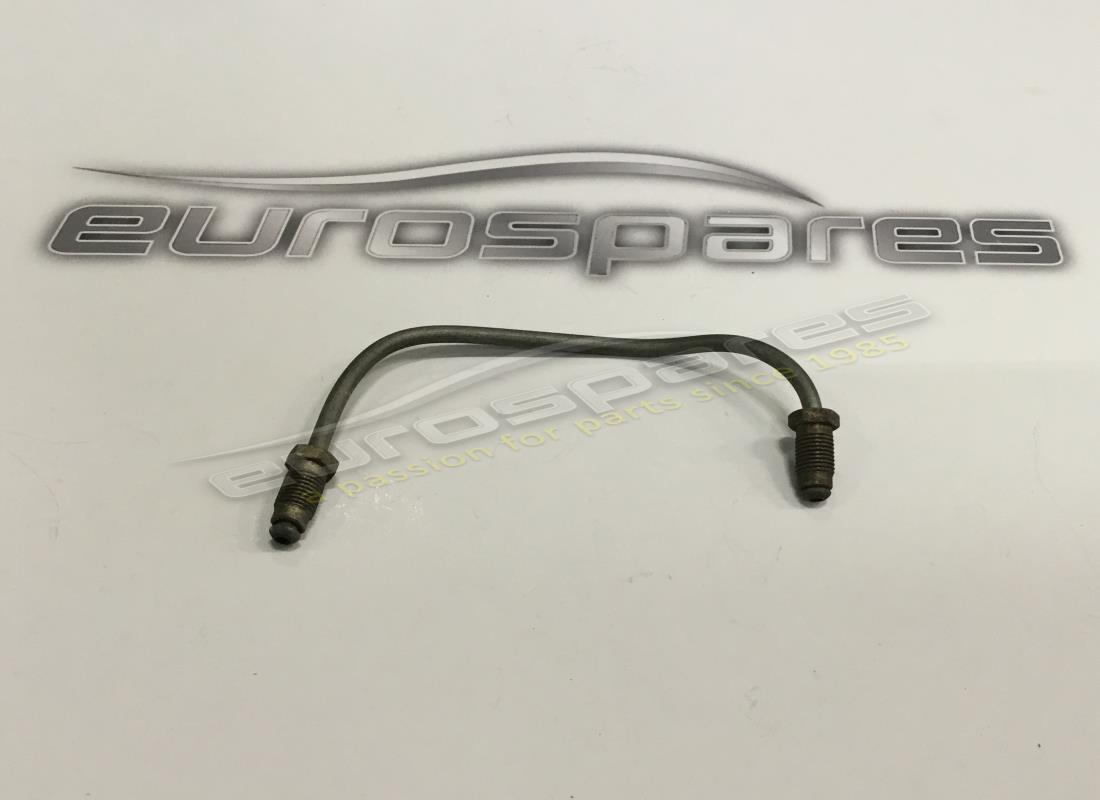

        FRONT BRAKE CALIPERS - LEFT HOSE
        FIAT
        from £36.75
        from £36.75
        LH BRAKE LINE Genuine Ferrari Part - New In stock
        # 010
        MPN: 680429
        REAR BRAKE AND HAND BRAKE CALIPERS - CALIPER FIXING BOLT
        from £3.15
        from £3.15
        BOLT Genuine Ferrari Part - New (to order)
        # 011
        MPN: 4097367
        PINZE PER FRENI ANTERIORI - CAPPUCCIO PARAPOLVERE .
        FIAT
        RUBBER CAP Genuine Ferrari Part - New (to order)
        # 011
        MPN: 902334
        REAR BRAKE AND HAND BRAKE CALIPERS - KIT CONSISTS OF PICTURES 12, 13, 14, 15.
        FIAT
        from £99.75
        from £99.75
        REAR CALIPER KIT EARLY 246 FIAT/GIRLING TYPE Genuine Ferrari Part - New In stock
        # 011
        MPN: REG. 12
        REAR BRAKE AND HANDBRAKE CALIPERS - WASHER WASHER
        OEB
        WASHER Genuine Ferrari Part - New (to order)
        # 012
        MPN: 4071542
        FRONT BRAKE CALIPERS - BLEED SCREW
        FIAT
        BLEED NIPPLE Genuine Ferrari Part - New (to order)
        # 013
        MPN: 4162653
        FRONT BRAKE CALIPERS - BOLT
        FIAT
        from £4.46
        from £4.46
        BOLT Genuine Ferrari Part - New (to order)
        # 014
        MPN: 4162654
        FRONT BRAKE CALIPERS - BOLT
        FIAT
        from £6.28
        from £6.28
        BOLT Genuine Ferrari Part - New (to order)
        # 015
        MPN: 680429
        FRONT BRAKE CALIPERS - BOLT FIXING THE CALIPER TO THE KNEE
        from £3.15
        from £3.15
        BOLT Genuine Ferrari Part - New (to order)
        # 016
        MPN: 4162670
        REAR BRAKE AND HANDBRAKE CALIPERS - PLATE
        FIAT
        Sleeve, gear lever knob (41-62670) Genuine Aston Martin - New (to order)
        PLATE Genuine Ferrari Part - New (to order)
        # 016
        MPN: REG. 12
        FRONT BRAKE CALIPERS - WASHER .
        OEB
        WASHER Genuine Ferrari Part - New (to order)
        # 017
        MPN: 4087605

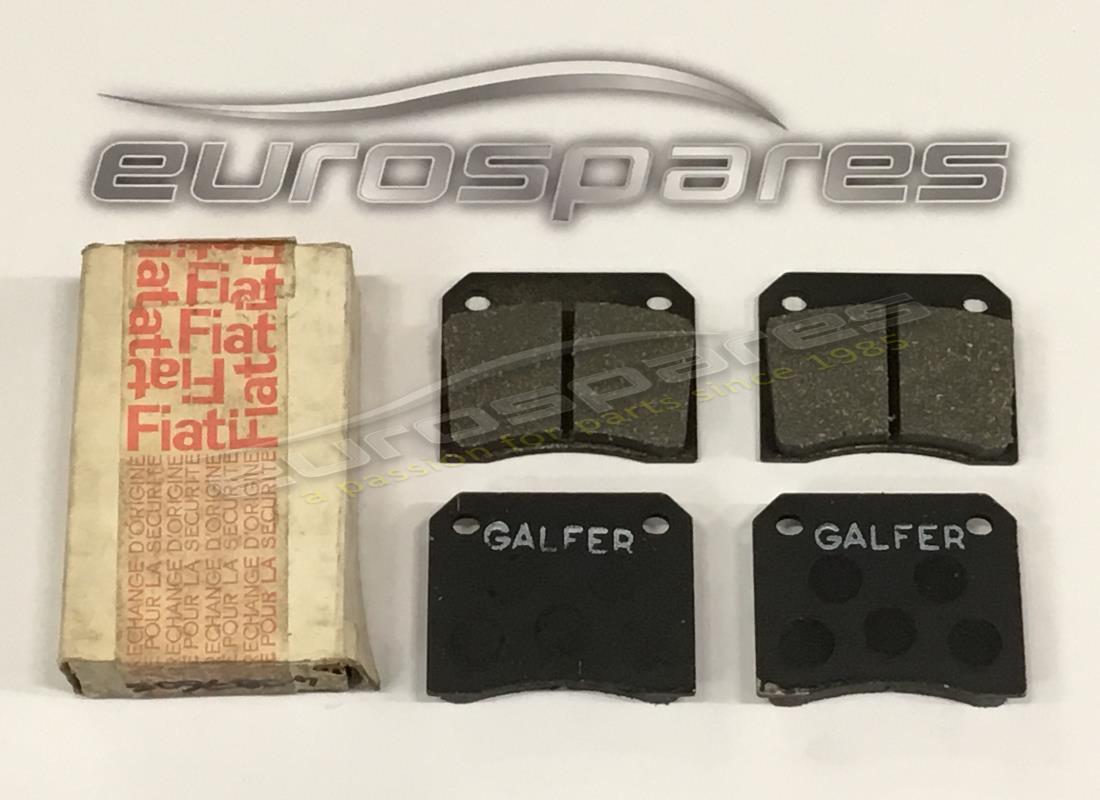

        REAR BRAKE PADS SET
        FIAT
        from £34.97
        from £34.97
        REAR BRAKE PADS Genuine Ferrari Part - New In stock
        # 017
        MPN: 4162659
        FRONT BRAKE CALIPERS - PLATE
        FIAT
        PLATE Genuine Ferrari Part - New (to order)
        # 018
        MPN: 4071703
        REAR BRAKE AND HANDBRAKE CALIPERS - COMPLETE LEVER
        FIAT
        from £28.50
        from £28.50
        206 DINO LEVER COMPLETE Genuine Ferrari Part - New (to order)
        # 018
        MPN: 4085583
        FRONT BRAKE CALIPERS - CLIP
        FIAT
        from £2.53
        from £2.53
        BRAKE PADS RETAINER SPRING Genuine Ferrari Part - New In stock
        # 019
        MPN: 4089638
        REAR BRAKE AND HAND BRAKE CALIPERS - SPRING
        FIAT
        from £2.53
        from £2.53
        RETURN SPRING Genuine Ferrari Part - New (to order)
        # 020
        MPN: 4149858
        REAR BRAKE AND HANDBRAKE CALIPERS - INTERNAL LEVER
        FIAT
        REAR CALIPER LEVER Genuine Ferrari Part - New (to order)
        # 021
        MPN: FHBK001
        HANDBRAKE PADS
        FIAT
        from £204.75
        from £204.75
        HANDBRAKE PADS Genuine Ferrari Part - New In stock
        Handbrake Pads Set (FHBK001) Genuine Maserati Part - New (to order)
        # 022
        MPN: 680432
        REAR BRAKE AND HANDBRAKE CALIPERS - RIGHT HANDBRAKE CALIPER
        from £46.88
        from £46.88
        HANDBRAKE CALIPER FRAME Genuine Ferrari Part - New (to order)
        # 022
        MPN: 680433
        REAR BRAKE AND HANDBRAKE CALIPERS - LEFT HANDBRAKE CALIPER
        from £30.90
        from £30.90
        MOUNT Genuine Ferrari Part - New (to order)
        # 023
        MPN: 4071700
        REAR BRAKE AND HANDBRAKE CALIPERS - PIN
        FIAT
        PIN Genuine Ferrari Part - New (to order)
        # 024
        MPN: 4149861
        REAR BRAKE AND HANDBRAKE CALIPERS - PIN
        FIAT
        from £3.47
        from £3.47
        PIN Genuine Ferrari Part - New (to order)
        # 025
        MPN: 4071718
        REAR BRAKE AND HANDBRAKE CALIPERS - WASHER
        FIAT
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 026
        MPN: 10795101
        REAR BRAKE AND HANDBRAKE CALIPERS - PIN
        FIAT
        from £0.47
        from £0.47
        SPLIT PIN Genuine Ferrari Part - New (to order)
        # 027
        MPN: 4071712
        REAR BRAKE AND HANDBRAKE CALIPERS - RELAY
        FIAT
        LEVER Genuine Ferrari Part - New (to order)
        # 028
        MPN: 10978521
        REAR BRAKE AND HANDBRAKE CALIPERS - BOLT
        FIAT
        from £0.47
        from £0.47
        SCREW Genuine Ferrari Part - New In stock
        # 029
        MPN: 15896411
        REAR BRAKE AND HANDBRAKE CALIPERS - NUT
        FIAT
        Supersession
        Supersession
        This part replaces part number 15896401
        Genuine Ferrari Part (no longer available to order)
        Genuine Maserati Part (no longer available to order)
        # 030
        MPN: 11195470
        REAR BRAKE AND HANDBRAKE CALIPERS - WASHER
        FIAT
        from £0.47
        from £0.47
        5MM WAVY WASHER Genuine Ferrari Part - New (to order)
        # 031
        MPN: 4071698
        REAR BRAKE AND HANDBRAKE CALIPERS - EXTERNAL LEVER
        FIAT
        from £63.07
        from £63.07
        206 DINO H/BRAKE PAD LEVER Genuine Ferrari Part - New (to order)
        # 032
        MPN: 4071716
        REAR BRAKE AND HANDBRAKE CALIPERS - PIN
        FIAT
        PIN Genuine Ferrari Part - New (to order)
        # 033
        MPN: 4162671
        REAR BRAKE AND HANDBRAKE CALIPERS - ROD
        FIAT
        from £10.83
        from £10.83
        TIE ROD Genuine Ferrari Part - New (to order)
        # 034
        MPN: 4132083
        REAR BRAKE AND HAND BRAKE CALIPERS - ADJUSTING NUT
        FIAT
        from £8.58
        from £8.58
        NUT Genuine Ferrari Part - New (to order)
        # 035
        MPN: 4132082
        REAR BRAKE AND HANDBRAKE CALIPERS - STOP
        FIAT
        from £0.99
        from £0.99
        LOCKING Genuine Ferrari Part - New (to order)
