029 - Hand Brakes Control

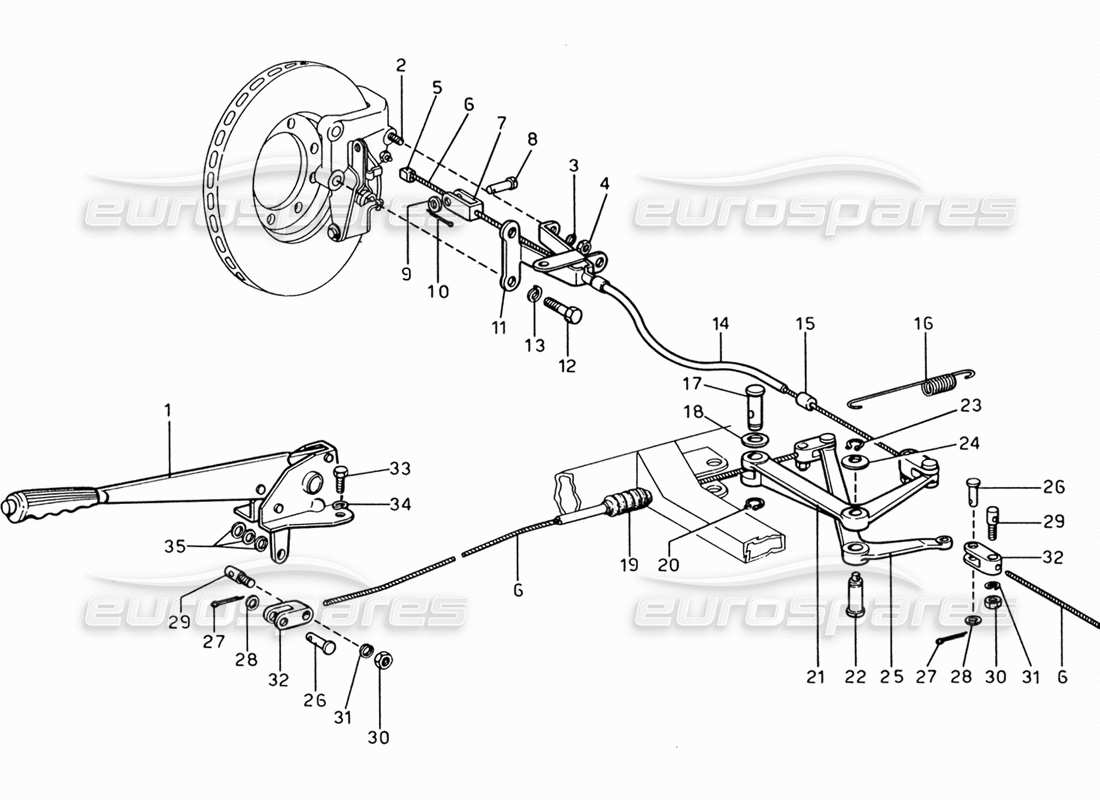

Ferrari 206 GT Dino (1969) Hand Brakes Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 680460
LEVER
Supersession
Supersession
# 002
MPN: 95920110
PRIG:ONIERO
6x10
from £1.91
from £1.91
# 003
MPN: REG - 6
WASHER
OEB
# 004
MPN: 6 x 1 - UNI 5588
NUT
LOBO 8G
# 005
MPN: 680022
NIPLES PER CAVO
from £2.80
from £2.80
# 006
MPN: 680478
CAVO METALLICO MT. 2,5
# 007
MPN: 69155
FORK
from £17.33
from £17.33
# 008
MPN: 94626
PIVOT
from £1.60
from £1.60
# 009
MPN: 8 R2
WASHER
# 010
MPN: 680470
WASHER
# 010
MPN: C1
SPLIT PIN
1.8 x 20
Supersession
Supersession
# 011
MPN: 680434-D
BRACKET / SUPPORT
# 011
MPN: 680435-S
BOWDEN
# 012
MPN: 680429
BOLT
from £3.15
from £3.15
# 013
MPN: REG. 12
WASHER
OEB
# 014
MPN: 92939
FLEXIBLE SHEATH MM 720
# 015
MPN: 94886
RING FOR SHEATH
from £14.01
from £14.01
# 016
MPN: 680474
SPRING
from £39.40
from £39.40
# 017
MPN: 680472
PIVOT
from £60.90
from £60.90
# 019
MPN: 100858
SOFFIETTO PROTEZIONE CAVO
from £21.30
from £21.30
This part replaces part number 500551 - and 1 more. Click to view details
# 020
MPN: AA 16 e
SEEGER RING
OEB
# 021
MPN: 680469
BILANCIERE
from £44.64
from £44.64
# 022
MPN: 680473
PIVOT
from £40.13
from £40.13
# 023
MPN: A A. 14. e
SEEGER RING
OEB
# 024
MPN: DES 14
DACO ELASTICO DI SICUREZZA
OEB
# 025
MPN: F80471
LEVER
# 026
MPN: 680476
PIVOT
# 027
MPN: C1
SPLIT PIN
1.8x20
Supersession
Supersession
# 028
MPN: 8 R 1
WASHER
# 029
MPN: 680477
TAMBURELLO ARRESTO TUNE
from £3.05
from £3.05
# 030
MPN: 8x1 UNI 5588
NUT
LOBO 8 G
# 031
MPN: REG. 8
WASHER
OEB
Supersession
Supersession
# 032
MPN: 680475
FORK
from £52.31
from £52.31
# 033
MPN: 8x14-UN1 5739
BOLT
LOBO BGM
# 034
MPN: REG. 8
WASHER
OEB
Supersession
Supersession
# 035
MPN: 8 R2
WASHER
