ferrari 206 gt dino (1969) rear suspension - shock absorber parts diagram

034 - Rear Suspension - Shock Absorber

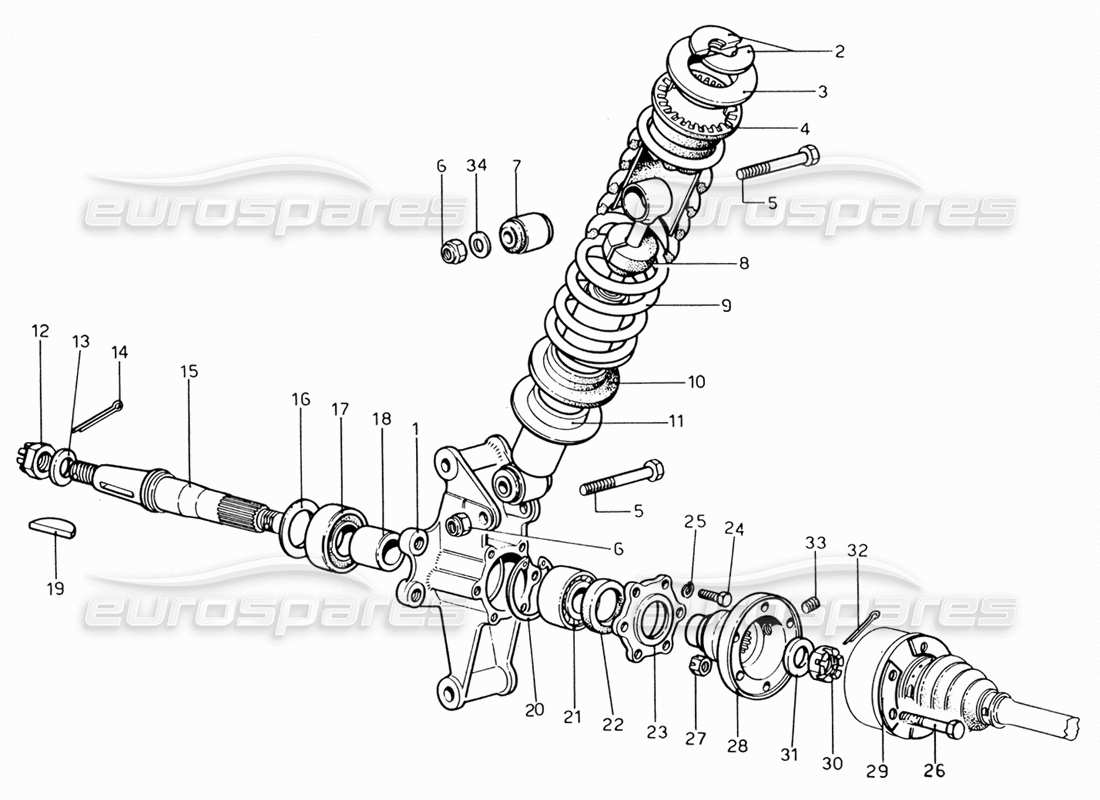

Ferrari 206 GT Dino (1969) Rear Suspension - Shock Absorber Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 001
                                        MPN: 601415
                                        MOZZO SINISTRO SUPPORTO LEVE
                                        from £423.14
                                        from £423.14
                                        LH REAR SUSPENSION UPRIGHT Genuine Ferrari Part - New (to order)
                                        # 001
                                        MPN: 601416
                                        MOZZO DESTRO SUPPORTO LEVEL
                                        from £423.14
                                        from £423.14
                                        RH REAR SUSPENSION UPRIGHT Genuine Ferrari Part - New (to order)
                                        # 002
                                        MPN: 640499
                                        SEMIANELLI
                                        RETAINER Genuine Ferrari Part - New (to order)
                                        # 003
                                        MPN: 640535
                                        SCODELLINO SUPERIORE
                                        SHOCK ABSORBER PLATE Genuine Ferrari Part - New (to order)
                                        # 004
                                        MPN: 118747
                                        DISTANZIALE SUPERIORE
                                        from £42.66
                                        from £42.66
                                        This part replaces part number 100776
                                        SHOCK ABSORBER COVER Genuine Ferrari Part - New In stock
                                        # 006
                                        MPN: 212x1,25
                                        NUT
                                        US/B70
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 007
                                        MPN: 100809
                                        ESTENDBLOC (RIV. 89.800.985)
                                        (replaces: 640429)
                                        from £13.28
                                        from £13.28
                                        This part replaces part number 101051 - and 1 more. Click to view details
                                        SHOCK ABSORBER MOUNTING BUSH (100809) Eurospares Approved Part - New In stock
                                        SHOCK ABSORBER MOUNTING BUSH Genuine Ferrari Part - New (to order)
                                        # 007
                                        MPN: 640429
                                        ESTENDBLOC (RIV. 89.800.985)
                                        not as spare part - use part number: 100809
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 008
                                        MPN: 601406
                                        TAMPONE
                                        RUBBER Genuine Ferrari Part - New (to order)
                                        # 009
                                        MPN: 601433
                                        SPRING
                                        from £202.52
                                        from £202.52
                                        206GT REAR ROAD SPRING Genuine Ferrari Part - New (to order)
                                        # 010
                                        MPN: 640423
                                        DISTANZIALE INFERIORE
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 011
                                        MPN: 601171
                                        AMMORTIZZATORE POSTERIORE
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 012
                                        MPN: 10724821
                                        NUT
                                        FIAT
                                        from £6.09
                                        from £6.09
                                        NUT Genuine Ferrari Part - New (to order)
                                        # 013
                                        MPN: 4149922
                                        WASHER
                                        FIAT 135
                                        from £8.17
                                        from £8.17
                                        WASHER Genuine Ferrari Part - New (to order)
                                        # 014
                                        MPN: C1
                                        SPLIT PIN
                                        4.7x50
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 016
                                        MPN: 700406
                                        PARAPOLVERE
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 017
                                        MPN: 35x72x23
                                        CUSCINETTO ESTERNO
                                        RIV AL 35
                                        CUSCINETTO ESTERNO Genuine Ferrari Part - New (to order)
                                        # 018
                                        MPN: 700380
                                        SPACER BETWEEN BEARINGS
                                        DISTANCE PIECE Genuine Ferrari Part - New (to order)
                                        # 019
                                        MPN: 4149921
                                        Key
                                        FIAT 135
                                        WOODRUFF KEY Genuine Ferrari Part - New (to order)
                                        # 020
                                        MPN: AA sst
                                        SEEGER RING
                                        OEB
                                        SEEGER RING Genuine Ferrari Part - New (to order)
                                        # 021
                                        MPN: 3AA NOn 32
                                        CUSCINETTO INTERNO
                                        RIV
                                        from £154.68
                                        from £154.68
                                        CUSCINETTO INTERNO (3AA NOn 32) Eurospares Approved Part - New (to order)
                                        CUSCINETTO INTERNO Genuine Ferrari Part - New (to order)
                                        # 022
                                        MPN: 4256
                                        OIL SEAL
                                        MIM
                                        OIL SEAL Genuine Ferrari Part - New (to order)
                                        # 023
                                        MPN: 601417
                                        FANGIA
                                        from £69.98
                                        from £69.98
                                        REAR WHEEL BEARING INNER FLANGE Genuine Ferrari Part - New (to order)
                                        # 024
                                        MPN: 8X20-UNI-5740
                                        GU;LONE PER FLANGIA
                                        LOBO 8GM
                                        BOLT Genuine Ferrari Part - New (to order)
                                        # 025
                                        MPN: REG. 8
                                        WASHER
                                        OEB
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 026
                                        MPN: 10x65-UNI-5738
                                        BOLT
                                        LOBO e GM
                                        BOLT Genuine Ferrari Part - New (to order)
                                        # 027
                                        MPN: 580479
                                        NUT
                                        from £5.80
                                        from £5.80
                                        SELF LOCKING NUT Genuine Ferrari Part - New (to order)
                                        # 028
                                        MPN: 580461
                                        FLANGIA PER SEMIASSI
                                        from £118.08
                                        from £118.08
                                        FLANGE Genuine Ferrari Part - New (to order)
                                        # 029
                                        -
                                        PLATE
                                        # 030
                                        MPN: 94945
                                        NUT
                                        from £47.98
                                        from £47.98
                                        CASTELLATED LH REAR HUB NUT Genuine Ferrari Part - New In stock
                                        # 031
                                        MPN: 580460
                                        WASHER
                                        from £2.84
                                        from £2.84
                                        SPACER Genuine Ferrari Part - New (to order)
                                        # 032
                                        MPN: C1
                                        SPLIT PIN
                                        3.7x35
                                        Supersession
                                        Supersession
                                        Genuine Ferrari Part (no longer available to order)
                                        # 033
                                        MPN: A 12 x 10A
                                        SCREW
                                        OEB WE
                                        SCREW Genuine Ferrari Part - New (to order)
