ferrari 206 gt dino (coachwork) front external frame work parts diagram

001 - Front External Frame Work

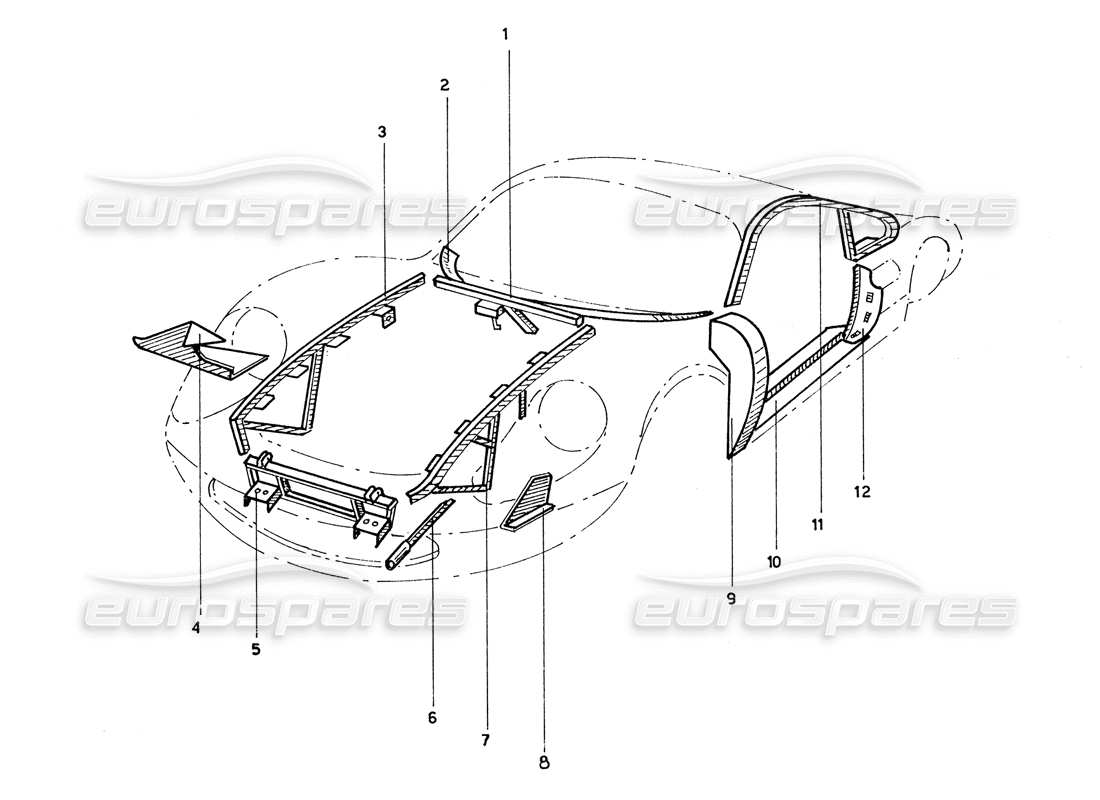

Ferrari 206 GT Dino (Coachwork) Front External Frame Work Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Key
                          Price
                          # 001
                          MPN: 20-10-01
                          WINDSHIELD BENDING SUPPORT
                          Frame Genuine Ferrari Part - New (to order)
                          # 002
                          MPN: 20-10-02
                          BENDING WINDSHIELD
                          SCUTTLE Genuine Ferrari Part - New (to order)
                          # 003
                          MPN: 20-10-03
                          FRONT SECTION SUPPORT R.
                          RH FRAME Genuine Ferrari Part - New (to order)
                          # 004
                          MPN: 20-10-04
                          SOSTEGNO ELETTROVENTILATORE
                          SHIELD Genuine Ferrari Part - New (to order)
                          # 005
                          MPN: 20-10-05
                          FRONT TRUSS WITH HOOD HINGE SUPPORTS AND FANS
                          Frame Genuine Ferrari Part - New (to order)
                          # 007
                          MPN: 20-10-08
                          FRONT LEFT SECTION SUPPORT
                          LH FRAME Genuine Ferrari Part - New (to order)
                          # 008
                          MPN: 20-10-09
                          BRACKET FOR FIXING THE FRONT COVERING TO THE LEFT TRUSS
                          LH SHIELD Genuine Ferrari Part - New (to order)
                          # 008
                          MPN: 20-10-10
                          BRACKET FOR FIXING THE FRONT CLADDING TO THE RIGHT TRUSS
                          RH SHIELD Genuine Ferrari Part - New (to order)
                          # 009
                          MPN: 20-10-11
                          FRONT COLUMN DOOR COMPLETE L.
                          LH DOOR POST Genuine Ferrari Part - New (to order)
                          # 009
                          MPN: 20-10-12
                          FRONT DOOR COMPARTMENT COMPLETE R.
                          RH DOOR POST Genuine Ferrari Part - New (to order)
                          # 010
                          MPN: 20-10-13
                          SOTTOPORTA S.
                          LH SILL Genuine Ferrari Part - New (to order)
                          # 010
                          MPN: 20-10-14
                          SOTTOPORTA D.
                          RH SILL Genuine Ferrari Part - New (to order)
                          # 011
                          MPN: 20-10-15
                          SIDE FRAME OF L. COCKPIT.
                          LH GUTTER RAIL Genuine Ferrari Part - New (to order)
                          # 011
                          MPN: 20-10-16
                          SIDE FRAME OF THE COCKPIT R.
                          from £58.43
                          from £58.43
                          RH GUTTER RAIL Genuine Ferrari Part - New (to order)
                          # 012
                          MPN: 20-10-17
                          REAR COLUMN COMPLETE DOOR COMPARTMENT L.
                          LH REAR DOOR POST Genuine Ferrari Part - New (to order)
                          # 012
                          MPN: 20-10-18
                          REAR COLUMN COMPLETE DOOR COMPARTMENT R.
                          RH REAR DOOR POST Genuine Ferrari Part - New (to order)
