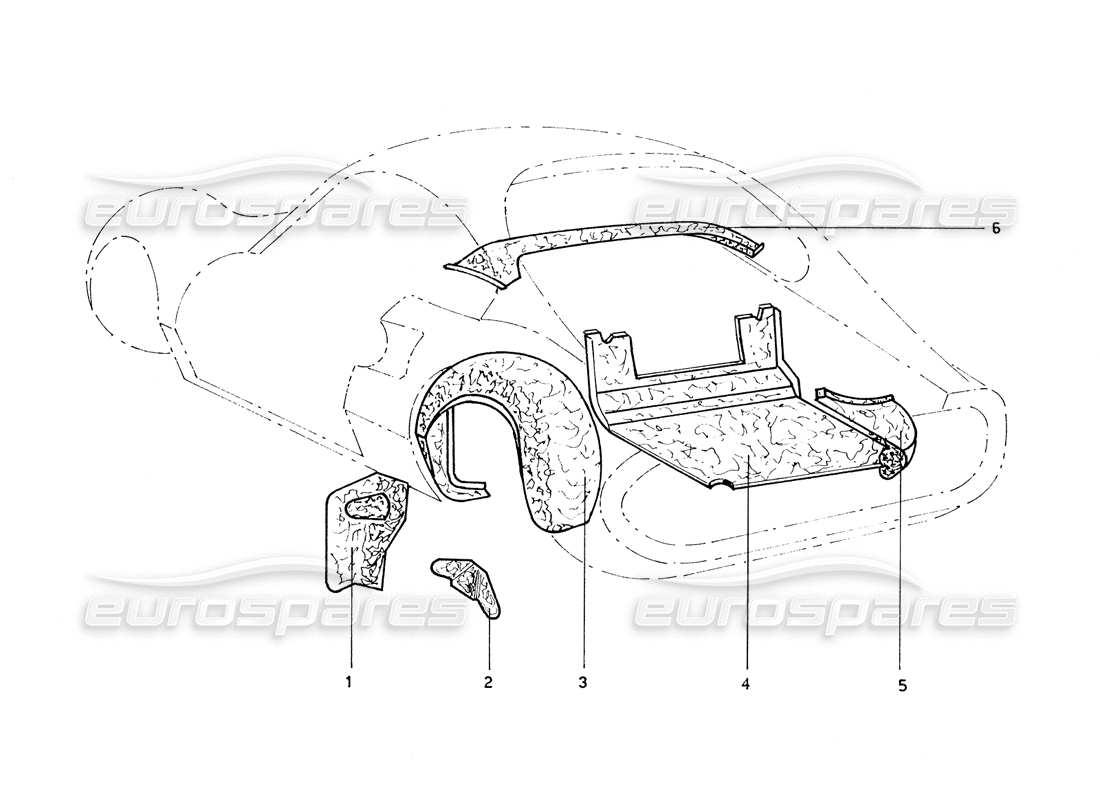

004 - Rear Inner Panels & Sheilds
Ferrari 206 GT Dino (Coachwork) Rear Inner Panels & Sheilds Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 20-16-01
PARASASSI ANTERIORE S.
# 001
MPN: 20-16-02
PARASASSI ANTERIORE D.
# 002
MPN: 20-16-03
L. SHOCK ABSORBER SHEET
# 002
MPN: 20-16-04
SHOCK ABSORBER SHEET R.
# 003
MPN: 20-16-05
PASSARUOTA POSTERIORE S.
# 003
MPN: 20-16-06
PASSARUOTA POSTERIORE D.
# 004
MPN: 20-16-07
TRUNK LEVEL
# 005
MPN: 20-16-08
PARTE INFERIORS VANO BAGAGLIAIO D.
# 005
MPN: 20-16-09
PARTE INFERIORS VANO BAGAGLIAIO S.
# 006
MPN: 20-16-10
SOTTOLUNOTTO
