![ferrari 206 gt dino (coachwork) front bumpers, grills & fixings parts diagram](/img/CxEAAETdFtv3iyVaypAzEEFRLUM0Cg0ynY9z6edFLWg8Sni4jS0DAw%3D%3D/ferrari-206-gt-dino-(coachwork)-part-diagram-010.webp)
010 - Front Bumpers, Grills & Fixings

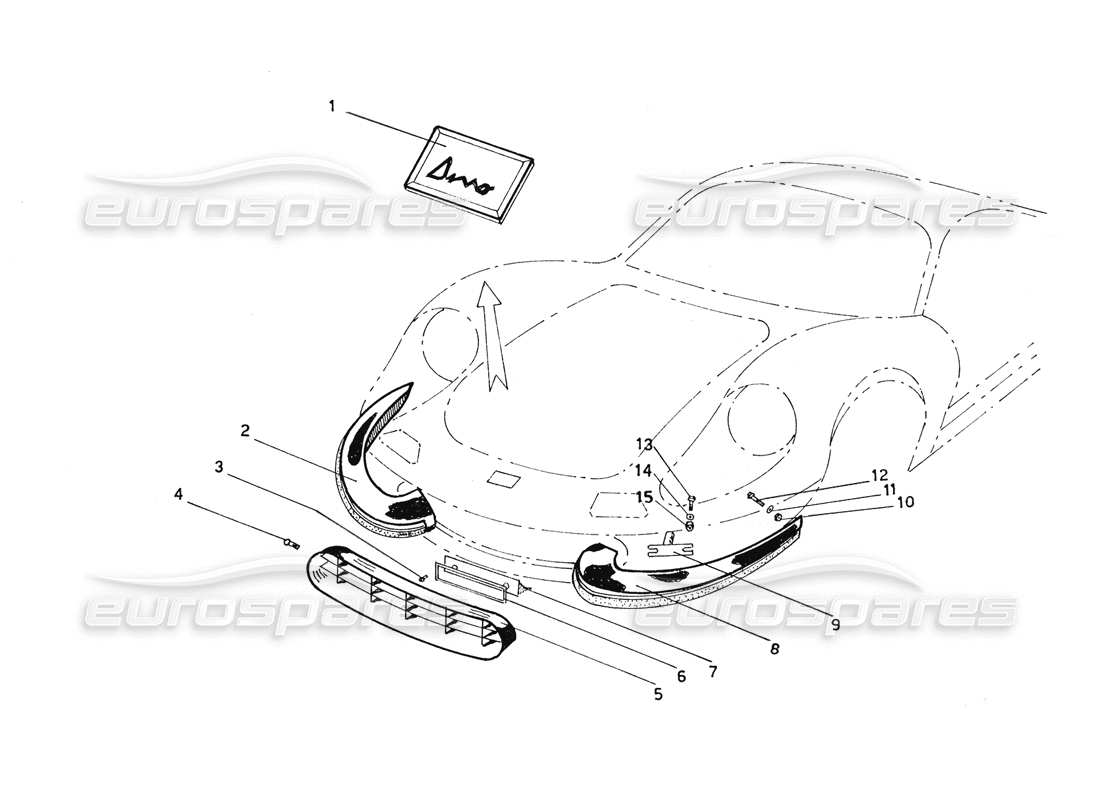

Ferrari 206 GT Dino (Coachwork) Front Bumpers, Grills & Fixings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 20043303
DINO COAT OF ARMS
from £124.14
from £124.14
This part replaces part number 20-28-01 - and 1 more. Click to view details
# 002
MPN: 20-28-02
RH FRONT BUMPER
Supersession
Supersession
# 003
MPN: 20-28-03
LICENSE PLATE FRAME FIXING SCREWS
# 004
MPN: 20-28-04
SCREW
# 005
MPN: 20-28-05
MASCHARINA
# 006
MPN: 20-28-06
CORNICE TARGA
from £22.05
from £22.05
# 007
MPN: 20-26-0?
SUPPORT
# 008
MPN: 20-28-02
LH FRONT BUMPER
Supersession
Supersession
# 009
MPN: 20-28-09
SUPPORT
# 010
MPN: 20-28-10
NUT
# 011
MPN: 20-28-11
WASHER
# 012
MPN: 20-28-12
BOLT
# 013
MPN: 20-28-13
NUT
# 014
MPN: 20-28-14
WASHER
# 015
MPN: 20-28-15
BOLT
