ferrari 206 gt dino (coachwork) wiper mec, washer bag & horns parts diagram

025 - Wiper Mec, Washer Bag & Horns

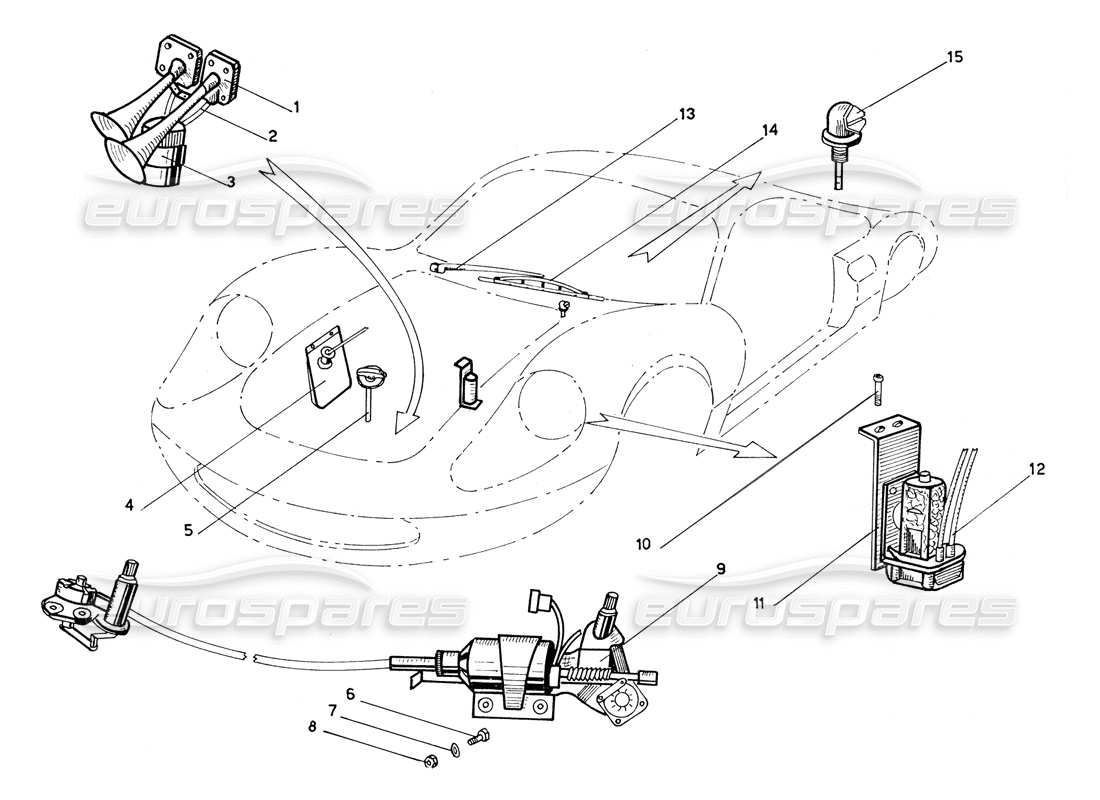

Ferrari 206 GT Dino (Coachwork) Wiper Mec, Washer Bag & Horns Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
Part in stock
Available in a part set
Part supersession in stock
Available in a part set to order (subject to availability)
Part available to order (subject to availability)
Available in a part kit
                                Part number
                                # 001
                                MPN: 20-58-01
                                COMPLESSIVO TROMBE FIAMM
                                # 002
                                MPN: 20-58-02
                                PIPE CONNECTING HORNS TO THE COMPRESSOR
                                # 003
                                MPN: 20-58-03
                                HORN COMPRESSOR
                                # 004
                                MPN: 20-58-04
                                BAG CONTAINING WINDSHIELD FLUID
                                # 005
                                MPN: 20-58-05
                                SPARE WHEEL FASTENER
                                # 006
                                MPN: 20-58-06
                                # 007
                                MPN: 20-58-07
                                BONDELLA PER DETTA
                                # 008
                                MPN: 20-58-08
                                # 009
                                MPN: 20-58-09
                                COMPLESSIVO MOTORINO TERGIORISTALLO
                                # 010
                                MPN: 20-58-10
                                # 011
                                MPN: 20-58-11
                                WINDSHIELD WASHER PUMP ASSEMBLY
                                # 012
                                MPN: 20-58-12
                                PIPE FOR PUMP
                                # 013
                                MPN: 20-58-13
                                R. AND L. WINDSCREEN WIPER ARM
                                # 014
                                MPN: 20-58-14
                                R. AND L. WINDSCREEN WIPER BLADE
                                # 015
                                MPN: 20-58-15
                                SPRUZZATORE LIQUIDO TERGIVETRO
