012 - throttle control

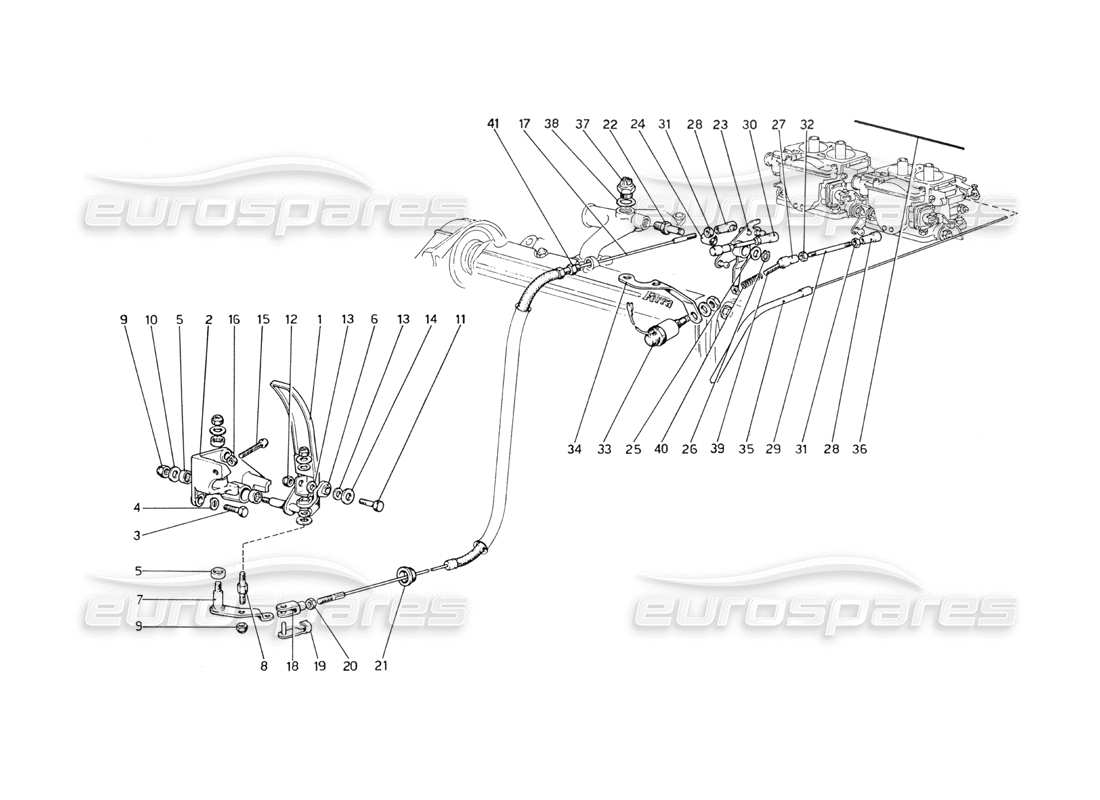

Ferrari 208 GT4 Dino (1975) Throttle Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 103329
Accelerator Pedal
from £378.00
from £378.00
# 002
MPN: 106587
SUPPORT
Supersession
Supersession
# 003
MPN: 16135721
BOLT
from £1.14
from £1.14
# 004
MPN: 12601371
WASHER
Supersession
Supersession
# 005
MPN: 101677
ROLLER BEARING
from £2.10
from £2.10
# 006
MPN: 105237
PEDAL LINK
from £84.64
from £84.64
# 007
MPN: 105235
LEVER
from £36.75
from £36.75
# 008
MPN: 105679
STUD BOLT
from £16.31
from £16.31
# 009
MPN: 16104411
NUT
from £0.47
from £0.47
# 010
MPN: 102683
WASHER
from £10.44
from £10.44
This part replaces part number 95301
# 011
MPN: 10902621
BOLT
Supersession
Supersession
This part replaces part number 10902611
# 012
MPN: 12574211
NUT
from £0.71
from £0.71
# 013
MPN: 10519401
WASHER
from £0.71
from £0.71
# 014
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 015
MPN: 105232
CONTROL SCREW
from £3.71
from £3.71
# 016
MPN: 16102311
NUT
from £0.43
from £0.43
This part replaces part number 16102315
# 017
MPN: 105574
THROTTLE CABLE LHD
Supersession
Supersession
# 018
MPN: 100655
FORK
from £56.31
from £56.31
This part replaces part number 550015 - and 3 more. Click to view details
# 019
MPN: 100656
PIVOT
from £2.25
from £2.25
# 020
MPN: 10725911
LOCKNUT
Supersession
Supersession
This part replaces part number 95900403
# 021
MPN: 105369
CABLE GROMMET
from £19.10
from £19.10
# 022
MPN: 103907
PIVOT
from £113.53
from £113.53
# 023
MPN: 108487
LEVER
from £38.21
from £38.21
# 024
MPN: 103921
BUSH
from £4.66
from £4.66
# 025
MPN: 10730514
WASHER
from £0.54
from £0.54
This part replaces part number 10730521
# 026
MPN: 11065976
RING
from £0.47
from £0.47
This part replaces part number 11065975
# 027
MPN: 105619
LH THREAD BALL JOINT
from £41.48
from £41.48
# 028
MPN: 173999
RH THREAD THROTTLE BALL JOINT
from £2.48
from £2.48
This part replaces part number 105617 - and 2 more. Click to view details
# 029
MPN: 103904
STUD
from £24.41
from £24.41
# 030
MPN: 103905
REAR THROTTLE ROD
# 030
MPN: 103906
FRONT THROTTLE ROD
# 031
MPN: 15896411
LOCKNUT
Supersession
Supersession
This part replaces part number 15896401
# 032
MPN: 105586
LH THREAD NUT
from £4.65
from £4.65
# 033
MPN: 108485
SOLENOID
from £401.33
from £401.33
# 034
MPN: 108484
BRACKET / SUPPORT
from £11.22
from £11.22
# 035
-
CAVO INNESTO STARTER
# 036
MPN: 108276
CABLE
from £0.76
from £0.76
# 037
MPN: 108500
THERMO SWITCH
from £135.11
from £135.11
# 038
MPN: 10261860
WASHER
from £0.53
from £0.53
This part replaces part number 10279550 - and 1 more. Click to view details
# 039
MPN: 107823
SCREW
from £3.14
from £3.14
# 040
MPN: 107824
SPRING
from £0.93
from £0.93
# 041
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details

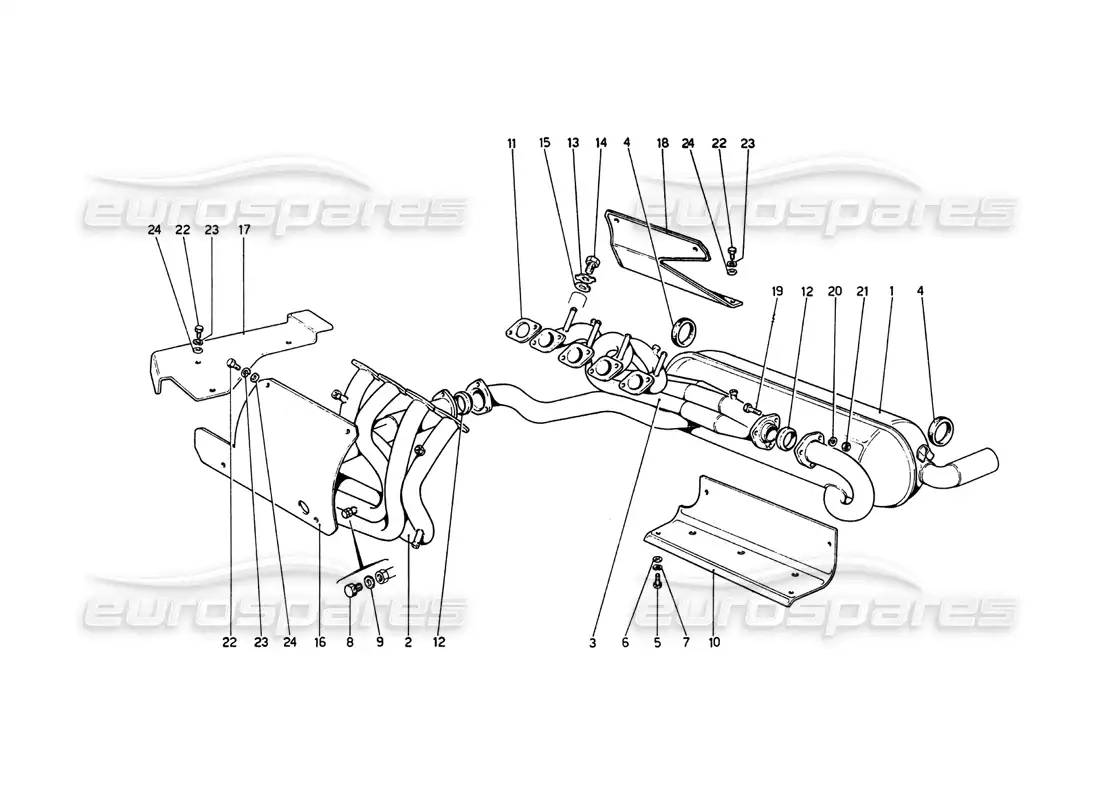

-part-diagram-013.webp "FERRARI 208 GT4 DINO (1975) EXHAUST SYSTEM PARTS DIAGRAM")

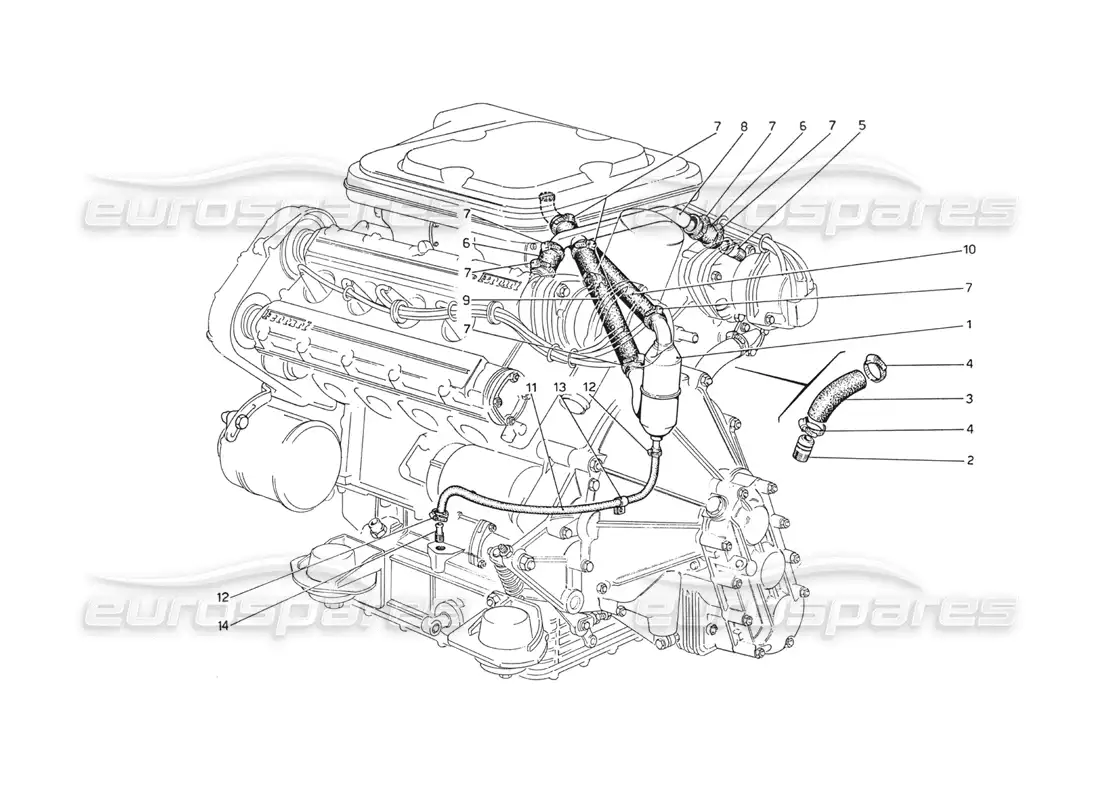

-part-diagram-014.webp "FERRARI 208 GT4 DINO (1975) BLOW - BY SYSTEM PARTS DIAGRAM")

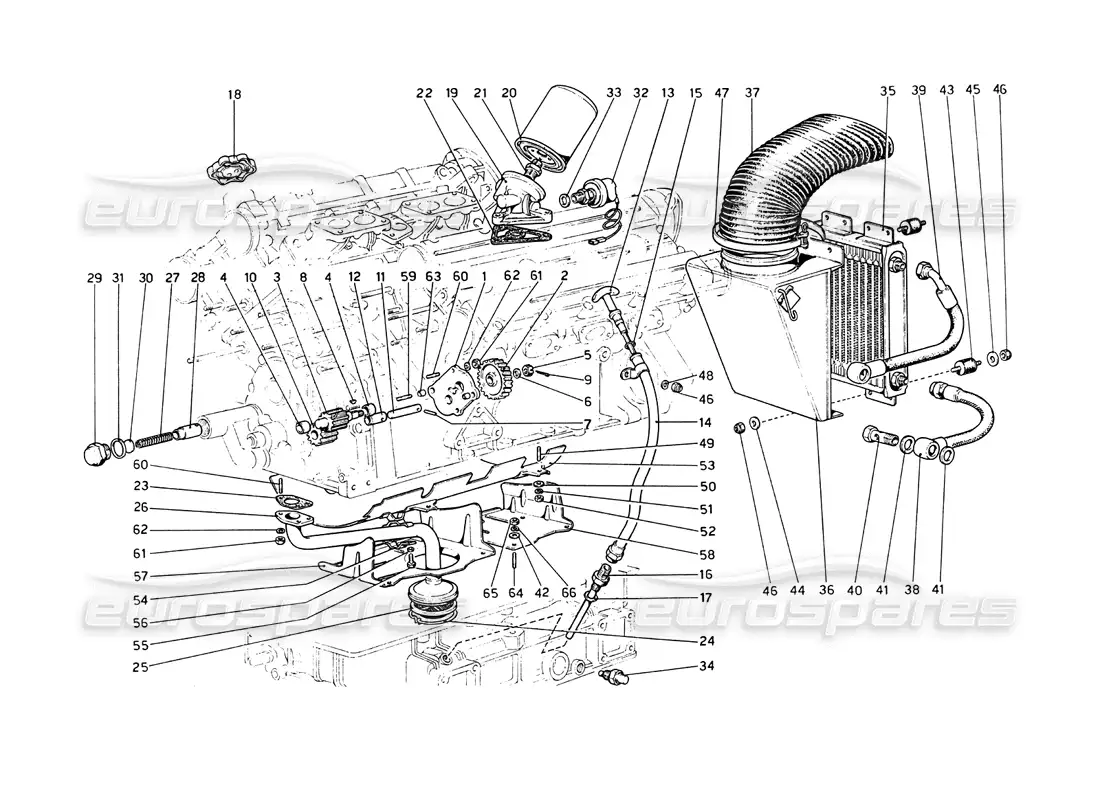

-part-diagram-015.webp "FERRARI 208 GT4 DINO (1975) LUBRICATION SYSTEM PARTS DIAGRAM")

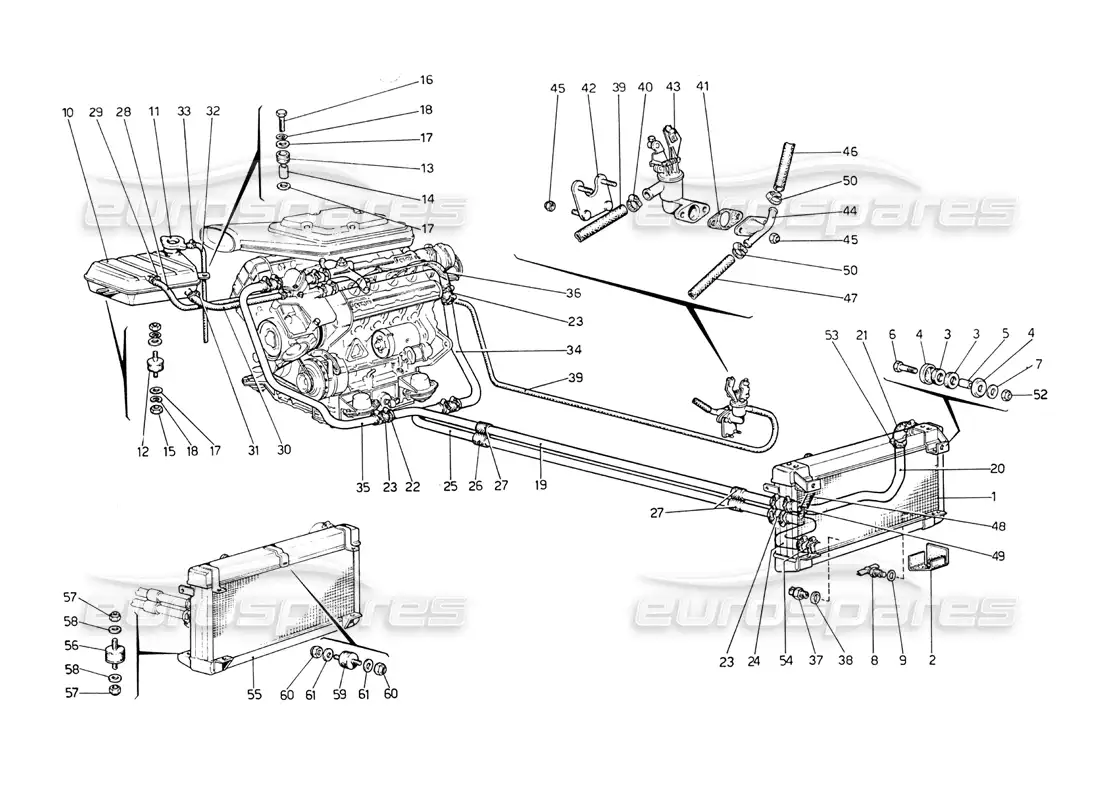

-part-diagram-016.webp "FERRARI 208 GT4 DINO (1975) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI 208 GT4 DINO (1975) WATER PUMP AND PIPINGS PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI 208 GT4 DINO (1975) CLUTCH OPERATING CONTROL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI 208 GT4 DINO (1975) CLUTCH UNIT AND COVER PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI 208 GT4 DINO (1975) GEARBOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI 208 GT4 DINO (1975) GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI 208 GT4 DINO (1975) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI 208 GT4 DINO (1975) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI 208 GT4 DINO (1975) INSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI 208 GT4 DINO (1975) OUTSIDE GEARBOX CONTROLS PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI 208 GT4 DINO (1975) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI 208 GT4 DINO (1975) PEDAL BOARD - BRAKE AND CLUTCH CONTROLS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI 208 GT4 DINO (1975) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI 208 GT4 DINO (1975) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI 208 GT4 DINO (1975) HAND-BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI 208 GT4 DINO (1975) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI 208 GT4 DINO (1975) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI 208 GT4 DINO (1975) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI 208 GT4 DINO (1975) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI 208 GT4 DINO (1975) REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI 208 GT4 DINO (1975) REAR SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI 208 GT4 DINO (1975) WHEELS PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI 208 GT4 DINO (1975) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI 208 GT4 DINO (1975) ELECTRIC GENERATING SYSTEM PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI 208 GT4 DINO (1975) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI 208 GT4 DINO (1975) AIR CONDITIONING COMPRESSOR AND CONTROLS PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI 208 GT4 DINO (1975) TOOL-KIT PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI 208 GT4 DINO (1975) THROTTLE CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI 208 GT4 DINO (1975) PEDAL BOARD - CLUTCH CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI 208 GT4 DINO (1975) BRAKE HYDRAULIC SYSTEM (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI 208 GT4 DINO (1975) BODY SHELL PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI 208 GT4 DINO (1975) BODY SHELL - OUTER ELEMENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI 208 GT4 DINO (1975) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI 208 GT4 DINO (1975) BODY SHELL - INNER ELEMENTS PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI 208 GT4 DINO (1975) FRONT COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI 208 GT4 DINO (1975) ENGINE COMPARTMENT LID AND CARPETING PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI 208 GT4 DINO (1975) LUGGAGE COMPARTMENT LID PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI 208 GT4 DINO (1975) DOORS PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI 208 GT4 DINO (1975) DOORS PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI 208 GT4 DINO (1975) BUMPERS AND MOULDINGS PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI 208 GT4 DINO (1975) GLASSES PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI 208 GT4 DINO (1975) INTERIOR TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI 208 GT4 DINO (1975) INTERIOR TRIM AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI 208 GT4 DINO (1975) SEATS PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI 208 GT4 DINO (1975) CARPETING PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI 208 GT4 DINO (1975) INSTRUMENTS AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI 208 GT4 DINO (1975) SEAT BELTS PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI 208 GT4 DINO (1975) BODY ELECTRICAL PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI 208 GT4 DINO (1975) FUSES AND RELAYS PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI 208 GT4 DINO (1975) HEADLIGHTS LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI 208 GT4 DINO (1975) LIGHTS PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI 208 GT4 DINO (1975) WINDSHIELD WIPER, WASHER AND HORN PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI 208 GT4 DINO (1975) HEATING SYSTEM PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI 208 GT4 DINO (1975) ENGINE - GEARBOX AND SUPPORTS PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI 208 GT4 DINO (1975) CRANKCASE PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI 208 GT4 DINO (1975) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-004.webp "FERRARI 208 GT4 DINO (1975) FLYWHEEL AND CLUTCH HOUSING SPACER PARTS DIAGRAM")
-part-diagram-005.webp "FERRARI 208 GT4 DINO (1975) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI 208 GT4 DINO (1975) CYLINDER HEAD (LEFT) PARTS DIAGRAM")

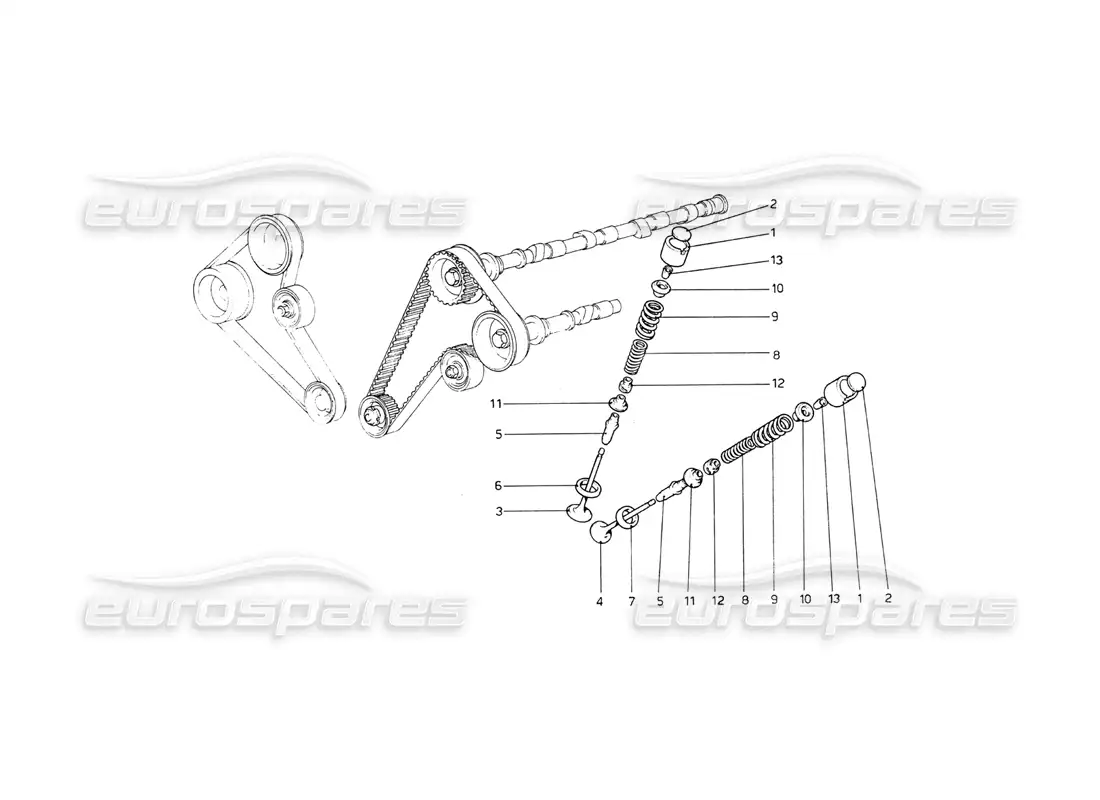

-part-diagram-007.webp "FERRARI 208 GT4 DINO (1975) TIMING SYSTEM - TAPPETS PARTS DIAGRAM")

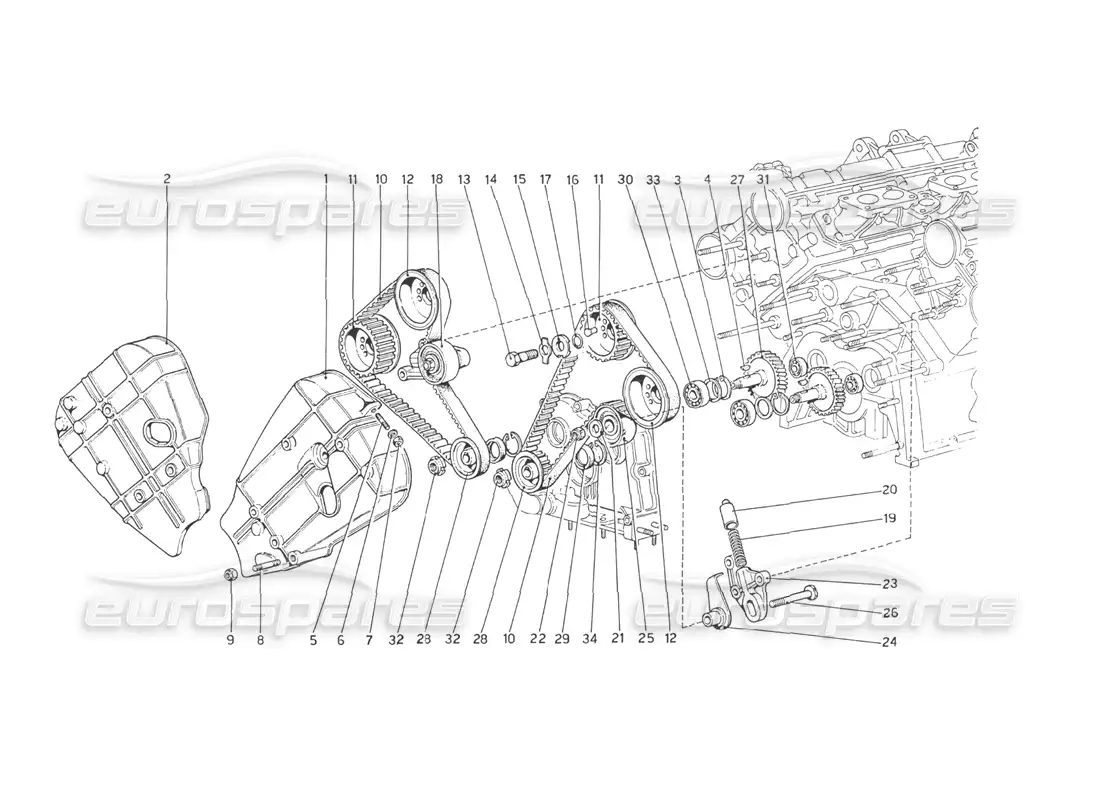

-part-diagram-008.webp "FERRARI 208 GT4 DINO (1975) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")

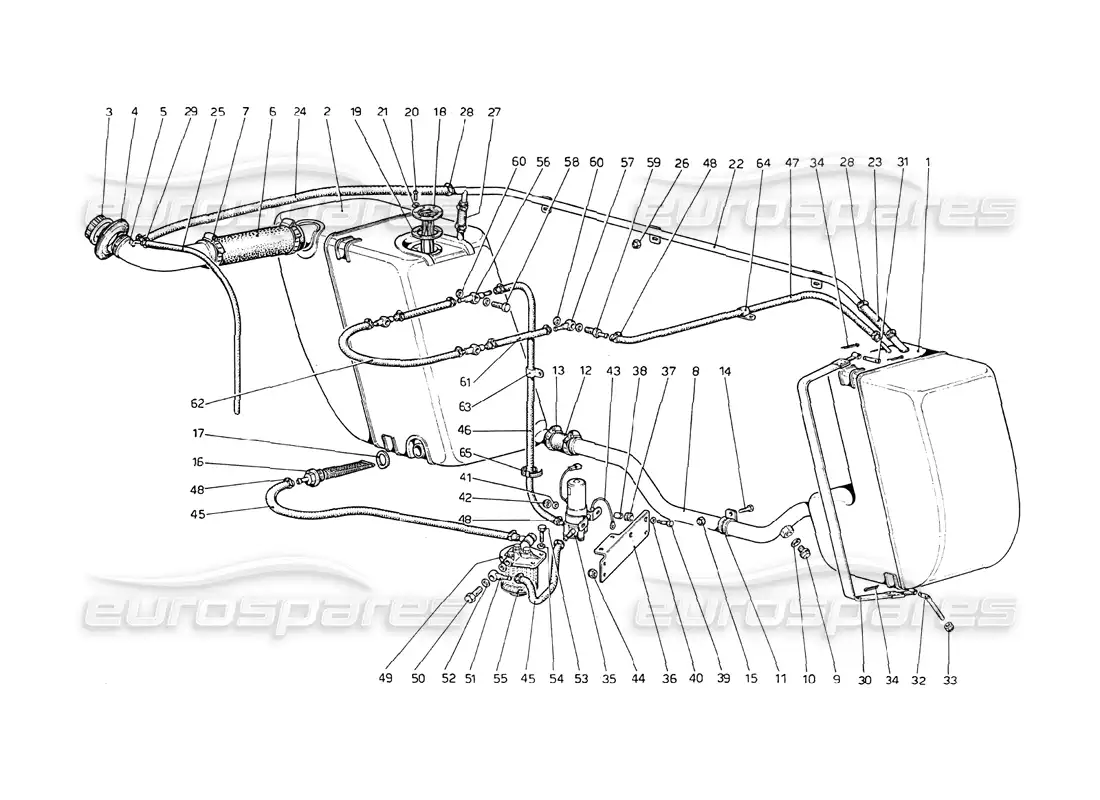

-part-diagram-009.webp "FERRARI 208 GT4 DINO (1975) FUEL SYSTEM PARTS DIAGRAM")

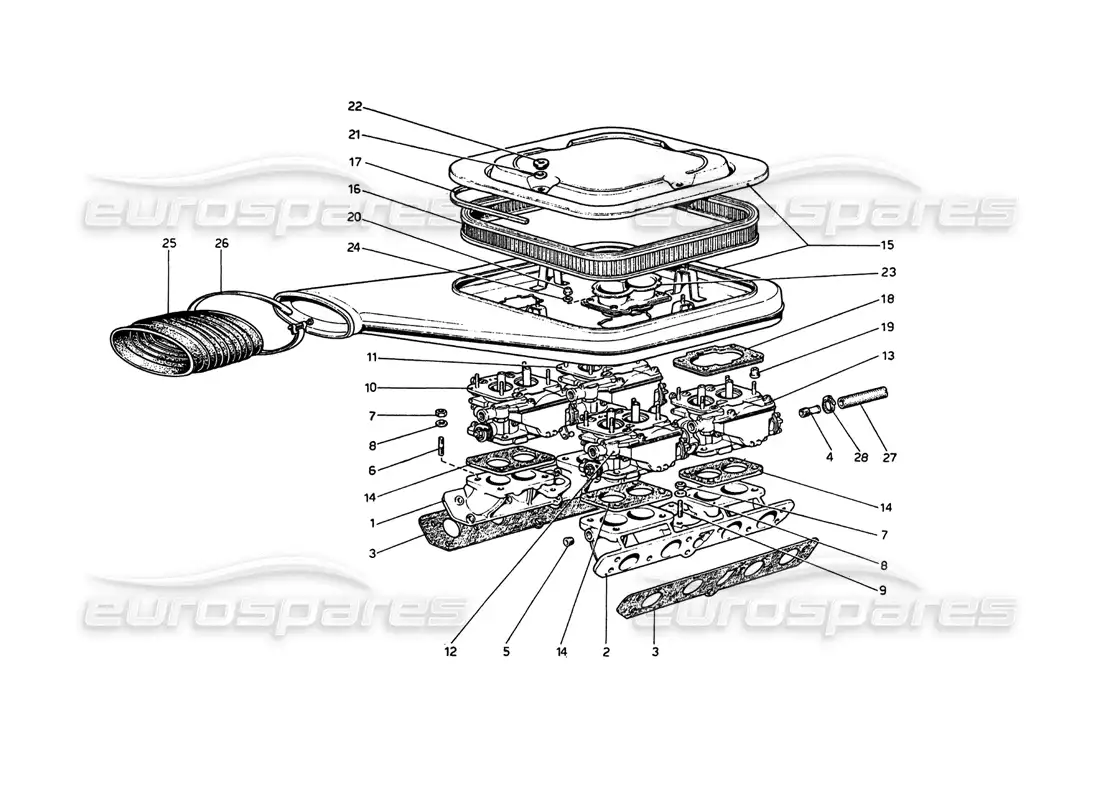

-part-diagram-010.webp "FERRARI 208 GT4 DINO (1975) CARBURETTORS AND AIR CLEANER PARTS DIAGRAM")

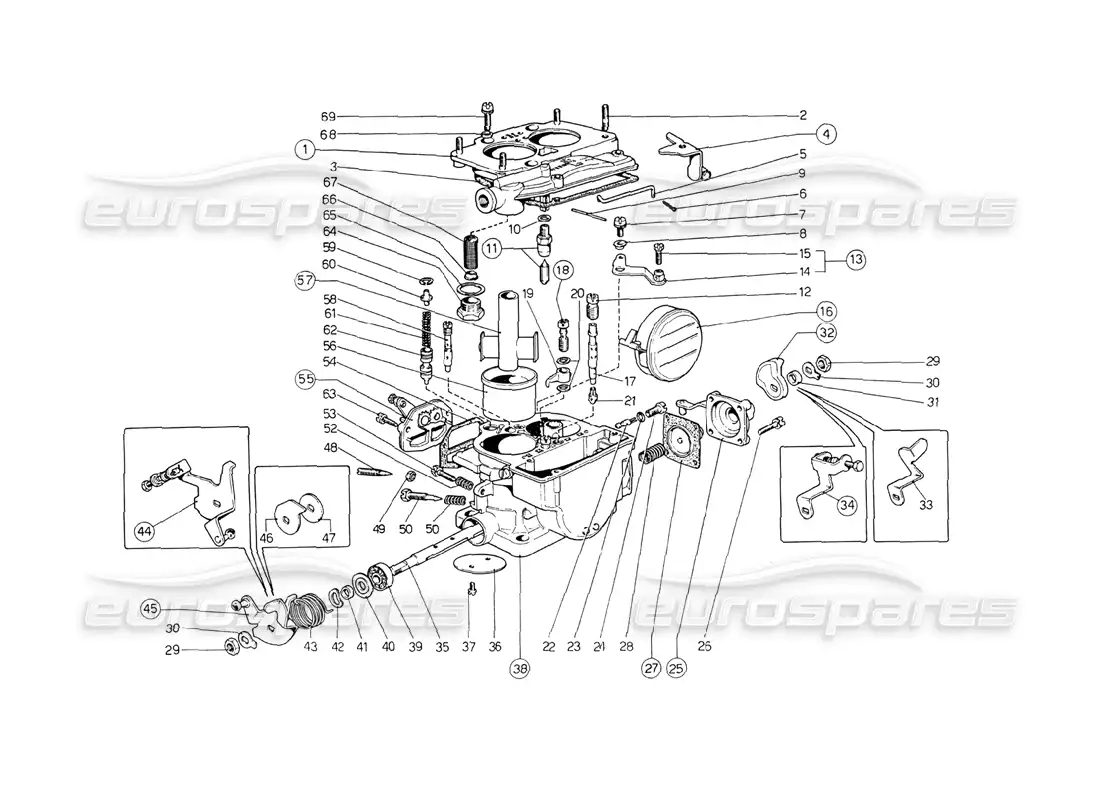

-part-diagram-011.webp "FERRARI 208 GT4 DINO (1975) WEBER CARBURETTORS (34 DCN 53-54-55-56) PARTS DIAGRAM")
