024 - Inside Gearbox Controls

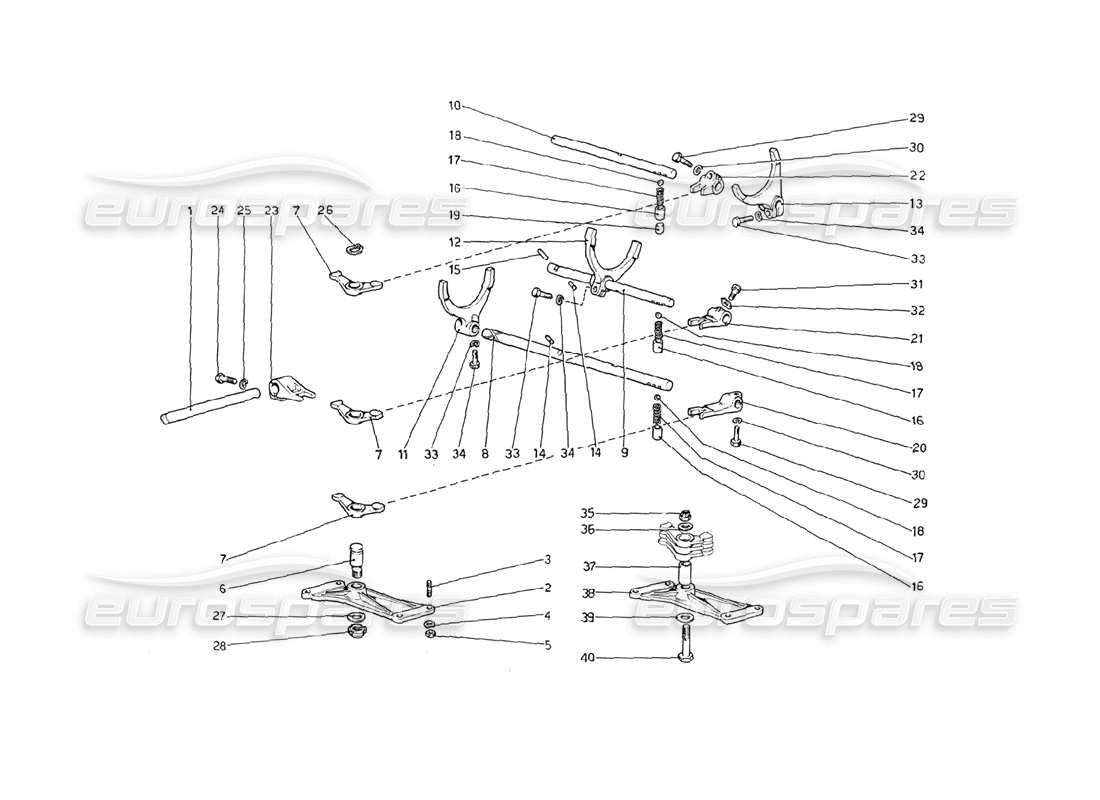

Ferrari 208 GT4 Dino (1975) Inside Gearbox Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 105733
ALBERO PER LEVA COMANDO BILANCIERI
Supersession
Supersession
# 001
MPN: 107398
LEVER
from £278.25
from £278.25
# 002
MPN: 104203
SUPPORT
Valid until sold out After sold out N. 104203
Supersession
Supersession
# 002
MPN: 108916
SUPPORT
Supersession
Supersession
# 003
MPN: 11500121
PRIGLONLERO
Supersession
Supersession
This part replaces part number 13540820
# 004
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 005
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 006
MPN: 104266
PIVOT
Until sold out N. 104203
from £77.75
from £77.75
# 007
MPN: 104265
BILANCIERE
from £134.54
from £134.54
This part replaces part number 523951 - and 1 more. Click to view details
# 008
MPN: 104270
ASTA COMANDO 1ª VELOCITA E RM
from £225.55
from £225.55
This part replaces part number 524574
# 009
MPN: 104271
Asta comando 2ª e 3ª velocita
from £174.55
from £174.55
This part replaces part number 524575
# 010
MPN: 104272
Asta comando 4ª e 5ª velocita
from £176.99
from £176.99
This part replaces part number 524576
# 011
MPN: 104273
FORK 1ª SPEED AND REVERSE
from £446.87
from £446.87
This part replaces part number 524577
# 012
MPN: 104274
FORK 2ª AND 3ª SPEED
from £446.99
from £446.99
This part replaces part number 524578
# 013
MPN: 104275
FORK 4ª AND 5ª SPEED
from £446.87
from £446.87
# 014
MPN: 106374
RULLINO ARRESTO ASTE LATERAL!
from £28.28
from £28.28
This part replaces part number 525087
# 015
MPN: 106375
RULLINO ARRESTO ASTA CENTRALE
from £13.80
from £13.80
This part replaces part number 525086
# 016
MPN: 104277
BUSH
from £64.68
from £64.68
This part replaces part number 523975
# 017
MPN: 100750
SPRING
from £0.91
from £0.91
This part replaces part number 523899
# 018
MPN: 101612
SFERA
from £0.70
from £0.70
This part replaces part number 93309
# 019
MPN: 104278
SPACER
from £22.23
from £22.23
This part replaces part number 523963
# 020
MPN: 106214
SELECTOR FORK 1ST SPEED AND REVERSE
from £178.64
from £178.64
This part replaces part number 525011
# 021
MPN: 106215
SELECTOR FORK 2ª and 3ª SPEED
from £150.66
from £150.66
This part replaces part number 525012
# 022
MPN: 106216
SELECTOR FORK 4ª and 5ª SPEED
from £152.81
from £152.81
This part replaces part number 525013
# 023
MPN: 106213
LEVER
from £81.16
from £81.16
This part replaces part number 525010 - and 1 more. Click to view details
# 024
MPN: 16043621
BOLT
from £1.09
from £1.09
# 025
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 026
MPN: 11066875
SEEGER RING
Until sold out N. 104203
Supersession
Supersession
# 027
MPN: 103194
WASHER
Until sold out N. 104203
from £0.58
from £0.58
# 028
MPN: 100865
RING NUT
Until sold out N. 104203
from £9.91
from £9.91
# 029
MPN: 107398
BARRA COMANDO CAMBIO - GD
from £278.25
from £278.25
# 029
MPN: 16043521
BOLT
from £0.51
from £0.51
# 030
MPN: 106882
OCCHIELLO - GD
Supersession
Supersession
# 030
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 031
MPN: 104279
BOLT
from £20.23
from £20.23
This part replaces part number 95176 - and 1 more. Click to view details
# 032
MPN: 103587
PLASTRINA
from £5.85
from £5.85
This part replaces part number 92692 - and 1 more. Click to view details
# 033
MPN: 16043521
BOLT
from £0.51
from £0.51
# 034
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 035
MPN: 16109221
NUT
Dopo esaurimento n. 104203
from £0.50
from £0.50
# 036
MPN: 106426
WASHER
Dopo esaurimento n. 104203
from £2.50
from £2.50
# 037
MPN: 108917
BUSH
Dopo esaurimento n. 104203
from £46.46
from £46.46
# 038
MPN: 108916
SUPPORT
Dopo esaurimento n. 104203
Supersession
Supersession
# 039
MPN: 108281
WASHER
Dopo esaurimento n. 104203
from £0.96
from £0.96
# 040
MPN: 15541121
BOLT
from £0.57
from £0.57
