038 - engine ignition

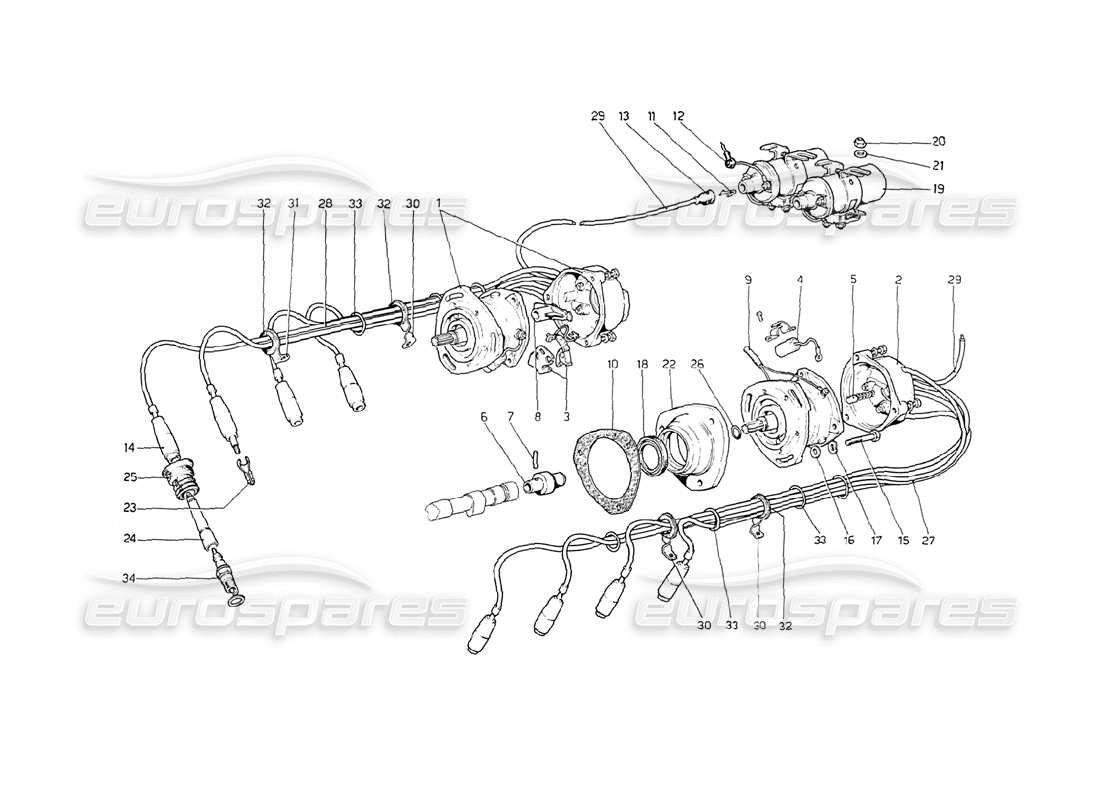

Ferrari 208 GT4 Dino (1975) Engine Ignition Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: FHT017
COMPLETE HT LEADS SET
Valid for cars with TWIN distributor
from £295.00
from £295.00
# 000
MPN: FHT020
COMPLETE HT LEADS SET
Valid for cars with SINGLE distributor (non electric)
from £357.44
from £357.44
COMPLETE HT LEADS SET Genuine Ferrari Part - New (other) In stock
Valid for cars with SINGLE distributor (non electric)
Valid for cars with SINGLE distributor (non electric)
# 001
MPN: 108473
DISTRIBUTORE DI ACCENSIONE COMPLETO - MARELLI S158C
from £420.70
from £420.70
# 002
MPN: 115518
DISTRIBUTOR CAP (TWIN)
from £110.00
from £110.00
This part replaces part number 95300044
# 002
MPN: 115518
DISTRIBUTOR CAP (TWIN)
from £110.00
from £110.00
This part replaces part number 95300044
# 003
MPN: 95300083
IGNITION CONTACT POINTS SET
1x long & 1x Short
from £22.03
from £22.03
This part replaces part number 95300087 - and 1 more. Click to view details
# 004
MPN: 95300072
CONDENSOR
from £13.44
from £13.44
This part replaces part number 9916525 - and 1 more. Click to view details
# 004
MPN: 95300072
COHDENSATORE
single lead
from £13.44
from £13.44
This part replaces part number 9916525 - and 1 more. Click to view details
# 005
MPN: 95300068
CARBONCINO CON MOLLA
Supersession
Supersession
# 006
MPN: 108005
INNESTO
from £239.27
from £239.27
# 007
MPN: 100279
PIN
from £11.85
from £11.85
This part replaces part number 13904770 - and 2 more. Click to view details
# 008
MPN: 95300289
SPAZZOLA ROTANTE
Supersession
Supersession
# 009
MPN: 107539
CAVO COLLEGAMENTO SPINTEROGENI
from £63.47
from £63.47
# 010
MPN: 147642
GASKET
from £3.97
from £3.97
This part replaces part number 103815
# 011
-
SPILLO PER TERMINALE
# 012
MPN: 100285
CAPPUCCIO DI PROTEZIONE
Supersession
Supersession
# 013
MPN: 103006
CAPPUCCIO DI PROTEZIONE
Supersession
Supersession
# 013
MPN: 12056986
CAPPUCCIO DI PROTEZIONE
from £0.94
from £0.94
This part replaces part number 12056286 - and 2 more. Click to view details
# 014
MPN: 29171
TERMINALE
from £4.14
from £4.14
This part replaces part number 12056886 which we have in stock
# 015
MPN: 16043921
SCREW
from £1.43
from £1.43
# 016
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 017
MPN: 11198074
WASHER
from £0.47
from £0.47
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 018
MPN: 108009
SEALING RING
from £12.14
from £12.14
# 019
MPN: 109584
BOBINA DI ACCENSIONE
from £161.33
from £161.33
This part replaces part number 100262 - and 1 more. Click to view details
# 020
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 021
MPN: 12643721
WASHER
from £0.92
from £0.92
# 022
MPN: 107992
SUPPORT
from £180.69
from £180.69
# 023
MPN: 12056340
CAPOCORDA
from £0.47
from £0.47
# 024
MPN: 116613
SPARK PLUG EXTENSION
from £8.54
from £8.54
This part replaces part number 107310
# 025
MPN: 108183
CAPPUCCIO PROTEZIONE CANDELE
from £8.80
from £8.80
This part replaces part number 104341
# 026
MPN: 100015
RING
from £1.21
from £1.21
# 027
MPN: 107364
ASSIEME CAVI ACCENSIONE LATO S.
from £205.70
from £205.70
# 028
MPN: 107365
ASSIEME CAVI ACENSIONE LATO D.
from £220.26
from £220.26
# 029
MPN: 107368
CAVO COLLEGAM. BOBINA - DISTRIBUTORE
# 030
MPN: 107361
BRACKET
from £29.97
from £29.97
This part replaces part number 29267
# 031
MPN: 10-30-04
BRACKET
from £34.13
from £34.13
# 032
MPN: 10396580
CABLE GROMMET
from £1.08
from £1.08
This part replaces part number 100286
# 033
MPN: 103702
SEALING RING
from £6.84
from £6.84
This part replaces part number 29265
# 034
MPN: 107306
CANDELA DI ACCENSIONE - CHAMPION N7Y
# 034
MPN: 108346
CANDELA DI ACCENSIONE - BOSCH W 225 T 30
In alternativa con n. 107306
from £5.13
from £5.13
