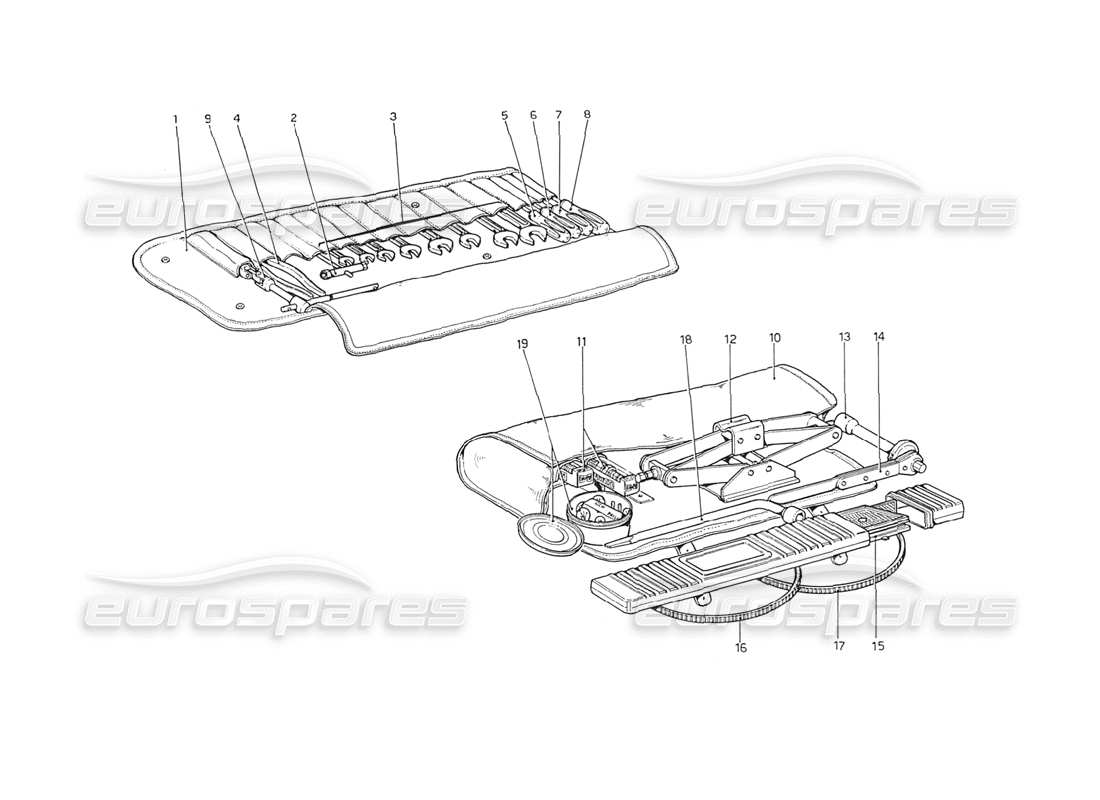

Ferrari 208 GT4 Dino (1975) Tool-Kit Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 95991902/C
INDOOR CAR COVER
red
from £341.25
from £341.25
# 001
MPN: 108132
FUSE 25 AMP
Supersession
Supersession
This part replaces part number 95403004
# 001
MPN: 10858090
FUSE 8 AMP CERAMIC
from £0.47
from £0.47
This part replaces part number 95403001
# 001
MPN: 11048990
FUSE 16 AMP CERAMIC
from £0.47
from £0.47
This part replaces part number 95403002
# 001
MPN: 123254
TOOL KIT BOX COMPLETE
from £1,295.00
from £1,295.00
This part replaces part number 106876 - and 3 more. Click to view details
# 002
MPN: 100520
CHIAVE PER CARBURATORE
This part replaces part number 84114
# 003
MPN: 101514
CHIAVI PIATTE DA 6 A 22 MM
# 004
MPN: 101515
PINZA UNIVERSALE DA 180 MM
from £42.90
from £42.90
# 005
MPN: 101516
CACCIAVITE PER VITI AD INTAGLIO DA 150 MM
# 006
MPN: 101517
CACCIAVITE PER VITI AD INTAGLIO DA 120 MM
# 007
MPN: 101518
CACCIAVITE TIPO PHILIPS PER VITI FINO A Ø 4 MM
# 008
MPN: 101519
CACCIAVITE TIPO PHILIPS PER VITI DAL Ø 5 A 9 MM
# 009
MPN: 106880
CHIAVE ESTRAZIONE CANDELE
Supersession
Supersession
# 010
MPN: 106878
JACK KIT BAG WITH WARNING TRIANGLE ONLY
from £478.29
from £478.29
# 010
MPN: 124770
EMERGENCY TOOL KIT
from £1,999.20
from £1,999.20
# 010
MPN: 135978
JACK KIT
(includes: Jack - 106530 / Spanner - 106531 / Ratchet - 106532)
from £139.55
from £139.55
# 011
MPN: 107603
SPARK PLUG
(champion N7Y)
from £2.81
from £2.81
This part replaces part number 113224
# 011
MPN: 107603/A
SPARK PLUG
(NGK)
from £9.05
from £9.05
# 012
MPN: 171489
JACK TYPE 232 F
from £643.50
from £643.50
# 013
MPN: 106531
STARTING SOCKET WRENCH A
from £25.88
from £25.88
# 014
MPN: 106532
CHIAVE A CRICCHETTO ZINCO-CROMATA
from £206.03
from £206.03
# 015
MPN: 106879
TRIANGOLO DI SEGNALAZIONE
Supersession
Supersession
# 016
MPN: 105046
CINGHIA COMANDO COMPRESSORE
Solo per vetture con aria condizionata
from £72.28
from £72.28
This part replaces part number 320382 which we have in stock
# 017
MPN: 107971
WATER PUMP AND ALTERNATOR BELT
(Assembly with single belt)
from £56.99
from £56.99
# 018
MPN: 70000903
CHIAVE PER RUOTE
from £107.01
from £107.01
This part replaces part number 106877
# 019
-
CONTENITORE LAMPADE COMPOSTO DI:
# 019
MPN: 101522
LAMP 12V - 21 W
Supersession
Supersession
This part replaces part number 20083200
# 019
MPN: 101523
LAMP 12V - 5/21 W
Supersession
Supersession
This part replaces part number 20177903
# 019
MPN: 101524
LAMP 12V - 5W
Supersession
Supersession
This part replaces part number 20083002
# 019
MPN: 101525
BULB
from £2.15
from £2.15
This part replaces part number 101528
# 019
MPN: 101527
LAMP
Supersession
Supersession
# 019
MPN: 101528
LAMP 12V - 4W
Supersession
Supersession
This part replaces part number 20083309
