026 - Pedal Board - Brake and Clutch Controls

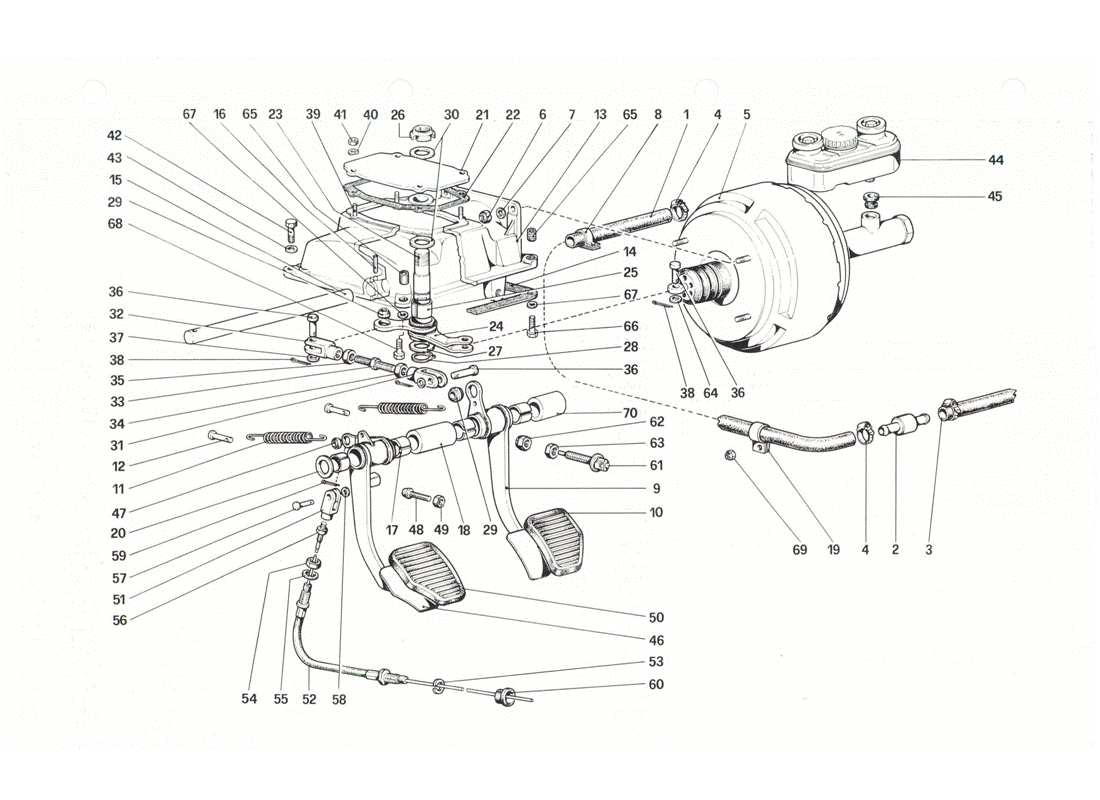

Ferrari 208 GTB GTS Pedal board - Brake and clutch controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 108951
TUBO DAL SERVOFRENO ALIA VALVOLA DI NON RITORNO
Supersession
Supersession
# 002
MPN: 101538
VALVOLA NON RITORNO
Supersession
Supersession
# 003
MPN: 107982
SERVO HOSE
from £7.81
from £7.81
This part replaces part number 107041 - and 1 more. Click to view details
# 004
MPN: 13000390
FASCETTA
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 006
MPN: 16104411
NUT
from £0.47
from £0.47
# 007
MPN: 12601371
WASHER
Supersession
Supersession
# 008
MPN: 10418900
FASCETTA
from £1.31
from £1.31
# 009
MPN: 108533
PEDALE FRENO
from £245.84
from £245.84
This part replaces part number 108524 - and 1 more. Click to view details
# 010
MPN: 106950
COPRI PEDALE FRENO
from £11.98
from £11.98
# 011
MPN: 117374
MOLLA RICHIAMO PEDALE
from £4.78
from £4.78
# 012
MPN: 104896
SPRING HOLDING PIN
from £15.22
from £15.22
# 012
MPN: 108022
COMPLETE PEDAL SUPPORT
from £1,795.45
from £1,795.45
This part replaces part number 106187 - and 2 more. Click to view details
# 013
MPN: 106187
SUPPORTO PEDALIETA
Supersession
Supersession
# 014
MPN: 104899
G UAMIZIONE
Supersession
Supersession
# 015
MPN: 104900
PEDAL SUPPORT PIN
from £58.10
from £58.10
# 016
MPN: 104901
SPINA
from £0.97
from £0.97
# 017
MPN: 103163
BOCCOLA
from £2.96
from £2.96
# 018
MPN: 104902
DISTANZIALE
from £17.03
from £17.03
# 019
MPN: 10441890
FASCETTA
from £0.47
from £0.47
# 020
MPN: 106083
WASHER
from £0.71
from £0.71
# 021
MPN: 104904
COPERCHIO
from £3.89
from £3.89
# 022
MPN: 104905
Guarnizione
from £8.59
from £8.59
# 023
MPN: 106081
TRANSMISSION LEVER SUPPORT PIN
from £24.37
from £24.37
This part replaces part number 104906 - and 3 more. Click to view details
# 024
MPN: 108313
BRAKE SERVO TRANSFER LEVER
from £34.69
from £34.69
This part replaces part number 107205 - and 5 more. Click to view details
# 025
MPN: 100787
BOCCOLA
from £5.48
from £5.48
This part replaces part number 101315 - and 1 more. Click to view details
# 026
MPN: 106082
GHIERA
Supersession
Supersession
# 027
MPN: 108382
DISTANZIALE
from £8.49
from £8.49
# 028
MPN: 11066875
ANELLO SEEGER
Supersession
Supersession
# 029
MPN: 100424
SNODO SFERICO
from £41.51
from £41.51
# 030
MPN: 106084
WASHER
from £5.61
from £5.61
# 031
MPN: 104910
FORCELLINO (FILETTO SX.)
from £4.22
from £4.22
# 032
MPN: 104911
FORCELL INO
from £10.33
from £10.33
# 033
MPN: 104912
VITE REGISTRO
from £9.79
from £9.79
# 034
MPN: 103157
DADO (FILETTO SX.)
from £1.05
from £1.05
# 035
MPN: 103160
NUT
from £1.16
from £1.16
# 036
MPN: 10033411
PEI NO
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 037
MPN: 103167
WASHER
from £2.03
from £2.03
# 038
MPN: 10796301
COPIGLIA
from £0.71
from £0.71
# 039
MPN: 11500021
PRIGIONIERO
from £9.50
from £9.50
# 040
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 041
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 042
MPN: 16139021
BUILONE
from £2.27
from £2.27
# 043
MPN: 12601471
WASHER
Supersession
Supersession
# 044
MPN: 95691500
TANK FOR HAY LIQUID
from £395.00
from £395.00
# 045
MPN: 106625
ANELLO DI TENUTA
Supersession
Supersession
# 046
MPN: 108534
PEDALE FI IZIONE
Supersession
Supersession
# 046
MPN: 116324
PEDALE FRIZIONE
from £224.76
from £224.76
# 047
MPN: 100423
SNODO SFERICO
from £21.11
from £21.11
# 048
MPN: 106409
VITE REGISTRO
from £4.55
from £4.55
# 049
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 050
MPN: 106949
COPI IPEDALE
from £18.42
from £18.42
# 051
MPN: 108575
FORCELLINO
from £33.34
from £33.34
# 052
MPN: 106745
CAVO COMANDO FRIZIONE
from £45.47
from £45.47
# 053
MPN: 12601671
ELASTIC WASHER
from £0.47
from £0.47
# 054
MPN: 16103611
NUT
from £0.47
from £0.47
# 055
MPN: 12601571
ELASTIC WASHER
Supersession
Supersession
This part replaces part number 12601574
# 056
MPN: 100861
NUT
Supersession
Supersession
This part replaces part number 100862 which we have in stock
# 057
MPN: 103218
PERNO
from £16.94
from £16.94
This part replaces part number 100857 - and 1 more. Click to view details
# 058
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 059
MPN: 10734201
COPIGL IA
Supersession
Supersession
# 060
MPN: 105369
PASSAT ILO
from £19.10
from £19.10
# 061
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 062
MPN: 101662
BUFFER NUT
from £2.53
from £2.53
This part replaces part number 660523
# 063
MPN: 10791211
DADO REGISTRO
from £0.47
from £0.47
This part replaces part number 10791215 - and 1 more. Click to view details
# 064
MPN: 10730521
WASHER
Supersession
Supersession
This part replaces part number 10730501
# 065
MPN: 106188
BOCCOLA FILETTATA
from £33.92
from £33.92
# 066
MPN: 16044321
PEDAL FIXING SCREW
from £0.26
from £0.26
# 067
MPN: 127496
WASHER
from £0.47
from £0.47
This part replaces part number 10516671 - and 2 more. Click to view details
# 068
MPN: 16043621
PEDAL FIXING SCREW
from £1.13
from £1.13
# 069
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 070
MPN: 104903
DISTANZIALE
from £19.29
from £19.29
