035 - Rear Suspension - Shock Absorber and Brake Disc

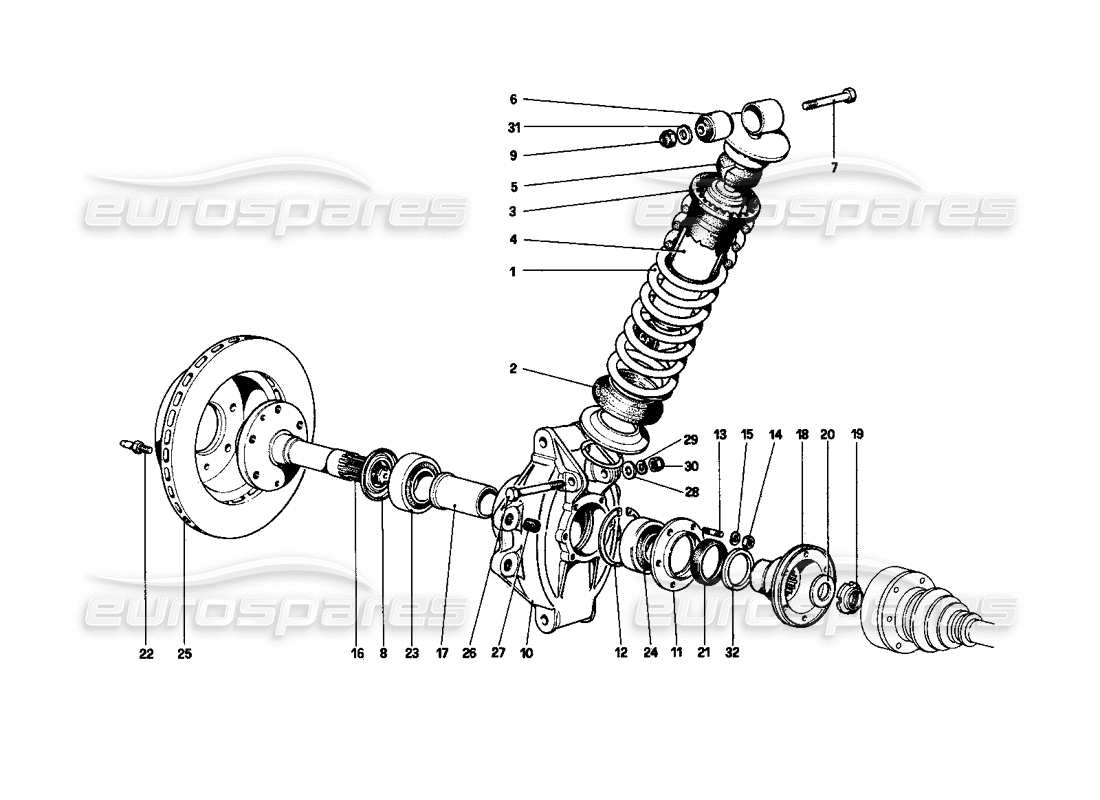

Ferrari 208 Turbo (1982) Rear Suspension - Shock Absorber and Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 104458/A
COMPLETE REAR BRAKE KIT
Includes Rear Disks 104458 x 2, Pads 108134 x 1 and Caliper Clips 106360/A x 1
# 001
MPN: 112877

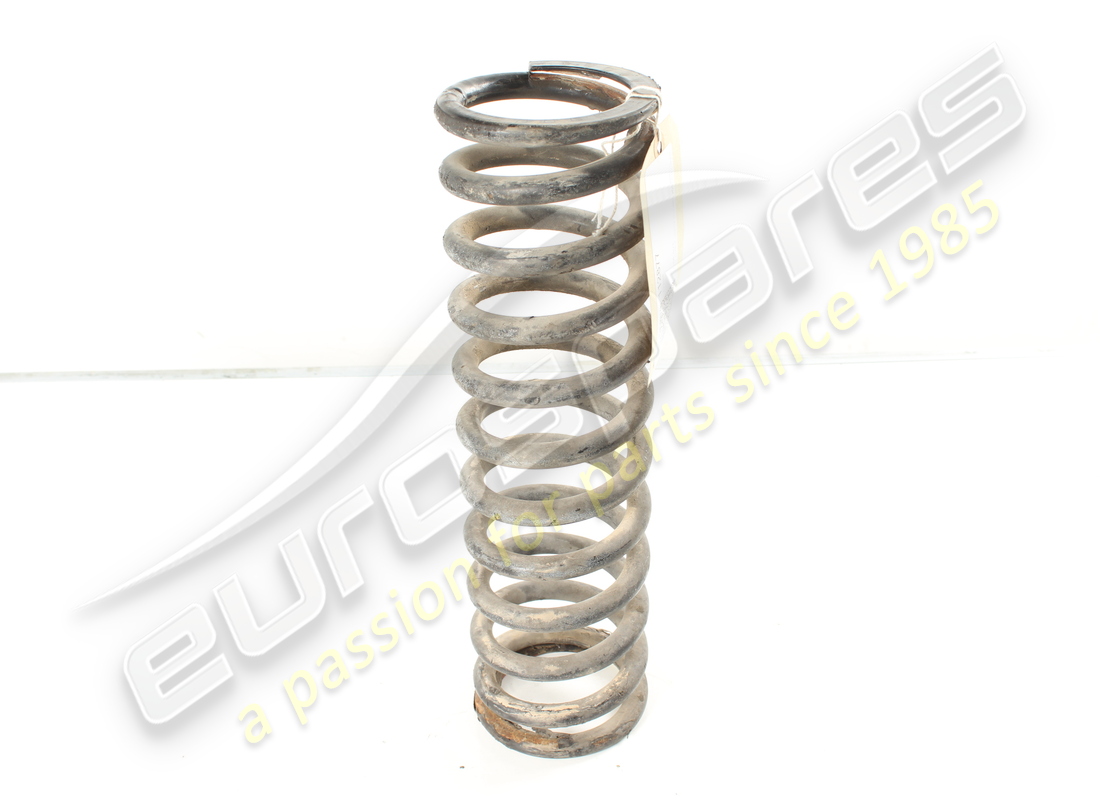

REAR ROAD SPRING
(GTS only)
from £772.52
from £772.52
# 001
MPN: 112971
SPRING
GTB
from £544.16
from £544.16
This part replaces part number 110785
# 002
MPN: 103264
DISTANZIALE INFERIORE
from £16.40
from £16.40
This part replaces part number 640423 - and 3 more. Click to view details
# 003
MPN: 105223
DISTANZIALE SUPERIORS
from £19.31
from £19.31
# 004
MPN: 110787

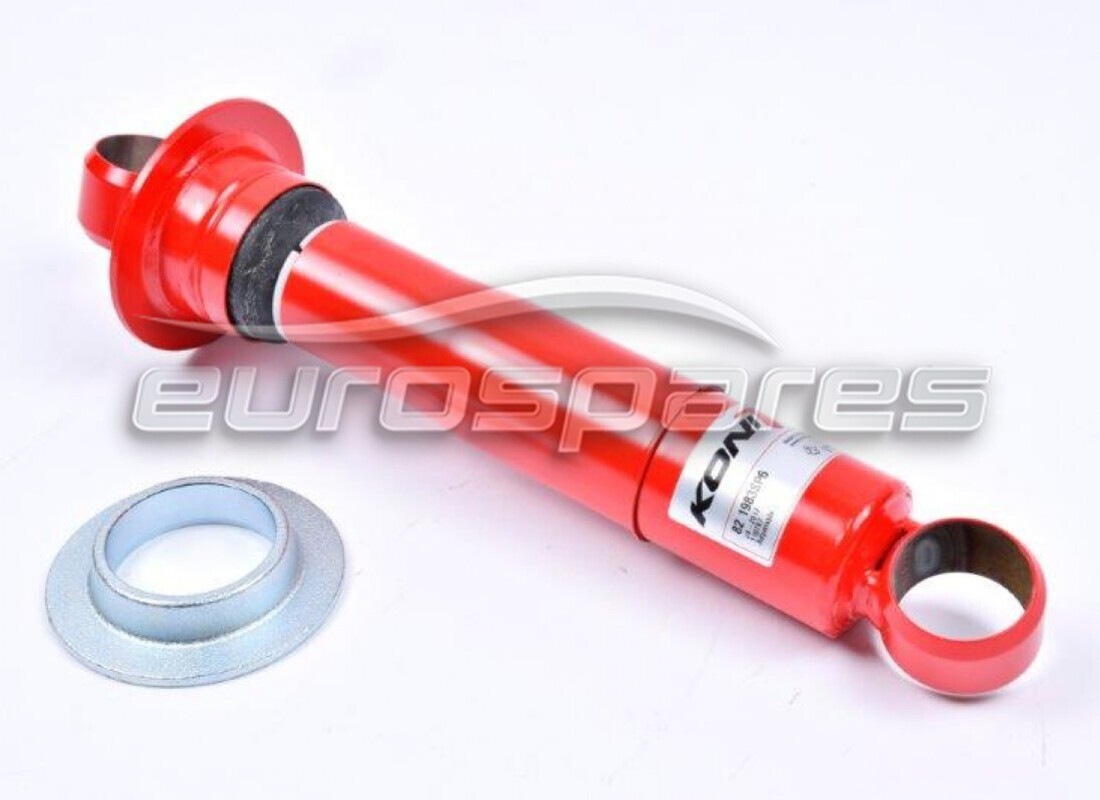

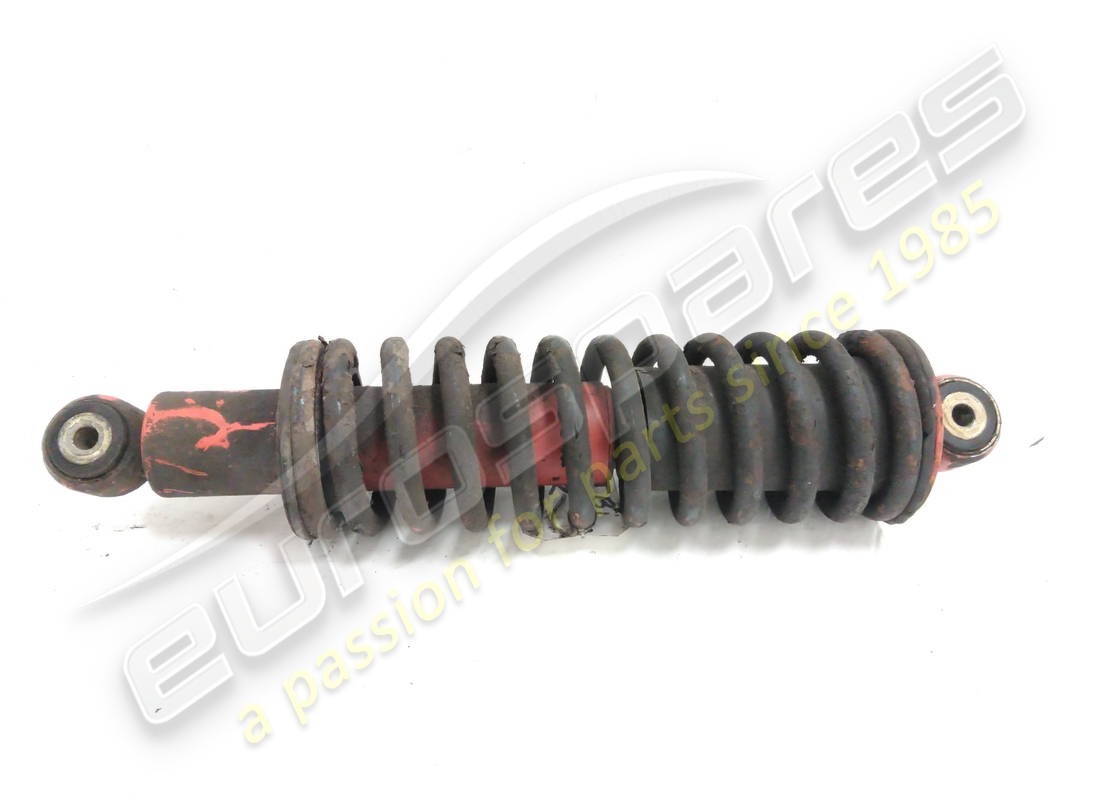

REAR SHOCK ABSORBER
from £188.91
from £188.91
This part replaces part number 108808 - and 1 more. Click to view details
# 004
MPN: MC6552/1
KONI SHOCK ABSORBER STICKER
from £3.95
from £3.95
# 005
MPN: 104442
TAMPBNE FINE CORSA
Con I'ammortizzatore
# 006
MPN: 100809
ESTENBLOK PER AMMORTIZZATORE
from £12.88
from £12.88
This part replaces part number 101051 - and 1 more. Click to view details
# 007
MPN: 106419
BOLT
from £10.93
from £10.93
This part replaces part number 100808 - and 11 more. Click to view details
# 008
MPN: 108047
RING
from £54.21
from £54.21
# 009
MPN: 148020
NUT
from £2.61
from £2.61
This part replaces part number 102825 - and 3 more. Click to view details
# 010
MPN: 106245
PORTAMOZZO DX.
Col complessivo n. 112484
Supersession
Supersession
# 010
MPN: 112484
RH HUB HOLDER
from £1,727.07
from £1,727.07
This part replaces part number 106245
# 010
MPN: 112485
LH HUB CARRIER
This part replaces part number 107441
# 010
MPN: 112485
LH HUB CARRIER
This part replaces part number 107441
# 011
MPN: 119374
FLANGIA TENUTA CUSCINETTO
from £87.93
from £87.93
# 012
MPN: 11061575
SEEGER RING
Supersession
Supersession
# 013
MPN: 13543324
THREADED STUD
from £0.57
from £0.57
This part replaces part number 13543321
# 014
MPN: 16100824
NUT
from £0.50
from £0.50
This part replaces part number 16100814 - and 1 more. Click to view details
# 015
MPN: 106862
WASHER
# 016
MPN: 124964
ALBERO CON MOZZO POSTERIORE
from £1,404.00
from £1,404.00
# 017
MPN: 106129
SPACER
from £95.54
from £95.54
# 018
MPN: 119378
FLANGIA ATTACCO SEMIASSI
from £146.87
from £146.87
# 019
MPN: 102289
RING NUT
from £82.25
from £82.25
This part replaces part number 700648
# 020
MPN: 105511
WASHER
from £33.71
from £33.71
This part replaces part number 700753
# 021
MPN: 115968/A
SEALING RING
from £32.12
from £32.12
# 022
MPN: 104370
SCREW
from £5.95
from £5.95
This part replaces part number 139981
# 023
MPN: 101221
EXTERNAL BEARING NO
from £65.31
from £65.31
# 024
MPN: 101220
CUSCINETTO INTERNE
Supersession
Supersession
# 025
MPN: 104458
REAR BRAKE DISC
(price each disc)
from £225.00
from £225.00
This part replaces part number 680832 - and 3 more. Click to view details
# 026
MPN: 106290
BUNONE
from £22.68
from £22.68
# 027
MPN: 13524570
HEM^OII
from £2.74
from £2.74
This part replaces part number 105621
# 028
MPN: 106616
WASHER
Supersession
Supersession
# 029
MPN: 106854
WASHER
Supersession
Supersession
# 030
MPN: 16103621
NUT
from £0.71
from £0.71
# 031
MPN: 106616
WASHER
Supersession
Supersession
# 032
MPN: 112475
SPACER
Di eventuate montaggio
from £42.98
from £42.98
