114 - Electrical System - Cables, Fuses and Relays

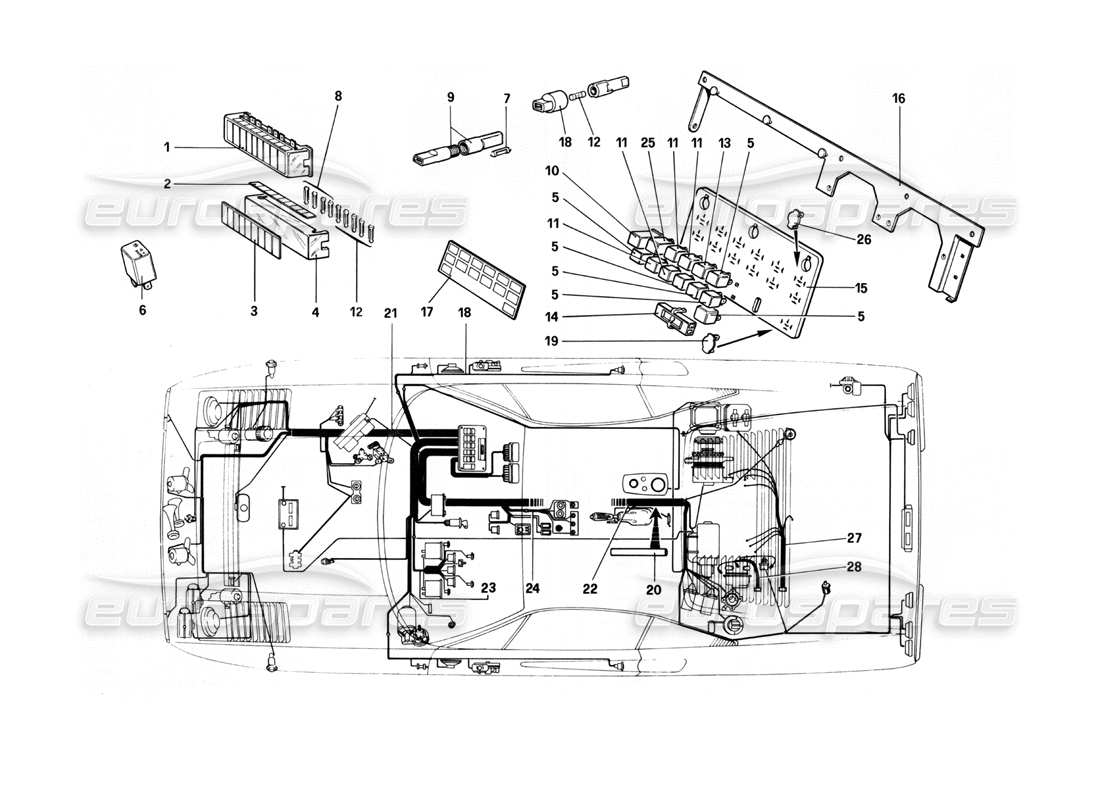

Ferrari 208 Turbo (1982) Electrical System - Cables, Fuses and Relays Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61110700
SCATOLA PORTAVALVOLE N. 1 NERA
from £113.26
from £113.26
# 001
MPN: 61110800
SCATOLA PORTAVALVOLE N. 2 BIANCA
from £283.53
from £283.53
# 002
MPN: 60743300
SIDE PLATE BOX NO. 2
from £3.62
from £3.62
# 002
MPN: 60750600
SIDE PLATE BOX NO. 1
from £3.81
from £3.81
# 003
MPN: 61110100
BOX PLATE N. 1
from £4.29
from £4.29
# 003
MPN: 61110200
BOX PLATE N. 2
from £4.08
from £4.08
# 004
MPN: 61110400
COVER
# 004
MPN: 61110500
COVER
# 005
MPN: 40130106
RELAY
from £10.40
from £10.40
This part replaces part number 110355
# 006
MPN: 60870200
INTERIOR LIGHTS SWITCHING OFF DELAY DEVICES
from £101.61
from £101.61
# 007
MPN: 10858190
FUSE FROM 3A
from £0.47
from £0.47
# 008
MPN: 11048990
FUSE 16 AMP CERAMIC
from £0.47
from £0.47
This part replaces part number 95403002
# 009
MPN: 60846100
TUBULAR FLYING FUSE CASE
from £5.29
from £5.29
# 010
MPN: 61048000
SIGNAL INDICATOR RELAY AND HAZARD
from £161.81
from £161.81
This part replaces part number 111754
# 011
MPN: 40130007
RELAY
0332209151
from £15.93
from £15.93
This part replaces part number 110356 - and 1 more. Click to view details
# 012
MPN: 10858090
FUSE 8 AMP CERAMIC
from £0.47
from £0.47
This part replaces part number 95403001
# 013
MPN: 40283905
MICRORELAY BOSCH 0332-015-006
from £37.86
from £37.86
This part replaces part number 110354 which we have in stock - and 2 more. Click to view details
# 014
MPN: 40130205
DOUBLE CONNECTOR
from £9.66
from £9.66
This part replaces part number MC4812/1
# 015
MPN: 61109100
PIASTRA PER CENTRALINA ELETTRICA
from £167.19
from £167.19
This part replaces part number 60035805
# 016
MPN: 61105000
SUPPORT
from £48.57
from £48.57
# 017
MPN: 61110300
TARGHETTA IDENTIF ICAZIONE
from £6.78
from £6.78
# 018
MPN: 119505
CAVI PORTA DX.
from £36.73
from £36.73
# 018
MPN: 119513
CAVI PORTA SX.
from £70.97
from £70.97
# 019
MPN: 60279007
AUXILIARY LIGHT CONNECTION JUMPER
from £4.61
from £4.61
# 020
MPN: 40135907
TUBO DI PROTEZIONE AL SILICONE
from £143.01
from £143.01
# 021
MPN: 119516
CAVI PARTE ANT. SX.
from £218.99
from £218.99
# 021
MPN: 119517
CAVI PARTE ANT. DX.
from £218.99
from £218.99
# 022
MPN: 119515
REAR CABLES
from £459.35
from £459.35
# 023
MPN: 117011
INSTRUMENT DASHBOARD CABLES
from £140.47
from £140.47
# 024
MPN: 119514
CONTROL CABLES ON THE TUNNEL
from £120.32
from £120.32
# 025
MPN: 118789
RELAY TACHIMETRICO INTERRUZIONE FLUSSO BENZINA
# 026
MPN: 115459
JUMPER CONNECTING HEADLIGHT RAISING CONTROL WITH ANABB LIGHTS.
from £21.25
from £21.25
# 027
MPN: 117007
CABLES CONNECTING EQUIPMENT ON THE ENGINE
from £168.78
from £168.78
# 028
MPN: 117008
CABLES CONNECTING ELECTRICAL SENSORS ON THE ENGINE
from £99.79
from £99.79
