005 - cylinder head (right)

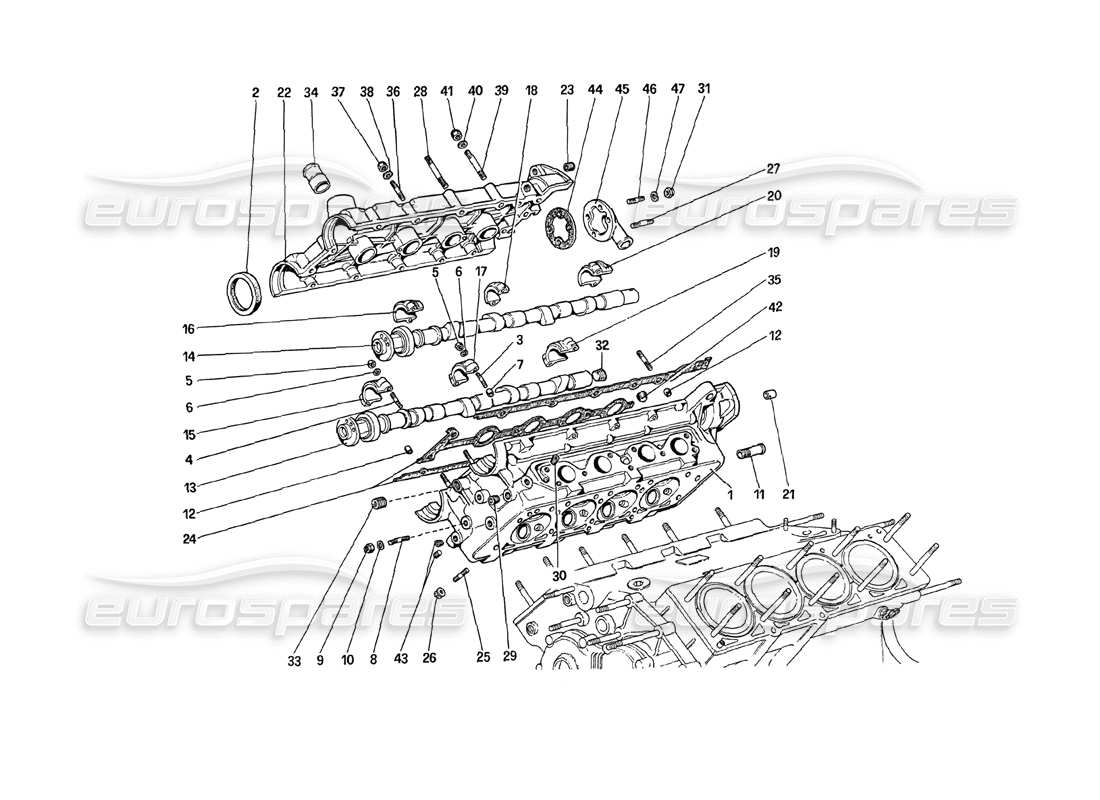

Ferrari 208 Turbo (1989) Cylinder Head (Right) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 127411

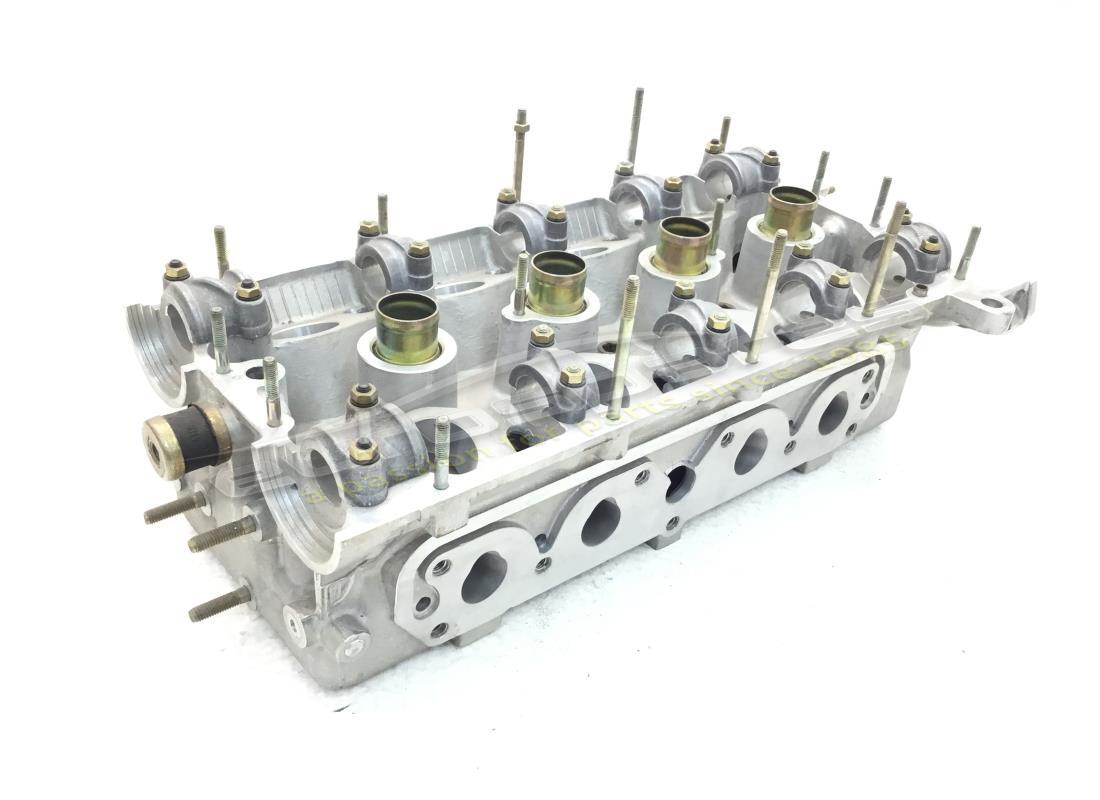

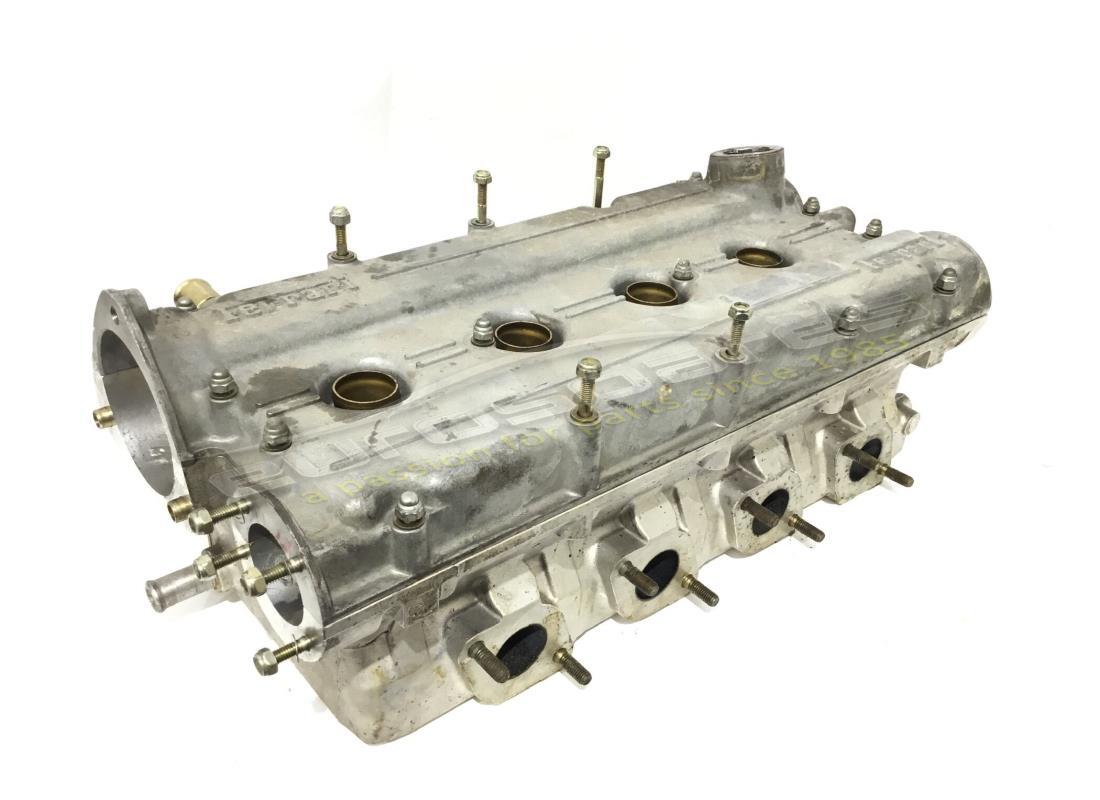

RIGHT CYLINDER HEAD, COMPLETE
from £4,515.00
from £4,515.00
RH CYLINDER HEAD COMPLETE Genuine Ferrari Part - New (other) In stock
Removed from a bench tested new engine
Removed from a bench tested new engine
# 002
MPN: 163987
SEALING RING
from £9.95
from £9.95
This part replaces part number 136526
# 003
MPN: 102735
STUD FOR INTERMEDIATE CAPS
from £11.07
from £11.07
This part replaces part number 4146561
# 004
MPN: 102754
STUD FOR OUTER CAPS
from £5.00
from £5.00
# 005
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 006
MPN: 11197773
WASHER
Supersession
Supersession
# 007
MPN: 102725
DOWEL
from £0.58
from £0.58
# 008
MPN: 13517121
STUD
Supersession
Supersession
# 009
MPN: 16104411
SELF LOCKING NUT
from £0.47
from £0.47
# 010
MPN: 12601371
WASHER
Supersession
Supersession
# 011
MPN: 106227
UNION
from £3.33
from £3.33
# 012
MPN: 102725
DOWEL
from £0.66
from £0.66
# 013
MPN: 127796

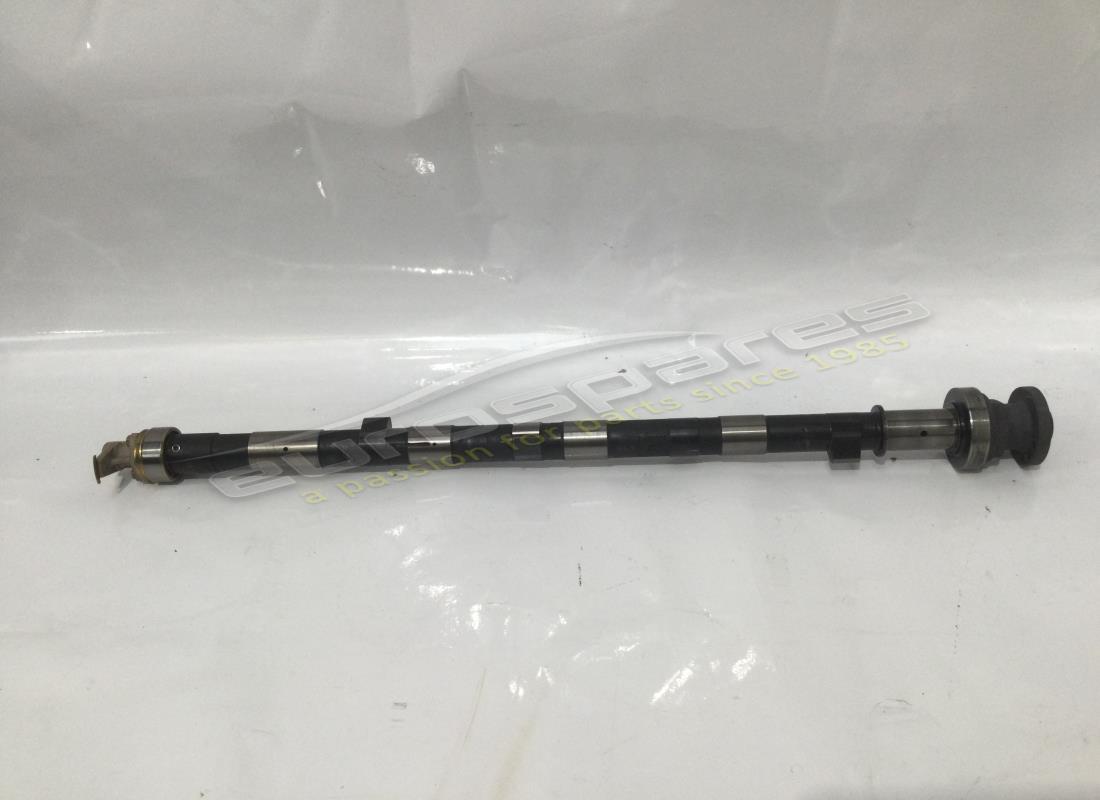

RIGHT EXHAUST CAMSHAFT, COMPLETE
from £787.50
from £787.50
RH EXHAUST CAMSHAFT COMPLETE Genuine Ferrari Part - Used In stock
REMOVED FROM BENCH TESTED NEW ENGINE
REMOVED FROM BENCH TESTED NEW ENGINE
# 014
MPN: 131310

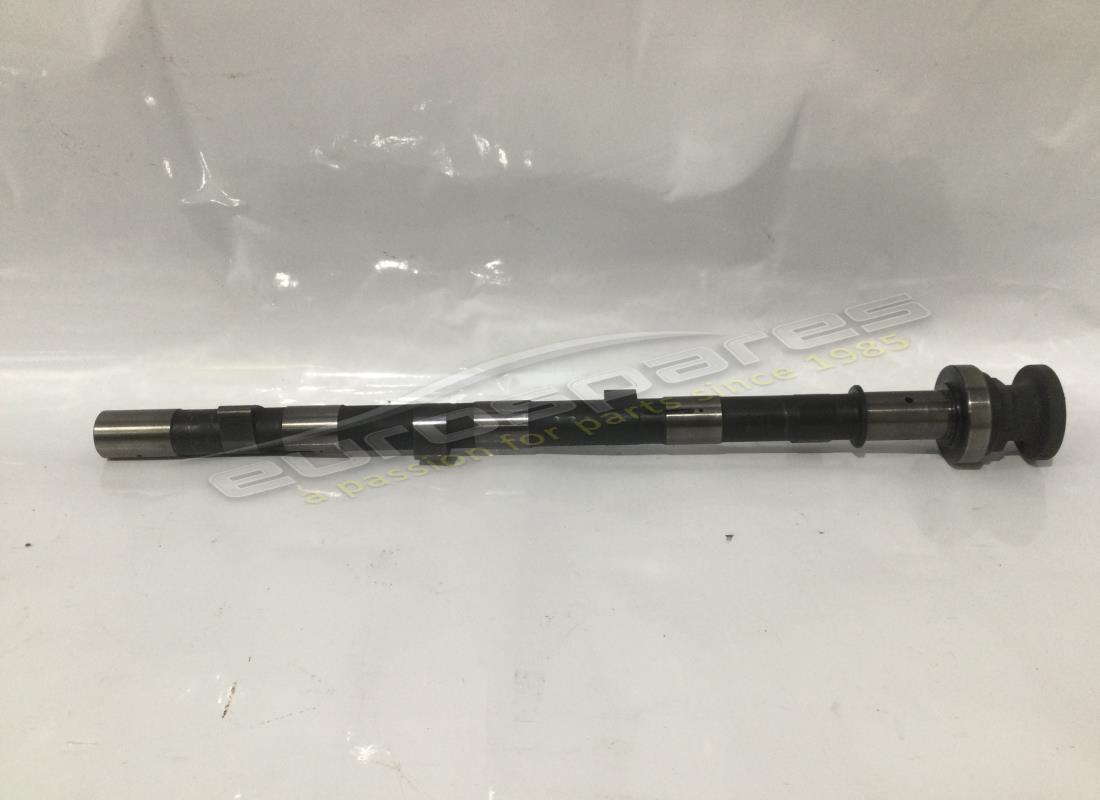

RIGHT INTAKE CAMSHAFT COMPLETE
Until engine no. 326
from £1,577.19
from £1,577.19
This part replaces part number 127380
# 014
MPN: 133904
RIGHT INTAKE CAMSHAFT COMPLETE
Starting from engine no. 327
from £878.33
from £878.33
RH INTAKE CAMSHAFT COMPLETE Genuine Ferrari Part - Used In stock
REMOVED FROM BENCH TESTED NEW ENGINE COMPLETE WITH NO, 133063
REMOVED FROM BENCH TESTED NEW ENGINE COMPLETE WITH NO, 133063
# 015
MPN: 115464
FRONT CAP EXHAUST SIDE
With complete cylinder head
# 016
MPN: 115465
FRONT CAP INLET SIDE
With complete cylinder head
# 017
MPN: 116461
INTERMEDIATE CAP
With complete cylinder head
# 018
MPN: 116458
INTERMEDIATE CAP
With complete cylinder head
# 019
MPN: 116459
REAR CAP EXHAUST SIDE
With complete cylinder head
# 020
MPN: 116460
REAR CAP INLET SIDE
With complete cylinder head
# 021
MPN: 102604
DOWEL
Supersession
Supersession
# 022
MPN: 128554
RIGHT HEAD COVER
With complete cover
# 022
MPN: 128568
HEAD COVER, COMPLETE
With complete cylinder head
# 023
MPN: 13525770
HELI -COIL
from £1.56
from £1.56
This part replaces part number 103830
# 024
MPN: 147700
RH GASKET
from £37.74
from £37.74
This part replaces part number 107312 - and 1 more. Click to view details
# 024
MPN: FCCG005
CAM COVER GASKET SET
Suitable for 2v models only - for 4v use FCCG001
from £53.22
from £53.22
# 025
MPN: 12354524
STUD SECURING EXHAUST MANIFOLD
from £15.48
from £15.48
This part replaces part number 12354521
# 026
MPN: 114748
NUT
from £8.97
from £8.97
# 027
MPN: 13541124
STUD
from £12.99
from £12.99
This part replaces part number 13541121
# 028
MPN: 12026821
STUD
from £3.47
from £3.47
# 029
MPN: 10269450
PLUG
from £16.22
from £16.22
# 030
MPN: 13525870
HELI-COIL
from £1.40
from £1.40
This part replaces part number 105510
# 031
MPN: 12575411
NUT
Supersession
Supersession
# 032
MPN: 10269750
PLUG
from £0.82
from £0.82
This part replaces part number 95184
# 033
MPN: 13526170
HELI - COIL
from £2.43
from £2.43
This part replaces part number 105197
# 034
MPN: 112903
SPARK PLUG SEAT TERMINAL
from £40.23
from £40.23
# 035
MPN: 13541721
STUD
Supersession
Supersession
# 036
MPN: 13541621
STUD
Supersession
Supersession
# 037
MPN: 100044
SELF LOCKING NUT
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 038
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 039
MPN: 10982021
STUD
from £14.45
from £14.45
# 040
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 041
MPN: 101239
SELF LOCKING NUT
from £1.60
from £1.60
This part replaces part number 92310
# 042
MPN: 127635
PLUG
from £1.49
from £1.49
This part replaces part number 183447
# 043
MPN: 14326150
THREADED PLUG
from £0.50
from £0.50
This part replaces part number 12326150
# 044
MPN: 151342
GASKET
from £2.14
from £2.14
This part replaces part number 103809 - and 5 more. Click to view details
# 045
MPN: 10-38-08
COVER
from £143.06
from £143.06
# 046
MPN: 11500321
STUD
Supersession
Supersession
# 047
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
