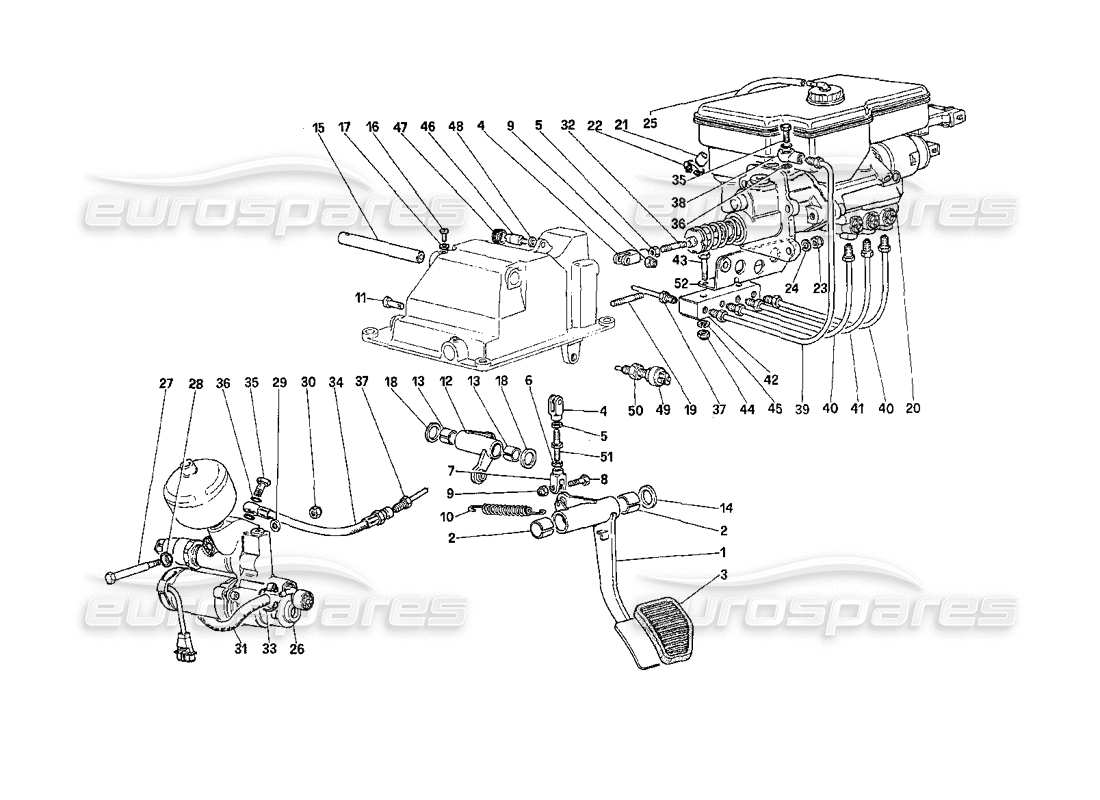

029 - Clutch Hydraulic System (for Car With Antiskid System)
Ferrari 208 Turbo (1989) Clutch Hydraulic System (for Car With Antiskid System) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 129948
BRAKE PEDAL
from £333.40
from £333.40
# 002
MPN: 117812
BUSH
from £38.43
from £38.43
# 003
MPN: 106950
PEDAL COVER
from £11.68
from £11.68
# 004
MPN: 129616
FORK
from £57.48
from £57.48
# 005
MPN: 16102311
LOCK NUT (LH THREAD)
from £0.42
from £0.42
This part replaces part number 16102315
# 006
MPN: 16102911
LOCK NUT (RH THREAD)
Supersession
Supersession
# 007
MPN: 129951
FORK
from £97.97
from £97.97
# 008
MPN: 130926
SCREW
from £3.70
from £3.70
# 009
MPN: 16104411
SELF LOCKING NUT
from £0.47
from £0.47
# 010
MPN: 141531
SPRING RETURN PEDAL
from £14.23
from £14.23
# 011
MPN: 129612
PIN
from £1.41
from £1.41
# 012
MPN: 128952
BRAKE LEVER
Supersession
Supersession
This part replaces part number 137188
# 013
MPN: 106500
BUSH
from £5.71
from £5.71
# 014
MPN: 106083
SHIM
from £0.71
from £0.71
# 015
MPN: 129955
PIN FOR BRAKE LEVER
from £345.74
from £345.74
# 016
MPN: 13276121
SCREW
from £1.06
from £1.06
# 017
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 018
MPN: 112126
SHIM
from £0.47
from £0.47
# 019
MPN: 13543421
STUD
Supersession
Supersession
# 020
MPN: 70000537
KIT FOR ABS HYDRAULIC UNIT
with reservoir
from £11,707.48
from £11,707.48
This part replaces part number 137006 - and 1 more. Click to view details
# 021
MPN: 136379
PLUG
Supersession
Supersession
# 022
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 023
MPN: 104030
SELF LOCKING NUT
from £0.47
from £0.47
This part replaces part number 16104125
# 024
MPN: 12601379
WASHER
from £0.87
from £0.87
This part replaces part number 12601370
# 025
MPN: 110926
BREATHER PIPE
from £4.87
from £4.87
# 026
MPN: 148977
BRAKE PUMP KIT
(accumulator & pressostat not included)
from £2,011.81
from £2,011.81
# 027
MPN: 129636
SCREW
from £2.36
from £2.36
# 028
MPN: 130861
WASHER
from £1.90
from £1.90
# 029
MPN: 121558
WASHER
from £1.07
from £1.07
# 030
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 031
MPN: 120930
PIPE
from £43.23
from £43.23
# 032
MPN: 13517121
STUD
Supersession
Supersession
# 033
MPN: 12179190
CLAMP
Supersession
Supersession
This part replaces part number 102604
# 034
MPN: 70000533
HOSE KIT
from £420.42
from £420.42
This part replaces part number 136315
# 035
MPN: 131873
UNION
from £2.93
from £2.93
# 036
MPN: 70000510
O-RING KIT
from £94.57
from £94.57
This part replaces part number 131874
# 037
MPN: 105849
PIPE
from £9.42
from £9.42
This part replaces part number 105856
# 038
MPN: 136311
UNION
from £33.39
from £33.39
# 039
MPN: 105851
PIPE
from £9.63
from £9.63
# 040
MPN: 143699
PIPE (FRONT CIRCUIT)
from £74.76
from £74.76
This part replaces part number 106671 - and 2 more. Click to view details
# 041
MPN: 137427
PIPE (REAR CIRCUIT)
from £4.46
from £4.46
# 042
MPN: 136377
PLATE UNION
from £103.73
from £103.73
# 043
MPN: 10902821
SCREW
from £1.07
from £1.07
This part replaces part number 10902801 - and 1 more. Click to view details
# 044
MPN: 12575421
SELF LOCKING NUT
Supersession
Supersession
# 045
MPN: 12601271
WASHER
Supersession
Supersession
This part replaces part number 103372 - and 1 more. Click to view details
# 046
MPN: 137144
PIN
from £1.38
from £1.38
# 047
MPN: 103549
RUBBER BUSH
from £0.68
from £0.68
# 048
MPN: 106744
WASHER
from £5.48
from £5.48
# 049
MPN: 101663
STOP LIGHT SWITCH (2 TERMINALS)
from £23.05
from £23.05
This part replaces part number 4177124 - and 13 more. Click to view details
# 050
MPN: 10791211
NUT
from £0.47
from £0.47
This part replaces part number 10791215 - and 1 more. Click to view details
# 051
MPN: 129950
ADJUST
from £97.97
from £97.97
# 052
MPN: 136378
BRACKET
from £21.59
from £21.59
