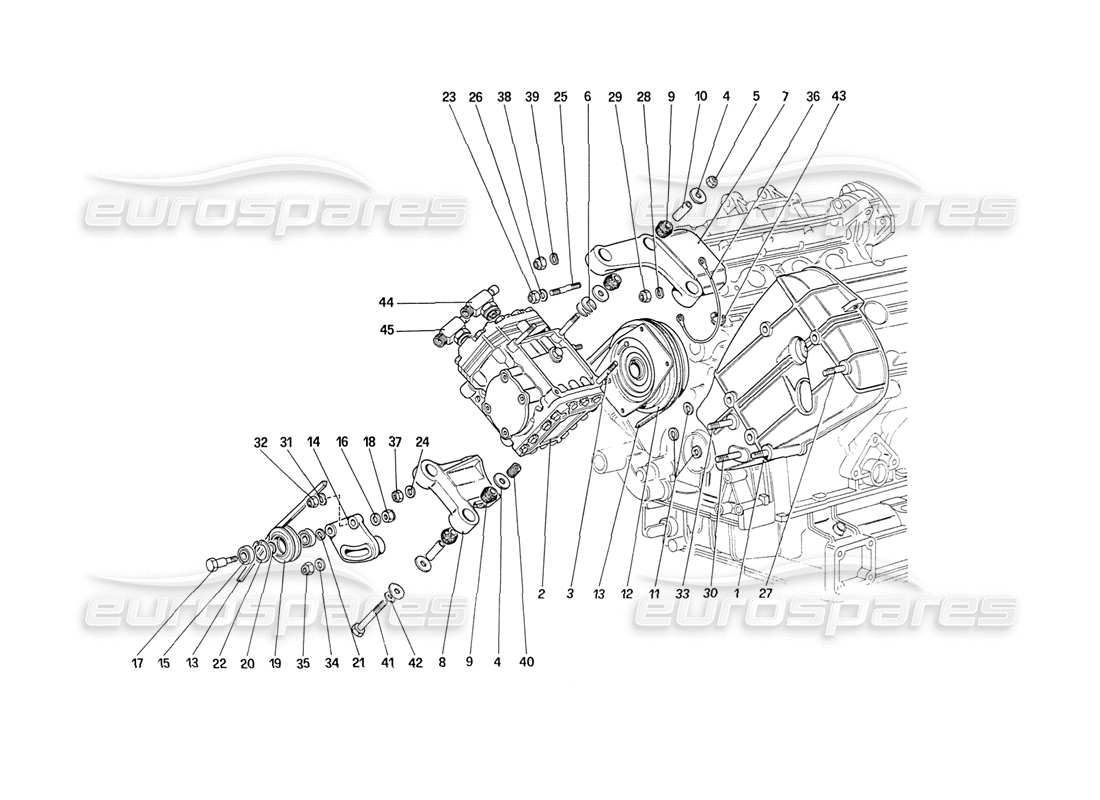

049 - Air Conditioning Compressor and Controls (Up To Car No. 77246)

Ferrari 208 Turbo (1989) Air Conditioning Compressor and Controls (Up To Car No. 77246) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Key
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 131828
                                                                                        LEFT, COVER COMPLETE
                                                                                        from £382.79
                                                                                        from £382.79
                                                                                        This part replaces part number 108098
                                                                                        LH COVER COMPLETE Genuine Ferrari Part - New (to order)
                                                                                        # 002
                                                                                        MPN: 111222
                                                                                        COMPRESSOR WITH PULLEY
                                                                                        from £995.00
                                                                                        from £995.00
                                                                                        This part replaces part number 080.2112.000 - 209. U - and 5 more. Click to view details
                                                                                        A/C COMPRESSOR (THREADED TYPE) Genuine Ferrari Part - New (to order)
                                                                                        A/C COMPRESSOR (THREADED TYPE) Eurospares Approved Part - New In stock
                                                                                        # 003
                                                                                        MPN: 105044
                                                                                        STUD
                                                                                        from £36.58
                                                                                        from £36.58
                                                                                        STUD Genuine Ferrari Part - New (to order)
                                                                                        # 004
                                                                                        MPN: 108051
                                                                                        SHEARED WASHER
                                                                                        from £1.98
                                                                                        from £1.98
                                                                                        WASHER Genuine Ferrari Part - New (to order)
                                                                                        # 005
                                                                                        MPN: 12574511
                                                                                        SELF LOCKING NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 006
                                                                                        MPN: 105039
                                                                                        WASHER
                                                                                        Possible fitting
                                                                                        from £10.92
                                                                                        from £10.92
                                                                                        SPACER SHIM Genuine Ferrari Part - New (to order)
                                                                                        # 007
                                                                                        MPN: 108050
                                                                                        UPPER SUPPORT
                                                                                        from £194.92
                                                                                        from £194.92
                                                                                        This part replaces part number 107869 - and 1 more. Click to view details
                                                                                        A/C COMPRESSOR BRACKET Genuine Ferrari Part - New (to order)
                                                                                        A/C COMPRESSOR BRACKET Genuine Ferrari Part - Used In stock
                                                                                        # 008
                                                                                        MPN: 108056
                                                                                        LOWER SUPPORT
                                                                                        from £123.65
                                                                                        from £123.65
                                                                                        AIR CON LOWER BRACKET Genuine Ferrari Part - New (to order)
                                                                                        # 009
                                                                                        MPN: 107335
                                                                                        RUBBER GROMMET
                                                                                        Heavy Duty Type - Replace as Set
                                                                                        from £11.22
                                                                                        from £11.22
                                                                                        RUBBER BLOC GTS Genuine Ferrari Part - New (to order)
                                                                                        RUBBER BLOC GTS Eurospares Approved Part - New In stock
                                                                                        # 010
                                                                                        MPN: 108052
                                                                                        SPACER TUBE
                                                                                        from £17.33
                                                                                        from £17.33
                                                                                        TUBE SPACER Genuine Ferrari Part - New In stock
                                                                                        # 011
                                                                                        MPN: 107835
                                                                                        WASHER BETWEEN COVER AND LOWER SUPPORT
                                                                                        from £7.82
                                                                                        from £7.82
                                                                                        WASHER 1.0MM Genuine Ferrari Part - New (to order)
                                                                                        # 012
                                                                                        MPN: 105148
                                                                                        A/C. CLUTCH
                                                                                        from £475.63
                                                                                        from £475.63
                                                                                        AIR CON ELECTROMAGNETIC CLUTCH Genuine Ferrari Part - New In stock
                                                                                        # 013
                                                                                        MPN: 105046
                                                                                        CONTROL BELT FOR COMPRESSOR
                                                                                        from £95.28
                                                                                        from £95.28
                                                                                        This part replaces part number 320382 which we have in stock
                                                                                        COMPRESSOR BELT Genuine Ferrari Part - New In stock
                                                                                        COMPRESSOR BELT Original Equipment - New (to order)
                                                                                        # 014
                                                                                        MPN: 105051
                                                                                        SUPPORT
                                                                                        from £338.61
                                                                                        from £338.61
                                                                                        SUPPORT Genuine Ferrari Part - New (to order)
                                                                                        # 015
                                                                                        MPN: 105038
                                                                                        SEALED BALL BEARING 9MM WIDE
                                                                                        from £11.02
                                                                                        from £11.02
                                                                                        SEALED BALL BEARING 9MM WIDE Genuine Ferrari Part - New In stock
                                                                                        # 016
                                                                                        MPN: 103025
                                                                                        WASHER
                                                                                        from £23.18
                                                                                        from £23.18
                                                                                        WASHER Genuine Ferrari Part - New (to order)
                                                                                        # 017
                                                                                        MPN: 105048
                                                                                        PIN FOR SUPPORT
                                                                                        from £31.82
                                                                                        from £31.82
                                                                                        PIN Genuine Ferrari Part - New (to order)
                                                                                        PIN Genuine Ferrari Part - Used In stock
                                                                                        # 018
                                                                                        MPN: 148020
                                                                                        SELF LOCKING NUT
                                                                                        from £2.69
                                                                                        from £2.69
                                                                                        This part replaces part number 102825 - and 3 more. Click to view details
                                                                                        NUT Genuine Ferrari Part - New In stock
                                                                                        # 019
                                                                                        MPN: 121405
                                                                                        PULLEY FOR BELT STRETCHER
                                                                                        from £103.87
                                                                                        from £103.87
                                                                                        This part replaces part number 107840
                                                                                        PULLEY Genuine Ferrari Part - New (to order)
                                                                                        PULLEY Eurospares Approved Part - New (to order)
                                                                                        # 020
                                                                                        MPN: 107841
                                                                                        INNER SPACER
                                                                                        from £31.83
                                                                                        from £31.83
                                                                                        SPACER Genuine Ferrari Part - New (to order)
                                                                                        # 021
                                                                                        MPN: 107842
                                                                                        SPACER
                                                                                        from £12.75
                                                                                        from £12.75
                                                                                        SPACER Genuine Ferrari Part - New (to order)
                                                                                        # 022
                                                                                        MPN: 11059075
                                                                                        SEEGER RING
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 023
                                                                                        MPN: 12574511
                                                                                        SELF LOCKING NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 024
                                                                                        MPN: 107993
                                                                                        WASHER
                                                                                        from £10.90
                                                                                        from £10.90
                                                                                        WASHER Genuine Ferrari Part - New (to order)
                                                                                        # 025
                                                                                        MPN: 13546621
                                                                                        STUD FIXING UPPER SUPPORT TO COVER
                                                                                        from £4.26
                                                                                        from £4.26
                                                                                        STUD Genuine Ferrari Part - New In stock
                                                                                        # 026
                                                                                        MPN: 12601471
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 027
                                                                                        MPN: 13517221
                                                                                        STUD
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 028
                                                                                        MPN: 12601371
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 029
                                                                                        MPN: 104030
                                                                                        SELF LOCKING NUT
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 16104125
                                                                                        LOCKING NUT Genuine Ferrari Part - New In stock
                                                                                        LOCKING NUT M8 X 9.5 Genuine Maserati Part - New (to order)
                                                                                        # 030
                                                                                        MPN: 13449921
                                                                                        STUD
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 031
                                                                                        MPN: 12601471
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 032
                                                                                        MPN: 12574511
                                                                                        SELF LOCKING NUT
                                                                                        Supersession
                                                                                        Supersession
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        # 033
                                                                                        MPN: 13517421
                                                                                        STUD FOR BELT STRETCHER
                                                                                        from £53.42
                                                                                        from £53.42
                                                                                        This part replaces part number 13517420
                                                                                        STUD Genuine Ferrari Part - New (to order)
                                                                                        # 034
                                                                                        MPN: 13550321
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        WASHER Genuine Ferrari Part - New In stock
                                                                                        # 035
                                                                                        MPN: 104030
                                                                                        SELF LOCKING NUT
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 16104125
                                                                                        LOCKING NUT Genuine Ferrari Part - New In stock
                                                                                        LOCKING NUT M8 X 9.5 Genuine Maserati Part - New (to order)
                                                                                        # 036
                                                                                        MPN: 108043
                                                                                        EARTH CABLE
                                                                                        from £2.42
                                                                                        from £2.42
                                                                                        CABLE Genuine Ferrari Part - New (to order)
                                                                                        # 037
                                                                                        MPN: 12575621
                                                                                        SELFIOCKING NUT
                                                                                        from £1.43
                                                                                        from £1.43
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        NYLON STOP HEX. NUT M10X1.25 Genuine Maserati Part - New In stock
                                                                                        # 038
                                                                                        MPN: 12575621
                                                                                        SELF LOCKING NUT
                                                                                        from £1.43
                                                                                        from £1.43
                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                        NYLON STOP HEX. NUT M10X1.25 Genuine Maserati Part - New In stock
                                                                                        # 039
                                                                                        MPN: 107993
                                                                                        WASHER
                                                                                        from £10.90
                                                                                        from £10.90
                                                                                        WASHER Genuine Ferrari Part - New (to order)
                                                                                        # 040
                                                                                        MPN: 13526070
                                                                                        HELI - COIL
                                                                                        from £2.03
                                                                                        from £2.03
                                                                                        This part replaces part number 104657
                                                                                        HELY-COIL Genuine Ferrari Part - New In stock
                                                                                        Maserati PART 13526070 Genuine Maserati Part - New (to order)
                                                                                        # 041
                                                                                        MPN: 123514
                                                                                        BOLT
                                                                                        from £6.13
                                                                                        from £6.13
                                                                                        SCREW Genuine Ferrari Part - New (to order)
                                                                                        # 042
                                                                                        MPN: 127497
                                                                                        WASHER
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                        WASHER Genuine Ferrari Part - New In stock
                                                                                        WASHER Genuine Maserati Part - New In stock
                                                                                        # 043
                                                                                        MPN: 110381
                                                                                        CLAM
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number MC4325/4
                                                                                        CLIP Genuine Ferrari Part - New (to order)
                                                                                        # 044
                                                                                        MPN: 123722
                                                                                        EXHAUST UNION
                                                                                        from £92.82
                                                                                        from £92.82
                                                                                        AIR CON EXHAUST VALVE Genuine Ferrari Part - New (to order)
                                                                                        # 045
                                                                                        MPN: 123721
                                                                                        INLET UNION
                                                                                        from £59.83
                                                                                        from £59.83
                                                                                        AIR CON INLET VALVE Genuine Ferrari Part - New (to order)
