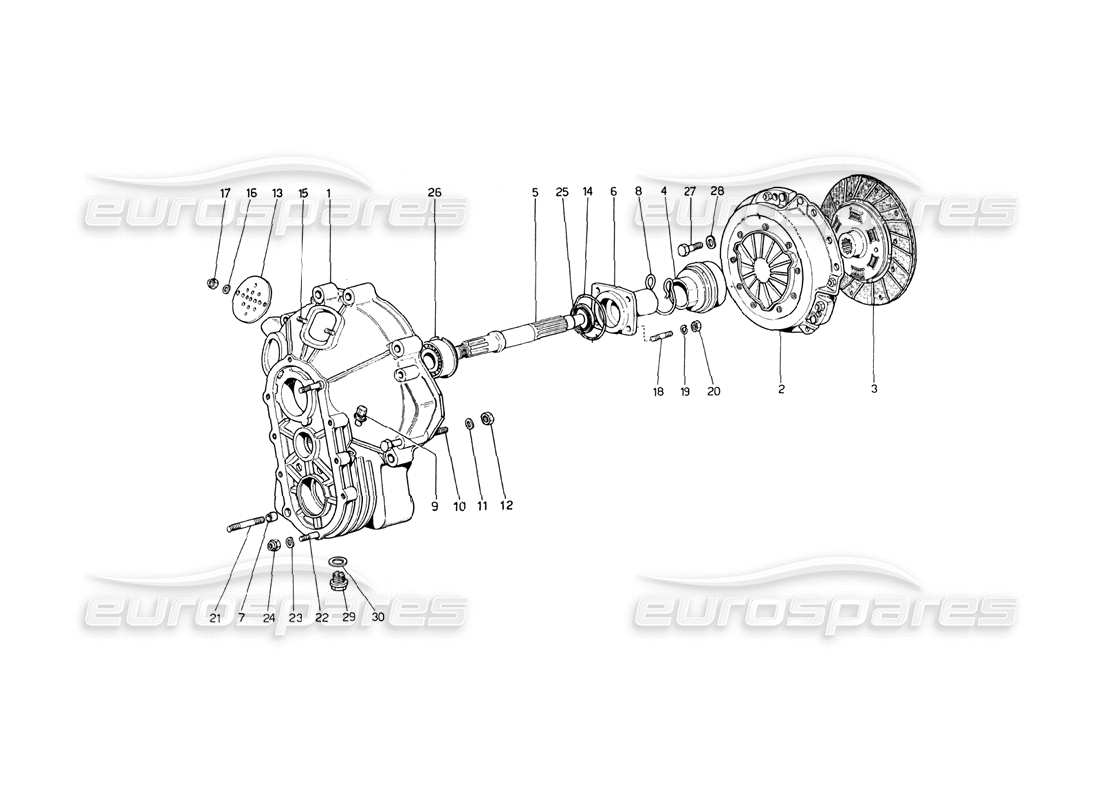

018 - Clutch Unit and Cover
Ferrari 246 Dino (1975) Clutch Unit and Cover Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 500715
CAMPANA FRIZIONE
from £6,565.67
from £6,565.67
# 001
MPN: 500785
CAMPANA FRIZIONE
Vale fino N. 02764
from £14,015.15
from £14,015.15
# 001
MPN: 500845
CAMPANA FRIZIONE COMPLETA
# 002
MPN: 500828/A
CLUTCH COVER
from £522.98
from £522.98
# 002
MPN: AE9003K

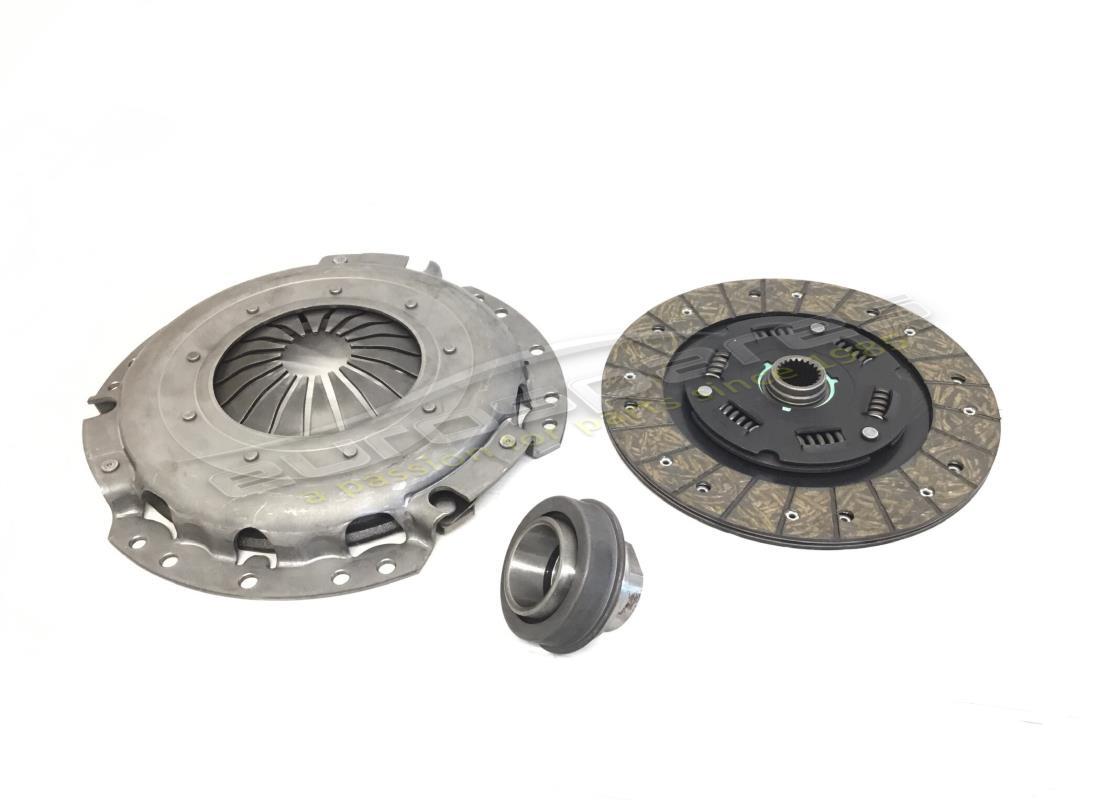

CLUTCH KIT
# 003
MPN: MC2460/2
CLUTCH DISC
AP Type
from £236.98
from £236.98
This part replaces part number 500803
# 003
MPN: MC2460/2
CLUTCH DISC
from £236.98
from £236.98
This part replaces part number 500803
# 004
MPN: 500660/A
Clutch Bearing
from £101.26
from £101.26
# 005
MPN: 500717
CLUTCH SPIGOT SHAFT
from £1,171.01
from £1,171.01
# 006
MPN: 500718
CLUTCH BEARING FLANGE
from £4.17
from £4.17
# 007
MPN: 102704
CENTERING DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 008
MPN: 100850
SPRING
Vale fino ad esaurimento
Supersession
Supersession
# 008
MPN: 100850
SPRING
Dopo esaurim. N. 100850
Supersession
Supersession
# 009
MPN: 13411990
TAPPO SFIATO OLIO
from £1.93
from £1.93
# 010
MPN: 15972121
BOLT
Supersession
Supersession
# 011
MPN: 11198373
WASHER
from £0.48
from £0.48
This part replaces part number 11198377
# 012
MPN: 12164711
NUT
Supersession
Supersession
This part replaces part number 12164712
# 013
MPN: 500521
COPERCHIETTO
from £45.35
from £45.35
# 014
MPN: 95860083
SEALING RING
from £2.16
from £2.16
# 015
MPN: 11000820
THREADED STUD
from £0.93
from £0.93
# 016
MPN: 11195470
WASHER
from £0.47
from £0.47
# 017
MPN: 15896401
NUT
Supersession
Supersession
This part replaces part number 50207208
# 018
MPN: 13516520
THREADED STUD
# 019
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 020
MPN: 16102311
NUT
from £0.45
from £0.45
This part replaces part number 16102315
# 021
MPN: 13517620
LONG THREADED STUD
from £7.60
from £7.60
# 022
MPN: 13517520
THREADED STUD
# 023
MPN: 11198074
WASHER
from £0.53
from £0.53
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 024
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 025
MPN: 95850213
SEALING RING
from £4.62
from £4.62
# 026
MPN: 95892500
BEARING
from £144.60
from £144.60
# 027
MPN: 14306320
BOLT
Solo per N. 607E-500828
from £1.03
from £1.03
# 028
MPN: 11198074
WASHER
Solo per N. 607E-500828
from £0.53
from £0.53
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 029
MPN: 14328540
TAPPO SCARICO OLIO CAMBIO
# 030
MPN: 10261860
GASKET
from £0.54
from £0.54
This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
