025 - Brake Hydraulic System

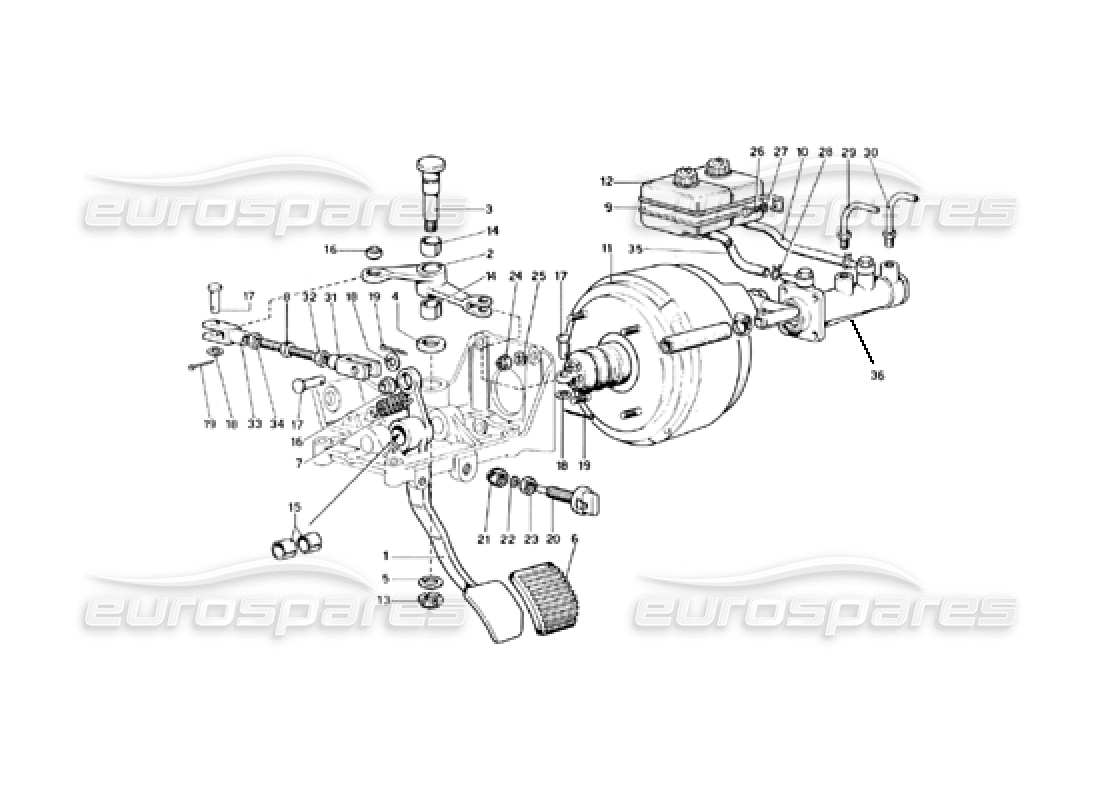

Ferrari 246 Dino (1975) Brake Hydraulic System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 246BMRK
BRAKE MASTER SEAL KIT
Rebuild Kit (superb quality)
from £29.35
from £29.35
# 001
MPN: 660960
LEVER
from £191.92
from £191.92
# 002
MPN: 660962
LEVER
from £200.87
from £200.87
# 003
MPN: 660963
PIVOT
from £39.90
from £39.90
# 004
MPN: 660965
WASHER
from £16.31
from £16.31
# 005
MPN: 660966
WASHER
# 006
MPN: 100976
GOMMINO PROTEZIONE PEDALE FRENO
from £18.28
from £18.28
This part replaces part number 660737 - and 1 more. Click to view details
# 007
MPN: 101305
SPRING
from £8.21
from £8.21
This part replaces part number 660343
# 008
MPN: 660968
SCREW
from £15.00
from £15.00
# 009
MPN: 660687
SUPPORT
# 010
MPN: 104467
TUBO COLLEGAMENTO VASCHETTA AL SERVOFRENO
from £36.40
from £36.40
This part replaces part number 660974
# 011
MPN: 661057

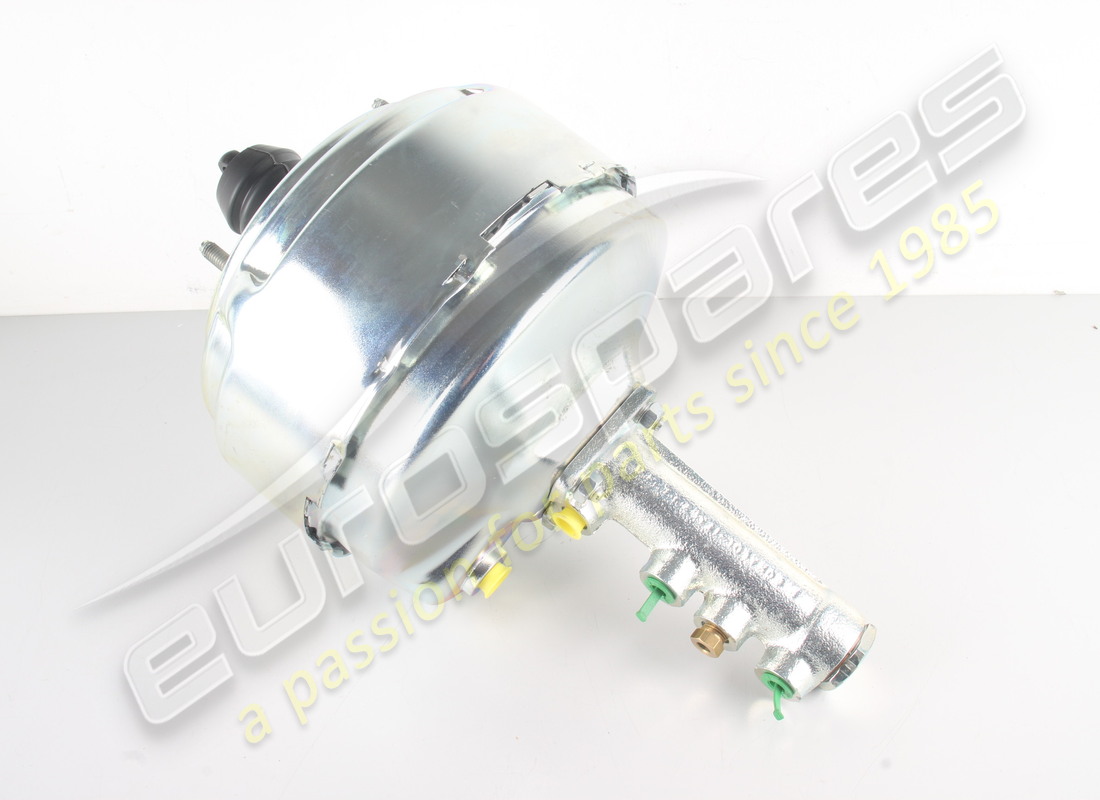

BRAKE SERVO (BONALDI MASTER-VAC 1405920)
Supersession
Supersession
# 012
MPN: 661058
VASCHETTA PER LIQUIDO FRENI
Supersession
Supersession
# 013
MPN: 95910200
RING NUT
from £9.74
from £9.74
# 014
MPN: 103163
BUSH
from £2.88
from £2.88
# 015
MPN: 103163
BUSH
from £2.88
from £2.88
# 016
MPN: 100424
SNODO SFERICO
from £41.51
from £41.51
# 017
MPN: 10033411
PIVOT
from £42.00
from £42.00
This part replaces part number 10033441 - and 3 more. Click to view details
# 018
MPN: 100964
WASHER
from £0.71
from £0.71
# 019
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 020
MPN: 4177124
INTERRUTTORE
Supersession
Supersession
# 021
MPN: 4032794
NUT
from £2.18
from £2.18
# 022
MPN: 12605270
WASHER
Supersession
Supersession
# 023
MPN: 10791211
NUT
from £0.47
from £0.47
This part replaces part number 10791215 - and 1 more. Click to view details
# 024
MPN: 16104411
SELF LOCKING NUT
from £0.47
from £0.47
# 025
MPN: 8 R 3
WASHER
# 026
MPN: LOBO8GM6x14-UNI5739
BOLT
# 027
MPN: 10516470
WASHER
Supersession
Supersession
# 028
MPN: 9.59305E+15
SPRING
# 029
MPN: 104469
TUBO DAL SERVOFRENO AL 3 VIE ANTERIORE
from £11.10
from £11.10
# 030
MPN: 680855
TUBETTO DAL SERVOFRENO ALLA VALVOIA REGOLAZIONE FRENI POSTERIORI
Vale fino N. 04828
# 030
MPN: 681060
TUBETTO DAL SERVOFRENO ALIA VALVOIA REGOLAZIONE FRENI POSTERIORI
Vale dal N. 04830
# 031
MPN: 660973
TESTA A FORCELLA
Supersession
Supersession
# 032
MPN: 103157
NUT LH THREAD
from £1.05
from £1.05
# 033
MPN: LEXBALLG10x20
TESTA A FORCELLA
# 034
MPN: 95541
NUT
from £0.47
from £0.47
# 035
MPN: 661059
TUBO COLLEGAMENTO VASCHETTA AL SERVOFRENO
from £13.46
from £13.46
# 036
MPN: 124512
brake master cylinder
from £396.54
from £396.54
This part replaces part number 108820 - and 3 more. Click to view details
