027 - Calipers for Front and Rear Brakes and Handbrake

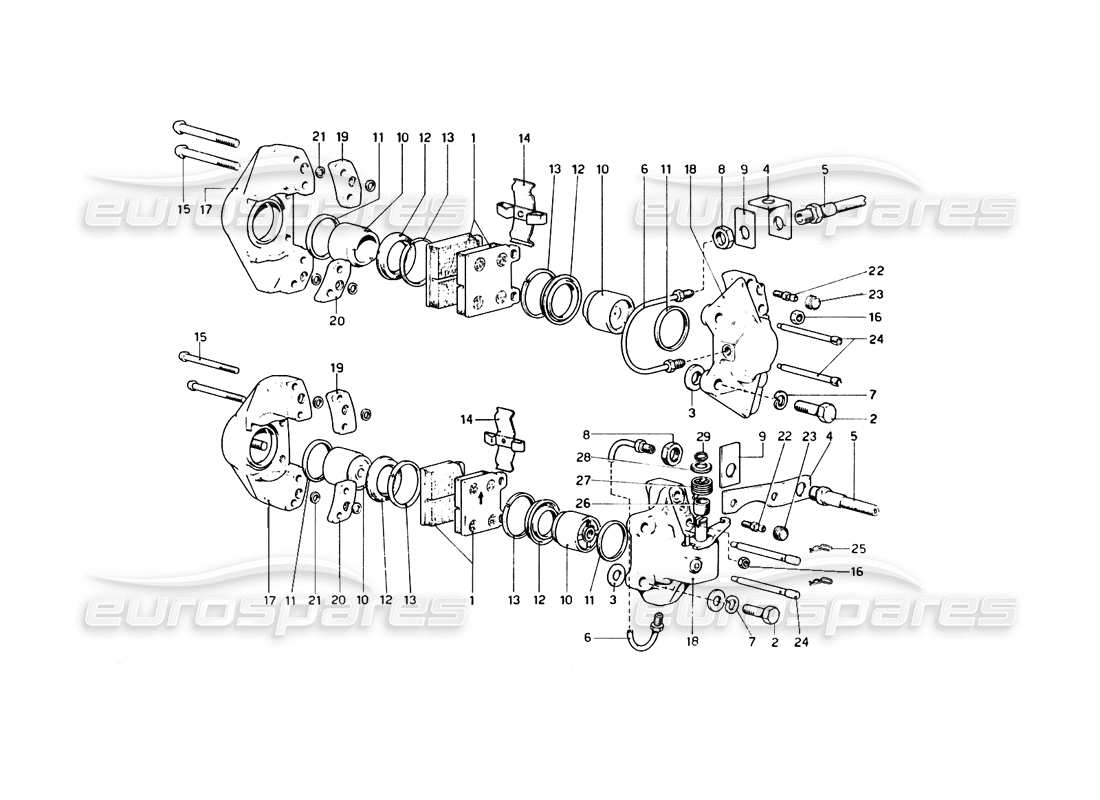

Ferrari 246 Dino (1975) Calipers for Front and Rear Brakes and Handbrake Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 104458/A
COMPLETE REAR BRAKE KIT
Includes Rear Disks 104458 x 2, Pads 108134 x 1 and Caliper Clips 106360/A x 1
# 000
MPN: 106359
LEFT REAR CALIPER
Exchange only
from £1,343.68
from £1,343.68
# 000
MPN: 106360
RIGHT REAR CALIPER
Exchange only
from £938.44
from £938.44
# 000
MPN: 308HBK
HANDBRAKE REBUILD KIT
Includes Seals And Dustcover
from £29.95
from £29.95
# 000
MPN: 95691535
FRONT CALIPER REPAIR KIT
(per caliper)
from £29.95
from £29.95
# 000
MPN: 95691536
REAR CALIPER REPAIR KIT
(per caliper)
from £29.95
from £29.95
# 001
MPN: 108133
FRONT BRAKE PADS SET
from £35.00
from £35.00
This part replaces part number 144897
# 001
MPN: 108134
REAR BRAKE PADS SET
from £28.30
from £28.30
This part replaces part number 117412
# 002
MPN: 104455
BOLT
from £7.90
from £7.90
This part replaces part number 680911 - and 1 more. Click to view details
# 003
MPN: 104456
WASHER
from £15.54
from £15.54
This part replaces part number 94781
# 004
MPN: 104476
BRACKET / SUPPORT
from £17.84
from £17.84
This part replaces part number 680886
# 004
MPN: 104477
BRACKET / SUPPORT
from £7.92
from £7.92
This part replaces part number 680905
# 005
MPN: 101392
REAR BRAKE HOSE
from £35.00
from £35.00
This part replaces part number 680665 - and 1 more. Click to view details
# 005
MPN: 101393
FRONT BRAKE HOSE
from £28.16
from £28.16
This part replaces part number 680666
# 006
MPN: 680857
TUBETTO DAL FLESSIBILE ALIA PIRIZA DESTRA E SINISTRA
# 007
MPN: 10517071
WASHER
Supersession
Supersession
This part replaces part number 10571911
# 008
MPN: 101413
NUT
from £20.27
from £20.27
This part replaces part number 94630
# 009
MPN: 14199110
PLATE
from £1.44
from £1.44
This part replaces part number 14199100
# 010
-
CILINDRETTO
# 011
-
SEALING RING
# 012
-
RING
# 013
-
RING
# 014
MPN: 106357/A
PAIR FRONT BRAKE PAD PIN SET
(kit per axle)
from £49.95
from £49.95
# 014
MPN: 106360/A
PAIR REAR BRAKE PAD PIN SET
(kit per axle)
from £30.40
from £30.40
# 015
-
BOLT
# 016
-
DADI PER BULLONI
# 017
-
CORPO ESTERNO CILINDRETTI
# 018
-
CORPO INTERNO CILINDRETTI
# 019
-
DISTANZIALE SUPERIORE
# 020
-
DISTANZIALE INFERIORE
# 021
-
SEAL
# 022
-
VALVOLA DI SPURGO
# 023
-
CAPPUCCIO VALVOLA SPURGO
# 024
-
PIN
# 025
-
FERMO PER SPINA
# 026
-
BUSH
# 027
-
SPRING
# 028
-
WASHER
# 029
-
RING
