Ferrari 246 Dino (1975) Steering Control Parts Diagram

029 - Steering Control

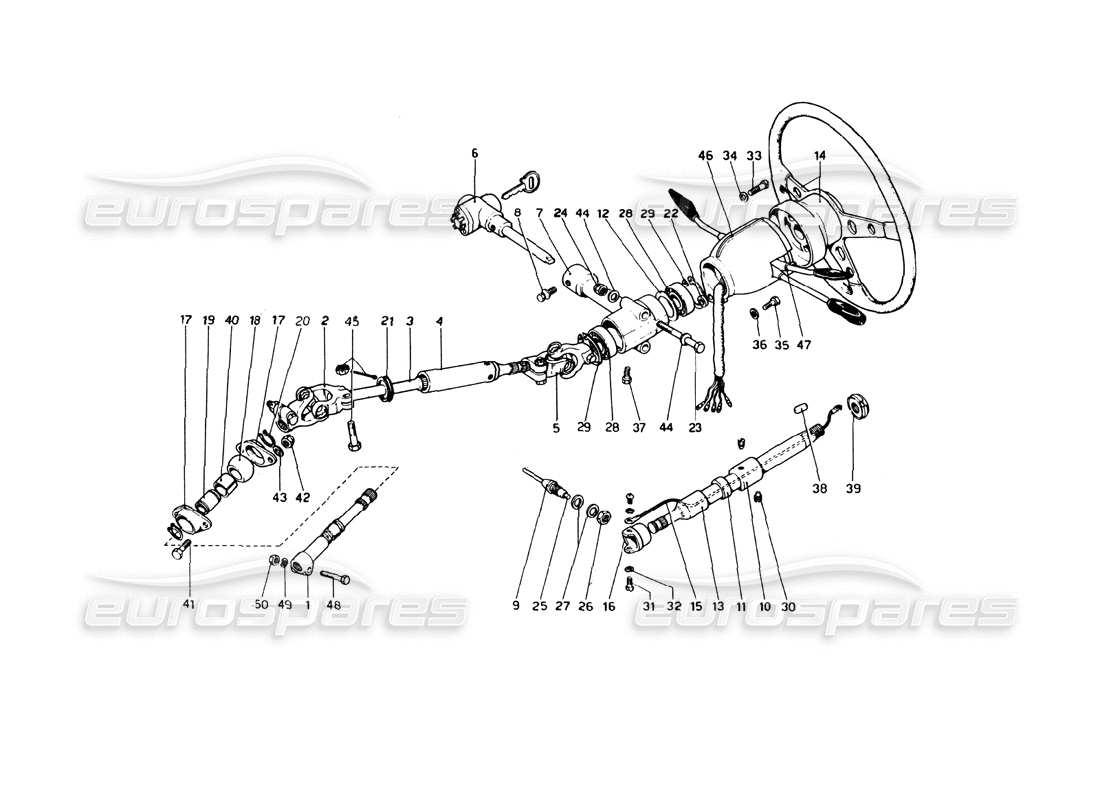

Ferrari 246 Dino (1975) Steering Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 000
                                                                          MPN: 740302/A
                                                                          HORN PUSH
                                                                          from £78.75
                                                                          from £78.75
                                                                          # 001
                                                                          MPN: 107308
                                                                          ESTENSIONE DEL PIGNONE SCATOLA GUIDA
                                                                          from £290.17
                                                                          from £290.17
                                                                          This part replaces part number 103276 - and 5 more. Click to view details
                                                                          # 002
                                                                          MPN: 103343
                                                                          GIUNTO SNODO
                                                                          Vale per F e per tutte le vetture dopo esaurimento N. 607E-740447
                                                                          from £498.77
                                                                          from £498.77
                                                                          This part replaces part number 108362 - and 9 more. Click to view details
                                                                          # 003
                                                                          MPN: 740425
                                                                          ALBERO GUIDA
                                                                          Non serve per F e per tutte dopo esaur. N. 607E-740447
                                                                          from £211.58
                                                                          from £211.58
                                                                          # 003
                                                                          MPN: 740538
                                                                          ALBERO GUIDA
                                                                          # 004
                                                                          MPN: 740467
                                                                          ASSIEME TUBO GUIDA
                                                                          Non serve per F e per tutte dopo esaur. N. 607E-740447
                                                                          from £318.31
                                                                          from £318.31
                                                                          # 004
                                                                          MPN: 740537
                                                                          ASSIEME TUBO GUIDA
                                                                          Vale per F e per tutte le vetture dopo esaurim. del N. 607E-740447
                                                                          from £778.79
                                                                          from £778.79
                                                                          # 005
                                                                          MPN: 101062
                                                                          GIUNTO SNODO SUL PIANTONE GUIDA
                                                                          Non serve per F e per tutte dopo esaur. N. 607E-740447
                                                                          from £273.00
                                                                          from £273.00
                                                                          # 005
                                                                          MPN: 103343
                                                                          GIUNTO SNODO SUL PIANTONE GUIDA
                                                                          Vale per F e per tutte le vetture dopo esaurimento del N 607E-740447
                                                                          from £498.77
                                                                          from £498.77
                                                                          This part replaces part number 108362 - and 9 more. Click to view details
                                                                          # 006
                                                                          MPN: 168785
                                                                          STEERING LOCK ASSY
                                                                          from £1,699.86
                                                                          from £1,699.86
                                                                          This part replaces part number 106614 which we have in stock - and 9 more. Click to view details
                                                                          # 006
                                                                          MPN: 740636
                                                                          BLOCCO STERZO ANTIFURTO
                                                                          Dopo esaur. N. 592-740194
                                                                          Supersession
                                                                          Supersession
                                                                          # 007
                                                                          MPN: 101083
                                                                          SUPPORT
                                                                          Vale fino ad esaurimento
                                                                          from £172.49
                                                                          from £172.49
                                                                          This part replaces part number 740231
                                                                          # 007
                                                                          MPN: 740639
                                                                          SUPPORT
                                                                          Dopo esaur. N. 592-740231
                                                                          # 008
                                                                          MPN: 101082
                                                                          SCREW
                                                                          Vale fino ad esaurimento
                                                                          from £17.92
                                                                          from £17.92
                                                                          This part replaces part number 740554
                                                                          # 008
                                                                          MPN: 740637
                                                                          SCREW
                                                                          Dopo esaur. N. 605-740554
                                                                          # 009
                                                                          MPN: 101068
                                                                          CONTATTO PER AVVISATORE ACUSTICO
                                                                          from £165.40
                                                                          from £165.40
                                                                          This part replaces part number 740001
                                                                          # 009
                                                                          MPN: 740531
                                                                          ASSIEME CONTATTO PER AVVISAT. ACUSTICO
                                                                          # 010
                                                                          MPN: 101111
                                                                          CANNOTTO
                                                                          from £57.40
                                                                          from £57.40
                                                                          This part replaces part number 740197
                                                                          # 011
                                                                          MPN: 103281
                                                                          SPACER
                                                                          from £16.96
                                                                          from £16.96
                                                                          This part replaces part number 740284
                                                                          # 012
                                                                          MPN: 101101
                                                                          WASHER
                                                                          from £0.98
                                                                          from £0.98
                                                                          This part replaces part number 740333
                                                                          # 013
                                                                          MPN: 103278
                                                                          PIANTONE GUIDA
                                                                          Vale per F e, per tutte le vetture dopo esaurimento N. 607E-740447
                                                                          from £252.74
                                                                          from £252.74
                                                                          # 013
                                                                          MPN: 740447
                                                                          PIANTONE GUIDA
                                                                          Non vale per F e per tutte le vetture dopo esaurimento pezzi
                                                                          from £309.68
                                                                          from £309.68
                                                                          # 014
                                                                          MPN: 102336
                                                                          MOZZO VOLANTE GUIDA GD
                                                                          Vale dal N. 04756
                                                                          from £116.49
                                                                          from £116.49
                                                                          # 014
                                                                          MPN: 740450
                                                                          STEERING WHEEL BADGE
                                                                          (Early Type)
                                                                          from £131.25
                                                                          from £131.25
                                                                          # 014
                                                                          MPN: 740451
                                                                          STEERING WHEEL
                                                                          from £1,359.75
                                                                          from £1,359.75
                                                                          # 015
                                                                          MPN: 740452
                                                                          CAVO PER AVVISATORE ACUSTICO
                                                                          from £2.49
                                                                          from £2.49
                                                                          # 016
                                                                          MPN: 103283
                                                                          CONTATTO PER AVVISATORE
                                                                          from £85.30
                                                                          from £85.30
                                                                          This part replaces part number 740456 - and 1 more. Click to view details
                                                                          # 017
                                                                          MPN: 103292
                                                                          FLANGIA PER ARTICOLAZIONE SFERICA
                                                                          from £6.75
                                                                          from £6.75
                                                                          This part replaces part number 660976 - and 6 more. Click to view details
                                                                          # 017
                                                                          MPN: 740423
                                                                          ASSIEME ARTICOLAZIONE SFERICA
                                                                          # 018
                                                                          MPN: 103297
                                                                          SFERA PER ARTICOLAZIONE
                                                                          from £19.56
                                                                          from £19.56
                                                                          This part replaces part number 740454 - and 5 more. Click to view details
                                                                          # 019
                                                                          MPN: 106353
                                                                          CENTERING DOWEL
                                                                          Dopo esaur. n. 740430
                                                                          # 019
                                                                          MPN: 740430
                                                                          CENTERING DOWEL
                                                                          Vale fino ad esaurimento
                                                                          Supersession
                                                                          Supersession
                                                                          # 020
                                                                          MPN: 11067076
                                                                          SEEGER RING
                                                                          from £0.66
                                                                          from £0.66
                                                                          This part replaces part number 11067075
                                                                          # 021
                                                                          MPN: 103293
                                                                          SEALING RING
                                                                          from £36.65
                                                                          from £36.65
                                                                          This part replaces part number 740395
                                                                          # 022
                                                                          MPN: 103299
                                                                          SPACER
                                                                          from £9.09
                                                                          from £9.09
                                                                          This part replaces part number 740291
                                                                          # 023
                                                                          MPN: 103576
                                                                          BOLT
                                                                          Vale dal N. 03124
                                                                          from £8.70
                                                                          from £8.70
                                                                          This part replaces part number 95610
                                                                          # 023
                                                                          MPN: 16044821
                                                                          BOLT
                                                                          Vale fino N. 03122
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 024
                                                                          MPN: 101139
                                                                          NUT
                                                                          Valedai N. 03124
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 16104425
                                                                          # 024
                                                                          MPN: 104030
                                                                          NUT
                                                                          Vale fino N. 03122
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 16104125
                                                                          # 025
                                                                          MPN: 101074
                                                                          CARBON BRUSH
                                                                          from £16.52
                                                                          from £16.52
                                                                          This part replaces part number 740543 - and 1 more. Click to view details
                                                                          # 026
                                                                          MPN: 101077
                                                                          NUT
                                                                          from £1.62
                                                                          from £1.62
                                                                          # 027
                                                                          MPN: 100274
                                                                          WASHER
                                                                          from £21.22
                                                                          from £21.22
                                                                          This part replaces part number 94834
                                                                          # 028
                                                                          MPN: 101104
                                                                          CUSCINETTO PER PIANT. GUIDA
                                                                          from £4.32
                                                                          from £4.32
                                                                          This part replaces part number 114751 - and 1 more. Click to view details
                                                                          # 029
                                                                          MPN: 11060576
                                                                          SEEGER RING
                                                                          from £1.13
                                                                          from £1.13
                                                                          This part replaces part number 11060575
                                                                          # 031
                                                                          MPN: OEB3VR4x12OS.
                                                                          SCREW
                                                                          # 032
                                                                          MPN: 11195370
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 033
                                                                          MPN: 10388811
                                                                          SCREW
                                                                          Vale fino ad esaurimento
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 033
                                                                          MPN: 10389901
                                                                          SCREW
                                                                          Dopo esaur. OEB-3VR 5x22
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 034
                                                                          MPN: 12541671
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          # 035
                                                                          MPN: 10902321
                                                                          BOLT
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 036
                                                                          MPN: 12601278
                                                                          WASHER
                                                                          # 037
                                                                          MPN: 10979421
                                                                          BOLT
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 038
                                                                          MPN: 101106
                                                                          Key
                                                                          from £4.55
                                                                          from £4.55
                                                                          This part replaces part number 94628
                                                                          # 039
                                                                          MPN: 101093
                                                                          LOCKING RING NUT
                                                                          from £50.36
                                                                          from £50.36
                                                                          This part replaces part number 74172
                                                                          # 040
                                                                          MPN: 103370
                                                                          BUSH
                                                                          from £11.51
                                                                          from £11.51
                                                                          # 042
                                                                          MPN: 104030
                                                                          SELF LOCKING NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 16104125
                                                                          # 043
                                                                          MPN: 10519624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                          # 044
                                                                          MPN: 10519624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                          # 045
                                                                          MPN: 740584
                                                                          ASSIEME FISSAGGIO GIUNTO
                                                                          Supersession
                                                                          Supersession
                                                                          # 046
                                                                          MPN: 103284
                                                                          CANNOTTO PORTA COMMUTATORI
                                                                          Vale solo per I dal N. 03446 e fino ad esaurimento
                                                                          This part replaces part number 740567
                                                                          # 046
                                                                          MPN: 400401
                                                                          CASING
                                                                          Vale fino N. 04828 Non vale per S
                                                                          from £116.20
                                                                          from £116.20
                                                                          # 046
                                                                          MPN: 740529
                                                                          CANNOTTO PORTA COMMUTATORI
                                                                          Non vale per le vetture Spyder. Dopo esaurimento N. 607E-740567 vale per tutte meno le Spyder
                                                                          from £152.03
                                                                          from £152.03
                                                                          # 046
                                                                          MPN: 740572
                                                                          CANNOTTO PORTA COMMUTATORI
                                                                          Vale solo per vett. Estere e Spyder e dopo esaurimento N. 607E-740567 vale anche per Spyder e I
                                                                          # 047
                                                                          MPN: 103518
                                                                          COLUMN SWITCH
                                                                          Vale dal N. 04828 solo per S
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 102274 - and 2 more. Click to view details
                                                                          # 047
                                                                          MPN: 401170
                                                                          COMPLESSIVO DEVIOSGANCIO
                                                                          Vale fino al N. 04828 solo per S
                                                                          Supersession
                                                                          Supersession
                                                                          # 047
                                                                          MPN: 401204
                                                                          COMPLESSIVO DEVIOSGANCIO
                                                                          (Series II & III)
                                                                          # 048
                                                                          MPN: CAMBEARS19403
                                                                          BOLT
                                                                          # 049
                                                                          MPN: CAMGEARS6419
                                                                          WASHER
                                                                          # 050
                                                                          MPN: CAMGEARS6420U
                                                                          NUT
