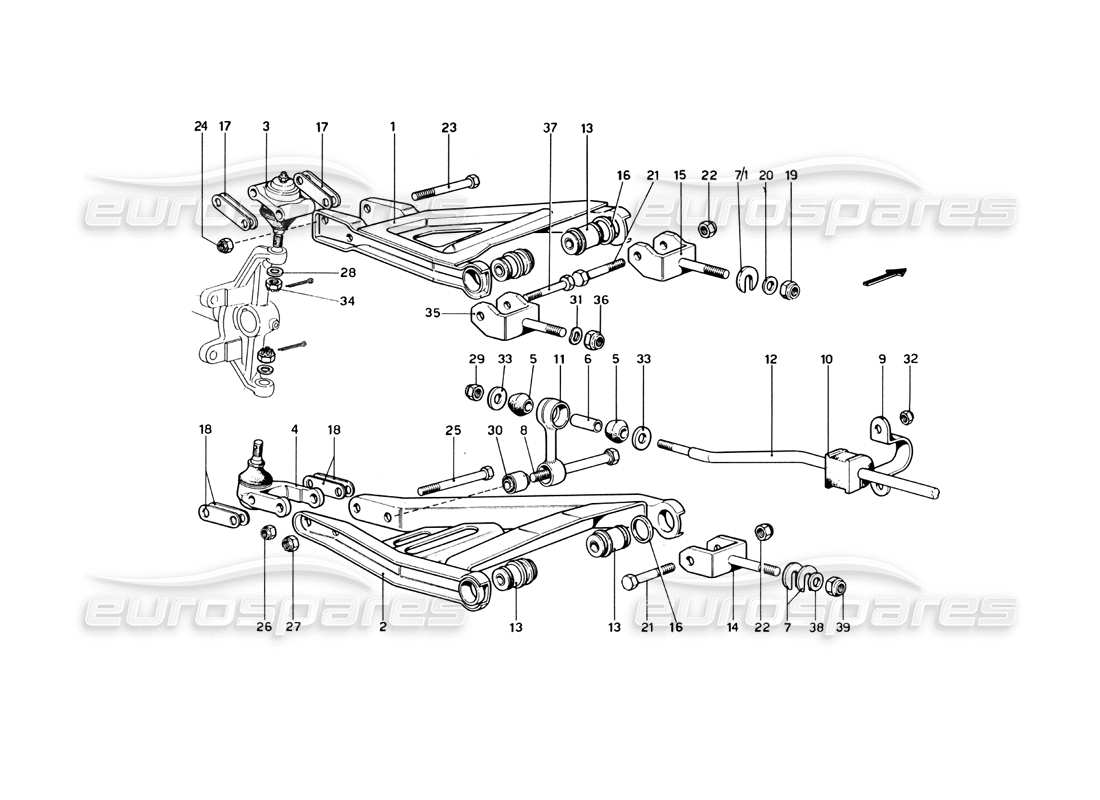

032 - Front Suspension - Wishbones
Ferrari 246 Dino (1975) Front Suspension - Wishbones Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 641273
RHF UPPER LEVER DX
from £154.00
from £154.00
# 001
MPN: 641566
LHF UPPER LEVER SX
from £495.00
from £495.00
# 002
MPN: 641274
DX WISHBONE
USE: 104401
Supersession
Supersession
# 002
MPN: 641565
SX WISHBONE
USE: 104402
Supersession
Supersession
# 003
MPN: 116280
TOP BALL JOINT
Vale dal N. 04830 - USE 116280 & Locknut 149807
from £40.00
from £40.00
This part replaces part number 101441 - and 17 more. Click to view details
# 004
MPN: 133944
LOWER BALL JOINT
- USE 133944 & LockNut 149807
from £52.50
from £52.50
This part replaces part number 114462 - and 13 more. Click to view details
# 005
MPN: 100984
BUSH
from £6.56
from £6.56
This part replaces part number 126097 - and 1 more. Click to view details
# 006
MPN: 100985
SPACER
from £21.06
from £21.06
This part replaces part number 64431
# 007
MPN: 101039
WASHER
Vale dal N. 04830
from £1.78
from £1.78
This part replaces part number 107025 - and 1 more. Click to view details
# 007
MPN: 101039
WASHER
7/1 on Picture - Vale fino N. 04828
from £1.78
from £1.78
This part replaces part number 107025 - and 1 more. Click to view details

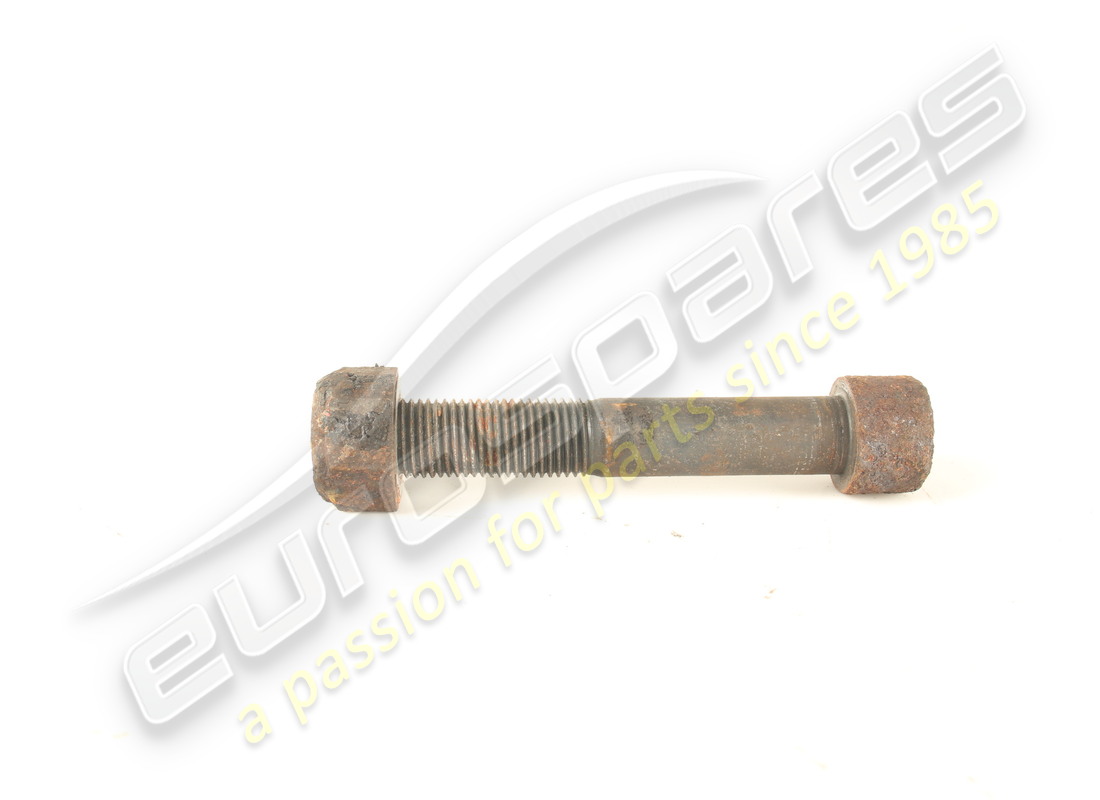

# 008
MPN: 107886
BOLT
from £17.51
from £17.51
This part replaces part number 106020 - and 3 more. Click to view details
# 009
MPN: 104417
PLATE
from £20.83
from £20.83
This part replaces part number 64429 - and 4 more. Click to view details
# 010
MPN: 110874
RUBBER ROLL BAR BUSH
from £12.59
from £12.59
This part replaces part number 640878 - and 1 more. Click to view details
# 011
MPN: 108431
LINK ARM
from £110.33
from £110.33
# 012
MPN: 641090
FRONT ANTI - ROLL BAR
from £181.97
from £181.97
# 013
MPN: 163038
BUSHES
from £38.54
from £38.54
This part replaces part number 157701
# 014
MPN: 641261
FORK
from £51.35
from £51.35
# 015
MPN: 641262
FORK
Vale fino N. 04828
from £100.44
from £100.44
# 016
MPN: 104399
WASHER
from £15.10
from £15.10
This part replaces part number 641272
# 017
MPN: 103256
PLATE
from £3.15
from £3.15
This part replaces part number 641276
# 018
MPN: 101022
PLATE
from £1.22
from £1.22
This part replaces part number 153963
# 019
MPN: 95900611
NUT
Vale fino N. 04828
Supersession
Supersession
# 020
MPN: 101041
WASHER
Vale fino N. 04828
from £0.53
from £0.53
This part replaces part number 10730821
# 021
MPN: 15541221
BOLT
Dalla 04830 la quantita e 6
from £2.06
from £2.06
# 022
MPN: 95900617
NUT
Supersession
Supersession
# 023
MPN: 99880820
BOLT
# 024
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 025
MPN: 95880837
BOLT
from £5.65
from £5.65
# 026
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 027
MPN: 95900617
NUT
Supersession
Supersession
# 028
MPN: 101445
WASHER
from £0.59
from £0.59
# 029
MPN: 95900610
NUT
from £0.57
from £0.57
# 030
MPN: 100773
SILENTBLOK PER BISCOTTINO BARRA
from £19.87
from £19.87
This part replaces part number 60220 - and 1 more. Click to view details
# 031
MPN: 95930517
WASHER
Vale fino N. 04828
from £0.47
from £0.47
This part replaces part number 127499
# 032
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 033
MPN: 100774
WASHER
Vale fino ad esaurimento
from £19.95
from £19.95
This part replaces part number 105334 - and 2 more. Click to view details
# 033
MPN: 95619
WASHER
Dopo esaurim. N. 94667
# 034
MPN: Enrenrojch 035.0145.044.506
NUT
# 035
MPN: 641327
FORK
Vale fino N. 04828
from £52.28
from £52.28
# 036
MPN: 94699
NUT
Vale fino N. 04828
from £1.85
from £1.85
# 037
MPN: 95940215
SCREW
Vale dal N. 04830
# 038
MPN: 101041
WASHER
Vale dal N. 04830
from £0.53
from £0.53
This part replaces part number 10730821
# 039
MPN: 95900611
NUT
Vale dal N. 04830
Supersession
Supersession
