039 - air conditioning system

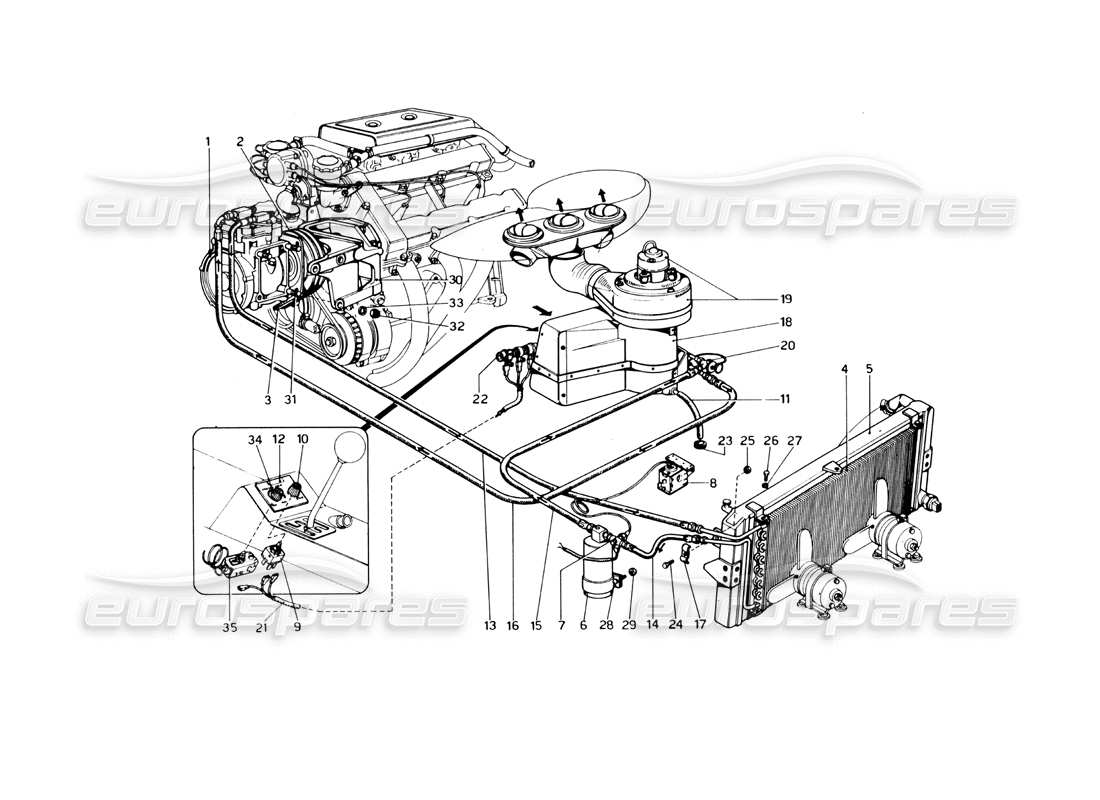

Ferrari 246 Dino (1975) Air Conditioning System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 111222
COMPRESSOR WITH PULLEY
from £995.00
from £995.00
This part replaces part number 080.2112.000 - 209. U - and 5 more. Click to view details
# 001
MPN: 320452
COMPRESSORE
Vale dal N. 07738
# 002
MPN: 320351
PULEGGIA CON FRIZIONE COMANDO COMPRESSORE
from £297.23
from £297.23
# 003
MPN: 320382
CINGHIA COMANDO COMPRESSORE
from £89.95
from £89.95
# 003
MPN: 320474
CHIGHIA COMANDO COMPRESSORE
oppure
# 004
MPN: 320441
CONDENSOR
Supersession
Supersession
# 005
MPN: 800351
RADIATORE ACQUA
from £2,594.45
from £2,594.45
# 006
MPN: 101986
PURIFIER
Vale fino N. 07736
from £83.08
from £83.08
# 006
MPN: 107138
PURIFIER
Vale dal N. 07738
from £144.40
from £144.40
This part replaces part number 320458
# 007
MPN: 101593
PRESSOSTATO DI MINIMA
Vale fino N. 07736
from £204.54
from £204.54
# 007
MPN: 106646
PRESSOSTATO DI MINIMA
Vale dal N. 07738
from £500.00
from £500.00
# 008
MPN: 320472
PRESSOSTATO DI MASSIMA
# 009
MPN: 105913
COMMUTATORE
Supersession
Supersession
# 010
MPN: 105911
NUT
from £3.31
from £3.31
This part replaces part number 320418
# 010
MPN: 60928200
FAN SPEED KNOB
This part replaces part number 105908
# 011
MPN: 105904
TUBO SCARICO CONDENSA
from £8.32
from £8.32
# 012
MPN: 105909
MOSTRINA
from £40.95
from £40.95
# 013
MPN: 105897
TUBO PER FREON DAL CONDENSATORE AL COMPRESSORE
Vale fino N. 07736
from £535.52
from £535.52
# 013
MPN: 320454
TUBO PER FREON DAL CONDENSATORE AL COMPRESSORE
Valedal N. 07738
from £374.59
from £374.59
# 014
MPN: 320378
TUBO PER FREON DAL DEPURATORE AL CONDENSATORE
Vale fino ad esaurimento
from £66.53
from £66.53
# 014
MPN: 320451
TUBO PER FREON DAL DEPURATORE AL CONDENSATORE
Dopo esaur. N. 236E-320378
Supersession
Supersession
# 014
MPN: 320455
TUBO PER FREON DAL DEPURATORE AL CONDENSATORE
Vate dal N. 07738
from £59.95
from £59.95
This part replaces part number 320451
# 015
MPN: 320379
FREON PIPE FROM THE EVAPORATOR TO THE PURIFIER
Vale fino N. 07736
from £104.08
from £104.08
# 015
MPN: 320456
FREON PIPE FROM THE EVAPORATOR TO THE PURIFIER
Valedal N. 07738
from £59.13
from £59.13
# 016
MPN: 320380
FREON HOSE FROM COMPRESSOR TO EVAPORATOR
Vale fino N. 07736
from £111.33
from £111.33
# 016
MPN: 320453
TUBO PER FREON DAL COMPRESSORS ALL'EVAPORATORE
Valedal N. 07738
from £133.44
from £133.44
# 017
MPN: 320366
BRACKET / SUPPORT
from £15.49
from £15.49
# 018
MPN: 320383
GRUPPO EVAPORATORE COMPLETE
Vale fino N. 07736
# 018
MPN: 320387
EVAPORATORE
Vale fino N. 07736
from £206.17
from £206.17
# 018
MPN: 320459
EVAPORATORE
Valedal N. 07738
# 018
MPN: 320460
SERPENTINA CON SCATOLA
Vale dal N. 07738
# 018
MPN: 320462
GRUPPO EVAPORATORE COMPLETE
Valedal N. 07738
from £935.45
from £935.45
# 019
MPN: 320388
GRUPPO MOTORINO E VENTOLA
Vale fino N. 07736
from £206.17
from £206.17
# 019
MPN: 320468
DISTANZIALE FRA MOTORE VENTILATORE E EVAPORATORE
Valedal N. 07738
# 019
MPN: 60091600
RH HEATER BLOWER
from £295.00
from £295.00
This part replaces part number 20094504 - and 1 more. Click to view details
# 020
MPN: 100474
VALVOLA DI ESPANSIONE
Vale fino N. 07736
from £43.88
from £43.88
# 020
MPN: 320464
VALVOLA DI ESPANSIONE
Vale dal N. 07738
# 021
MPN: 320434
GRUPPO CAVI
# 022
MPN: 107142
RESISTENZA PER .COMMUTATORE
from £274.07
from £274.07
This part replaces part number 320391
# 023
MPN: 401203
CABLE GROMMET
# 024
MPN: 95880308
BOLT
# 025
MPN: 100044
NUT
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 026
MPN: 95880301
BOLT
# 027
MPN: 10516470
WASHER
Supersession
Supersession
# 028
MPN: 10902321
BOLT
from £0.71
from £0.71
# 029
MPN: 12574211
SELF LOCKING NUT
from £0.71
from £0.71
# 030
MPN: 320348
SUPPORT
from £709.92
from £709.92
# 031
MPN: 100472
THREADED STUD
from £11.79
from £11.79
This part replaces part number 95504
# 032
MPN: 12575621
NUT
from £1.36
from £1.36
# 033
MPN: 100964
WASHER
from £0.71
from £0.71
# 034
MPN: 60928300
POMELLO REGOLATORE TEMPERATURA ARIA
from £246.15
from £246.15
This part replaces part number 105907
# 035
MPN: 109819
TERMOSTATO TARATO +2°C
Supersession
Supersession
