ferrari 246 dino (1975) pedal board - clutch control (variants for rhd versions) parts diagram

042 - Pedal Board - Clutch Control (Variants for RHD Versions)

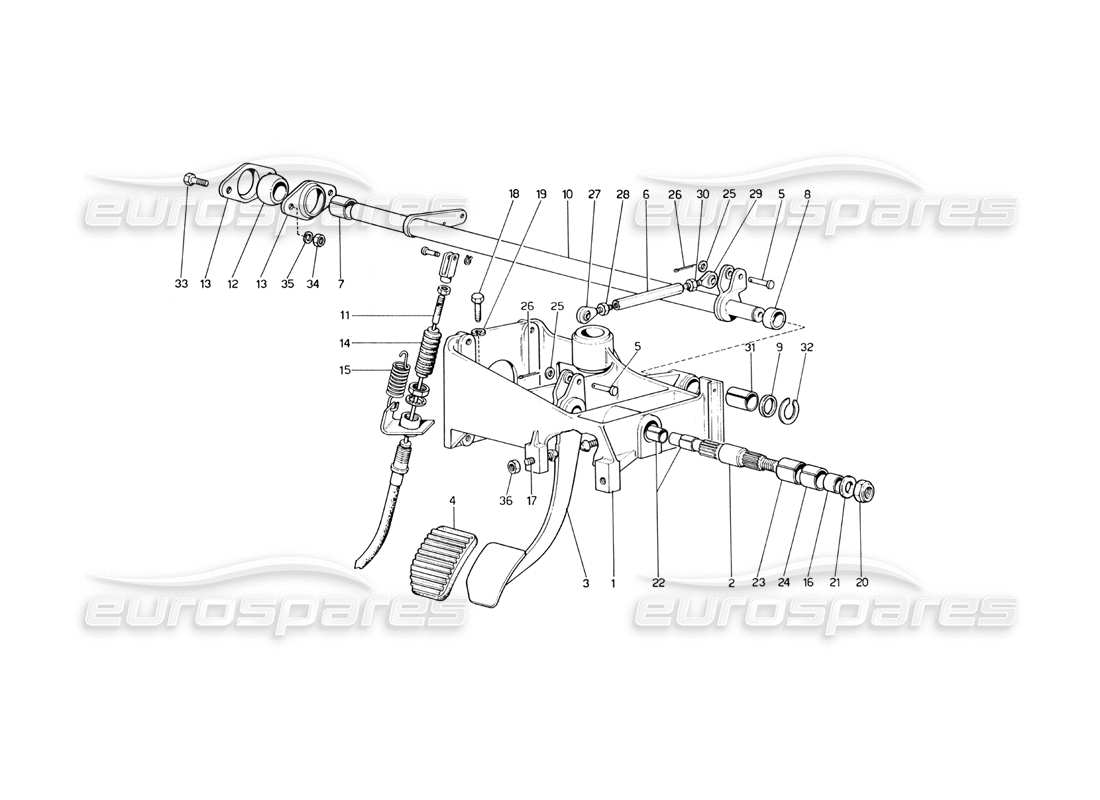

Ferrari 246 Dino (1975) Pedal Board - Clutch Control (Variants for RHD Versions) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Key
        Price
        # 002
        MPN: 660937
        PIVOT SUPPORT
        Per GD
        from £187.68
        from £187.68
        SHAFT Genuine Ferrari Part - New (to order)
        # 003
        MPN: 660934
        ASSIEME PEDALE FRIZIONE
        Per GD
        CLUTCH PEDAL Genuine Ferrari Part - New (to order)
        # 004
        MPN: 101307
        GOMMINO PROTEZIONE PEDALE
        Per GD
        from £23.94
        from £23.94
        This part replaces part number 660736
        PEDAL RUBBER Genuine Ferrari Part - New (to order)
        # 005
        MPN: 660947
        PIVOT
        Per GD
        PIN Genuine Ferrari Part - New (to order)
        # 006
        MPN: 660943
        TIE ROD
        Per GD
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 007
        MPN: 95870313
        BUSH
        from £5.24
        from £5.24
        BUSH Genuine Ferrari Part - New (to order)
        # 008
        MPN: 660952
        DISTANZIALE SINISTRO
        Per GD
        from £23.41
        from £23.41
        SPACER Genuine Ferrari Part - New (to order)
        # 009
        MPN: 660953
        DISTANZIALE DESTRO
        Per GD
        from £8.08
        from £8.08
        SPACER Genuine Ferrari Part - New (to order)
        # 010
        MPN: 660951
        ASSIEME ALBERO RINVIO E LEVE FRIZIONE
        Per GD
        from £105.50
        from £105.50
        SHAFT Genuine Ferrari Part - New (to order)
        SHAFT Genuine Ferrari Part - Used In stock
        # 011
        MPN: 500694
        RHD CLUTCH CABLE
        from £231.56
        from £231.56
        246GT/S CLUTCH CABLE RHD Genuine Ferrari Part - New (to order)
        246GT/S CLUTCH CABLE RHD Genuine Ferrari Part - Used In stock
        # 012
        MPN: 660977
        BUSH
        from £41.40
        from £41.40
        BUSH Genuine Ferrari Part - New (to order)
        # 013
        MPN: 103292
        FLANGIA PER ARTICOLAZIONE SFERICA
        Per GD
        from £6.75
        from £6.75
        This part replaces part number 660976 - and 6 more. Click to view details
        STEERING JOINT LOWER FLANGE Genuine Ferrari Part - New (to order)
        STEERING JOINT LOWER FLANGE Genuine Ferrari Part - Used In stock
        # 014
        MPN: 100858
        SOFFIETTO PROTEZIONE FLESSIBILE
        Per GD
        from £21.30
        from £21.30
        This part replaces part number 500551 - and 1 more. Click to view details
        BOOT Genuine Ferrari Part - New (to order)
        # 015
        MPN: 660931
        SPRING
        Per GD
        from £5.44
        from £5.44
        SPRING Genuine Ferrari Part - New (to order)
        # 016
        MPN: 660940
        SPACER
        Per GD
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 017
        MPN: 9180815
        SCREW
        Per GD
        from £3.81
        from £3.81
        SCREW Genuine Ferrari Part - New (to order)
        # 018
        MPN: 16138921
        SCREW
        Per GD
        from £1.44
        from £1.44
        BOLT Genuine Ferrari Part - New (to order)
        # 019
        MPN: 12601471
        WASHER
        Per GD
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 020
        MPN: 16105021
        SELF LOCKING NUT
        Per GD
        from £1.64
        from £1.64
        Genuine Ferrari Part (no longer available to order)
        SELF-LOCKING NUT (16105021) Genuine Maserati Part - New (to order)
        # 021
        MPN: 10730721
        WASHER
        Per GD
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 022
        MPN: 95870312
        BUSH
        Per GD
        from £3.26
        from £3.26
        BUSH Genuine Ferrari Part - New (to order)
        # 023
        MPN: 95870318
        BUSH
        Per GD
        from £6.65
        from £6.65
        BUSH Genuine Ferrari Part - New In stock
        # 024
        MPN: 103370
        BUSH
        Per GD
        from £11.51
        from £11.51
        BUSH Genuine Ferrari Part - New In stock
        # 025
        MPN: 94788
        WASHER
        Per GD
        WASHER Genuine Ferrari Part - New (to order)
        # 026
        MPN: 10734201
        SPLIT PIN
        Per GD
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 027
        MPN: UNIBALSM6
        CUSCINETTO SFERICO
        Per GD
        CUSCINETTO SFERICO Genuine Ferrari Part - New (to order)
        # 028
        MPN: 10725921
        NUT
        Per GD
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 029
        MPN: UNIBALSML6
        CUSCINETTO SFERICO
        Per GD
        CUSCINETTO SFERICO Genuine Ferrari Part - New (to order)
        # 030
        MPN: 95560
        NUT
        Per GD
        Supersession
        Supersession
        Genuine Ferrari Part (no longer available to order)
        # 031
        MPN: 95870314
        BUSH
        Per GD
        from £5.56
        from £5.56
        BUSH Genuine Ferrari Part - New (to order)
        # 033
        MPN: 16043421
        BOLT
        Per GD
        from £2.73
        from £2.73
        This part replaces part number 95524
        Genuine Ferrari Part (no longer available to order)
        HEX HEAD SCREW M 8X20 (16043421) Genuine Maserati Part - New In stock
        # 034
        MPN: 16100824
        NUT
        Per GD
        from £0.53
        from £0.53
        This part replaces part number 16100814 - and 1 more. Click to view details
        NUT Genuine Ferrari Part - New In stock
        NUT (16100824) Genuine Maserati Part - New In stock
        # 035
        MPN: 11196071
        WASHER
        Per GD
        from £0.47
        from £0.47
        WASHER Genuine Ferrari Part - New (to order)
        # 036
        MPN: 16100824
        NUT
        Per GD
        from £0.53
        from £0.53
        This part replaces part number 16100814 - and 1 more. Click to view details
        NUT Genuine Ferrari Part - New In stock
        NUT (16100824) Genuine Maserati Part - New In stock
