ferrari 246 dino (1975) brake hydraulic system (variants for rhd versions) parts diagram

043 - Brake Hydraulic System (Variants for RHD Versions)

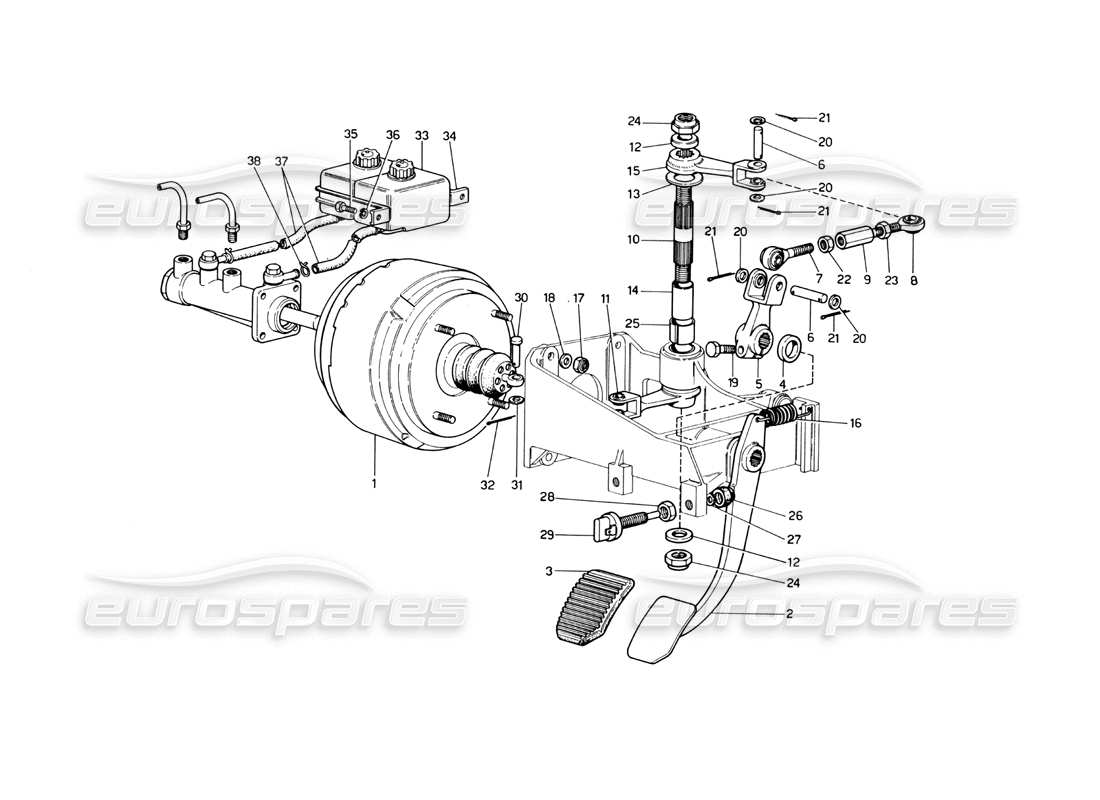

Ferrari 246 Dino (1975) Brake Hydraulic System (Variants for RHD Versions) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 000
    MPN: 124512
    brake master cylinder
    from £421.95
    from £421.95
    This part replaces part number 108820 which we have in stock - and 5 more. Click to view details
    brake master cylinder Genuine Ferrari Part - New (to order)
    BRAKE MASTER Original Equipment - New In stock
    brake master cylinder Genuine Ferrari Part - Reconditioned In stock
    Fully Refurbished
    # 001
    MPN: 607E-661057
    BRAKE SERVO MASTER VAC BONALDI 1405920
    Per GD
    BRAKE SERVO MASTER VAC BONALDI 1405920 Genuine Ferrari Part - New (to order)
    # 002
    MPN: 607E-660932
    ASSIEME LEVA E PEDALE FRENO
    Per GD
    ASSIEME LEVA E PEDALE FRENO Genuine Ferrari Part - New (to order)
    # 003
    MPN: 100976
    GOMMINO PROTEZIONE PEDALE
    Per GD
    from £18.28
    from £18.28
    This part replaces part number 660737 - and 1 more. Click to view details
    PEDAL RUBBER Genuine Ferrari Part - New (to order)
    PEDAL RUBBER Genuine Ferrari Part - New (other) In stock
    ORIGINAL
    # 004
    MPN: 607E-660941
    SPACER
    Per GD
    SPACER Genuine Ferrari Part - New (to order)
    # 005
    MPN: 607E-660938
    ASSIEME LEVA PICCOLA FRENO
    Per GD
    ASSIEME LEVA PICCOLA FRENO Genuine Ferrari Part - New (to order)
    # 006
    MPN: 607E-660972
    PIVOT
    Per GD
    PIVOT Genuine Ferrari Part - New (to order)
    # 007
    MPN: 607E-660956
    CUSCINETTO SFERLCO
    Per GD
    CUSCINETTO SFERLCO Genuine Ferrari Part - New (to order)
    # 008
    MPN: 607E-660955
    CUSCINETTO SFERICO
    Per GD
    CUSCINETTO SFERICO Genuine Ferrari Part - New (to order)
    # 009
    MPN: 607E-660942
    REGISTRO PER LEVE
    Per GD
    REGISTRO PER LEVE Genuine Ferrari Part - New (to order)
    # 010
    MPN: 607E-660975
    PIVOT
    Per GD
    PIVOT Genuine Ferrari Part - New (to order)
    # 011
    MPN: 607E-660945
    LEVER
    Per GD
    LEVER Genuine Ferrari Part - New (to order)
    # 012
    MPN: 607-660724
    WASHER
    Per GD
    WASHER Genuine Ferrari Part - New (to order)
    # 013
    MPN: 607-660727
    WASHER
    Per GD
    WASHER Genuine Ferrari Part - New (to order)
    # 014
    MPN: 607-660725
    SPACER
    Per GD
    SPACER Genuine Ferrari Part - New (to order)
    # 015
    MPN: 607E-660946
    LEVER
    Per GD
    LEVER Genuine Ferrari Part - New (to order)
    # 016
    MPN: 101305
    SPRING
    Per GD
    from £5.60
    from £5.60
    This part replaces part number 660343
    MOLLA RICHIAMO PEDALE Genuine Ferrari Part - New In stock
    PEDAL RETURN SPRING Genuine Maserati Part - New (to order)
    # 017
    MPN: 104030
    NUT
    Per GD
    from £0.53
    from £0.53
    This part replaces part number 16104125
    LOCKING NUT Genuine Ferrari Part - New (to order)
    LOCKING NUT M8 X 9.5 Genuine Maserati Part - New (to order)
    # 018
    MPN: 103180
    WASHER
    Per GD
    from £0.47
    from £0.47
    WAVY WASHER Genuine Ferrari Part - New (to order)
    # 019
    MPN: 14238130
    BOLT
    Per GD
    from £1.44
    from £1.44
    BOLT Genuine Ferrari Part - New (to order)
    # 020
    MPN: 13550401
    WASHER
    Per GD
    from £0.71
    from £0.71
    Genuine Ferrari Part (no longer available to order)
    WASHER. Genuine Maserati Part - New (to order)
    # 021
    MPN: 10734301
    SPLIT PIN
    Per GD
    from £0.51
    from £0.51
    SPLIT PIN Genuine Ferrari Part - New (to order)
    SPLIT PIN D. 2 X18 Genuine Maserati Part - New (to order)
    # 022
    MPN: 95541
    CONTRODADO FILETTO DESTRO
    Per GD
    from £0.47
    from £0.47
    RH THREAD NUT Genuine Ferrari Part - New In stock
    # 023
    MPN: 103157
    CONTRODADO FILETTO SINISTRO
    Per GD
    from £1.05
    from £1.05
    LH THREAD NUT Genuine Ferrari Part - New (to order)
    LH THREAD NUT Genuine Ferrari Part - Used In stock
    # 024
    MPN: U.S./B70-216X1.5M
    SELF LOCKING NUT
    Per GD
    SELF LOCKING NUT Genuine Ferrari Part - New (to order)
    # 025
    MPN: 95870320
    BUSH
    Per GD
    from £6.77
    from £6.77
    This part replaces part number 660722
    BUSH Genuine Ferrari Part - New (to order)
    # 026
    MPN: 101662
    NUT
    Per GD
    from £2.53
    from £2.53
    This part replaces part number 660523
    NYLON NUT Genuine Ferrari Part - New (to order)
    # 027
    MPN: 12605270
    WASHER
    Per GD
    Supersession
    Supersession
    Genuine Ferrari Part (no longer available to order)
    # 028
    MPN: 10791211
    NUT
    Per GD
    from £0.47
    from £0.47
    This part replaces part number 10791215 - and 1 more. Click to view details
    NUT Genuine Ferrari Part - New In stock
    # 029
    MPN: 4177124
    INTERRUTTORE LUCI ARRESTO
    Per GD
    Supersession
    Supersession
    Genuine Ferrari Part (no longer available to order)
    # 030
    MPN: 607-660723
    PIVOT
    Per GD
    PIVOT Genuine Ferrari Part - New (to order)
    # 031
    MPN: 13550401
    WASHER
    Per GD
    from £0.71
    from £0.71
    Genuine Ferrari Part (no longer available to order)
    WASHER. Genuine Maserati Part - New (to order)
    # 032
    MPN: 10734201
    SPLIT PIN
    Per GD
    Supersession
    Supersession
    Genuine Ferrari Part (no longer available to order)
    # 033
    MPN: 607E-661058
    VASCHETTA OLIO PER FRENI
    Per GD - Tipo STARS 10.07.00
    VASCHETTA OLIO PER FRENI Genuine Ferrari Part - New (to order)
    # 034
    MPN: 591-660687
    SUPPORT
    Per GD
    SUPPORT Genuine Ferrari Part - New (to order)
    # 035
    MPN: 95880303
    BOLT
    Per GD
    BOLT Genuine Ferrari Part - New (to order)
    # 036
    MPN: 10516470
    WASHER
    Per GD
    Supersession
    Supersession
    Genuine Ferrari Part (no longer available to order)
    # 037
    MPN: 607E-661088
    TUBO COLLEGAMENTO VASCHETTE AL SERVOFRENO
    Per GD
    TUBO COLLEGAMENTO VASCHETTE AL SERVOFRENO Genuine Ferrari Part - New (to order)
    # 038
    MPN: 94951
    SPRING
    Per GD
    CLIP Genuine Ferrari Part - New (to order)
