046 - Fast Idle Device (Variants for USA Versions)

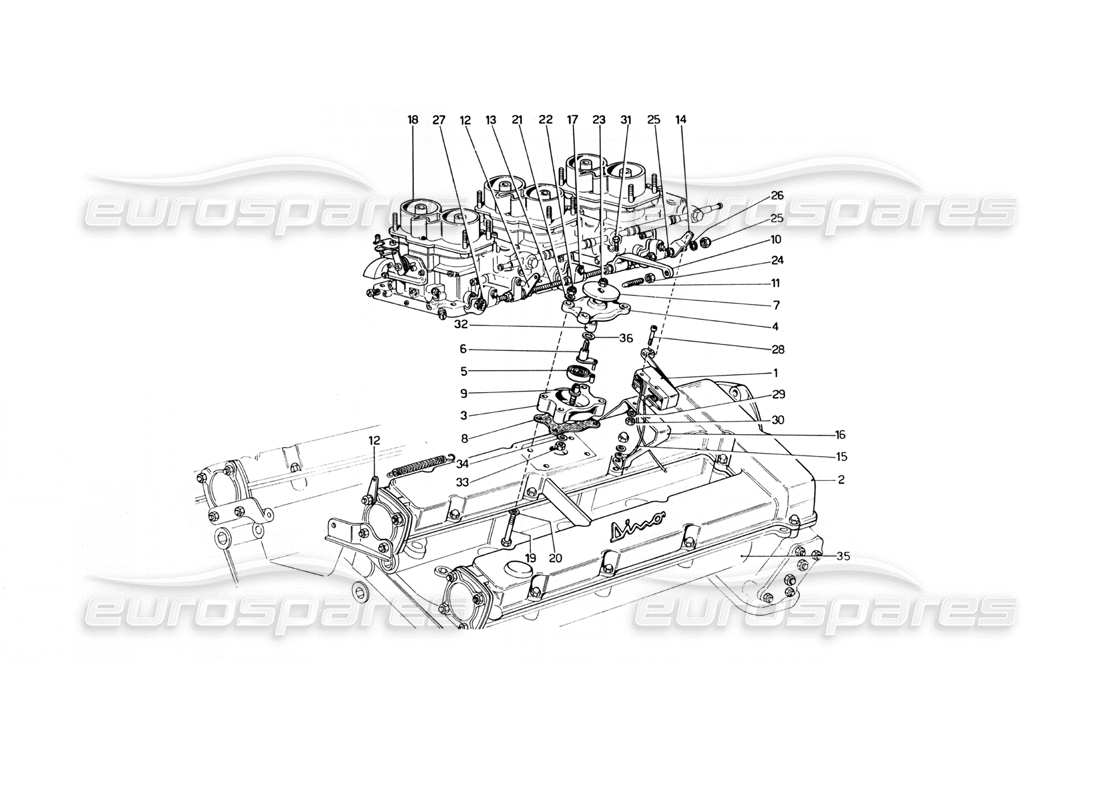

Ferrari 246 Dino (1975) Fast Idle Device (Variants for USA Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 251-350138
MICROINTERRUTTORE
Per U.S
# 002
MPN: 236E-162263
COVER
Per U.S
# 003
MPN: 236E-350184
SCATOLA PER SPIRALE TERMOSTATICA
Per U.S
# 004
MPN: 236E-350185
COVER
Per U.S
# 005
MPN: 236E-350279
SPIRALE TERMOSTATICA
Per U.S
# 006
MPN: 251-350084
PIVOT
Per U.S
# 007
MPN: 236E-350224
CAMMA PER REGOLAZIONE MINIMO
Per U.S
# 008
MPN: 236E-350186
GASKET
Per U.S
# 009
MPN: 236E-350188
PIVOT
Per U.S
# 010
MPN: 236E-350187
LEVER
Per U.S
# 011
MPN: 236E-350189
GRANO REGOLAZIONE MINIMO
Per U.S - Vale fino N. 03928
# 011
MPN: 236E-350360
SCREW
Per U.S - Vale dal N. 03930
# 012
MPN: 104340
ATTACCO MOLLA RICHIAMO LEVA.
Per U.S
from £1.59
from £1.59
This part replaces part number 350182
# 013
MPN: 236E-350181
ASTA COMANDO CARBURATORI
Per U.S
# 014
MPN: 236E-350183
LEVETTA COMANDO MICROINTERRUTTORE
Per U.S
# 015
MPN: 236E-350238
CAVO MICROINTERRUTTORE-MASSA
Per U.S
# 016
MPN: 236E-350190
BRACKET / SUPPORT
Per U.S
Supersession
Supersession
# 017
MPN: 128LM-18700
GIUNTO COMANDO CARBURATORI
Per U.S
# 018
MPN: 236E-181785
CARBURATORE
Per U.S
# 019
MPN: 10903011
SCREW
Per U.S
# 020
MPN: 10519460
RONDETLA
Per U.S
# 021
MPN: OEBRc6
WASHER
Per U.S
# 022
MPN: 100044
NUT
Per U.S
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 023
MPN: 100044
NUT
Per U.S
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 024
MPN: 10788811
NUT
Per U.S
from £0.71
from £0.71
This part replaces part number 10788815
# 025
MPN: 15896211
NUT
Per U.S
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 026
MPN: 11197774
WASHER
from £0.53
from £0.53
This part replaces part number 11197770 - and 3 more. Click to view details
# 027
MPN: 12574211
NUT
Per U.S
from £0.71
from £0.71
# 028
MPN: 95940225
SCREW
Per U.S
# 029
MPN: 95930521
WASHER
Per U.S
# 030
MPN: OEB6SDT3-UNI5588
NUT
Per U.S
# 031
MPN: 95880202
BOLT
Per U.S
# 032
MPN: 95870311
BUSH
Per U.S
from £0.60
from £0.60
# 033
MPN: 15896211
NUT
Per U.S
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 034
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 035
MPN: 236E-162383
CYLINDER HEAD RH
Per U.S
# 035
MPN: 236E-162653
TESTA DLINDRI DESTRA COMPLETA
Per U.S
# 035
MPN: 236E-162654
CYLINDER HEAD LH
Per U.S
# 036
MPN: 10298360
WASHER
Per U.S
from £0.53
from £0.53
