ferrari 246 dino (1975) exhaust system (variants for usa versions) parts diagram

047 - Exhaust System (Variants for USA Versions)

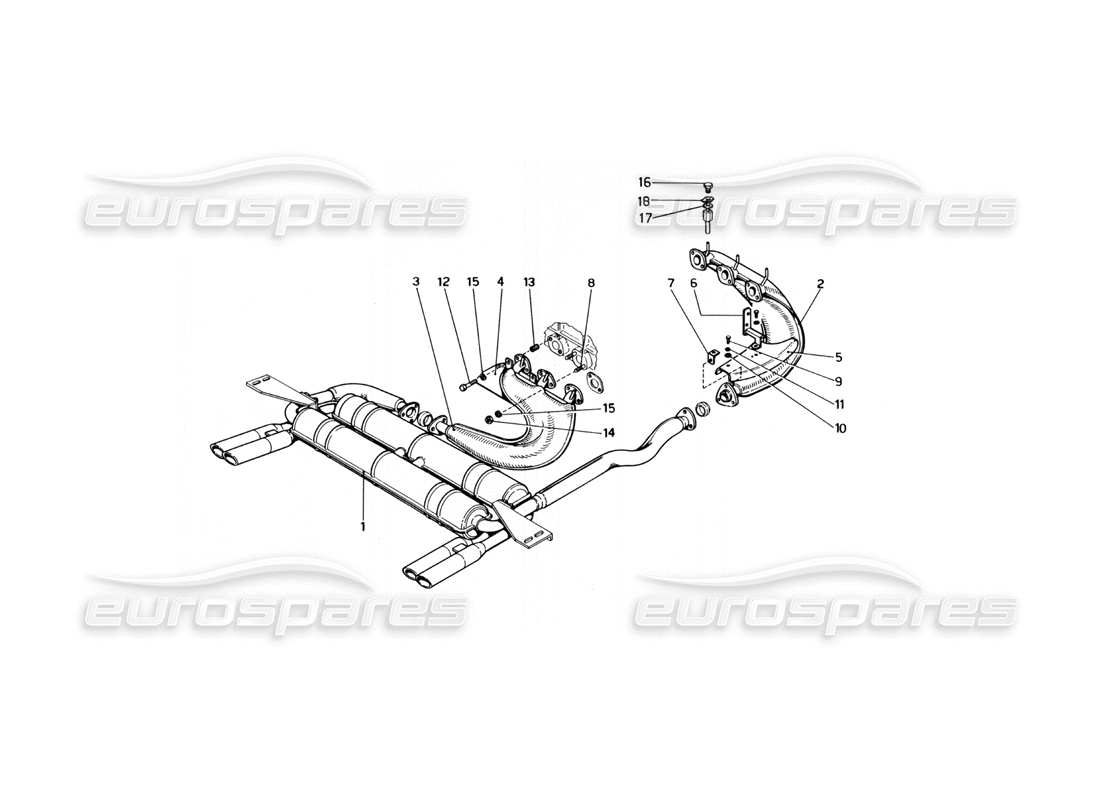

Ferrari 246 Dino (1975) Exhaust System (Variants for USA Versions) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 236E-20518
    MARMITTA DI SCARICO
    Per U.S
    MARMITTA DI SCARICO Genuine Ferrari Part - New (to order)
    # 002
    MPN: 236E-20481
    COLLETTORE DI SCARICO ANTERIORE
    Per U.S
    COLLETTORE DI SCARICO ANTERIORE Genuine Ferrari Part - New (to order)
    # 003
    MPN: 236E-20480
    COLLETTORE DI SCARICO POSTERIORE
    Per U.S
    COLLETTORE DI SCARICO POSTERIORE Genuine Ferrari Part - New (to order)
    # 004
    MPN: 236E-13241
    Paratia per motorino d'avviamento
    Per U.S
    Paratia per motorino d'avviamento Genuine Ferrari Part - New (to order)
    # 005
    MPN: 236E-20502
    PARATIA PER COLLETTORE DI SCARICO ANT.
    Per U.S
    PARATIA PER COLLETTORE DI SCARICO ANT. Genuine Ferrari Part - New (to order)
    # 006
    MPN: 236E-20503
    SUPPORT
    Per U.S
    SUPPORT Genuine Ferrari Part - New (to order)
    # 007
    MPN: 236E-20506
    SQUADRETTA SUPPORTO PARATIA
    Per U.S
    SQUADRETTA SUPPORTO PARATIA Genuine Ferrari Part - New (to order)
    # 008
    MPN: 13544021
    THREADED STUD
    Per U.S
    Supersession
    Supersession
    Genuine Ferrari Part (no longer available to order)
    # 009
    MPN: 10902221
    BOLT
    Per U.S
    from £0.59
    from £0.59
    BOLT Genuine Ferrari Part - New In stock
    HEX HEAD SCREW M 6X 16 ZNT Genuine Maserati Part - New (to order)
    # 010
    MPN: 12639701
    WASHER
    Per U.S
    Supersession
    Supersession
    This part replaces part number 12639704
    Genuine Ferrari Part (no longer available to order)
    # 011
    MPN: 10516470
    WASHER
    Per U.S
    Supersession
    Supersession
    Genuine Ferrari Part (no longer available to order)
    # 012
    MPN: 16044321
    BOLT
    Per U.S
    from £0.30
    from £0.30
    BOLT Genuine Ferrari Part - New In stock
    SCREW FOR CONV. TOP ASSEM Genuine Maserati Part - New (to order)
    BOLT Genuine Ferrari Part - Used In stock
    # 013
    MPN: 105510
    FILETTO RIPORTATO SU TESTA DESTRA
    Per U.S
    Supersession
    Supersession
    Genuine Ferrari Part (no longer available to order)
    # 014
    MPN: 114748
    NUT
    Per U.S
    from £9.32
    from £9.32
    NUT Genuine Ferrari Part - New In stock
    # 015
    MPN: 127496
    WASHER
    from £0.52
    from £0.52
    This part replaces part number 10516671 - and 2 more. Click to view details
    WASHER Genuine Ferrari Part - New In stock
    WASHER Genuine Maserati Part - New In stock
    # 016
    MPN: 245-20429
    TAPPO PER TUBETTI ANALIZZATORI
    Per U.S
    TAPPO PER TUBETTI ANALIZZATORI Genuine Ferrari Part - New (to order)
    # 017
    MPN: 103749
    GASKET
    Per U.S
    from £0.47
    from £0.47
    This part replaces part number 20430
    GASKET WASHER Genuine Ferrari Part - New (to order)
    # 018
    MPN: 103587
    PLATE
    Per U.S - Solo per vetture 1974
    from £5.85
    from £5.85
    This part replaces part number 92692 - and 1 more. Click to view details
    LOCKTAB Genuine Ferrari Part - New In stock
    LOCKTAB Eurospares Approved Part - New In stock
