050 - Brake Hydraulic System On Wheels (Variants for USA Versions)

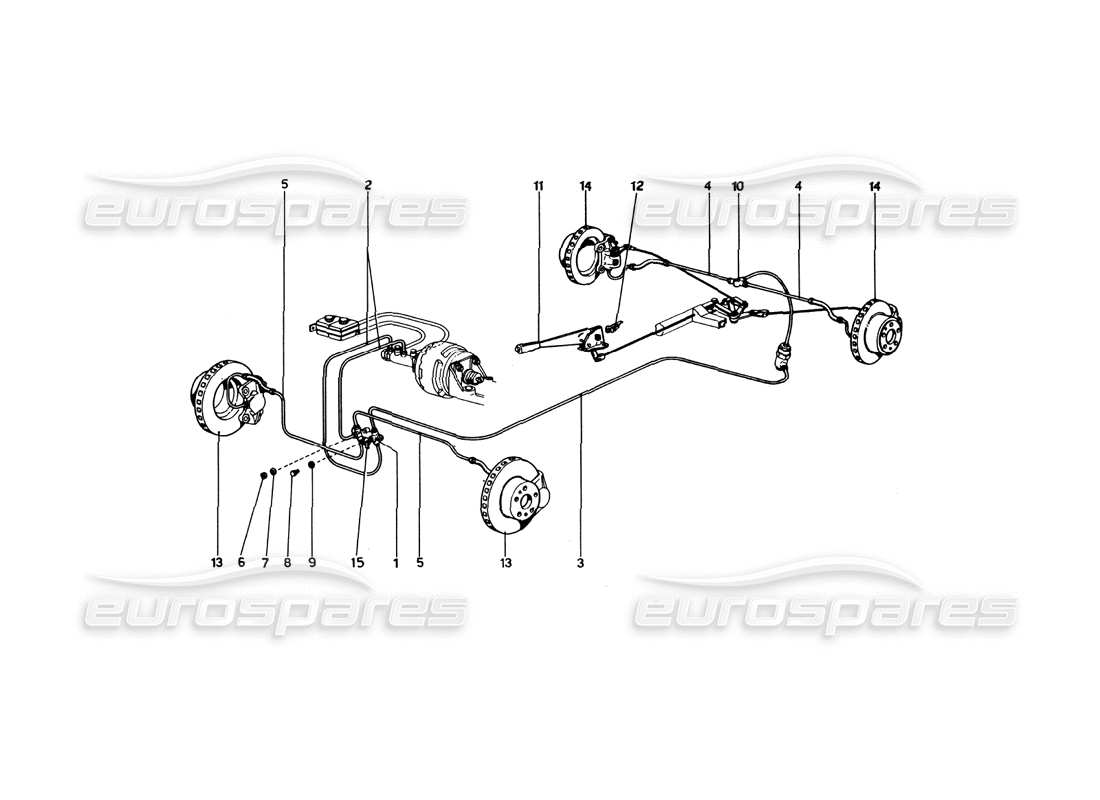

Ferrari 246 Dino (1975) Brake Hydraulic System On Wheels (Variants for USA Versions) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 101415
VALVOLA DI SEGNALAZIONE PRESSIONE OLIO FRENI
Per U.S - Vale anche per S e CH
from £505.60
from £505.60
This part replaces part number 680979
# 002
MPN: 104469
TUBETTO DAL SERVOFRENO ALIA VALVOLA SEGNALAZIONE PRESSIONE OLIO FRENI
Per U.S - Vale anche per S e CH
from £11.10
from £11.10
# 003
MPN: 104471
TUBETTO DALLA VALVOLA SEGNALAZIONE PRESSIONE OLIO FRENI ALLA VALVOLA REGOLAZIONE FRENI POSTERIORI
Per U.S - Vale fino al N. 04828 - Vale anche per S e CH
from £12.21
from £12.21
This part replaces part number 681050
# 003
MPN: 607E-681059
TUBETTO DALLA VALVOLA SEGNALAZIONE PRESSIONE OLIO FRENI ALLA VALVOLA REGOLAZIONE FRENI POSTERIORI
Per U.S - Vale dal N. 04830 - Vale anche per S e CH
# 004
MPN: 104470
TUBETTO DAL 3 VIE POSTERIORE AI FLESSIBILI RUOTE POSTERIORI
Per U.S - Vale anche per S e CH
Supersession
Supersession
# 005
MPN: 104470
TUBETTO DALLA VALVOLA SEGNALAZIONE PRESSIONE OLIO AI FLESSIBILI RUOTE ANT.
Per U.S - Vale anche per S e CH
Supersession
Supersession
# 006
MPN: 16100824
NUT
Per U.S - Vale anche per S e CH
from £0.53
from £0.53
This part replaces part number 16100814 - and 1 more. Click to view details
# 007
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 008
MPN: 106368
TAPPO PER VALVOLA
Per U.S - Vale anche per S e CH
from £2.00
from £2.00
This part replaces part number 681004
# 009
MPN: 10260160
GASKET
Per U.S - Vale anche per S e CH
from £0.53
from £0.53
This part replaces part number 10260170
# 010
MPN: 101394
UNION
Per U.S
from £26.92
from £26.92
This part replaces part number 680980 - and 7 more. Click to view details
# 011
MPN: 607E-680966
ASSIEME LEVA COMANDO FRENO A MANO
Per U.S - Vale anche per S
# 012
MPN: 101188
INTERRUTTORE PER SPIA FRENO A MANO
Per U.S - Vale anche per S
from £24.13
from £24.13
This part replaces part number 680990
# 013
MPN: 681007
DISCO FRENO PER RUOTE ANTERIORI
Per U.S
from £200.00
from £200.00
This part replaces part number 680834 - and 2 more. Click to view details
# 014
MPN: 104458
REAR BRAKE DISC
(price each disc)
from £225.00
from £225.00
This part replaces part number 680832 - and 3 more. Click to view details
# 014
MPN: 607E-681008
REAR BRAKE DISC
not as spare part - use part number 104458
# 015
MPN: 107621
TRASMETTITORE ELETTRICO INEFFIC. FRENI
Per U.S
from £221.93
from £221.93
