106 - Front Compartment Lid

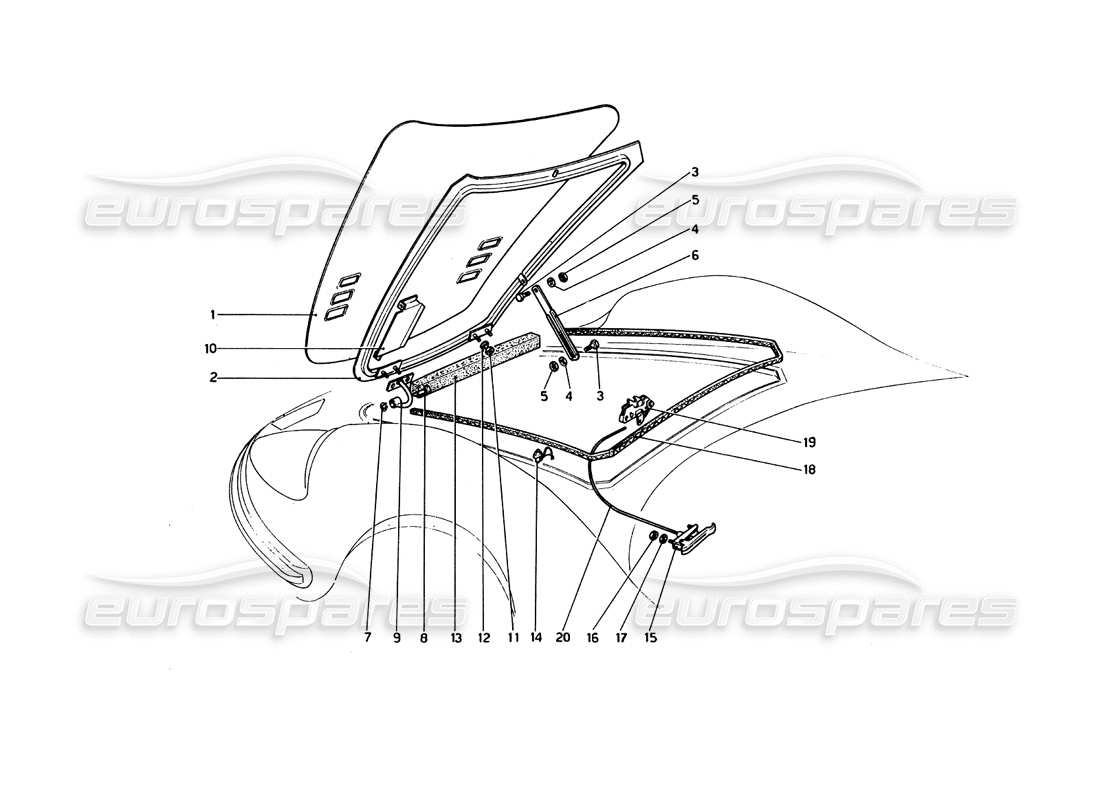

Ferrari 246 Dino (1975) Front Compartment Lid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 200228

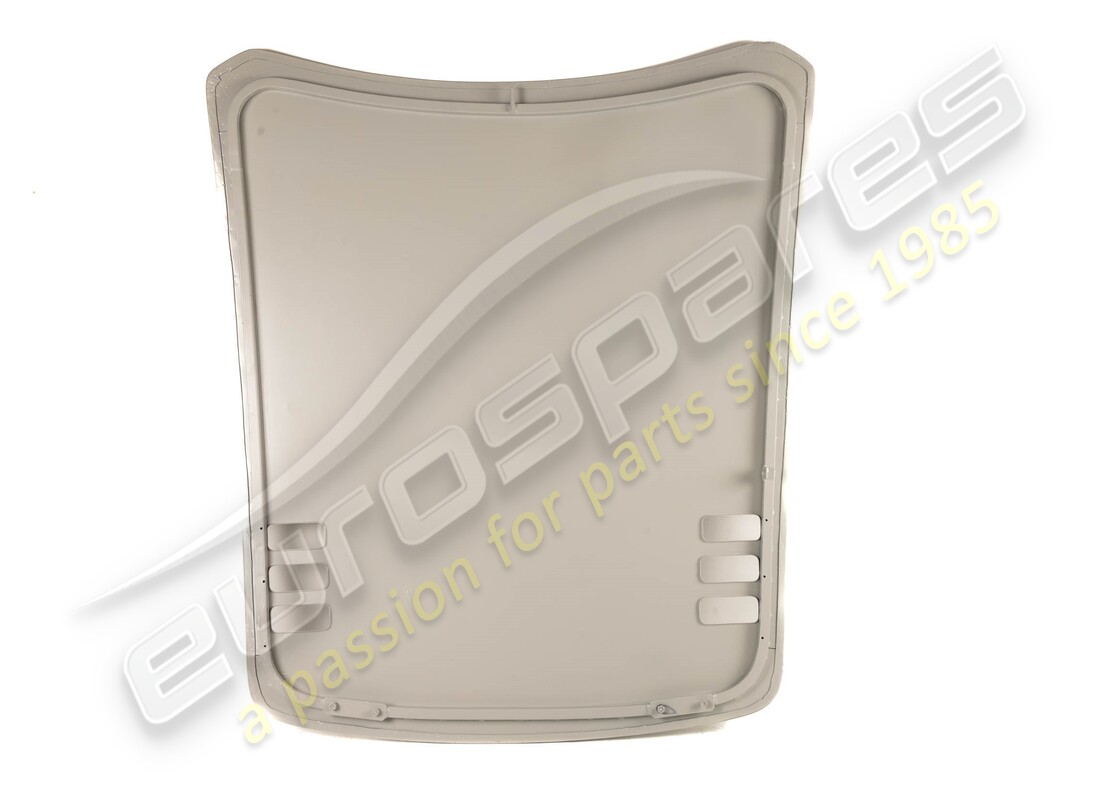

RIVESTIMENTO COFANO MOBILE
from £2,159.86
from £2,159.86
# 002
MPN: 20141404
INTELAIATURA COFANO MOBILE COMPLETA
from £998.98
from £998.98
# 003
MPN: 20100301
SCREW
from £22.70
from £22.70
# 004
MPN: 20149100
WASHER
# 005
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 006
MPN: 20021903
ASTA RITEGNO COFANO
from £92.15
from £92.15
This part replaces part number 20-22-18 - and 5 more. Click to view details
# 007
MPN: 11087975
SEEGER RING
Supersession
Supersession
# 008
MPN: 20023206
PIVOT
from £23.91
from £23.91
# 009
MPN: 20023008
CERNIERA COFANO ANTERIORE DESTRA
Supersession
Supersession
# 009
MPN: 20023107
CEMIERA COFANO ANTERIORE SINISTRA
from £56.77
from £56.77
This part replaces part number 20023008 - and 1 more. Click to view details
# 010
MPN: 20087904
VASCHETTA RIPARO ACQUA
from £174.29
from £174.29
# 011
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 012
MPN: 12643724
WASHER
from £0.51
from £0.51
This part replaces part number 109684 - and 4 more. Click to view details
# 013
MPN: 20047502
FOAM RUBBER STRIP
from £81.77
from £81.77
This part replaces part number 105269 - and 1 more. Click to view details
# 014
MPN: 20069803
DOOR SWITCH
from £10.74
from £10.74
This part replaces part number 148-80-816-00 - and 3 more. Click to view details
# 015
MPN: 20042107
MANIGLIA APERTURA COFANO ANTERIORE
from £665.61
from £665.61
# 016
MPN: 1586411
NUT
# 017
MPN: 13550111
RONDETLA
# 018
MPN: 20041208
GASKET
Alternative : 16326181
Supersession
Supersession
# 019
MPN: 20041901
SERRATURA
from £109.71
from £109.71
This part replaces part number 20-22-22 - and 3 more. Click to view details
# 020
MPN: 202124
CAVO APRICOFANO ANTERIORE
