119 - Heating System

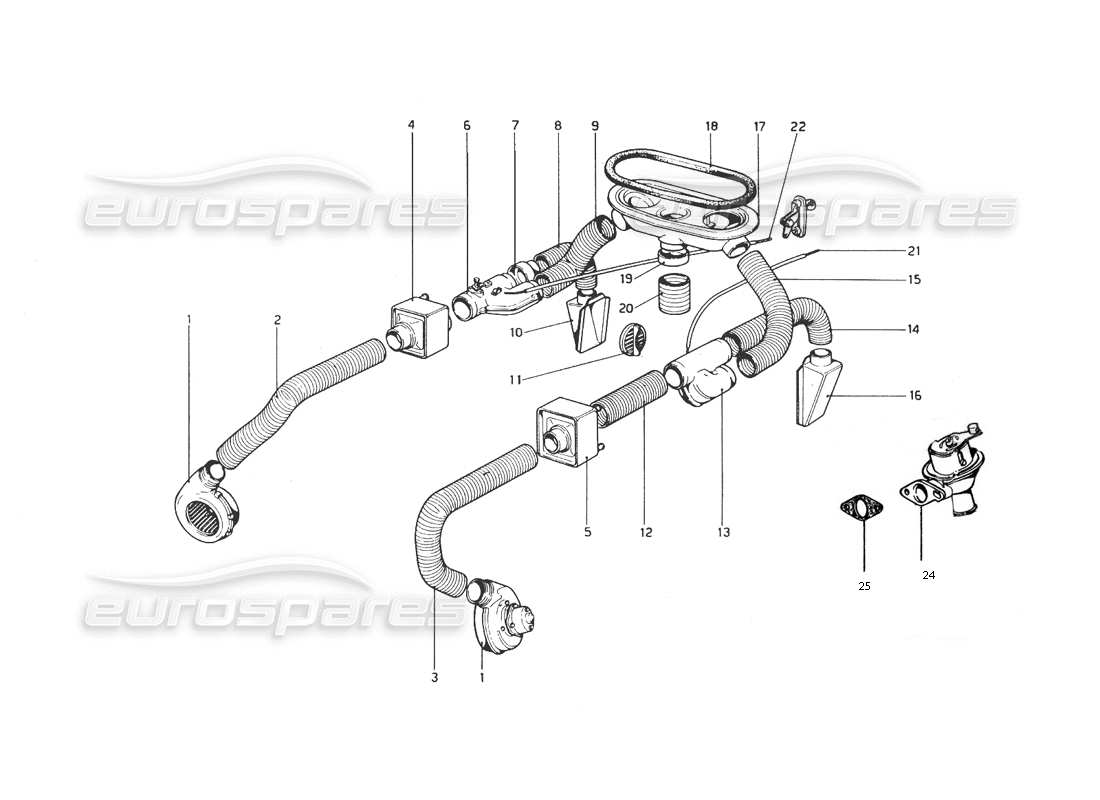

Ferrari 246 Dino (1975) Heating System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 20094405
FAN MOTOR CLOCKWISE
Supersession
Supersession
This part replaces part number 102185 - and 4 more. Click to view details
# 001
MPN: 60091600
RH HEATER BLOWER
from £295.00
from £295.00
This part replaces part number 20094504 - and 1 more. Click to view details
# 002
MPN: 20167607
TUBO CONVOLIIATORE DESTRO
# 002
MPN: 20249401
TUBO CONVOGIIATORE DESTRO
Vale dalla 1266 vett.
# 003
MPN: 60957300
AIR DUCT HOSE
from £91.72
from £91.72
This part replaces part number 40043101 which we have in stock - and 1 more. Click to view details
# 004
MPN: 20098604
RISCALDATORE DESTRO
Vale fino alia 750 vett.
Supersession
Supersession
# 004
MPN: 20167102

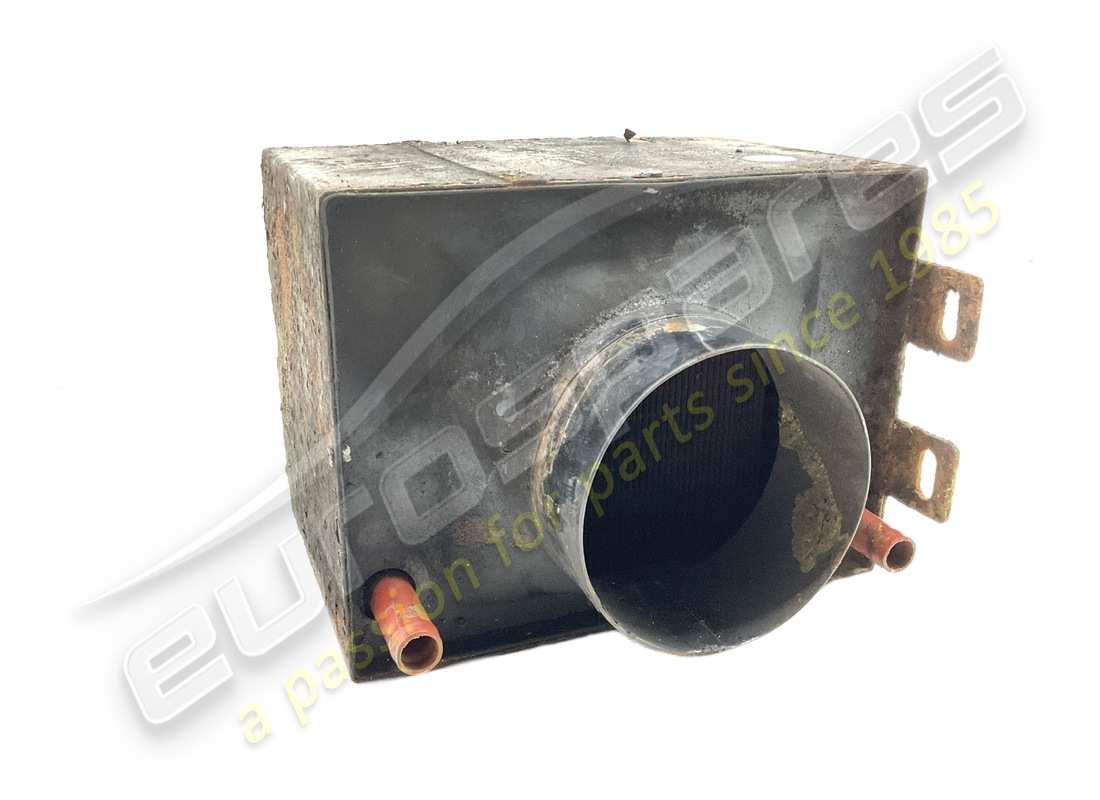

246GT/S RH HEATER MATRIX
USE: 102184
from £581.17
from £581.17
This part replaces part number 102184 - and 3 more. Click to view details
# 004
MPN: 20246609
RISCALDATORE DESTRO
from £685.38
from £685.38
# 005
MPN: 20167003

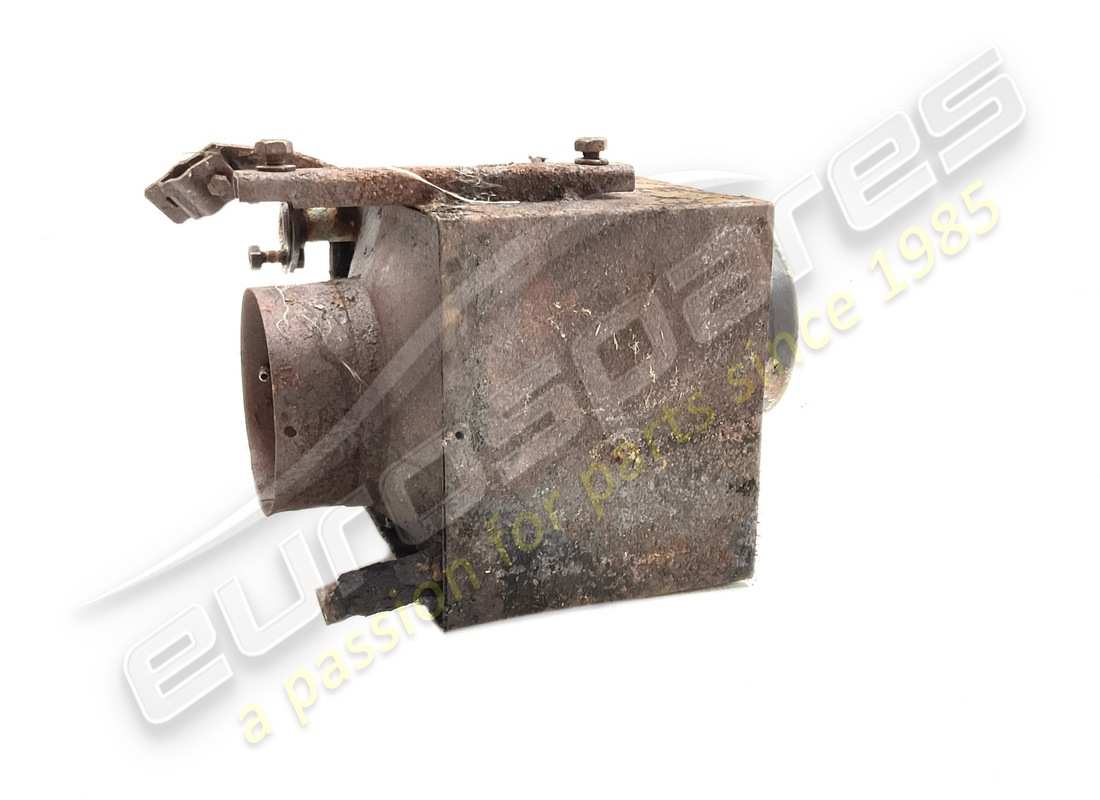

246GT/S LH HEATER MATRIX
use : 100868
from £1,105.83
from £1,105.83
# 006
MPN: 0202465
UNION
Vale dalla 751 vett.
# 007
MPN: 20261000
RIDUZIONE DA Ø 80 A Ø 60
Vale dalla 751 alia 1265 e dalla 1451 in poi
# 008
MPN: 20167201
TUBO Ø 80
# 008
MPN: 20263300
TUBO Ø 60
Non vale dalla 1266 alla 1450 vett.
# 009
MPN: 20167409
TUBO Ø 80
from £80.90
from £80.90
This part replaces part number 20062907
# 010
MPN: 20075503
CONVOGLIATORE DESTRO Ø 60
from £45.95
from £45.95
# 010
MPN: 20249700
CONVOGLIATORE DESTRO Ø 80
# 011
MPN: 20103800
BOCCHETTE
from £403.95
from £403.95
# 012
MPN: 20167700
TUBO Ø 80
# 013
MPN: 20226809
UNION
from £834.15
from £834.15
# 014
MPN: 20167201
TUBO Ø 80
# 015
MPN: 20167300
TUBO Ø 80
# 016
MPN: 20075602
CONVOGLIATORE SINISTRO Ø 80
# 017
MPN: 20142709
DIVERTER
from £971.46
from £971.46
This part replaces part number 50022805 - and 1 more. Click to view details
# 018
MPN: 20143300
Guarnizione
from £36.94
from £36.94
# 019
MPN: 20143202
PLUG
from £12.85
from £12.85
# 020
MPN: 20247600
TUBO Ø 100
# 021
MPN: 30047900
CAVO COMANDO DEFROSTER SINISTRO
# 022
MPN: 20262300
CAVO COMANDO DEFROSTER DESTRO
# 023
MPN: 257-86-638-00
CHOKE CABLE
from £6.09
from £6.09
# 024
MPN: 4205723
HEATER VALVE
from £352.68
from £352.68
This part replaces part number 104292 - and 1 more. Click to view details
# 025
MPN: 104291
GASKET
from £3.75
from £3.75
This part replaces part number 401009 - and 1 more. Click to view details
